Power Window Motor

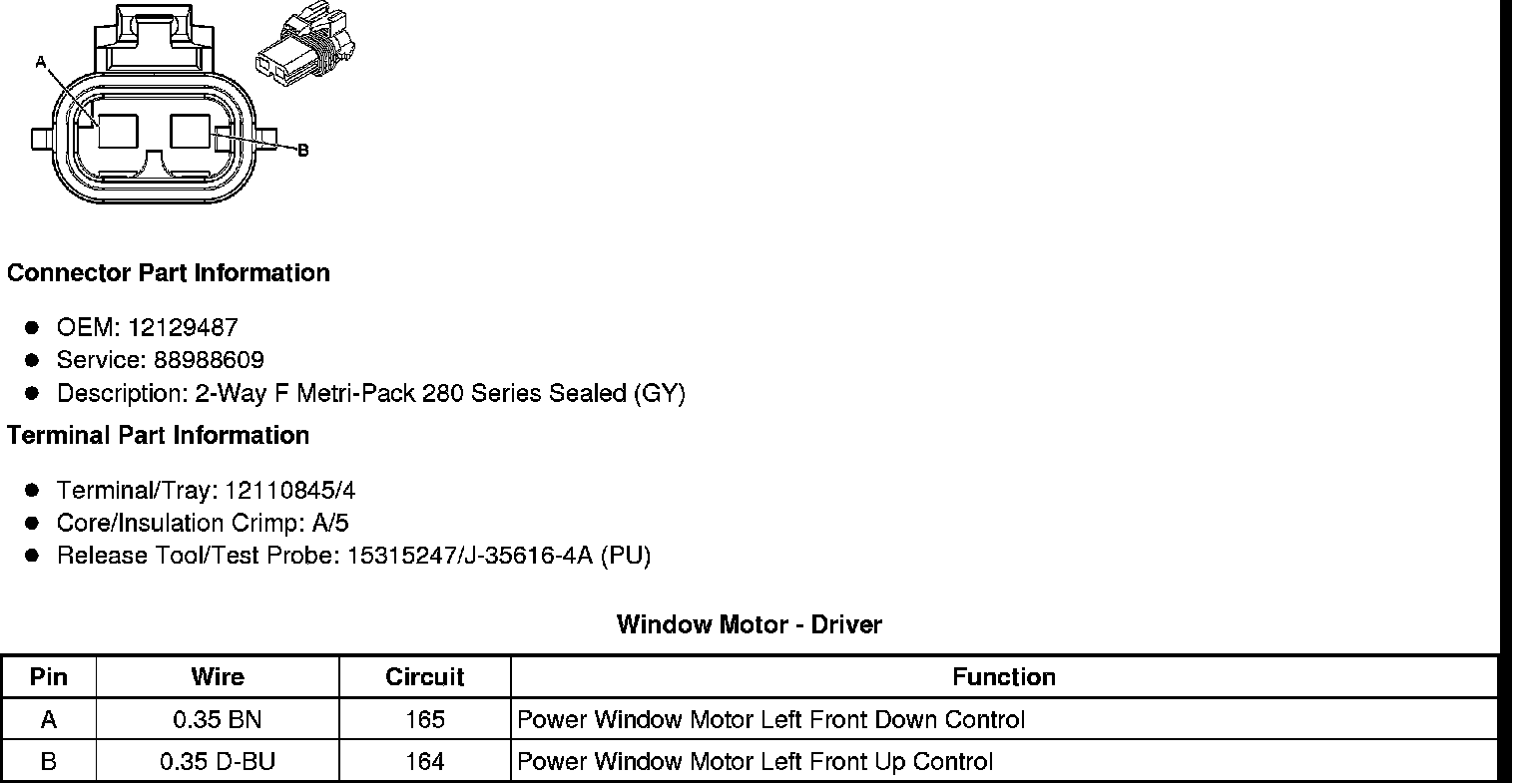

Window Motor - Driver






Window Motor - Left Rear (without Panel Van)






Window Motor - Passenger

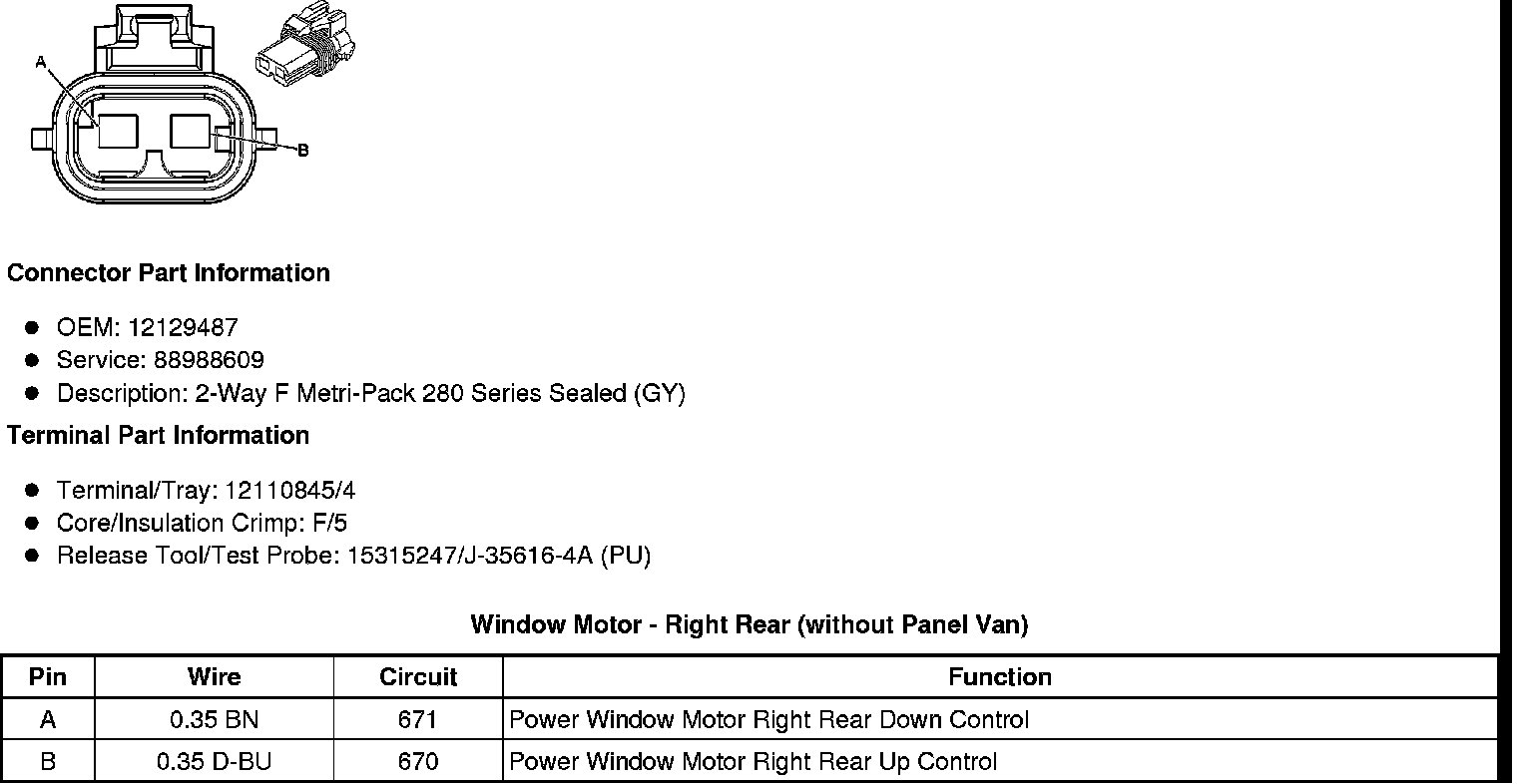

Window Motor - Right Rear (without Panel Van)
