Turn Signals




Park/Turn Signal/DRL Lamp - Left Front

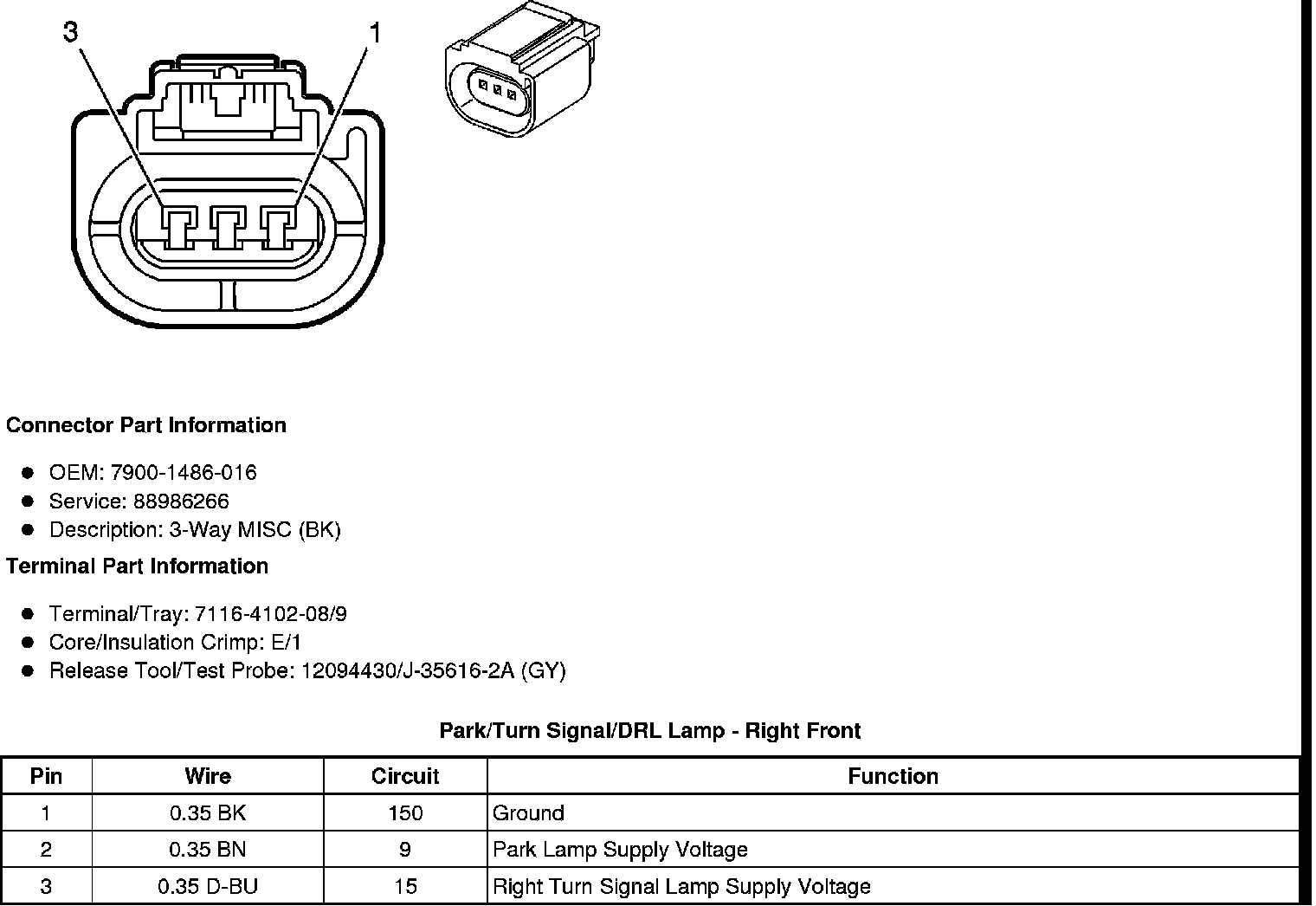

Park/Turn Signal/DRL Lamp - Right Front

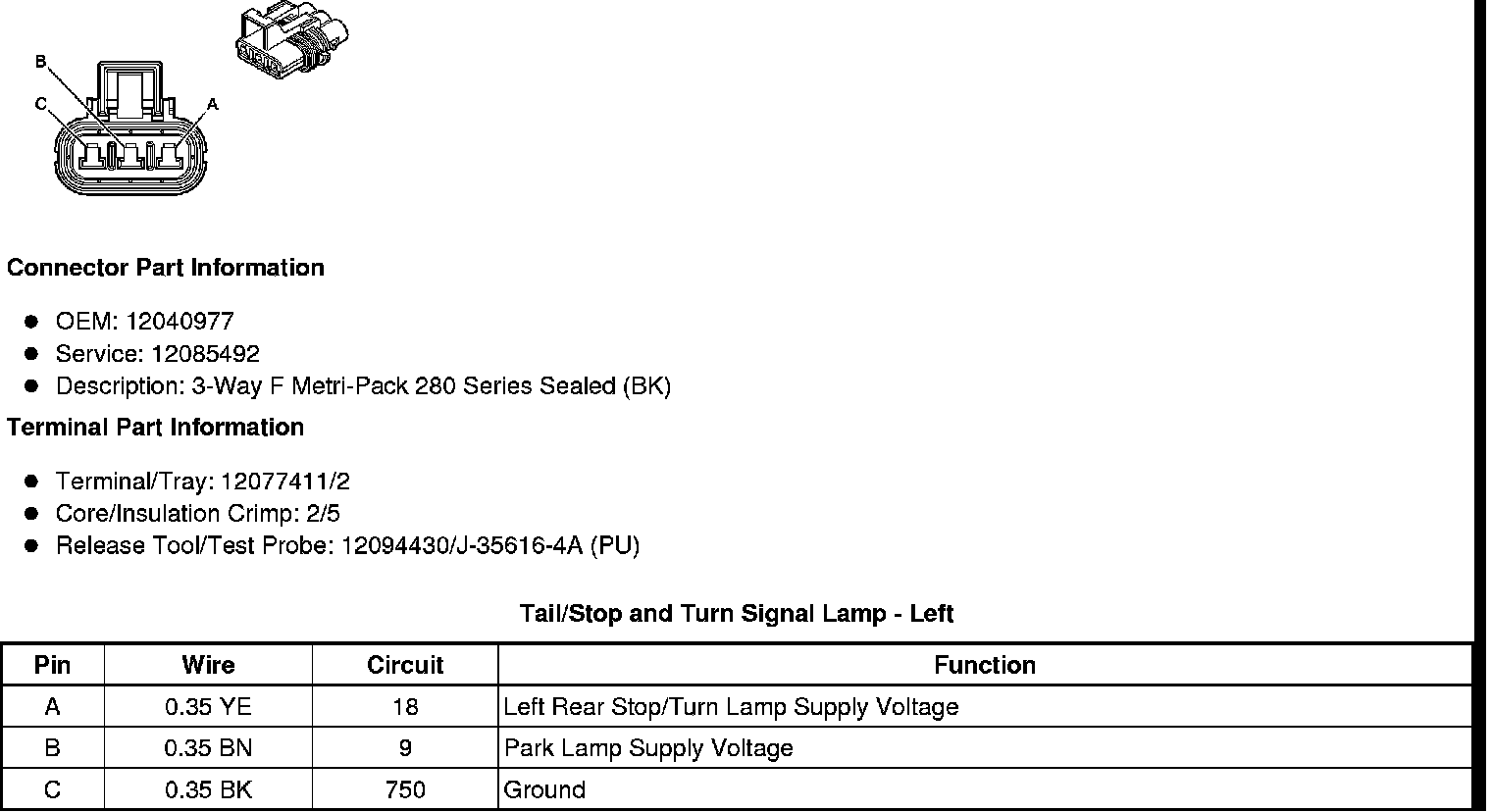

Tail/Stop and Turn Signal Lamp - Left

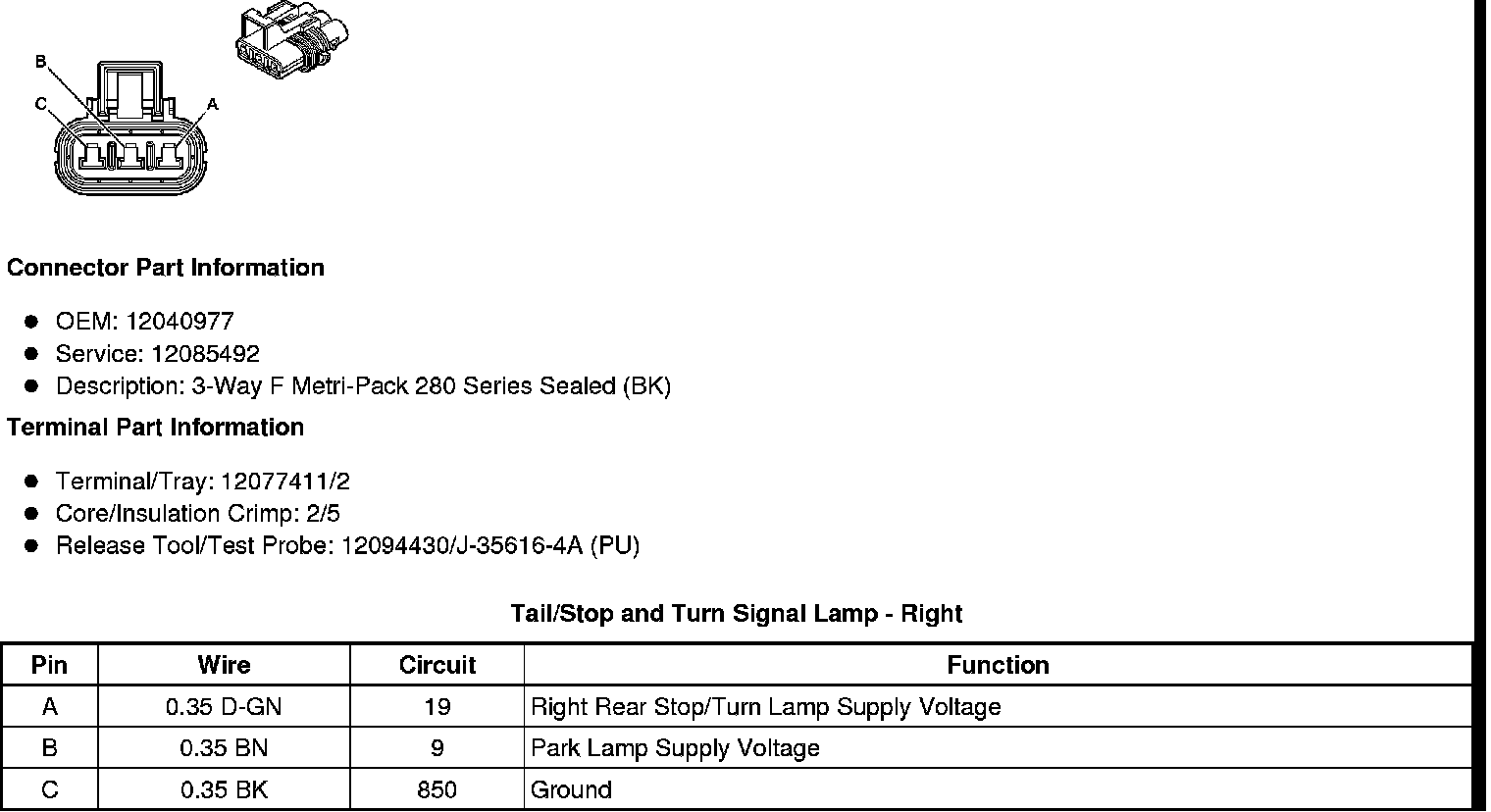

Tail/Stop and Turn Signal Lamp - Right
