Front Toe Adjustment

Front Toe Adjustment





1. Ensure that the steering wheel is set in a straight ahead position.

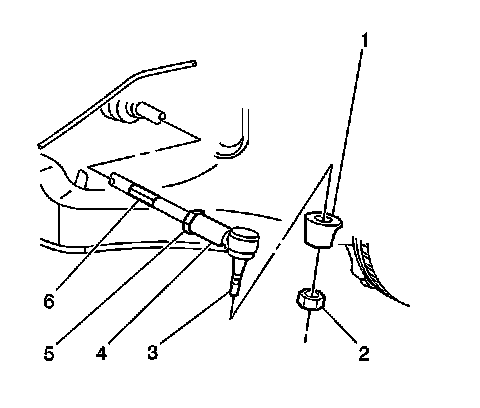

2. Loosen the tie rod jam nut (5).
3. Adjust the toe to specification by turning the inner tie rod (6). Refer to Wheel Alignment Specifications (Specifications) .

Notice: Refer to Fastener Notice (Fastener Notice) .

4. Tighten the tie rod jam nut (5).

Tighten the tie rod jam nut (5) to 68 N.m (50 lb ft).
