Air Flow Meter/Sensor: Service and Repair

Mass Airflow Sensor Replacement

Removal Procedure





1. Remove the air cleaner assembly. Refer toAir Cleaner Assembly Replacement (Service and Repair) .

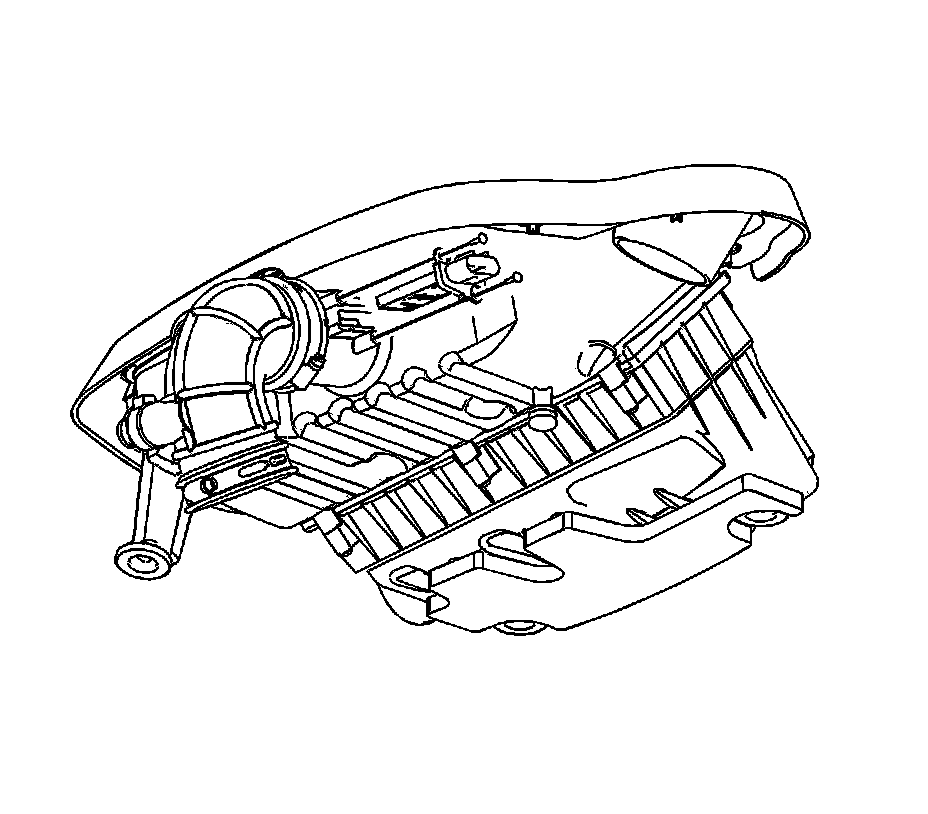

2. Remove the MAF sensor screws.
3. Remove the MAF sensor.



Installation Procedure





1. Install the MAF sensor.

Notice: Refer to Fastener Notice (Fastener Notice) .

2. Install the MAF sensor screws.

Tighten the screws to 10 N.m (89 lb in).

3. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement (Service and Repair) .
