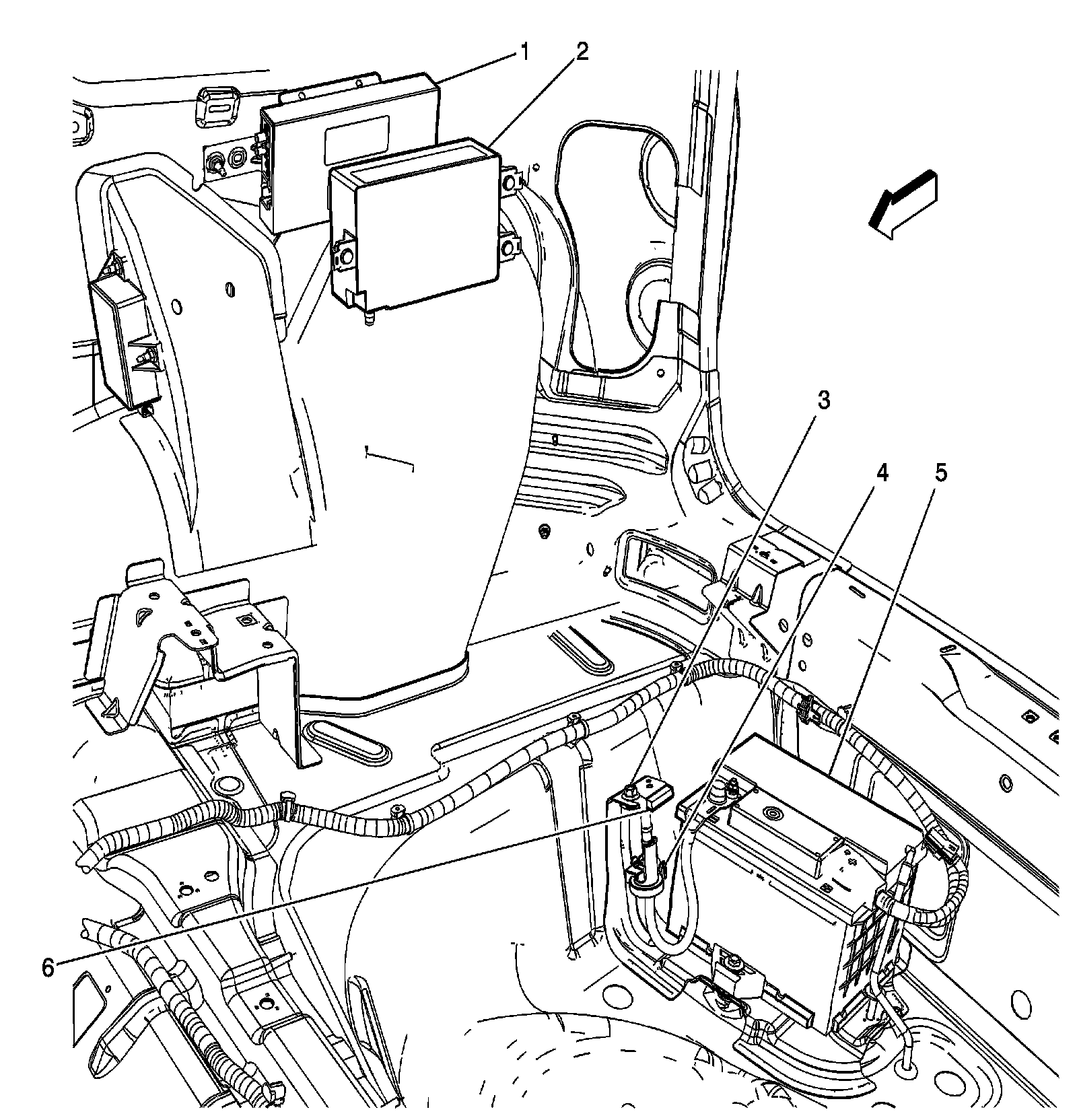

Battery Current Sensor: Locations

Right Rear of the Passenger Compartment




1 - Digital Radio Receiver (U2K)
2 - Vehicle Communication Interface Module (VCIM) (UE1)
3 - G403
4 - Battery Current Sensor
5 - Battery
6 - Inline Fuse - 50 AMP
