Data Link Connector: Service and Repair

Data Link Connector Replacement

Removal Procedure

1. Lower the instrument panel (I/P) closeout panel. Refer to Instrument Panel Insulator Replacement (Service and Repair) .

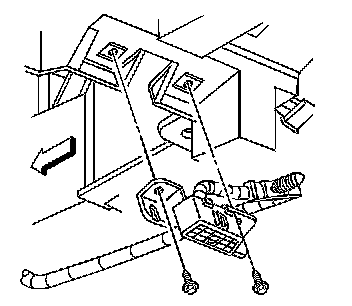

2. Remove the screws securing the data link connector (DLC) to the I/P carrier.



Installation Procedure






Notice: Refer to Fastener Notice (Fastener Notice) .

1. Install the screws securing the DLC to the I/P carrier.

Tighten the screws to 2 N.m (18 lb in).

2. Install the I/P closeout panel. Refer to Instrument Panel Insulator Replacement (Service and Repair) .
