Connector Views

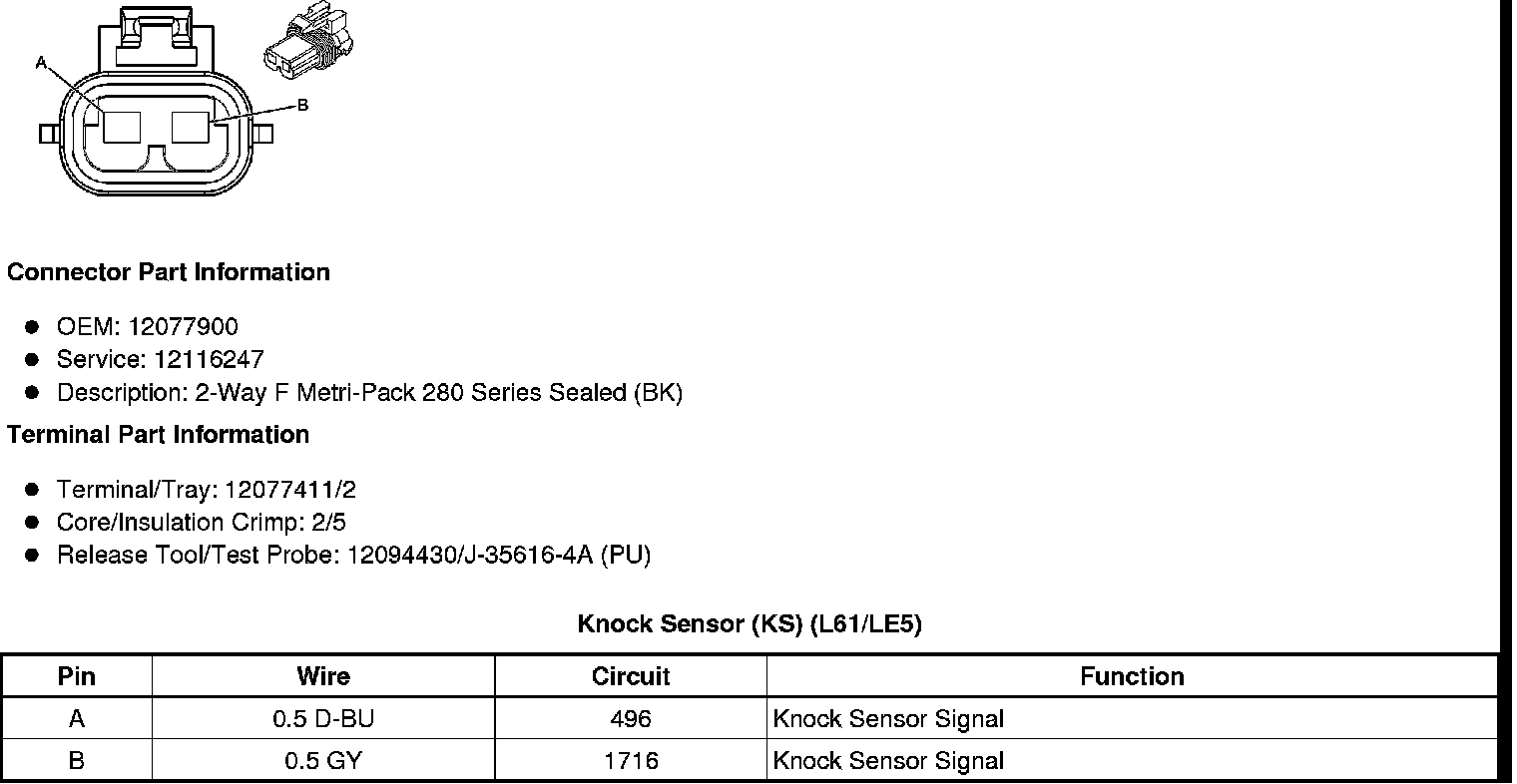

Knock Sensor (KS) (L61/LE5)

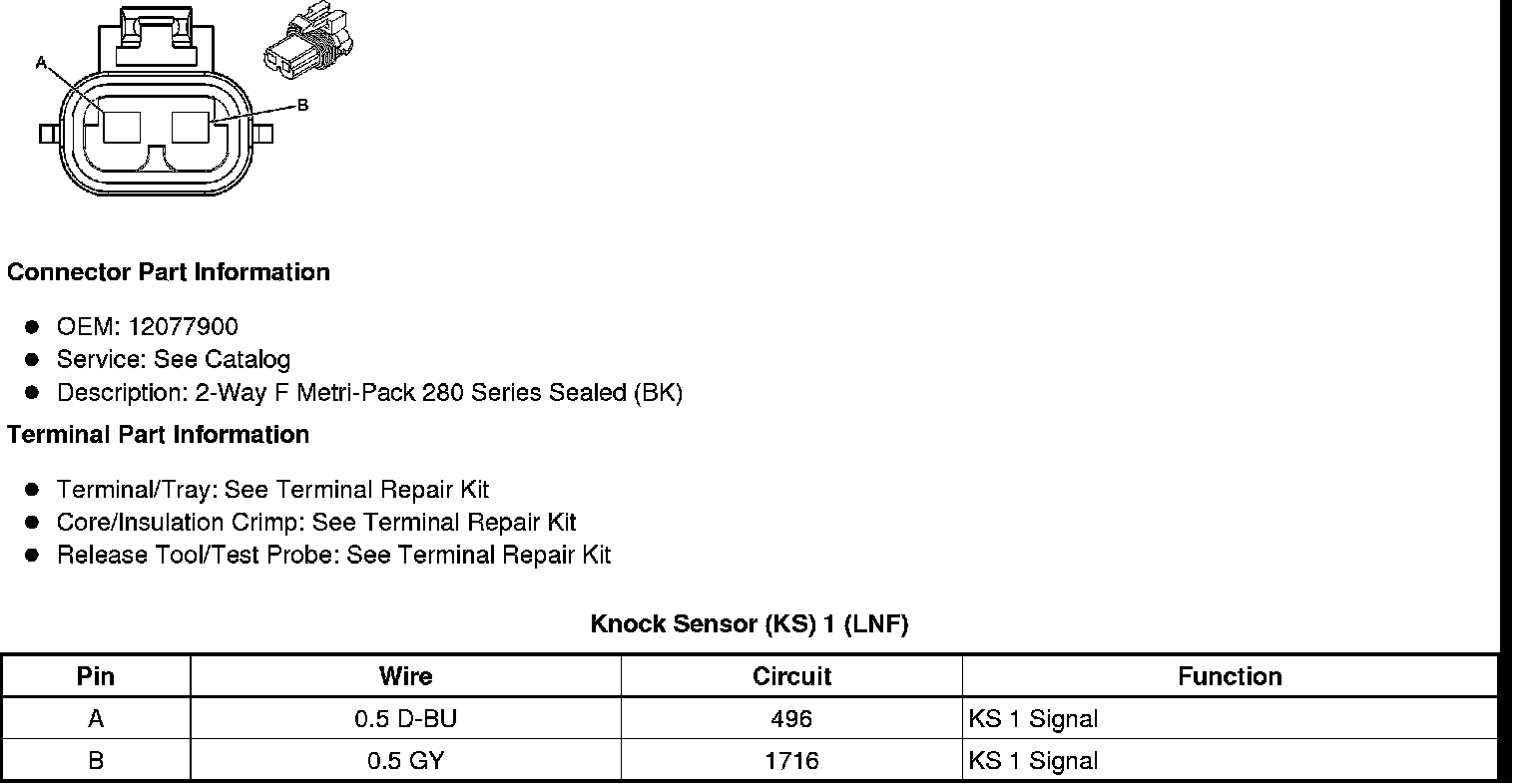

Knock Sensor (KS) 1 (LNF)






Knock Sensor (KS) 2 (LNF)
