Power Window Switch



Component Connector End Views - Continued

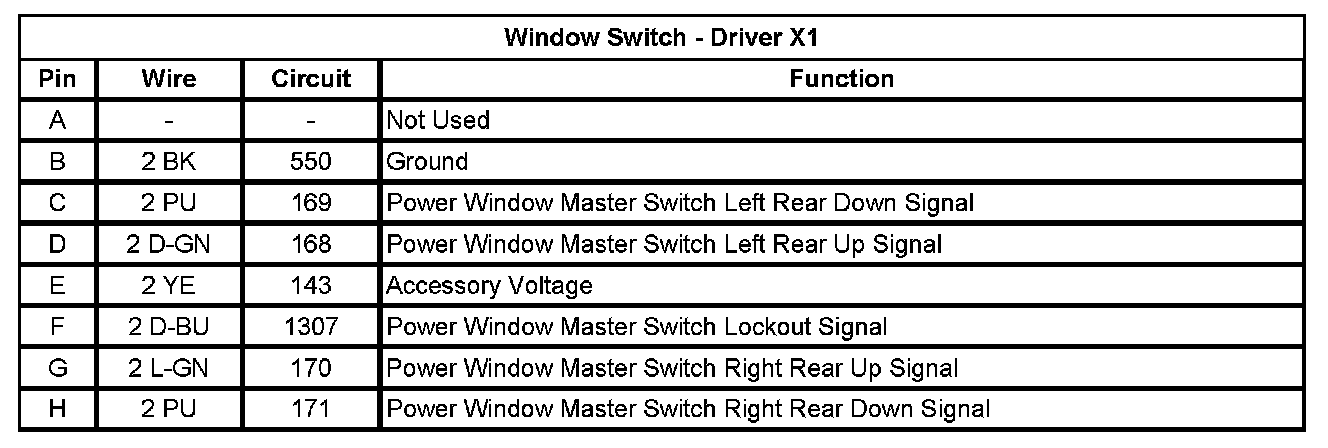

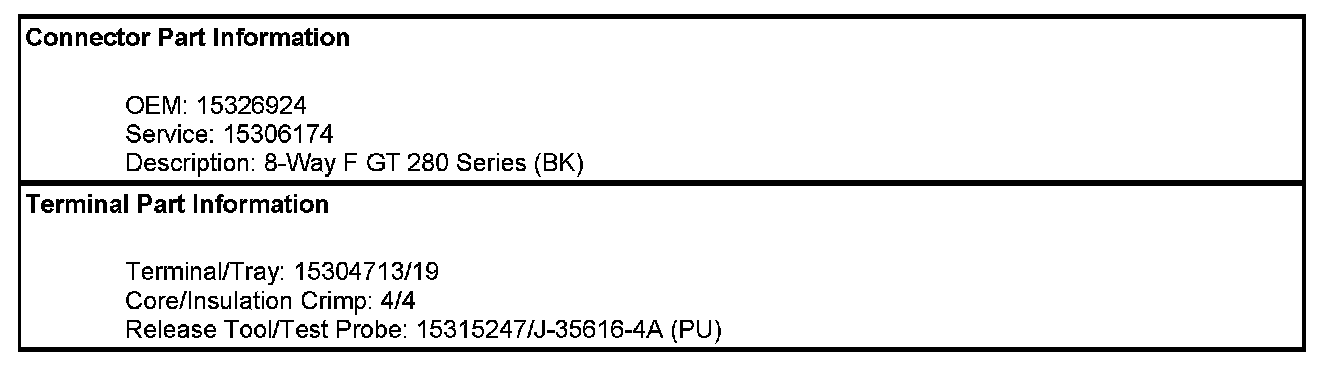

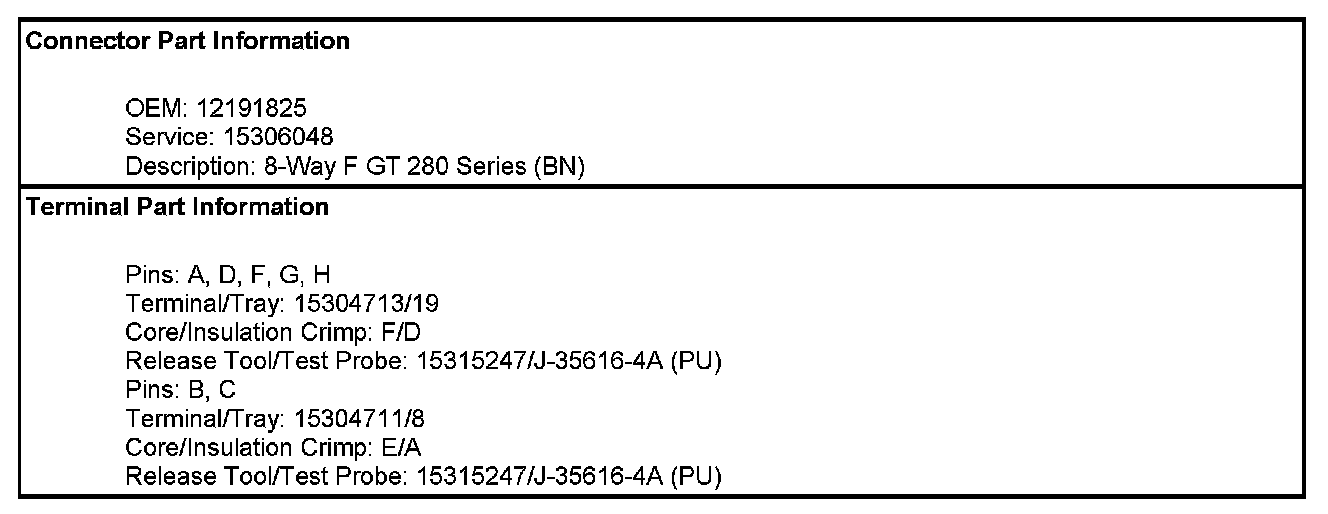

Window Switch - Driver X1

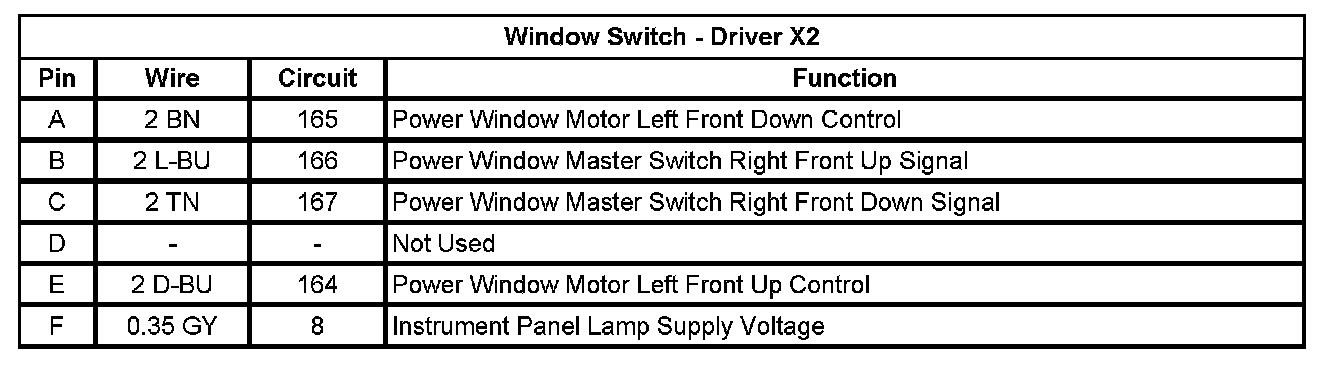

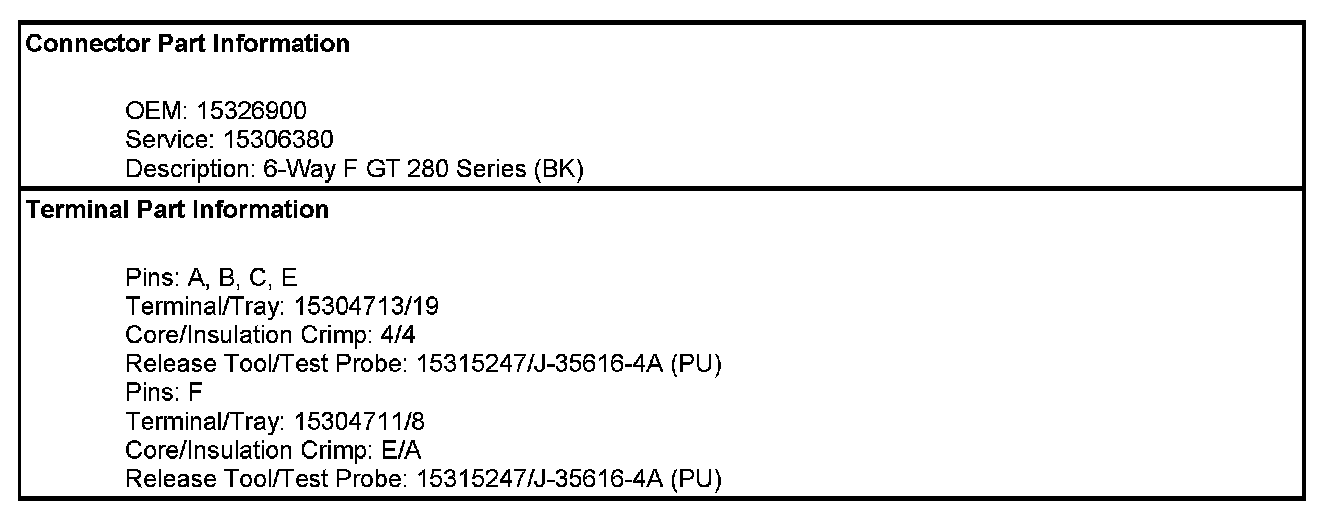

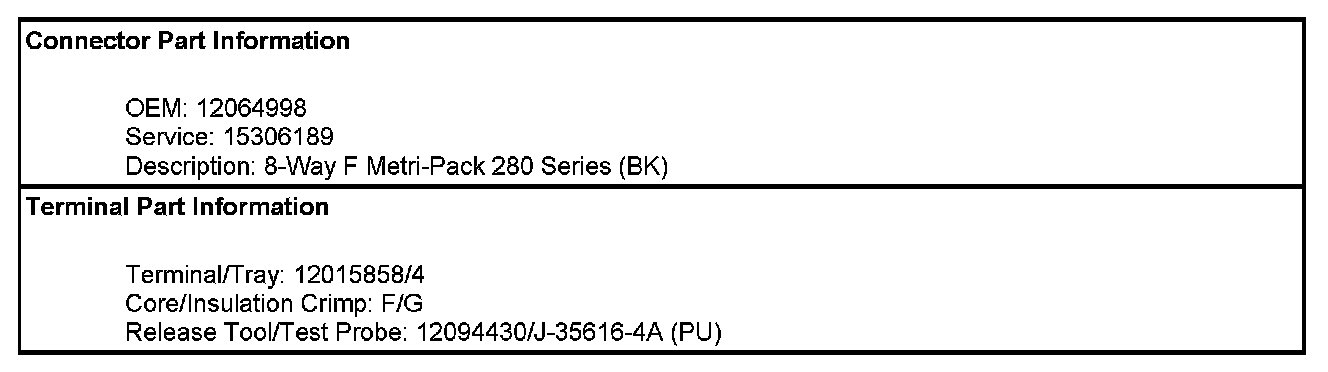

Window Switch - Driver X2

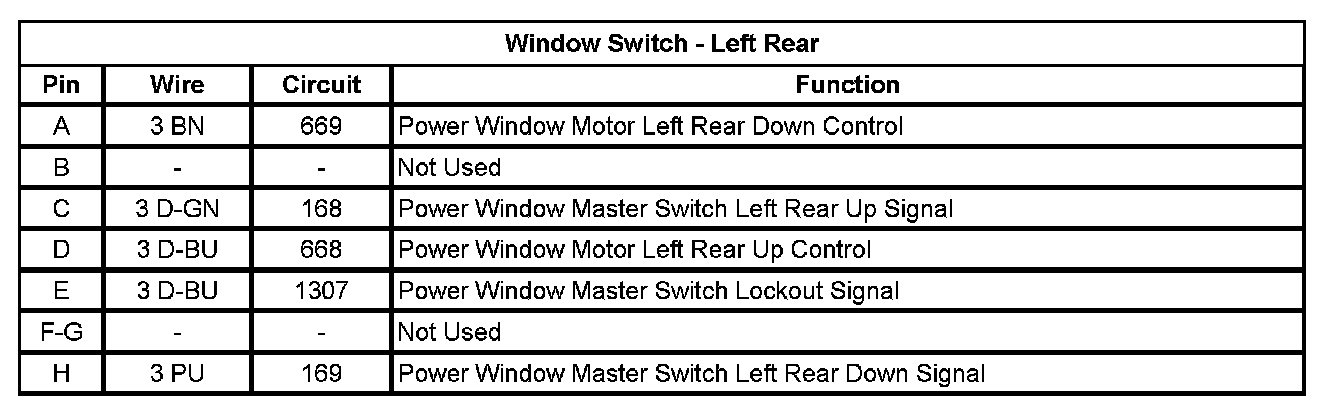

Window Switch - Left Rear

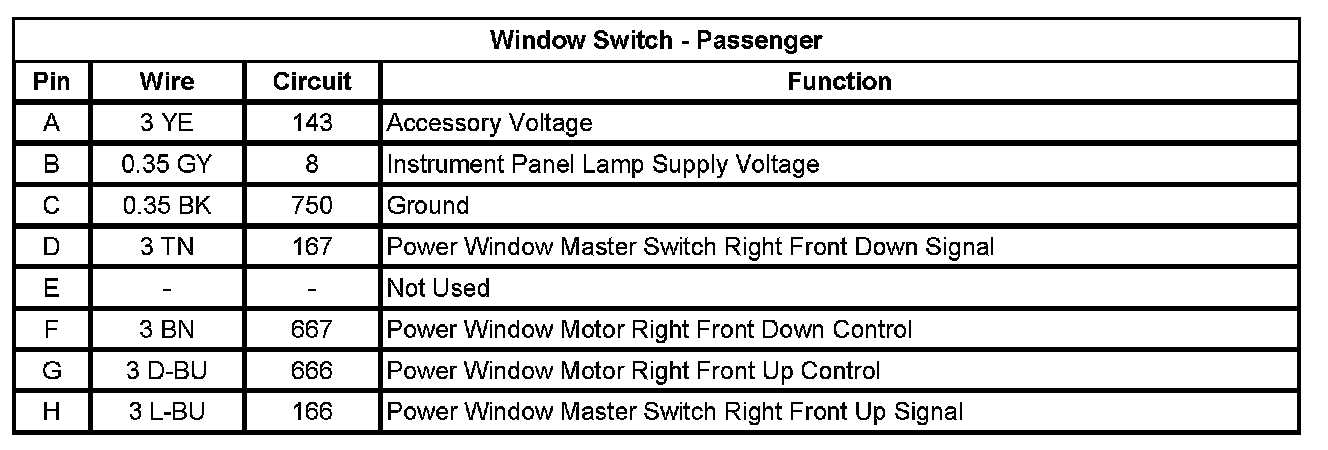

Window Switch - Passenger

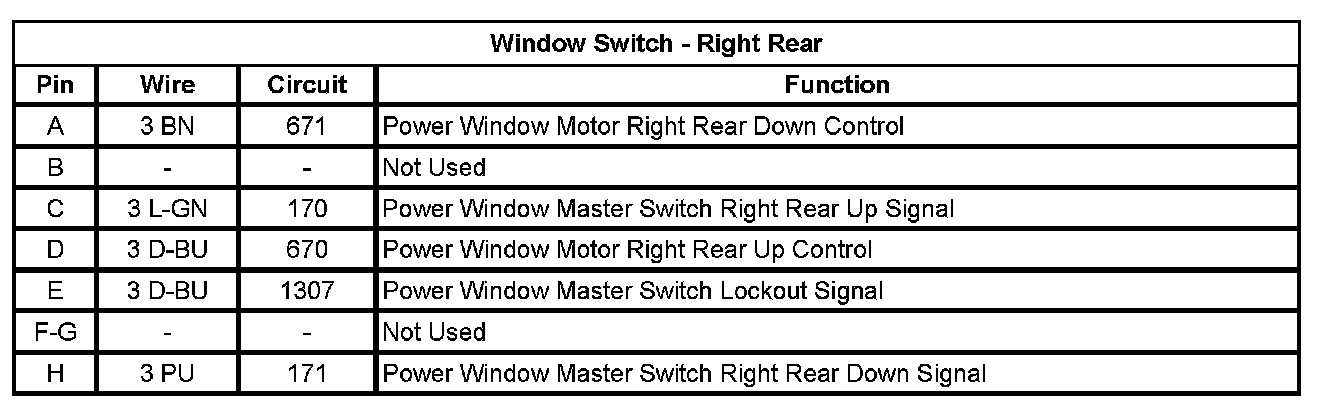

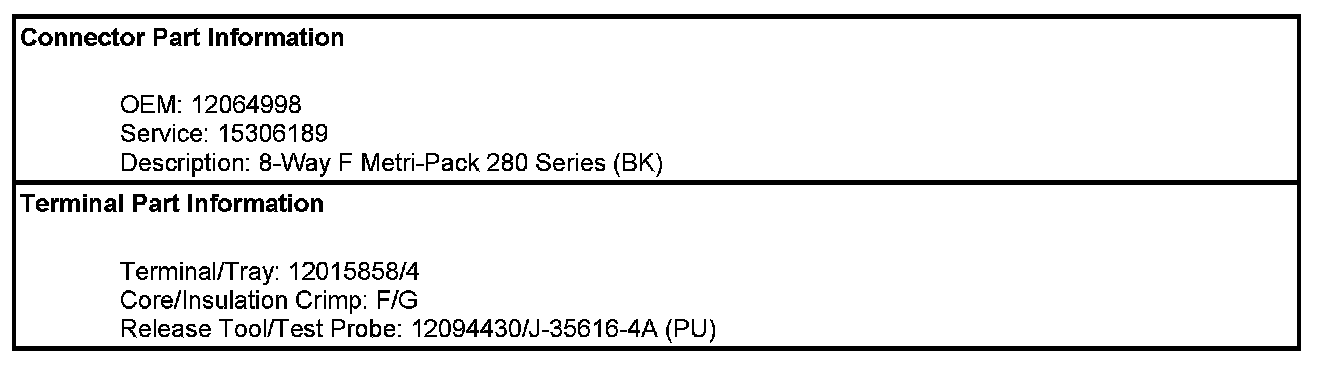

Window Switch - Right Rear
