Control Valve Body Bolts

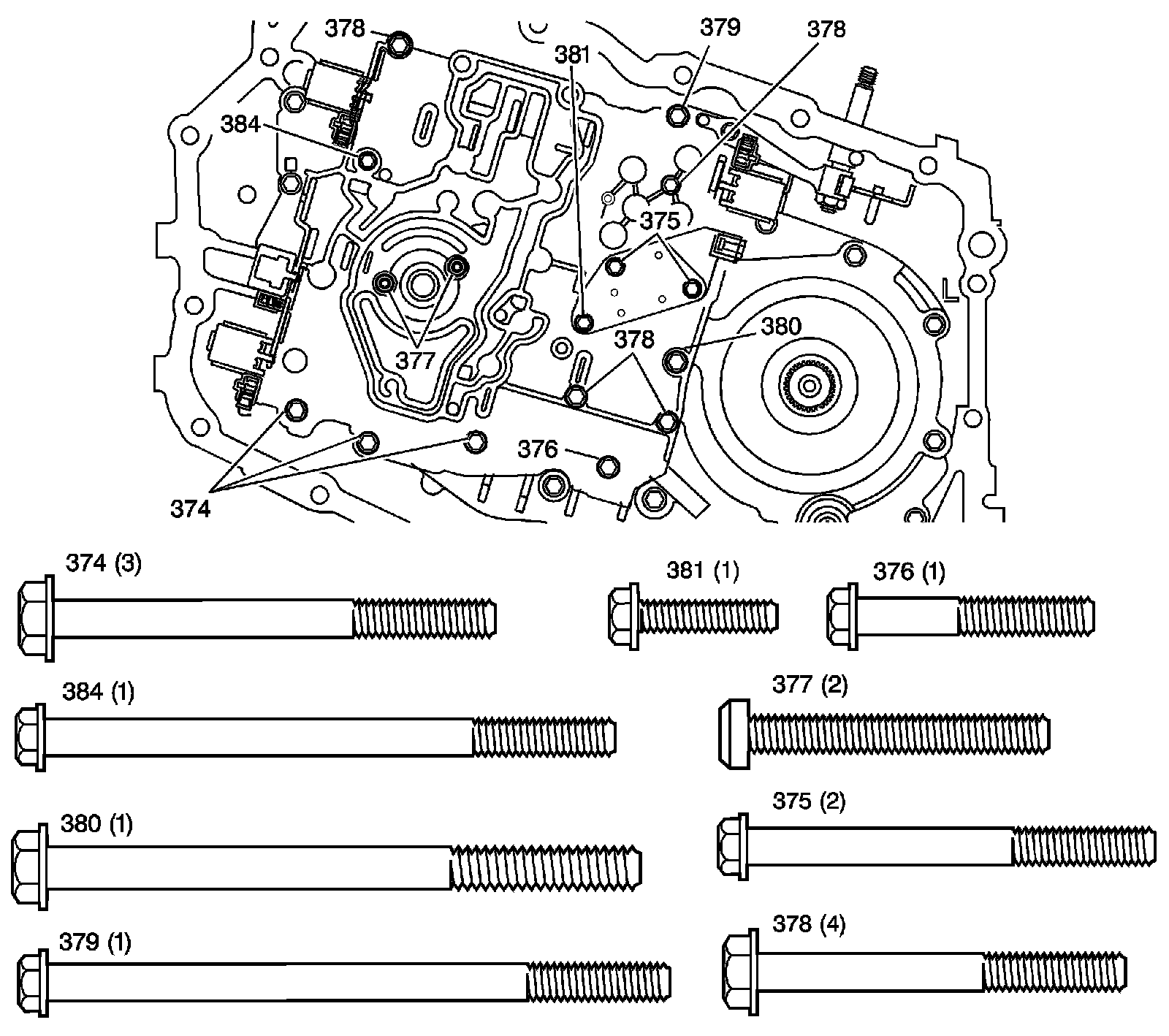

Component Location

Control Valve Body Bolts

Control Valve Body Bolts:

374 - Control Valve Body Bolt/Screw M6 X 1.0 X 65.0 (3)
375 - Control Valve Body Bolt/Screw M6 X 1.0 X 60.0 (2)
376 - Control Valve Body Bolt/Screw M6 X 1.0 X 30.0 (1)
377 - Control Valve Body Bolt/Screw M6 X 1.0 X 45.0 (2)
378 - Control Valve Body Bolt/Screw M6 X 1.0 X 55.0 (3)
379 - Control Valve Body Bolt/Screw M6 X 1.0 X 87.5 (1)
380 - Control Valve Body Bolt/Screw M8 X 1.0 X 90.0 (1)
381 - Control Valve Body Bolt/Screw M6 X 1.0 X 20.0 (1)
384 - Control Valve Body Bolt/Screw M6 X 1.0 X 85.0 (1)
