Front of Vehicle/Engine Compartment Component Views

Front of Vehicle/Engine Compartment Component Views

Right Front of the Engine Compartment




1 - Fuse Block - Underhood
2 - Generator
3 - Brake Fluid Level Switch
4 - Battery
5 - Inflatable Restraint Front End Sensor - Right
6 - G100
7 - Horn Assembly
8 - Windshield Washer Fluid Container
9 - Windshield Washer Fluid Level Switch
10 - Windshield Washer Fluid Pump
11 - Battery Current Sensor
12 - G102

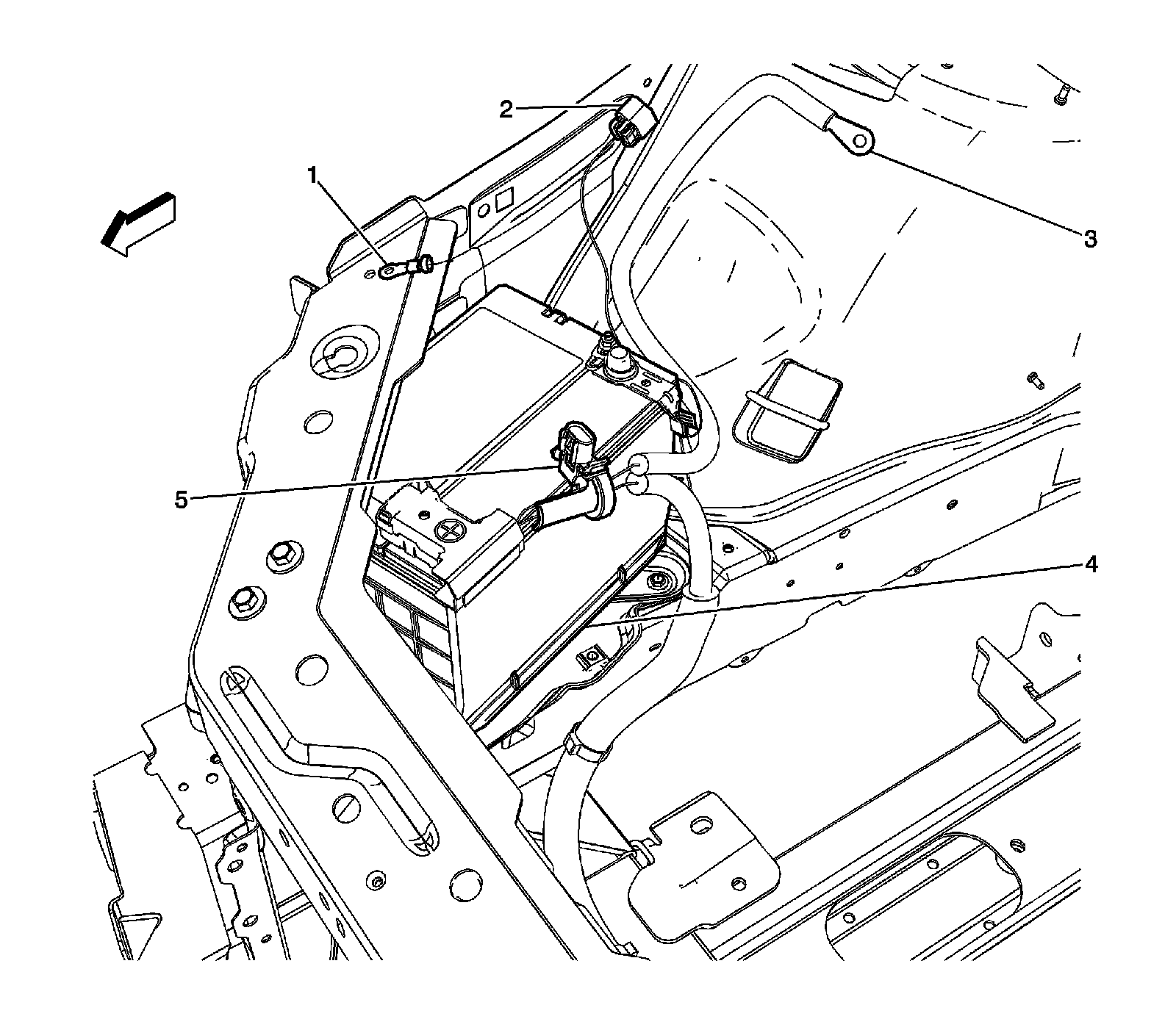

Battery Attachments (LZE/LZ4/LZ8)




1 - G102
2 - X105
3 - Fuse Block - Underhood Positive Battery Cable Terminal
4 - Battery
5 - Battery Current Sensor
