A - Z Index

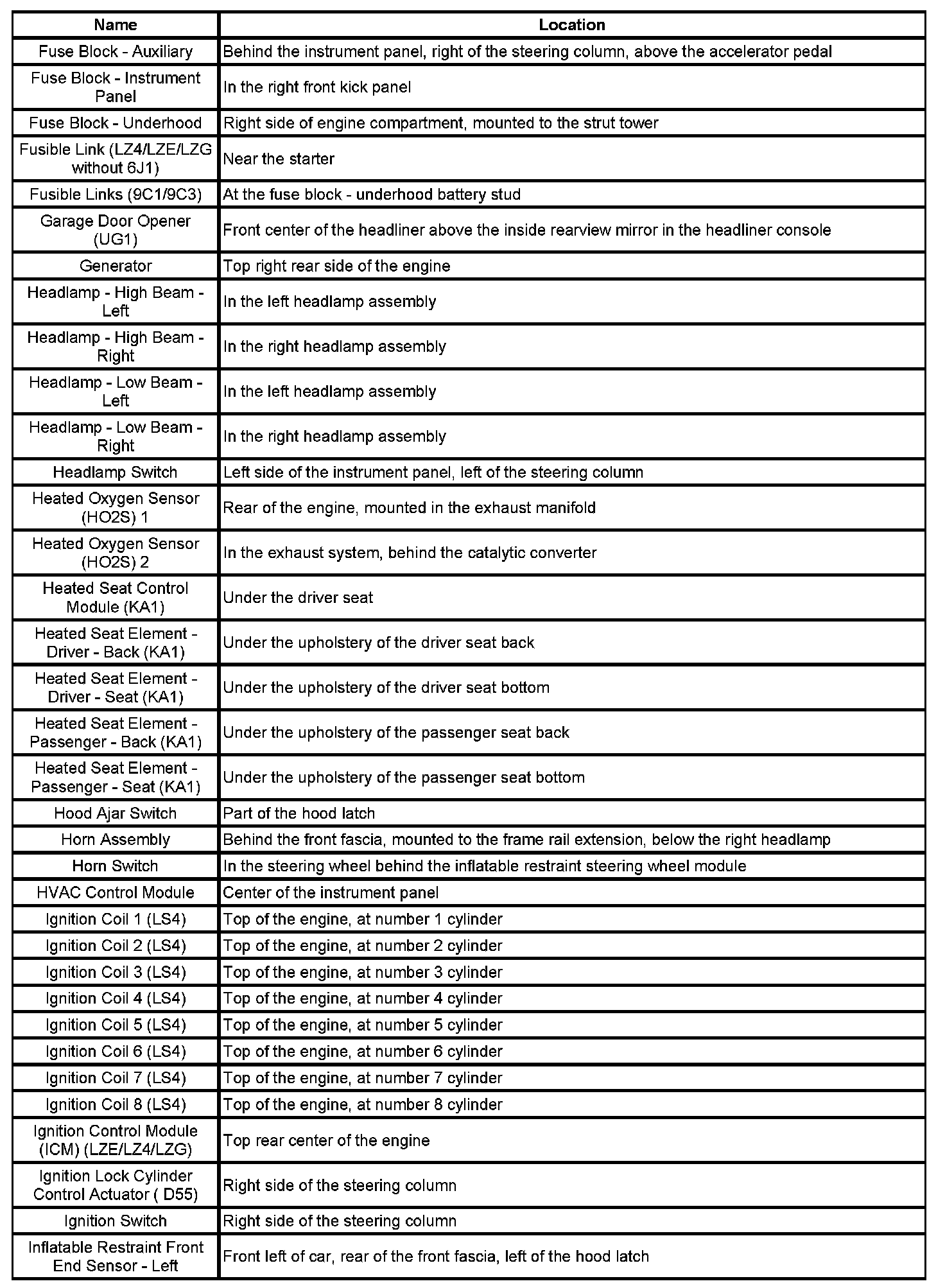

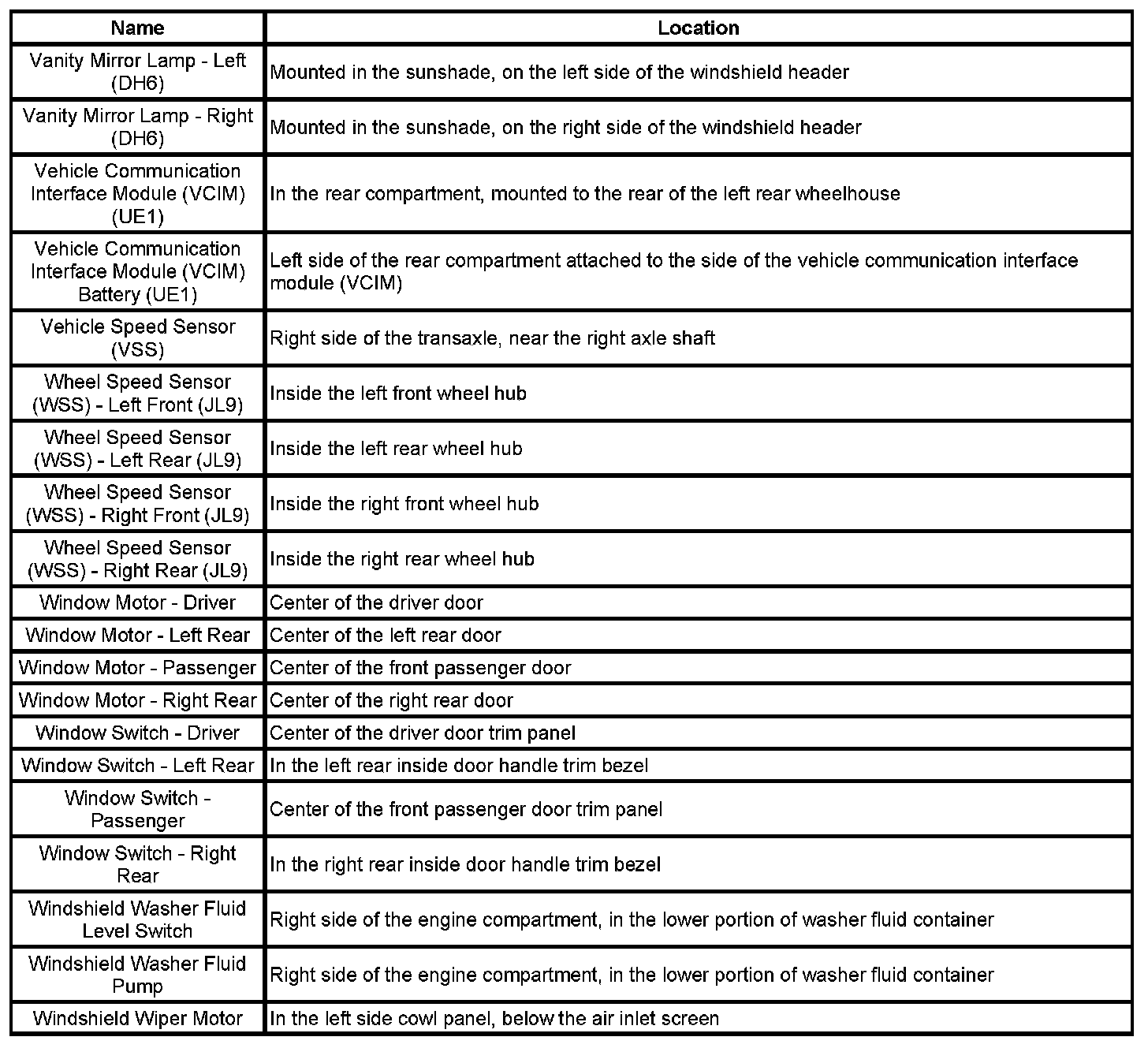

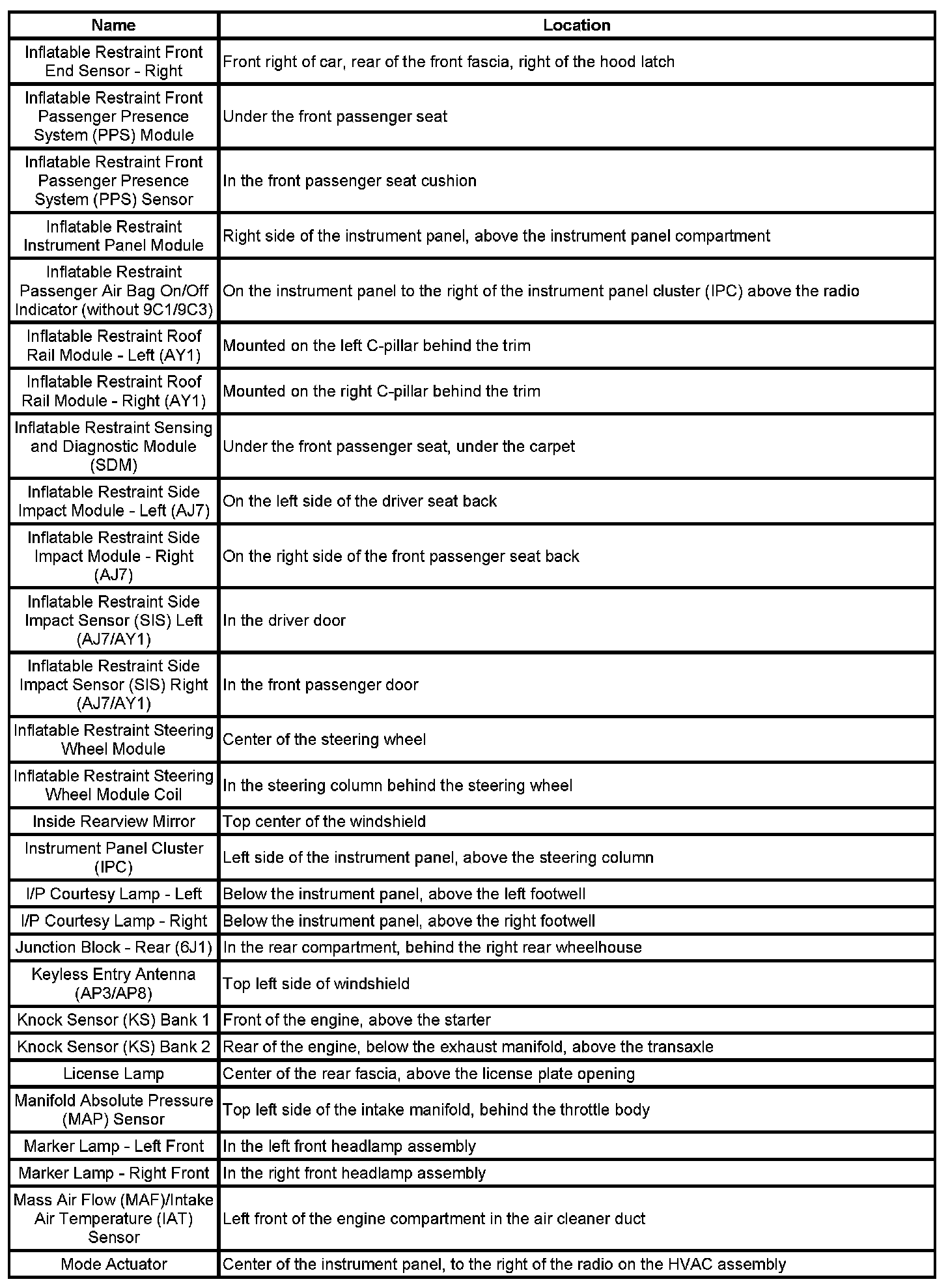

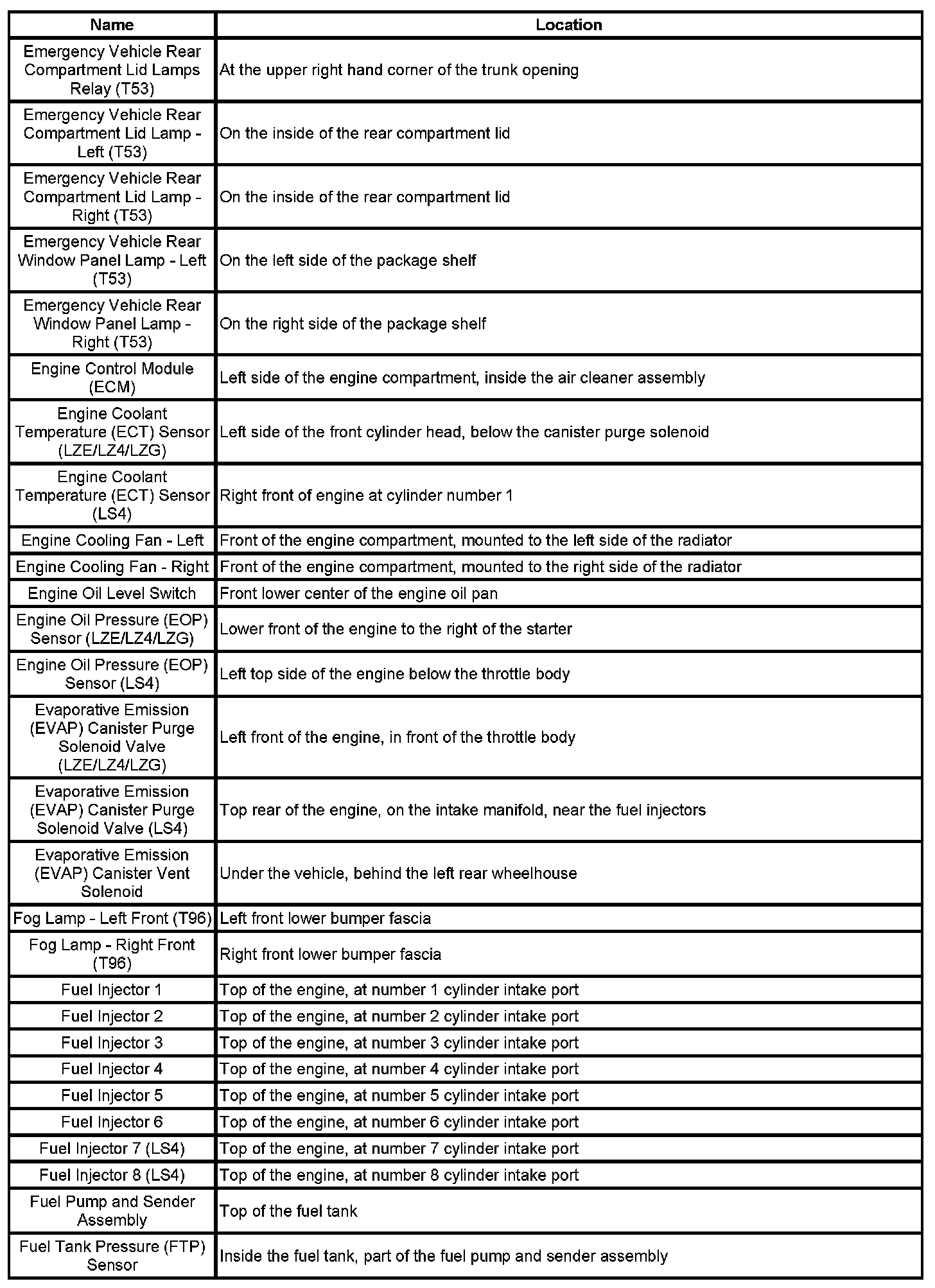

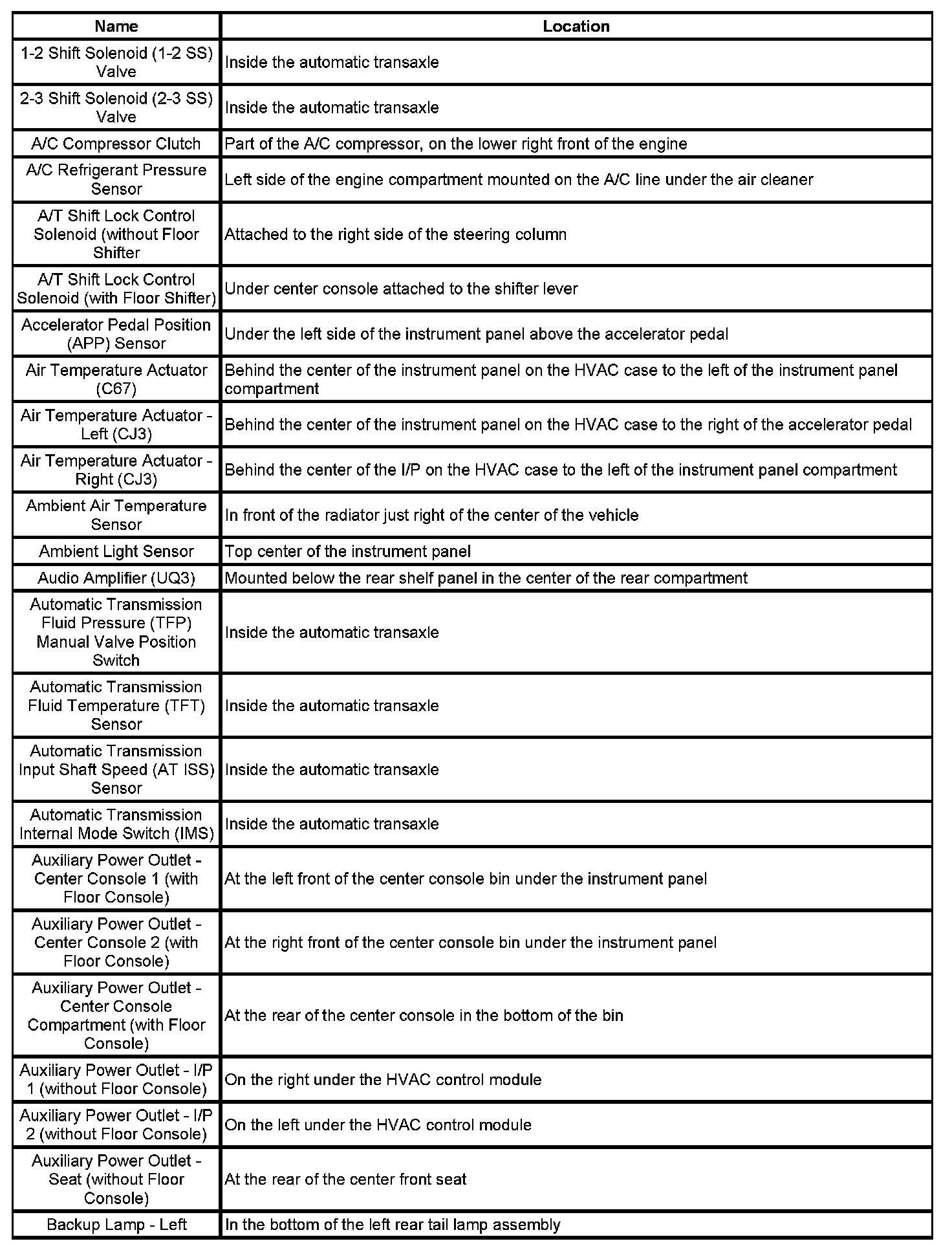

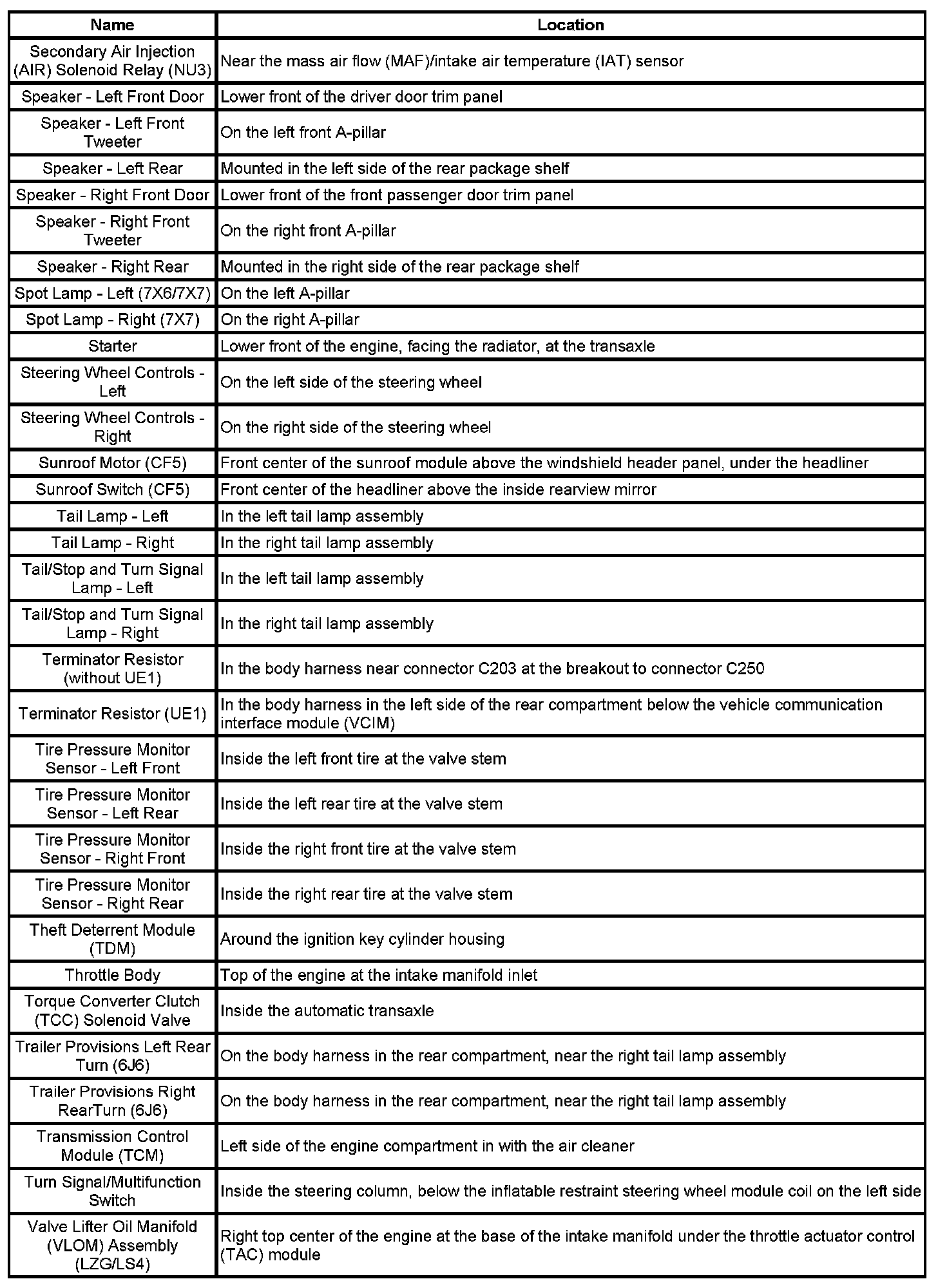

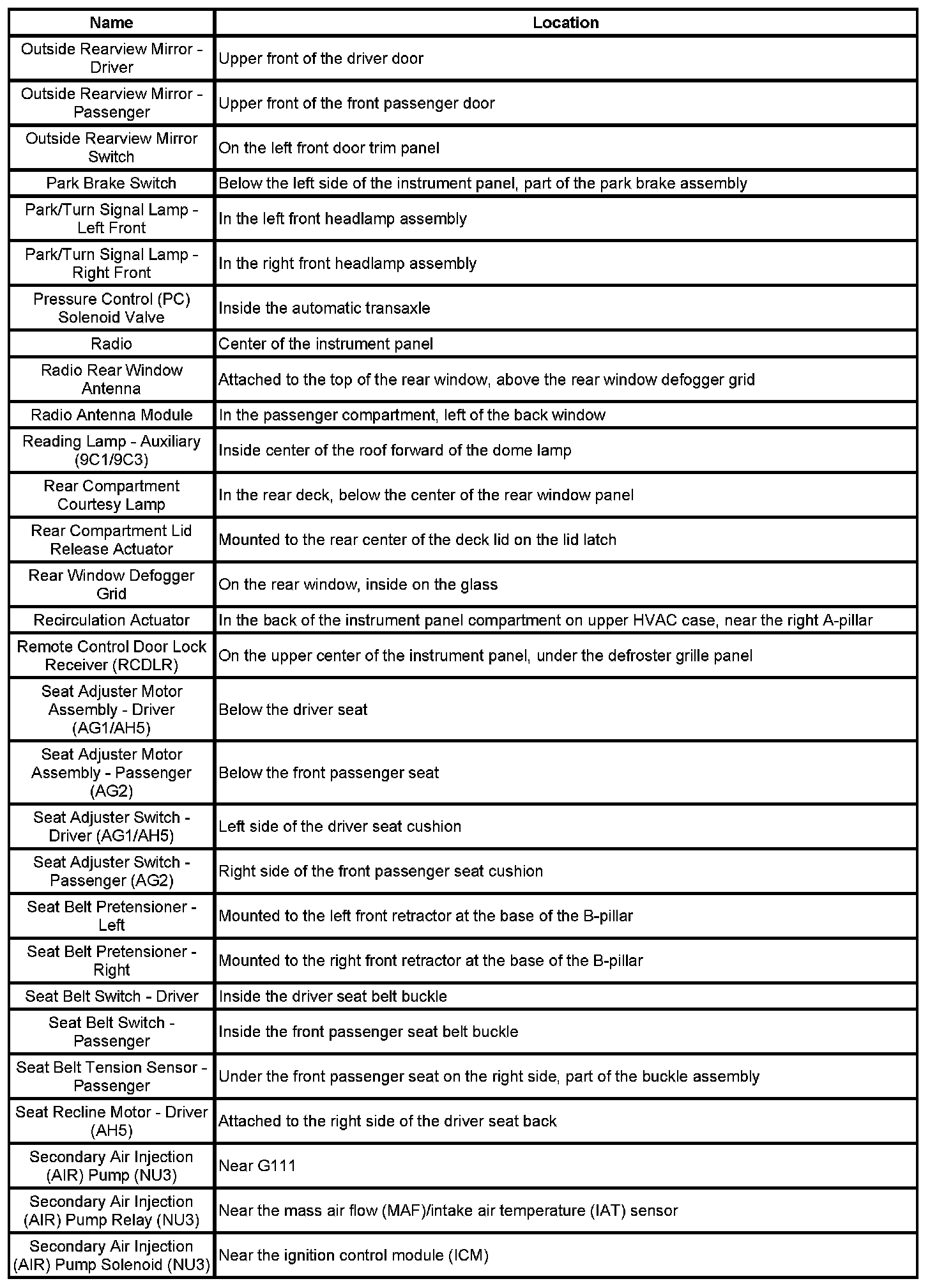

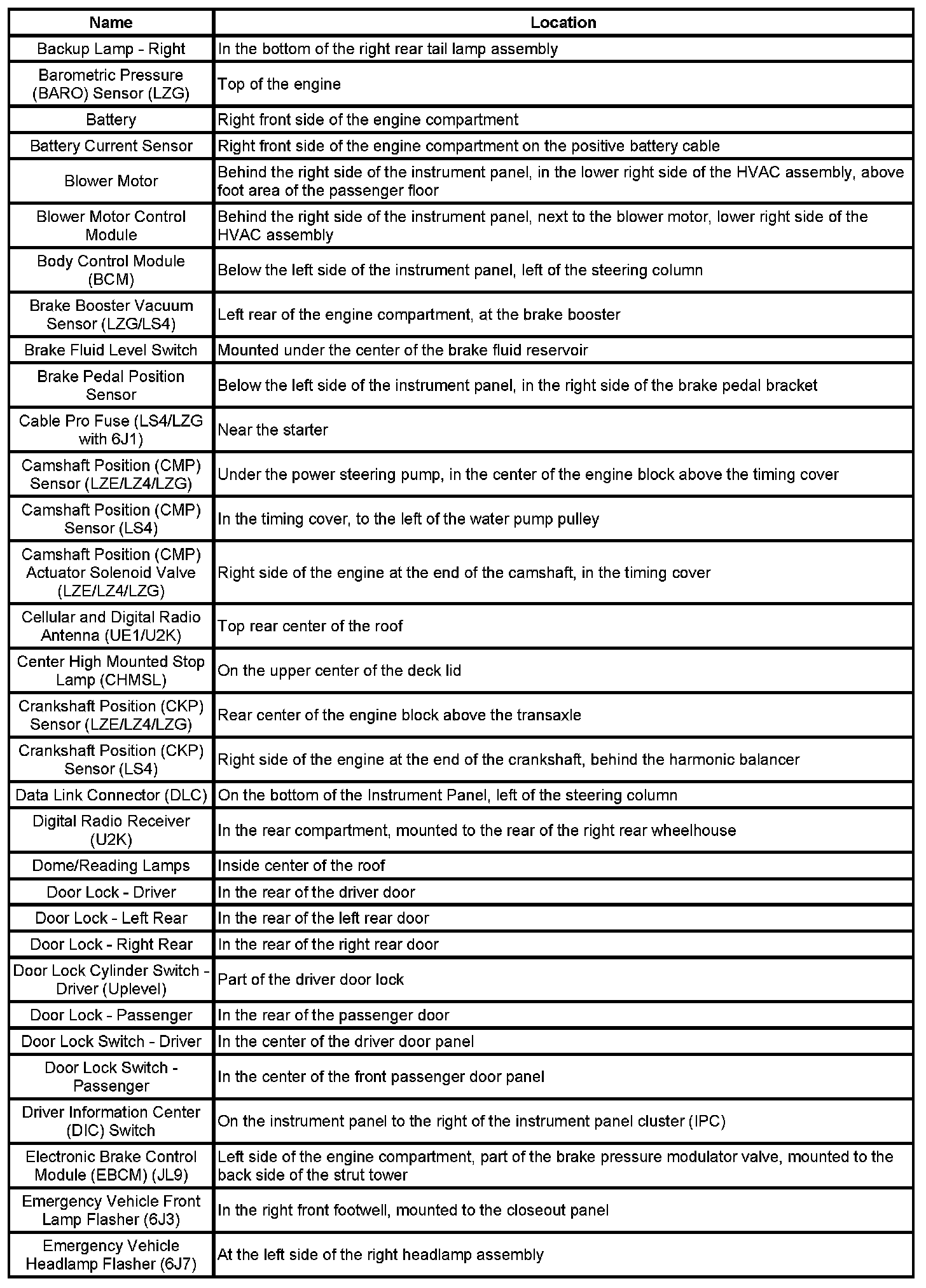

Master Electrical Component List
1-2 Sh - Ba:
Ba - Em:
Em - Fu:
Fu - In:
In - Mo:
Ou - Se:
Se - Va:
Va - Wi:
