Engine Control Module
Component Connector End Views

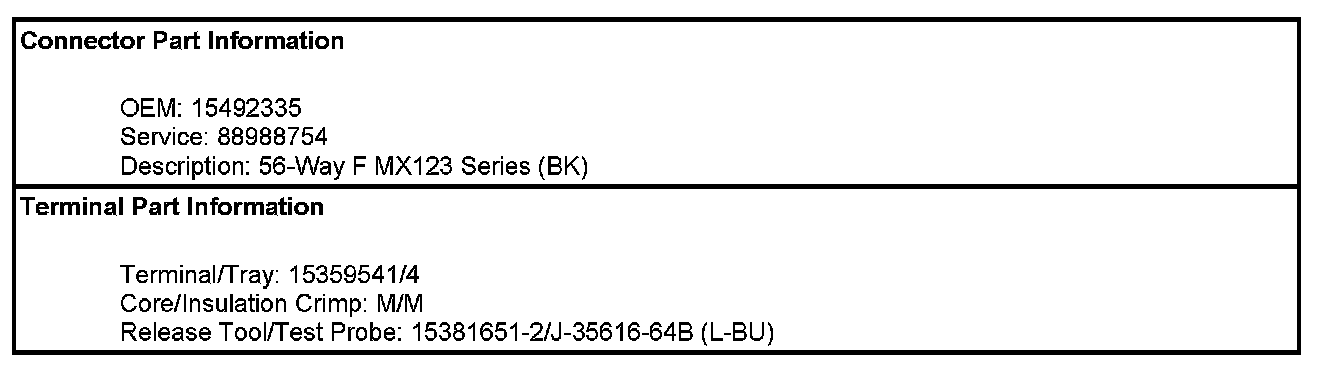

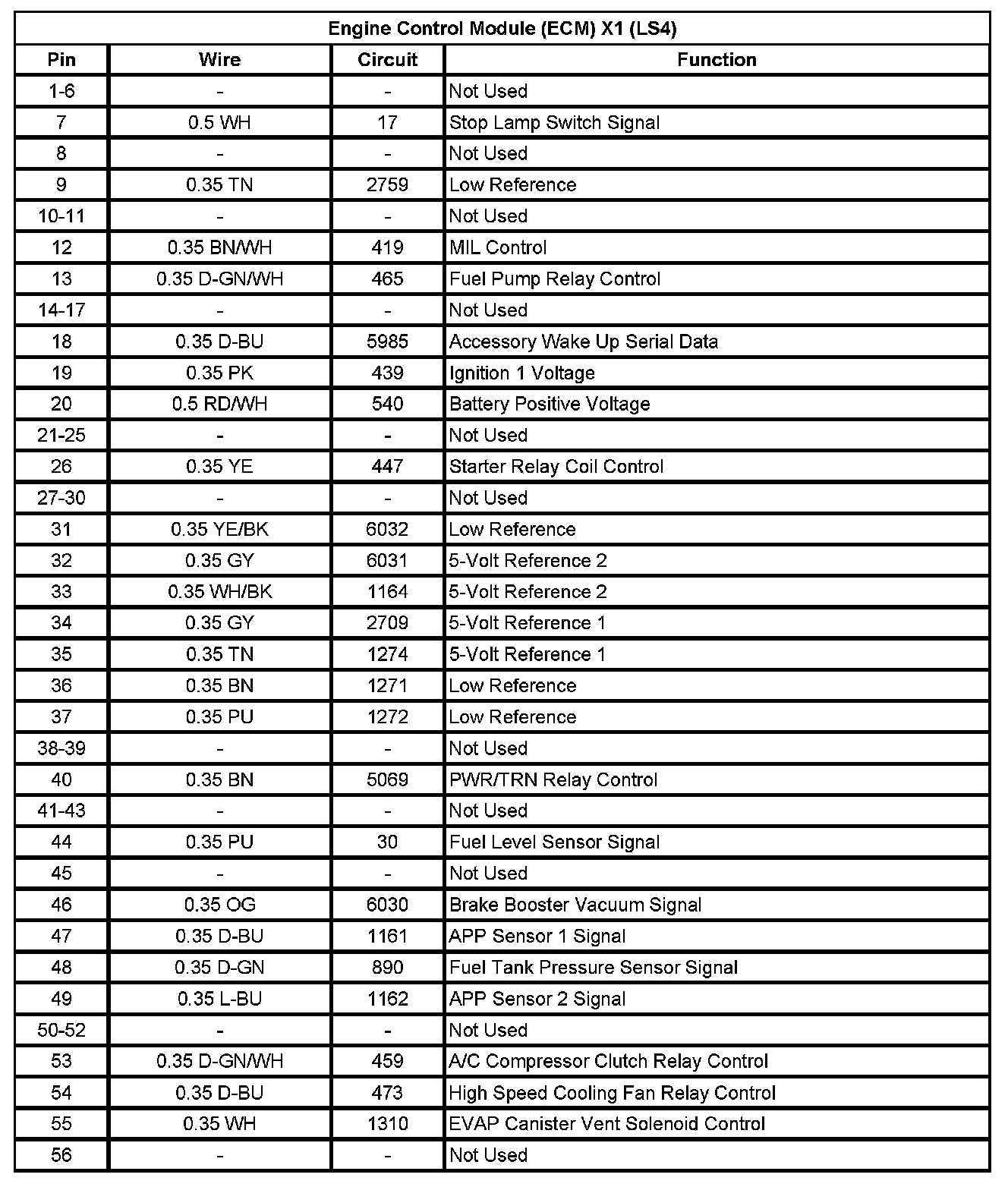

Engine Control Module (ECM) X1 (LS4)

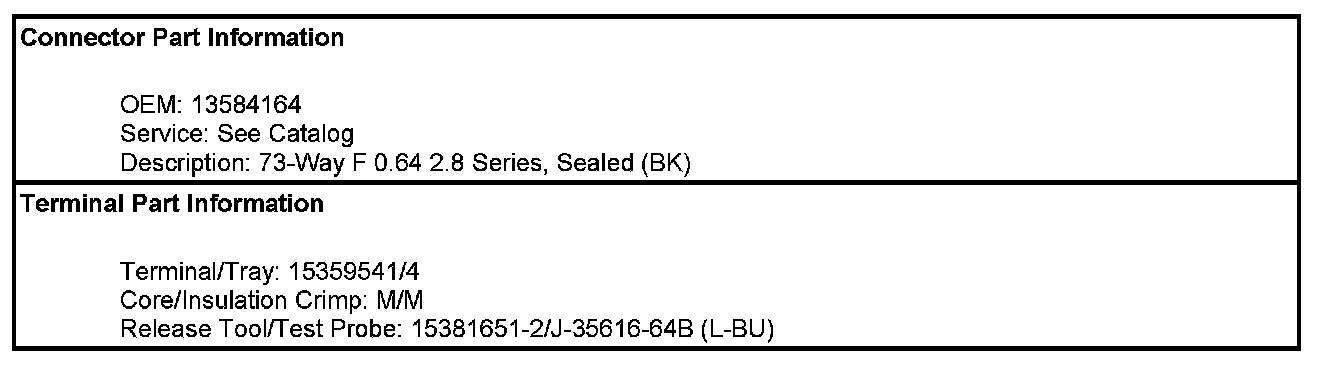

Engine Control Module (ECM) X2 (LS4)

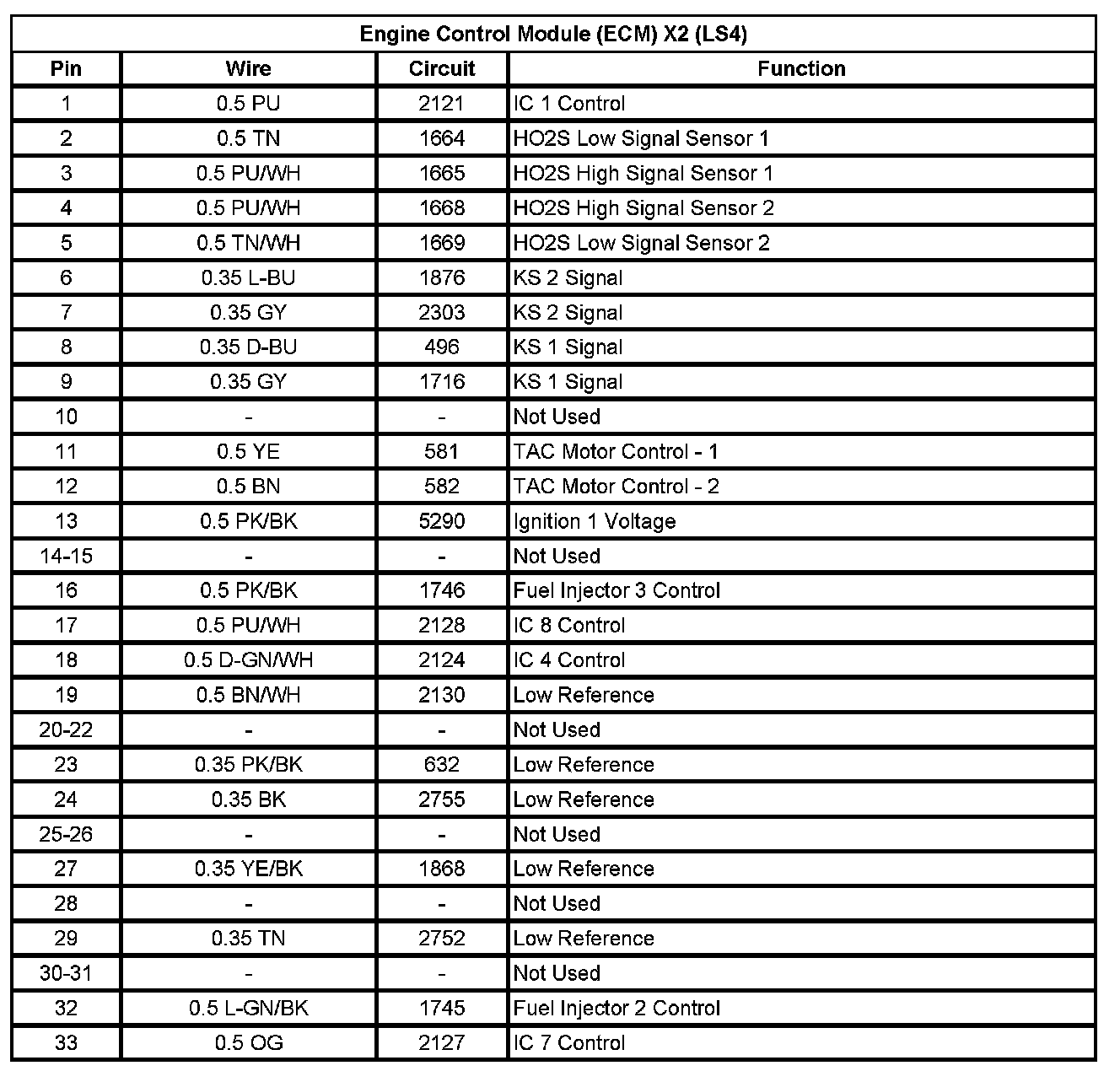

Engine Control Module (ECM) X2 (LS4) (Pin 1 To 33):

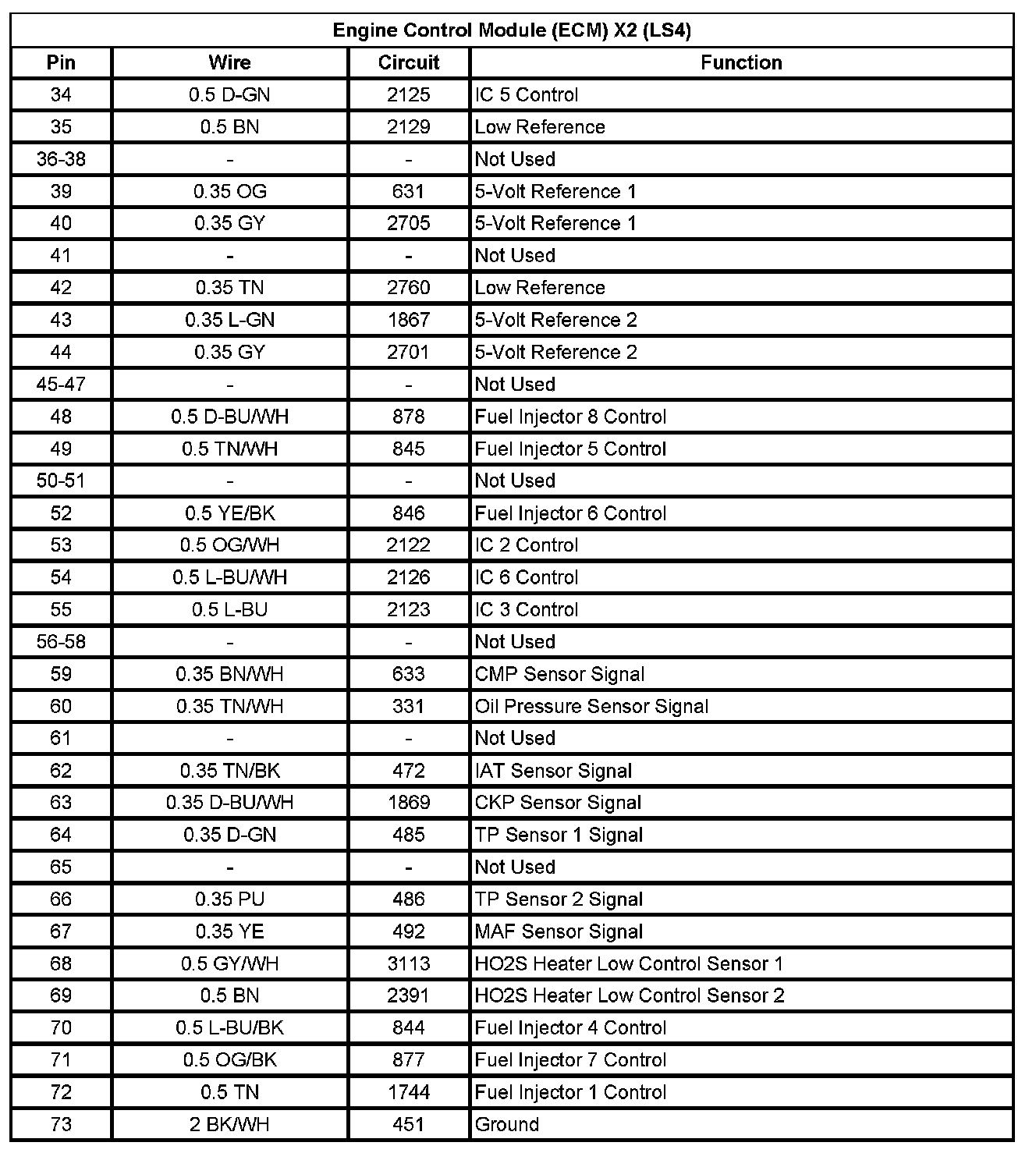

Engine Control Module (ECM) X2 (LS4) (Pin 34 To 73):

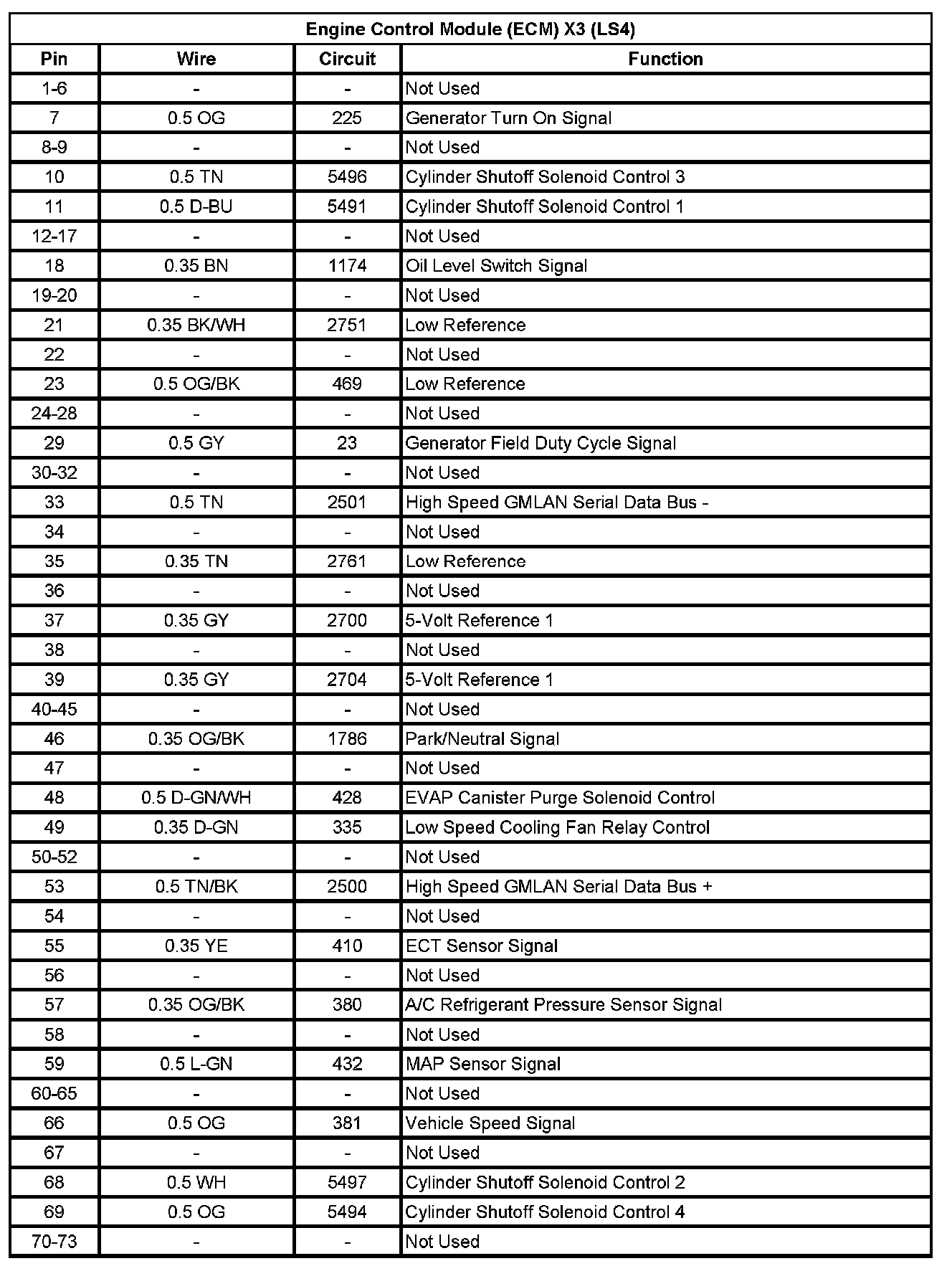

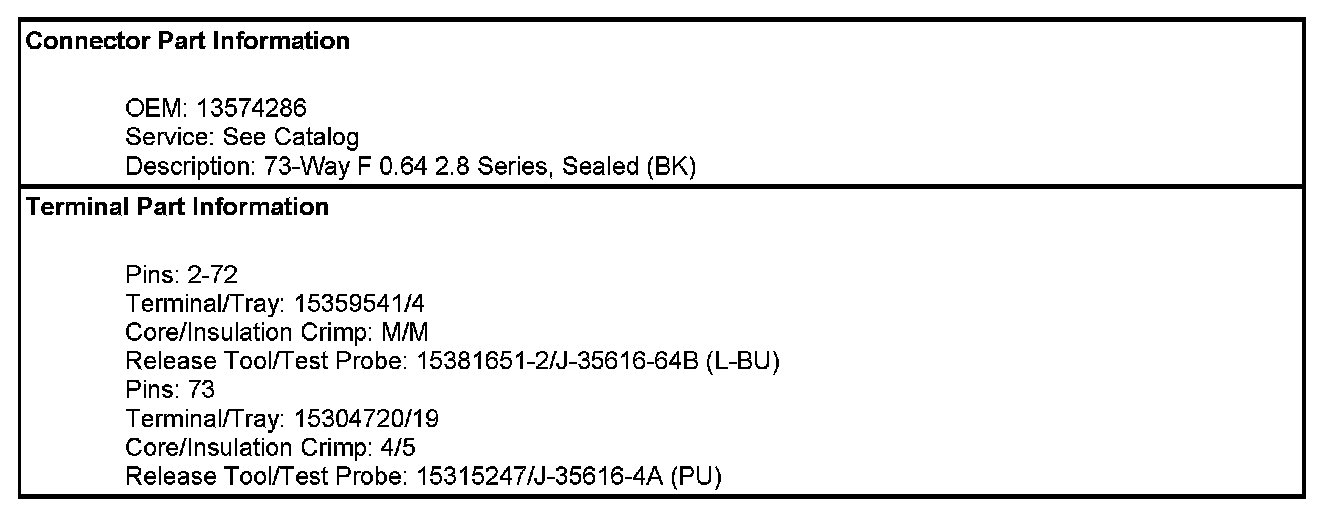

Engine Control Module (ECM) X3 (LS4)
