I/P Fuse Block



Electrical Center Identification Views

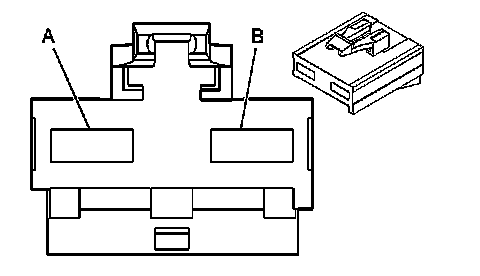

Fuse Block - I/P Top View

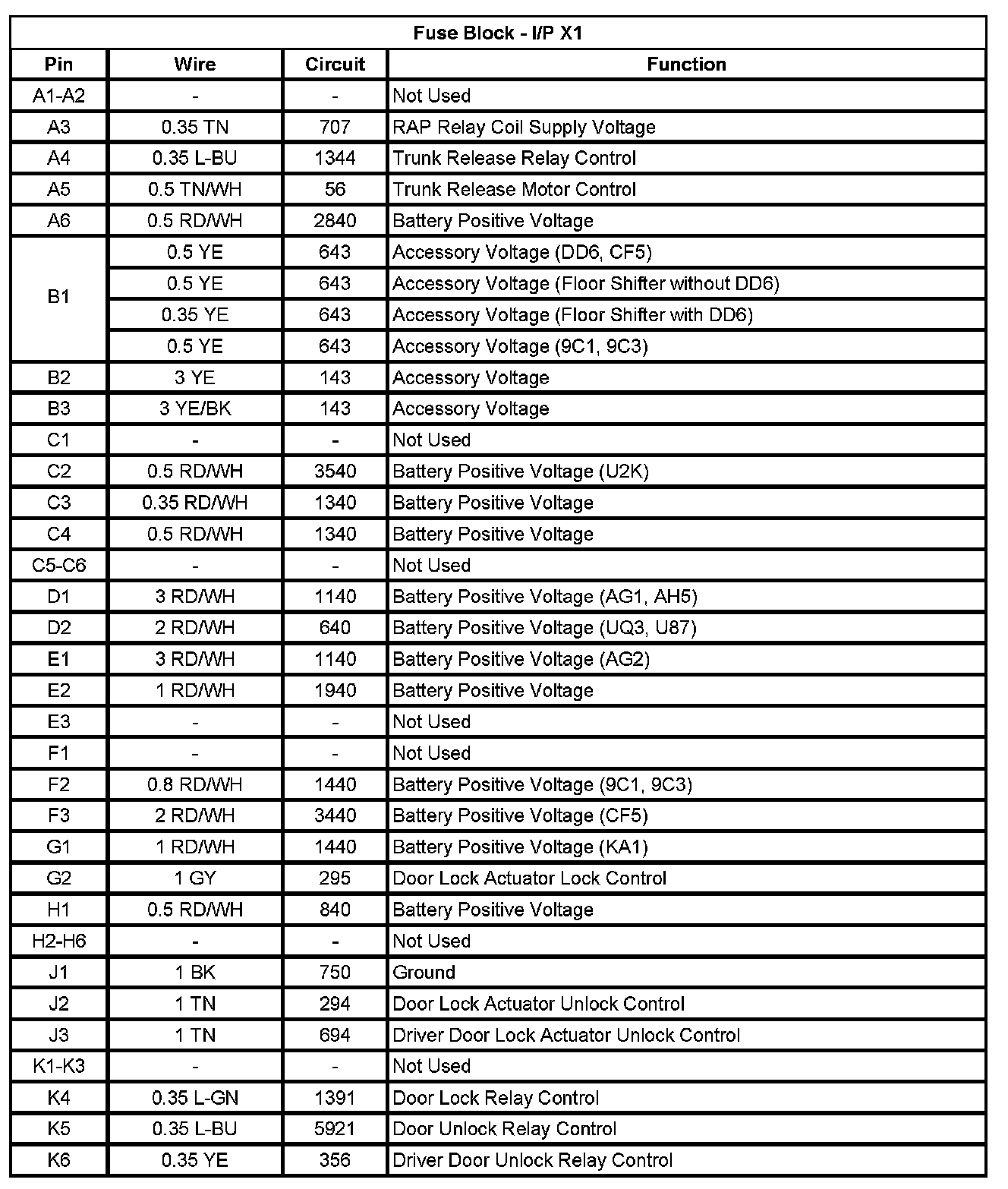

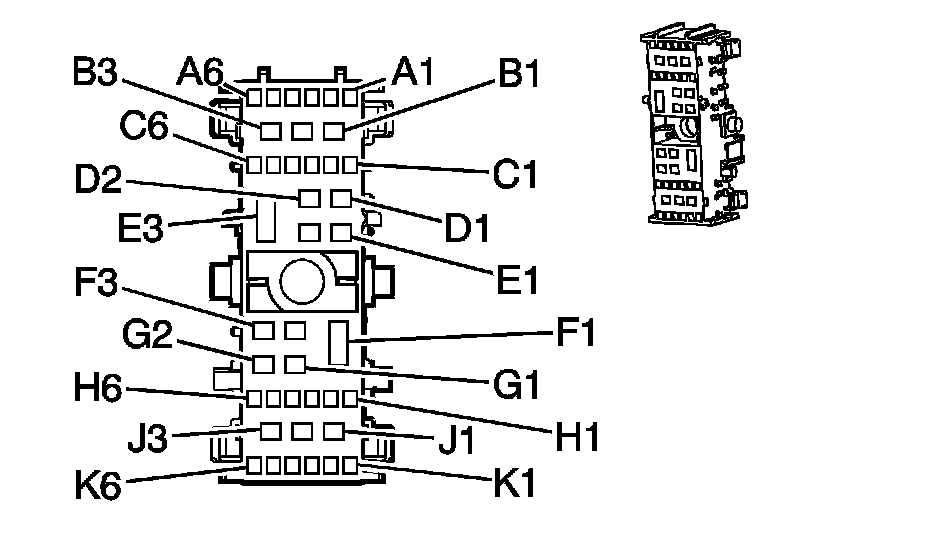

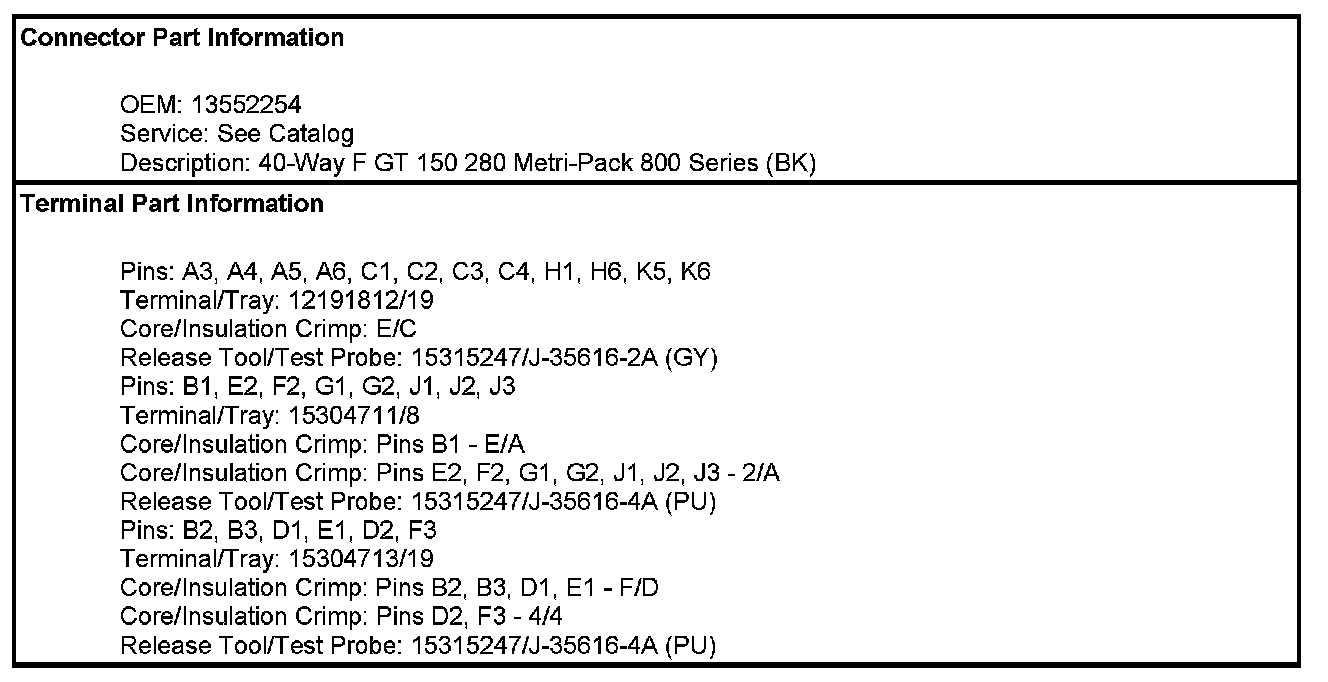

Fuse Block - I/P X1

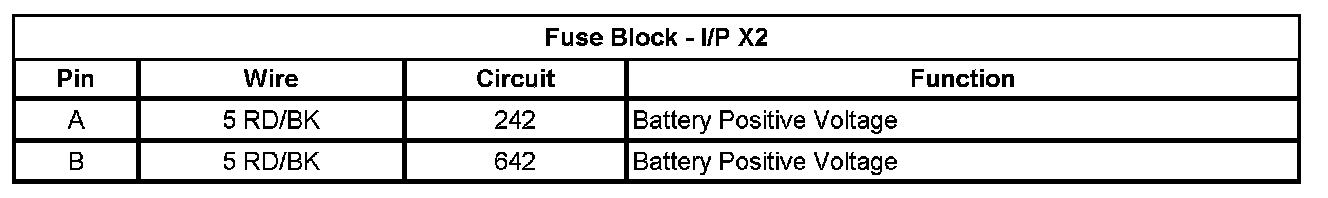

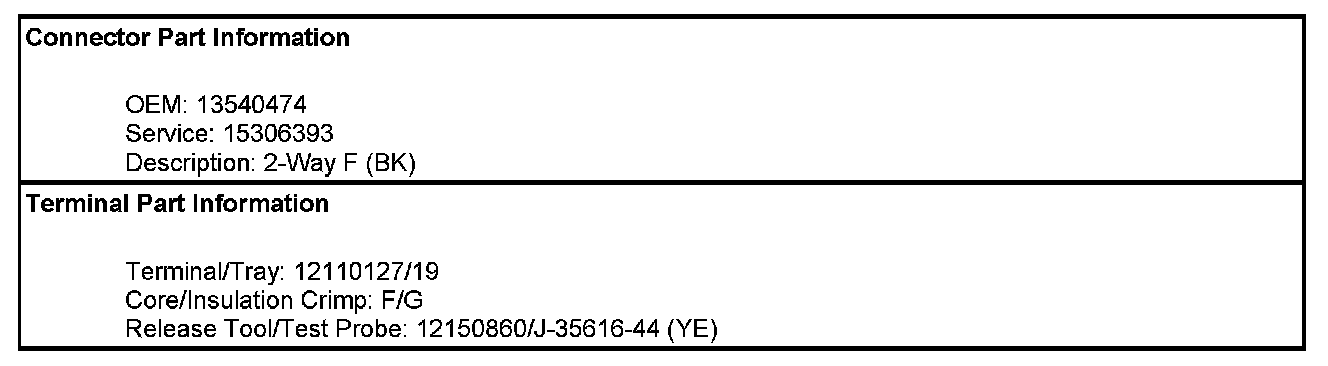

Fuse Block - I/P X2
