Keyless Entry Receiver

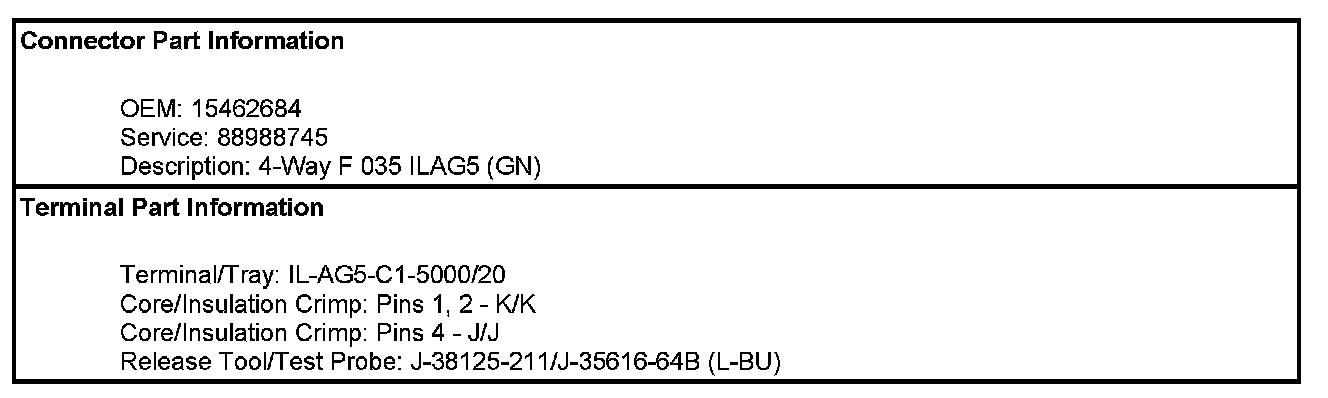

Component Connector End Views - Continued

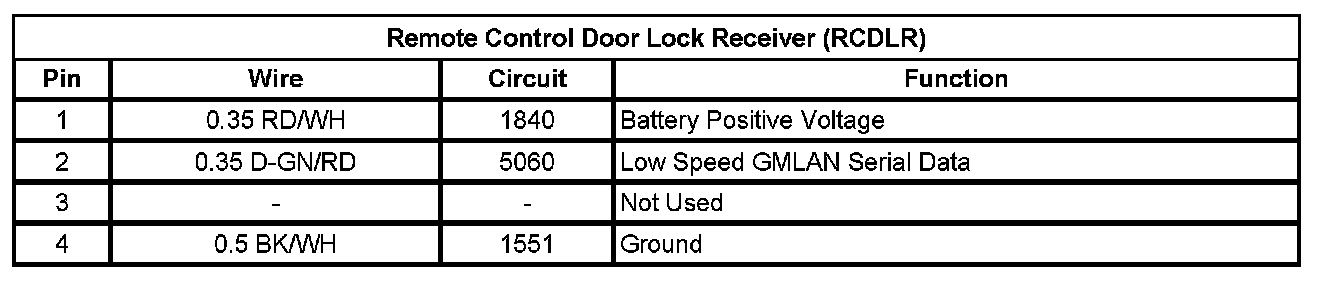

Remote Control
Door Lock Receiver (RCDLR)
