Installation Procedure

  1. Install the battery.

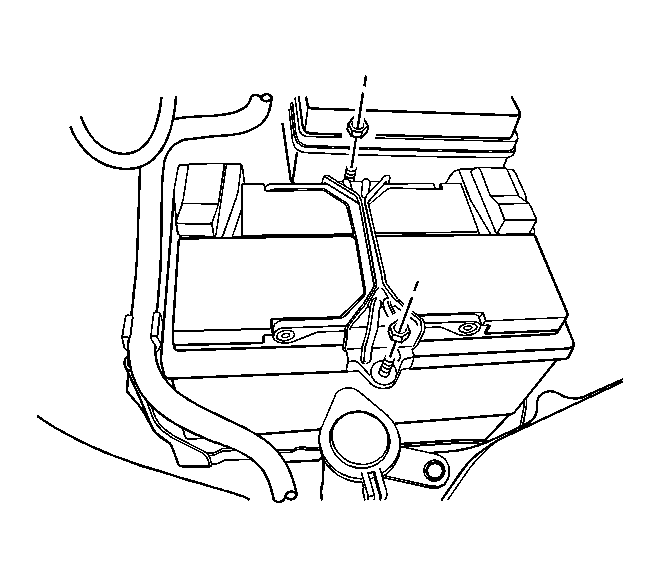

    2. Fig 1: View Of Battery Hold Down Bar, Bracket And Nuts
    GM1962544Courtesy of GENERAL MOTORS CORP.
  2. Install the battery hold-down bar bracket.

    Tighten:  Tighten the battery hold-down bar bracket retaining nuts to 4 N.m (35 lb in)  .

  3. Connect the positive battery cable.
  4. Connect the negative battery cable.
