Engine Controls Schematics

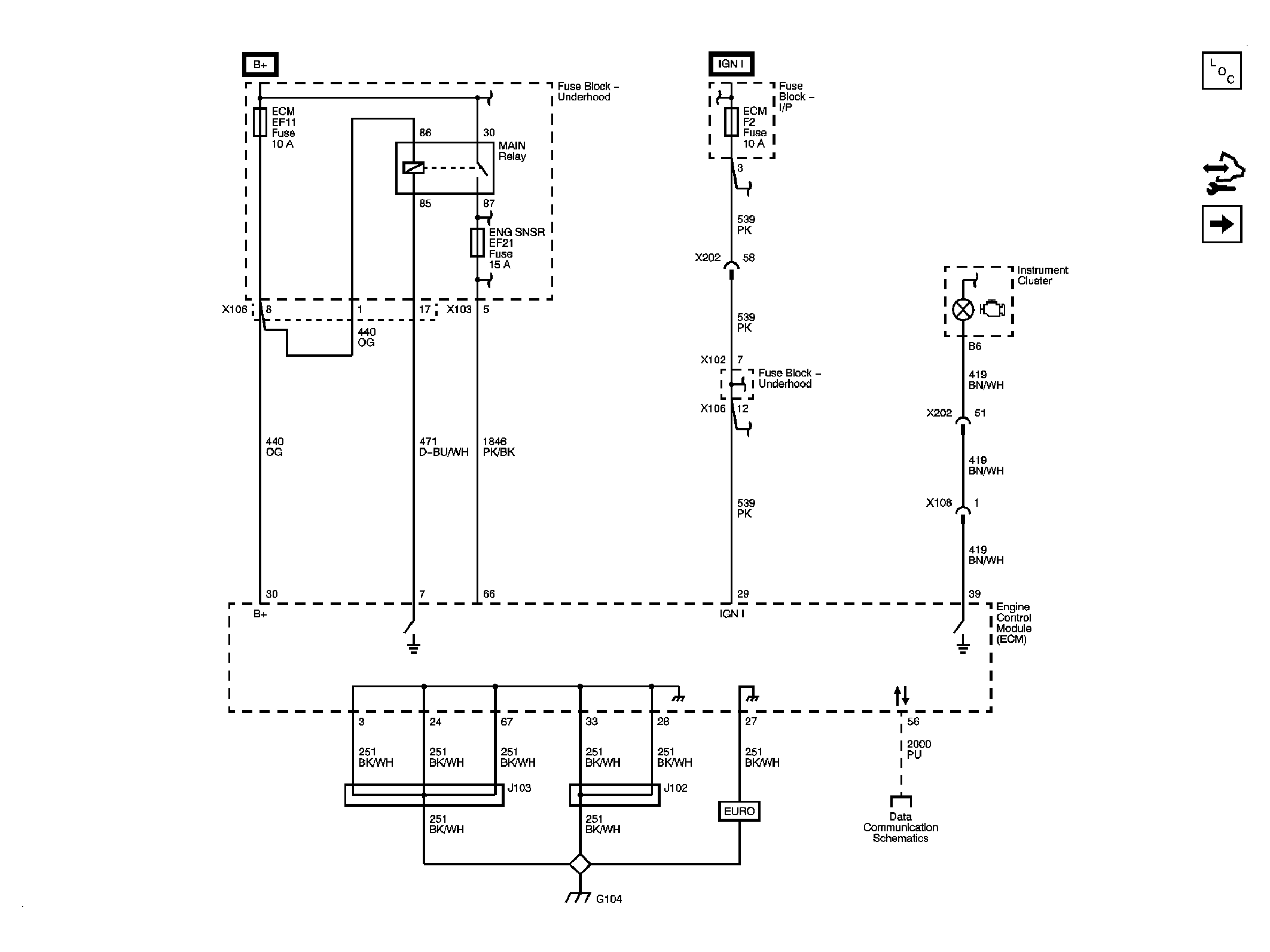

Fig 1: Module Power, Ground, Serial Data, Malfunction Indicator Lamp (MIL)

Courtesy of GENERAL MOTORS CORP.

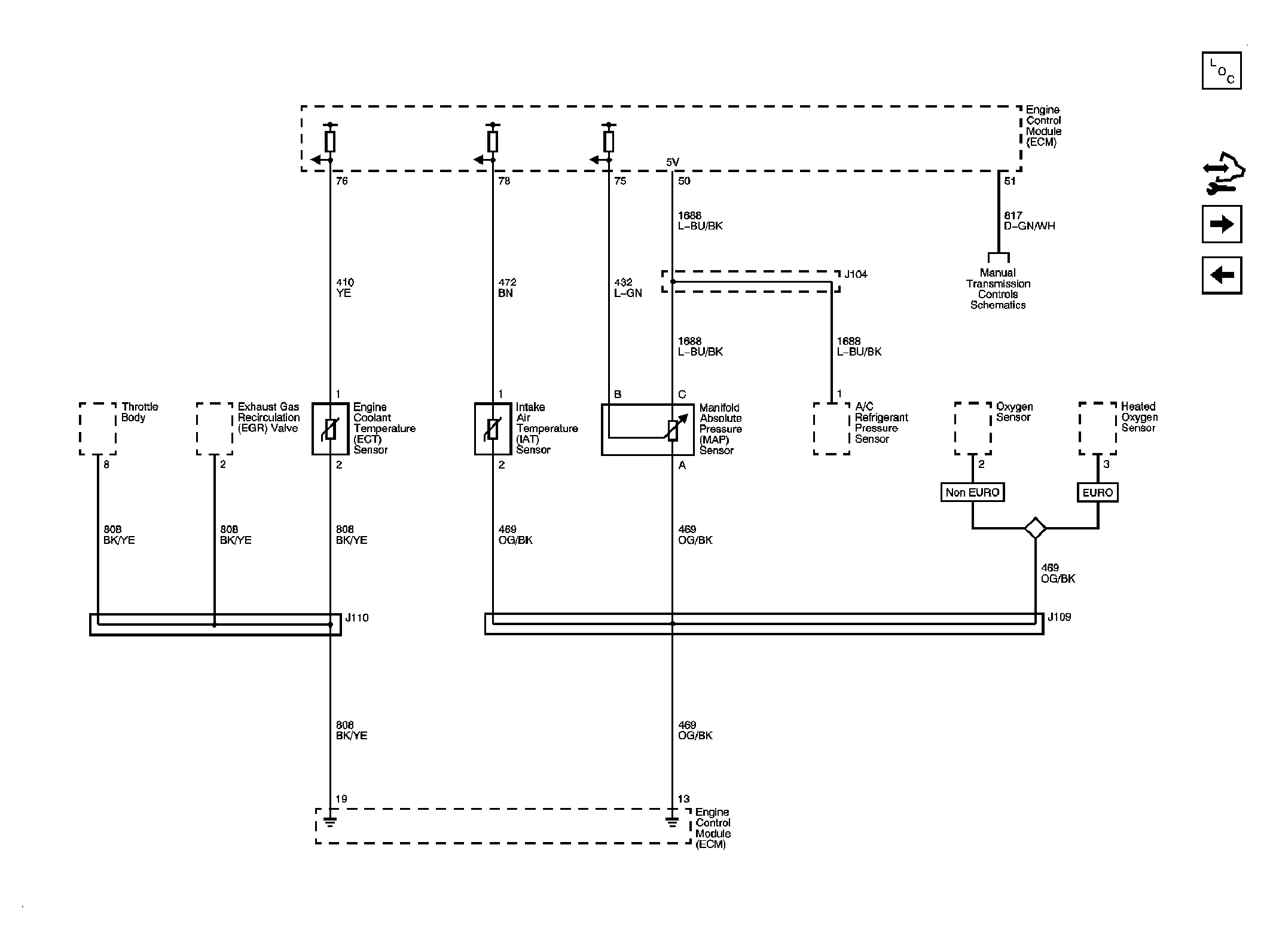

Fig 2: Engine Data Sensors - Pressure and Temperature

Courtesy of GENERAL MOTORS CORP.

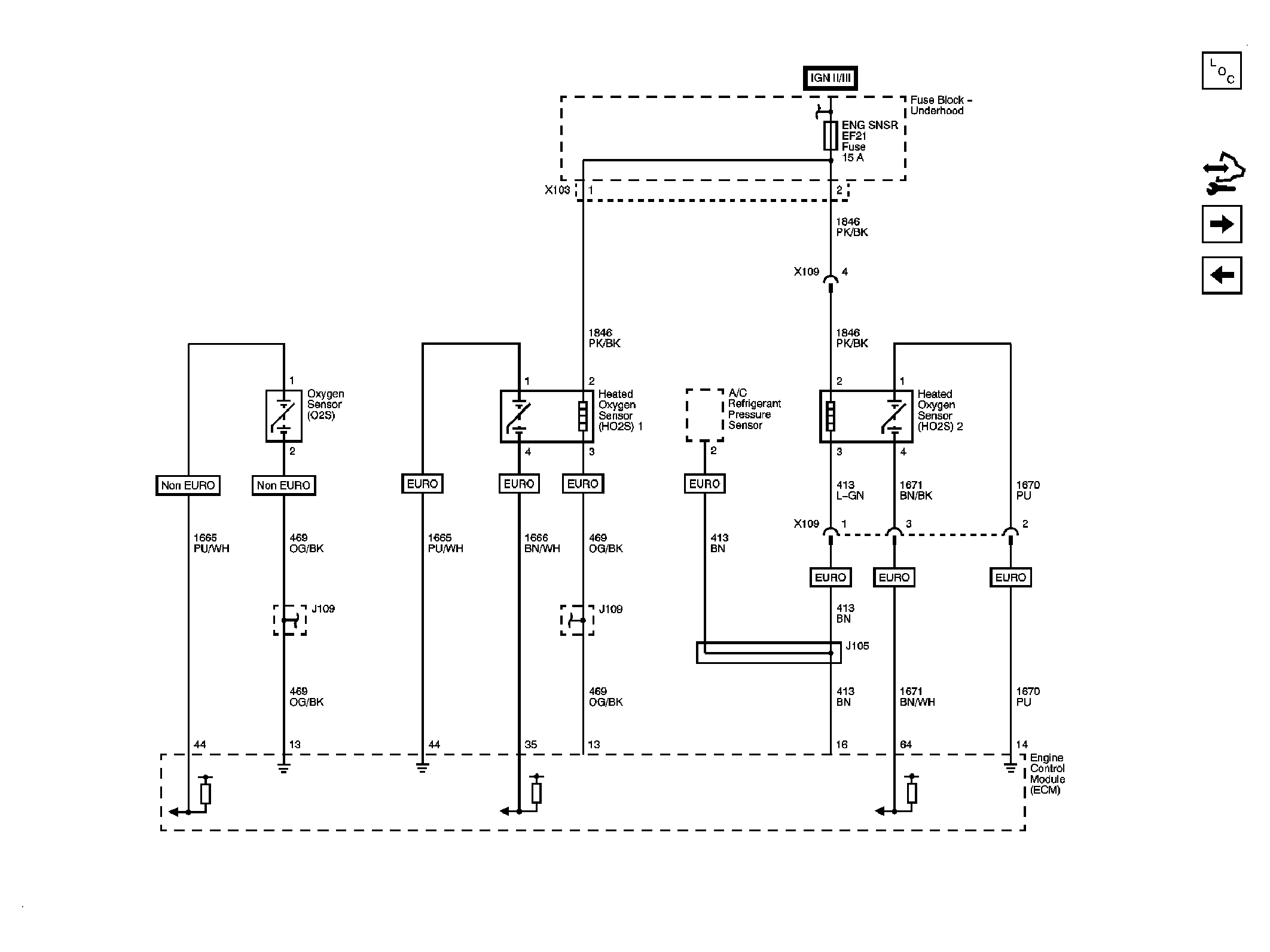

Fig 3: Oxygen Sensors (O2S)

Courtesy of GENERAL MOTORS CORP.

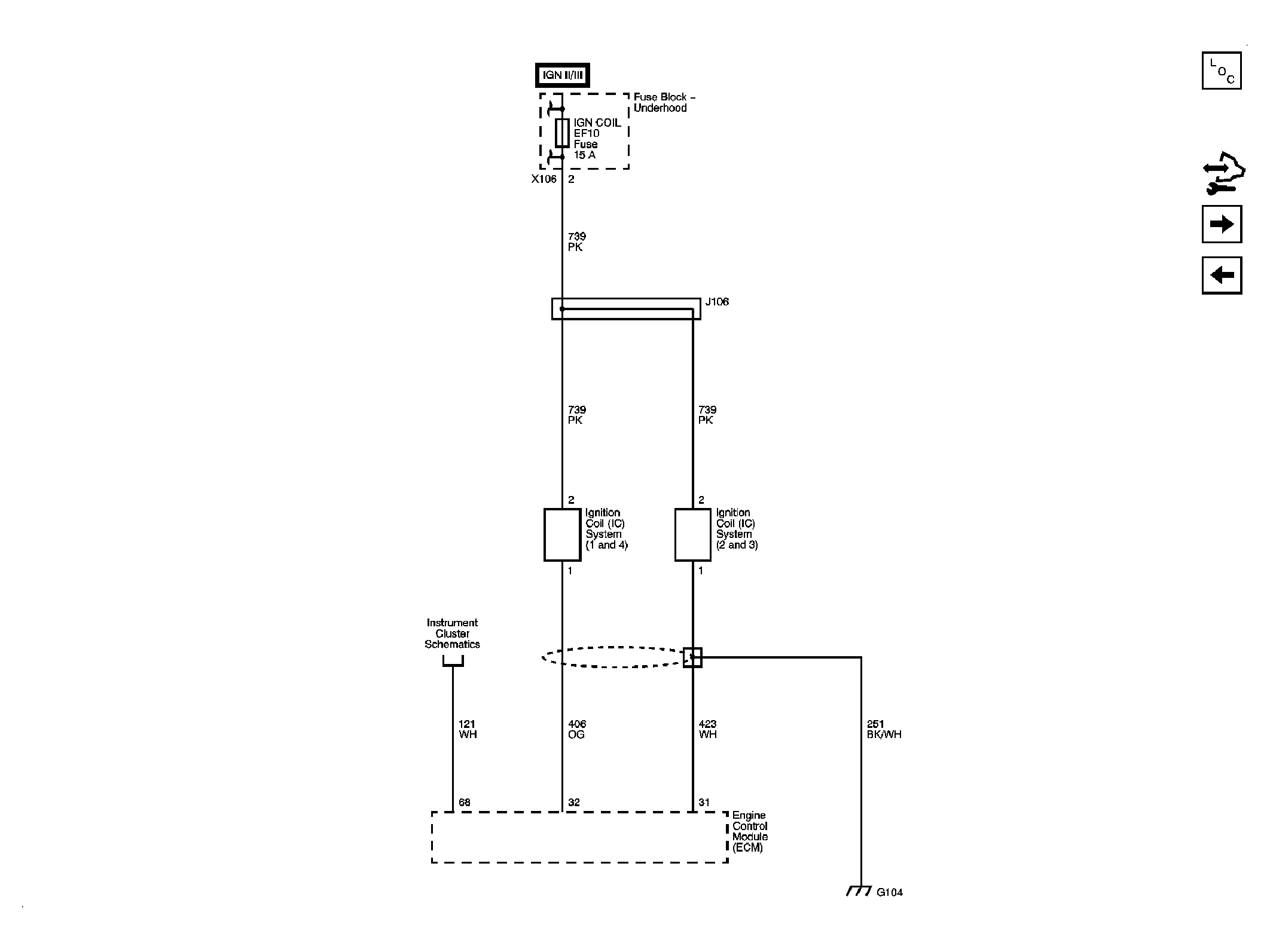

Fig 4: Ignition System

Courtesy of GENERAL MOTORS CORP.

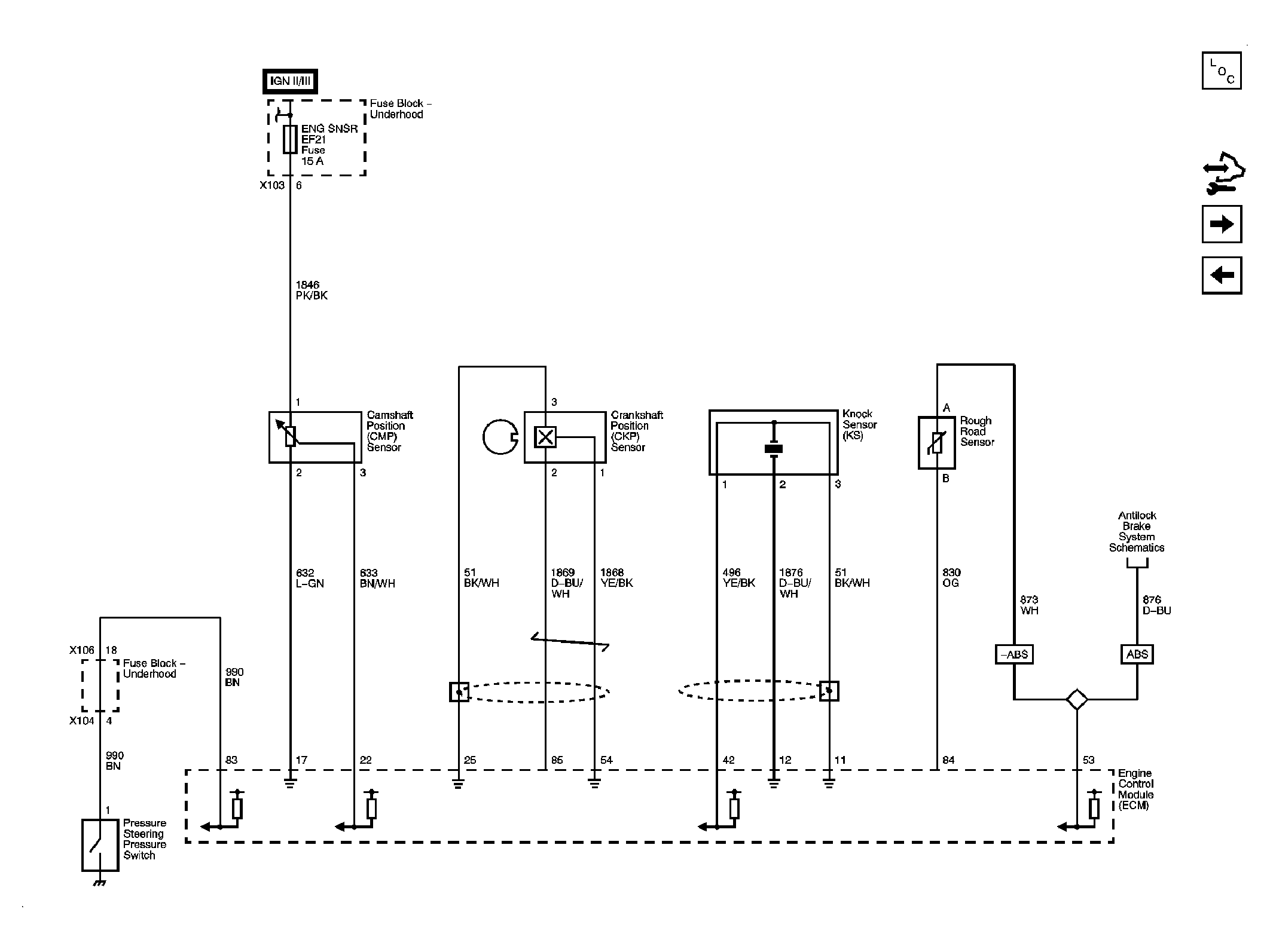

Fig 5: CMP, CKP, Knock, Rough Road Sensors, Power Steering Pressure Switch

Courtesy of GENERAL MOTORS CORP.

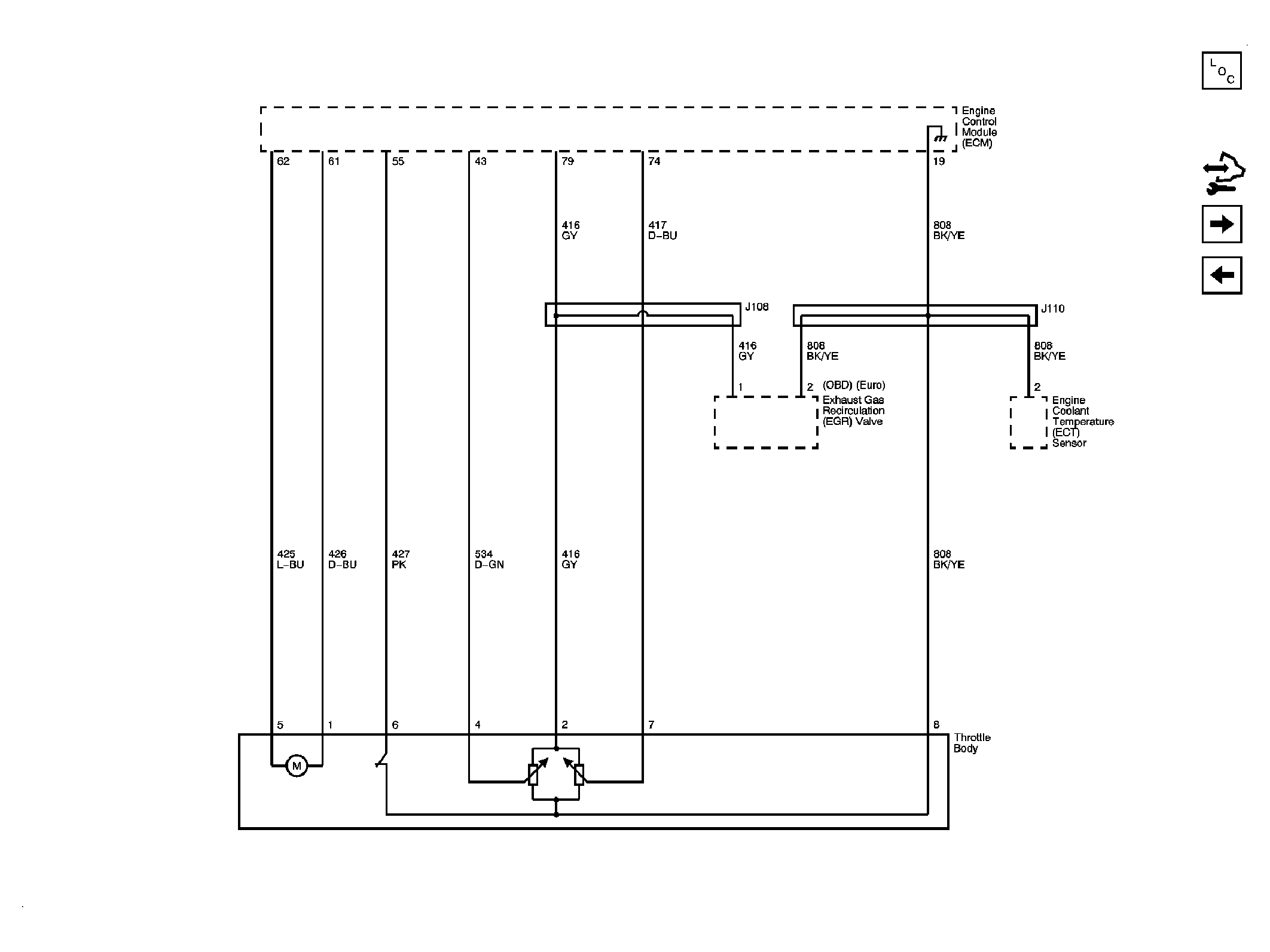

Fig 6: Engine Data Sensors - Main Throttle Intake Actuator (MTIA)

Courtesy of GENERAL MOTORS CORP.

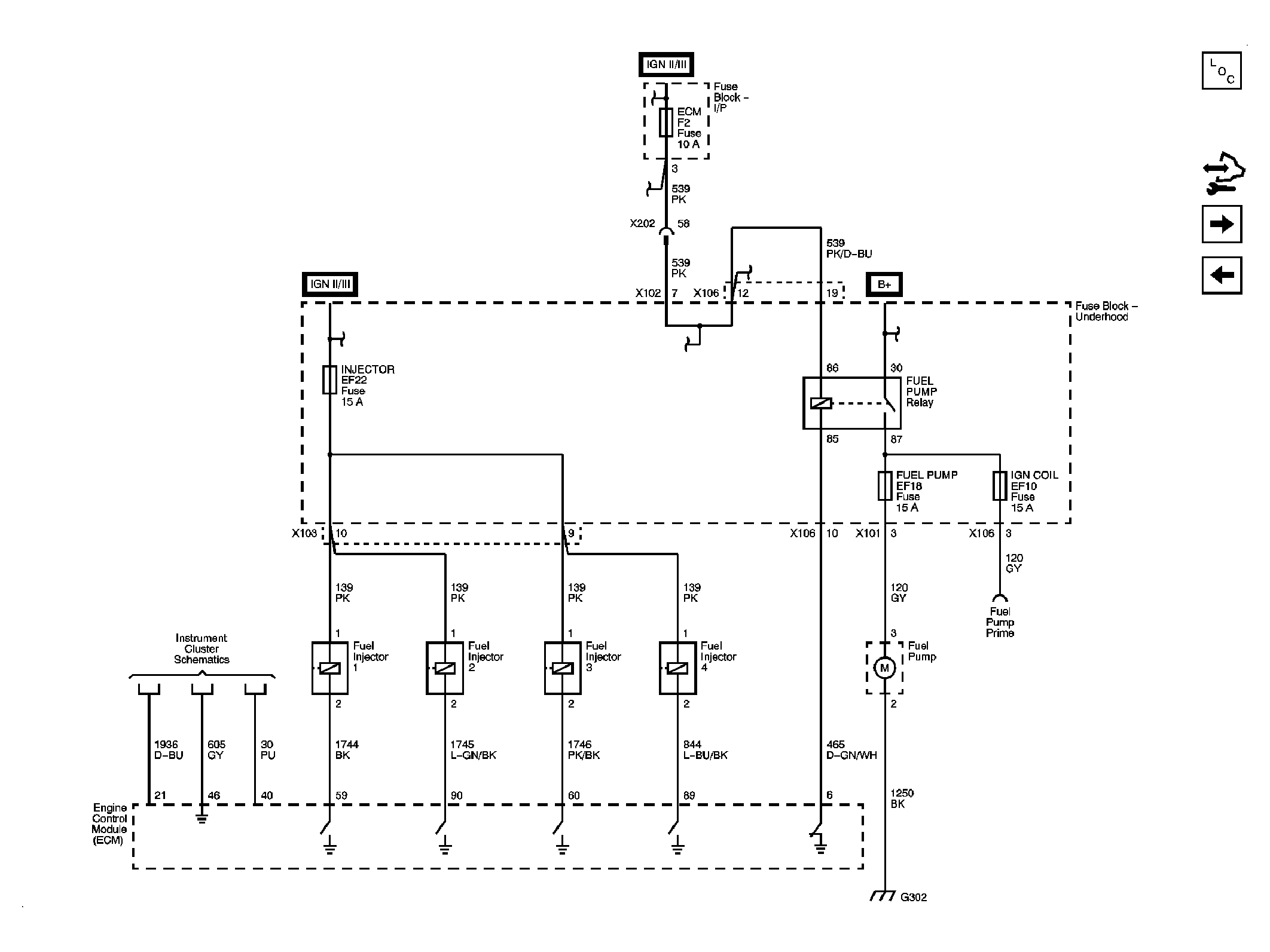

Fig 7: Fuel Pump Controls and Fuel Injectors

Courtesy of GENERAL MOTORS CORP.

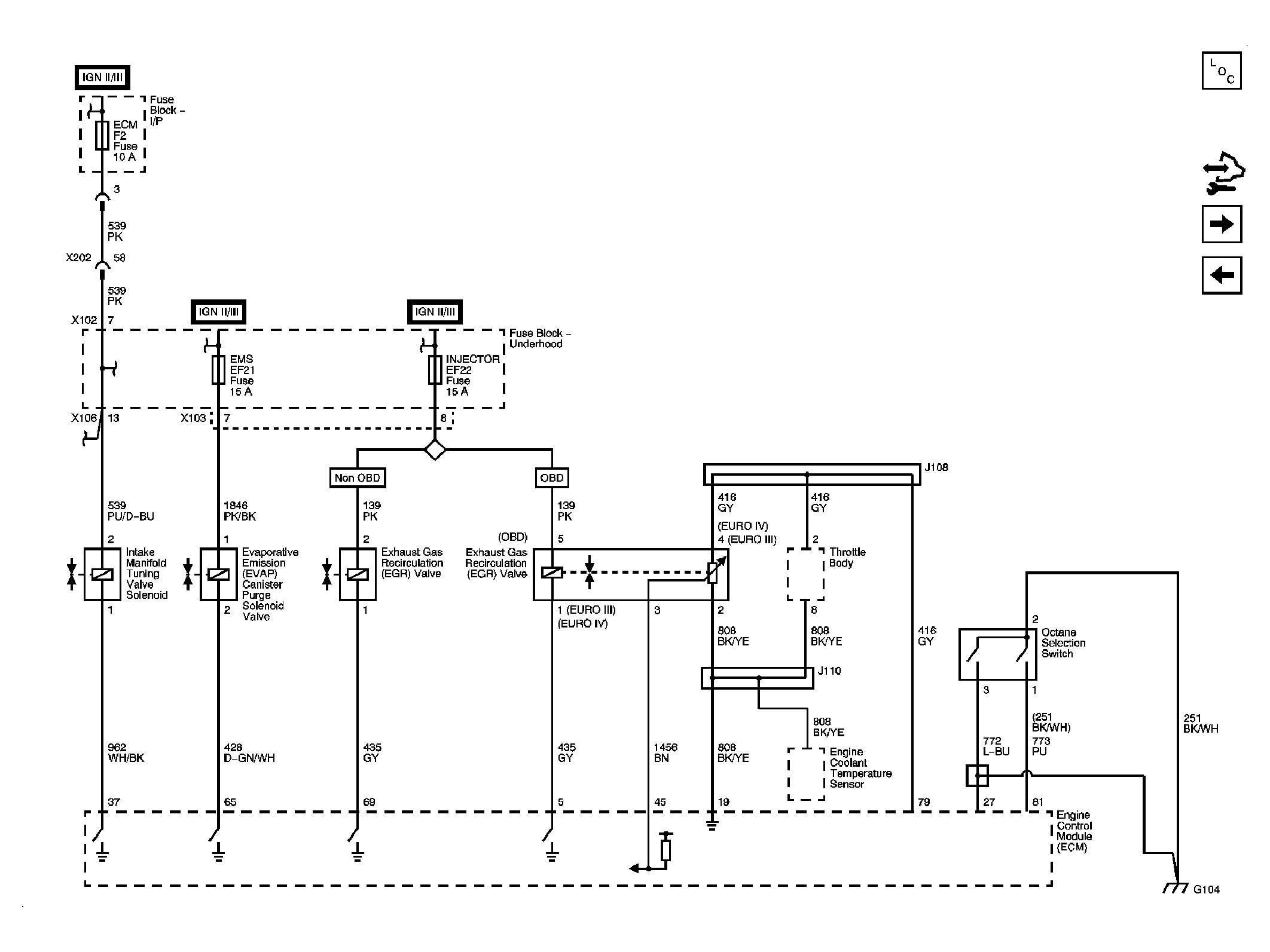

Fig 8: Intake Manifold Tuning Valve, EVAP, EGR, Octane Selection Switch

Courtesy of GENERAL MOTORS CORP.

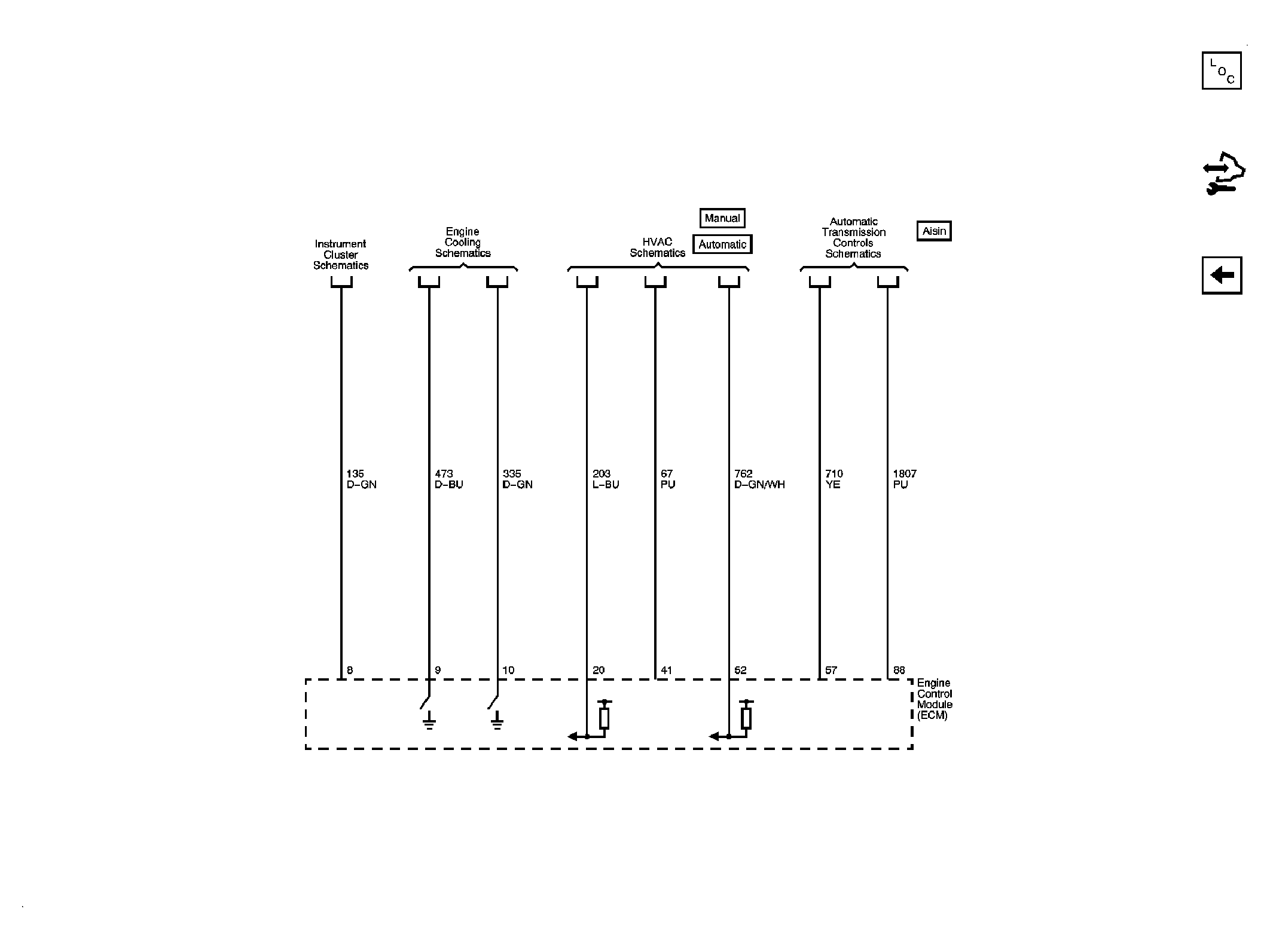

Fig 9: Controlled/Monitored Subsystem References

Courtesy of GENERAL MOTORS CORP.
