Installation Procedure

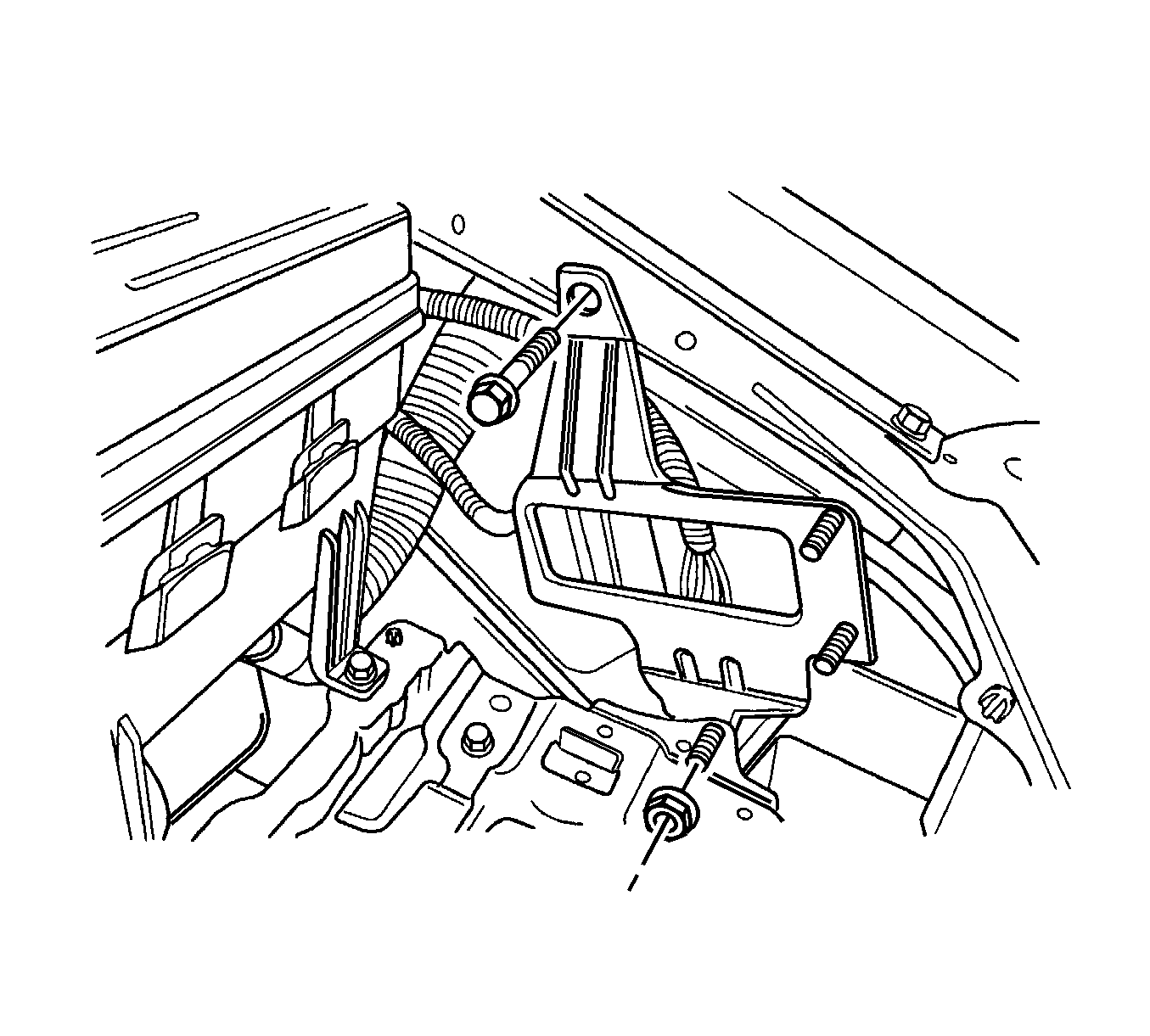

Fig 1: View Of ECM Mounting Bracket And Bolt And Nut

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the ECM mounting bracket with the bolt and the nut.
Tighten: Tighten the ECM mounting bracket bolt and the nut to 12 N.m (9 lb ft) .

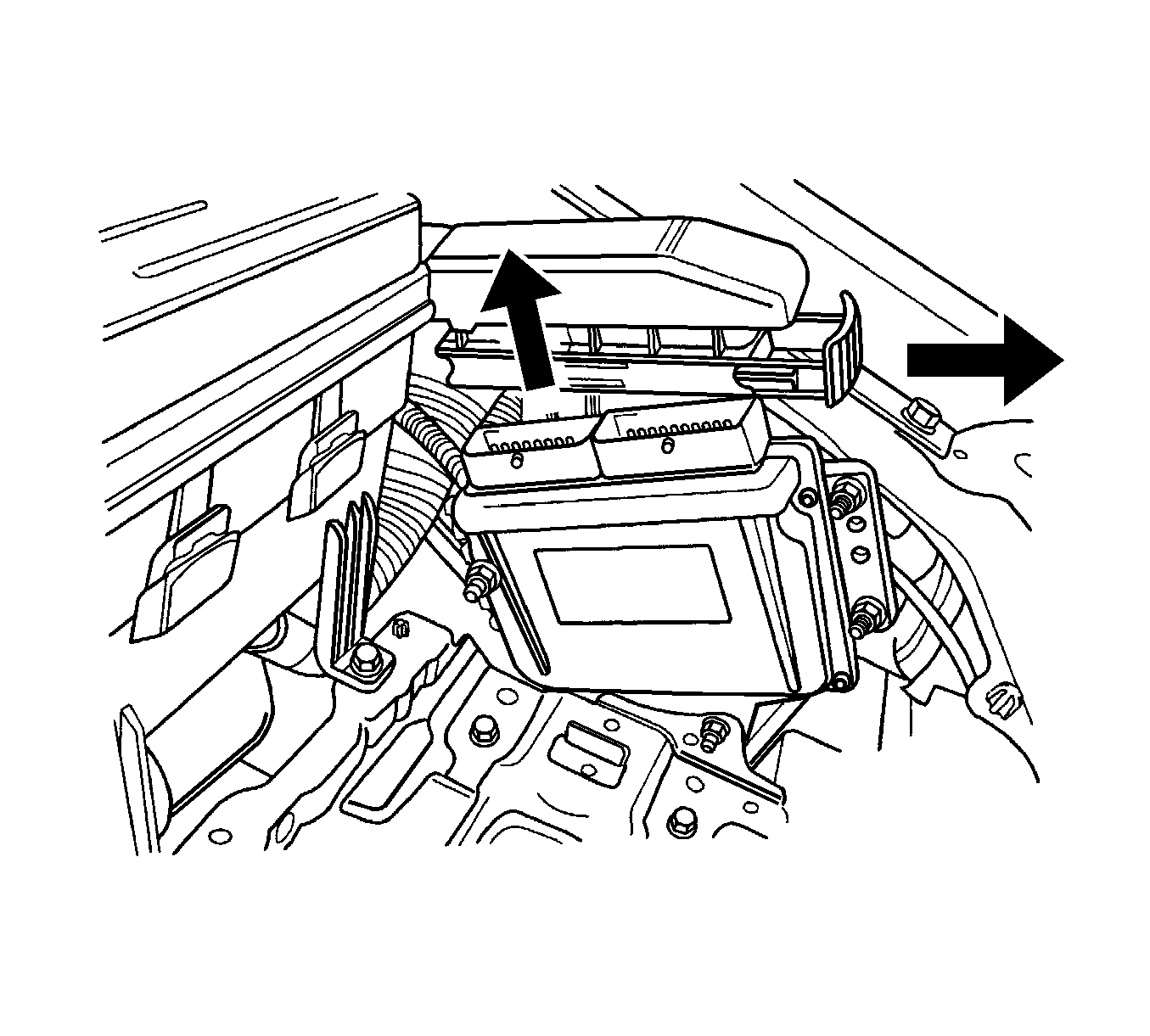

Fig 2: View Of Engine Control Module

Courtesy of GENERAL MOTORS CORP.

Install the ECM with the nuts.
Tighten: Tighten the ECM nut to 12 N.m (9 lb ft) .
