Installation Procedure

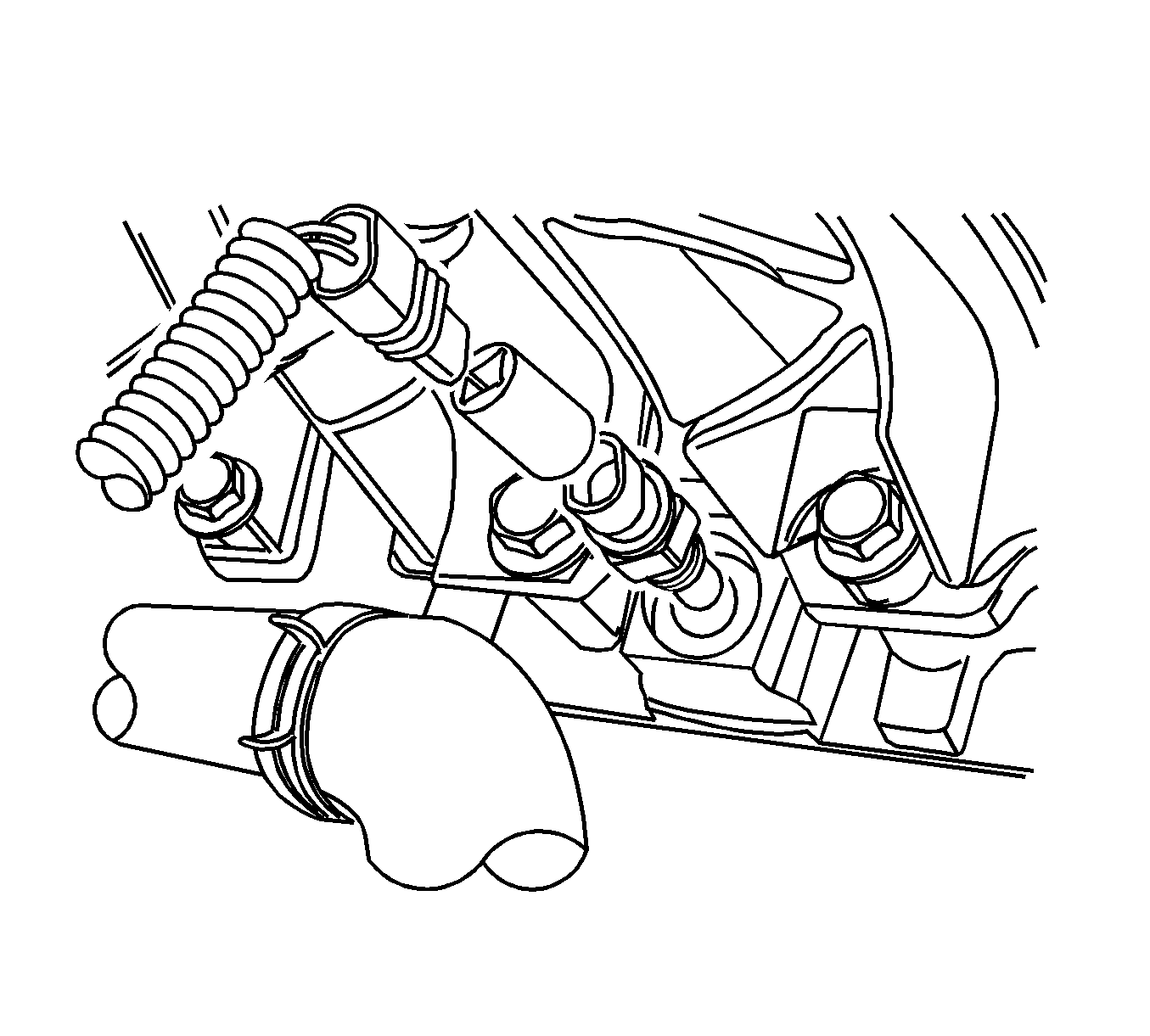

    Fig 1: View Of Engine Coolant Temperature Sensor
    GM1289410Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Install the ECT sensor.

    Tighten:  Tighten the ECT sensor to 17.5 N.m (13 lb ft)  .

  2. Connect the ECT sensor connector.
  3. Connect the negative battery cable.
