Installation Procedure

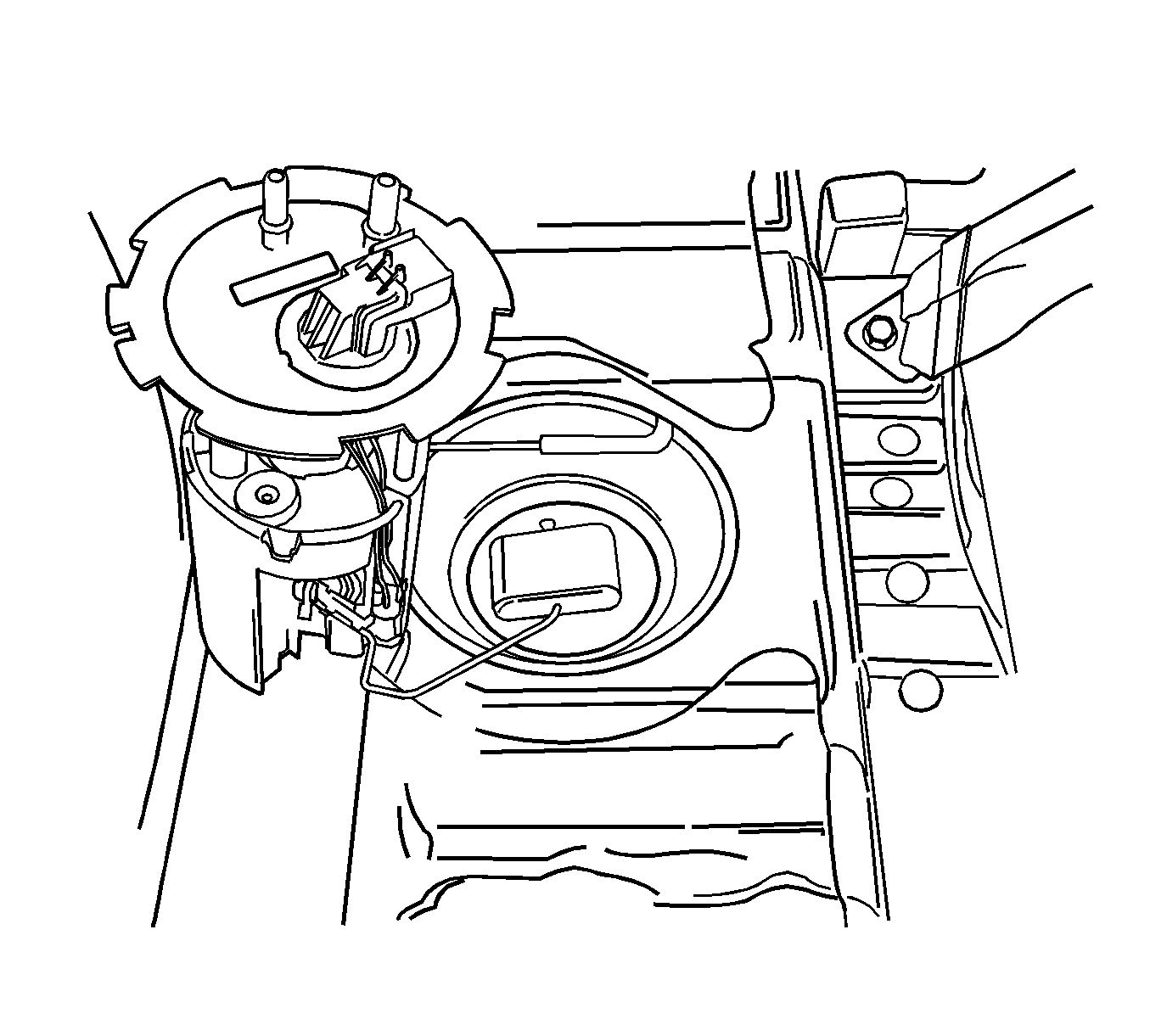

    Fig 1: View Of Fuel Pump
    GM1241922Courtesy of GENERAL MOTORS CORP.
  1. Clean the gasket mating surface on the fuel tank.
  2. Position the new gasket in place.
  3. Install the fuel pump into the fuel tank in the same location as removed for ease of line and connector installation.
  4. Position the lock ring in place and turn it clockwise until it contacts the tank stop.
  5. Connect the fuel pump assembly connector.
  6. Install the fuel pump outlet line.
  7. Install the pump access cover.
  8. Connect the negative battery cable.
  9. Perform an operational check of the fuel pump.
  10. Install the rear seat.
