Removal Procedure

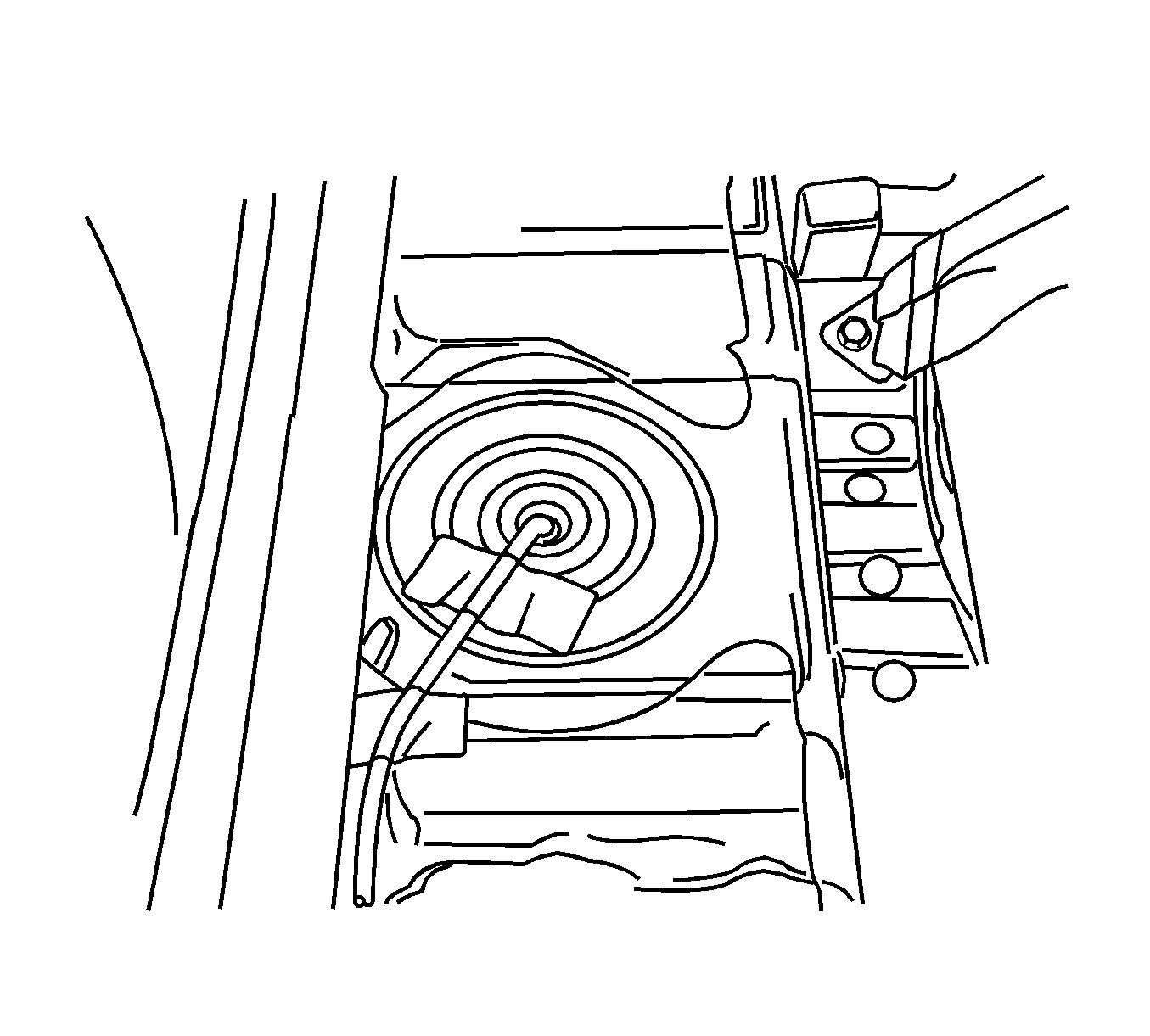

    Fig 1: View Of Fuel Pump Access Cover
    GM1241920Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fuel Pressure Notice .
  1. Relieve the fuel system pressure. Refer to Fuel Pressure Relief .

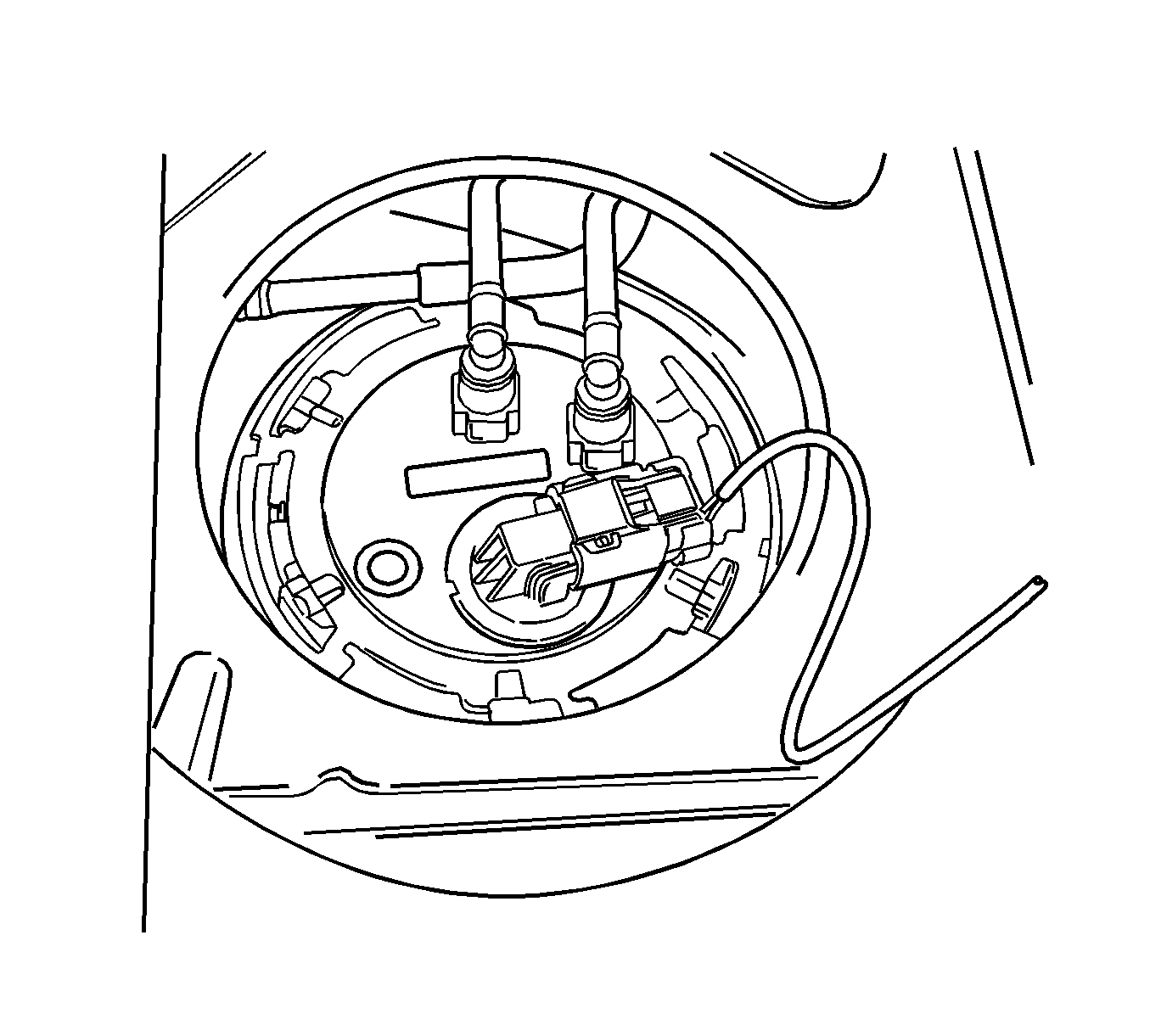

    2. Fig 2: View Of Fuel Pump Assembly
    GM1241921Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution .
  2. Disconnect the negative battery cable.
  3. Remove the rear seat.
  4. Remove the fuel pump access cover.
  5. Disconnect the electrical connector at the fuel pump assembly.
  6. Disconnect the fuel outlet line.
  7. Turn the lock ring counterclockwise to clear the tank tabs.
  8. Remove the fuel pump assembly from the tank.
  9. Remove and discard the gasket.
