Installation Procedure

IMPORTANT: A special anti-seize compound is used on the oxygen sensor threads. This compound consists of a liquid graphite and glass beads. The graphite will burn away, but the glass beads will remain, making the sensor easier to remove. New or serviced sensors will already have the compound applied to the threads. If a sensor is removed from any engine and is to be reinstalled, the threads must have an anti-seize compound applied before reinstallation.

Coat the threads of the HO2S 2 with an anti-seize compound, if needed.

NOTE: Refer to Fastener Notice .

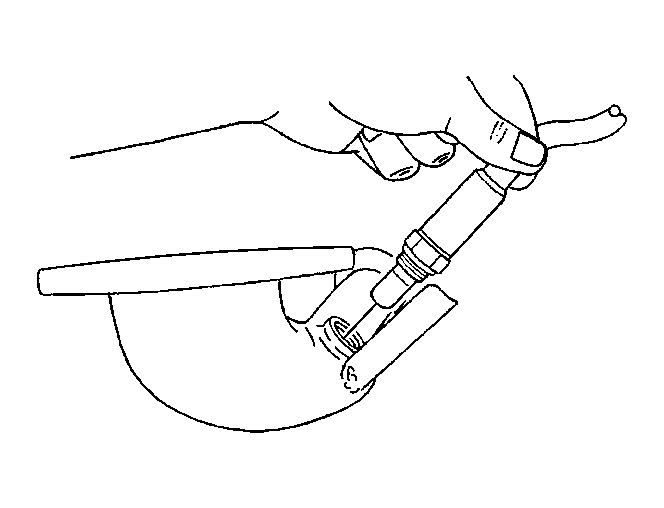

Fig 1: Removing/Inserting HO2S 2

Courtesy of GENERAL MOTORS CORP.

Install the HO2S 2.
Tighten: Tighten the heated oxygen sensor to 42 N.m (31 lb ft) .

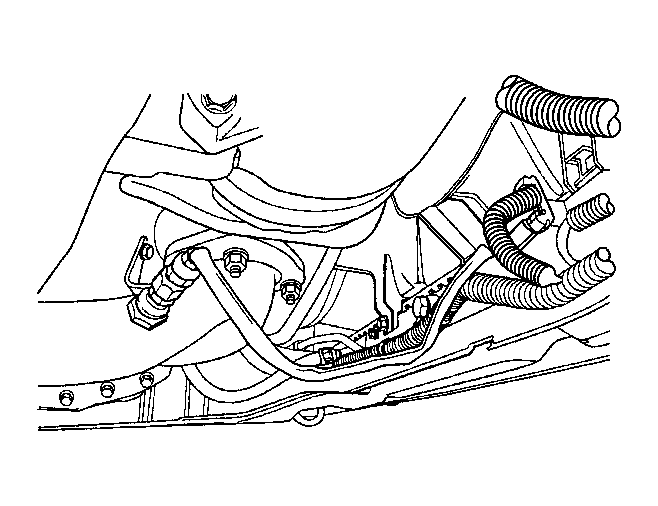

Fig 2: Identifying HO2S 2

Courtesy of GENERAL MOTORS CORP.

Connect the electrical connector.
Connect the negative battery cable.
