Installation Procedure

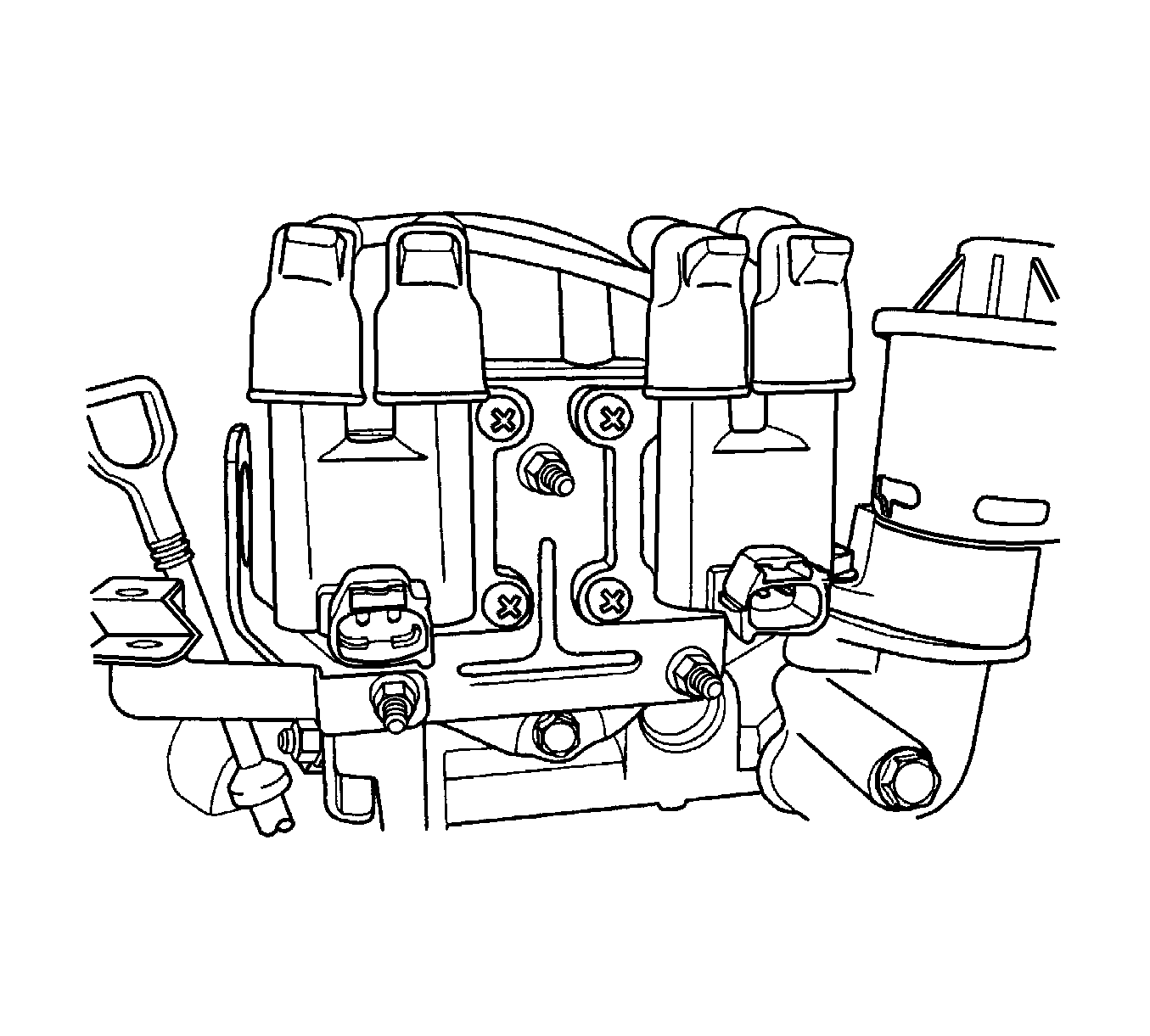

Fig 1: View Of EI System Ignition Coil

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the EI system ignition coil into the mounting location and install the retaining nuts.
Tighten: Tighten the EI system ignition coil retaining nuts to 10 N.m (89 lb in) .
Connect the EI system ignition coil connector.
Connect the negative battery cable.
