Installation Procedure

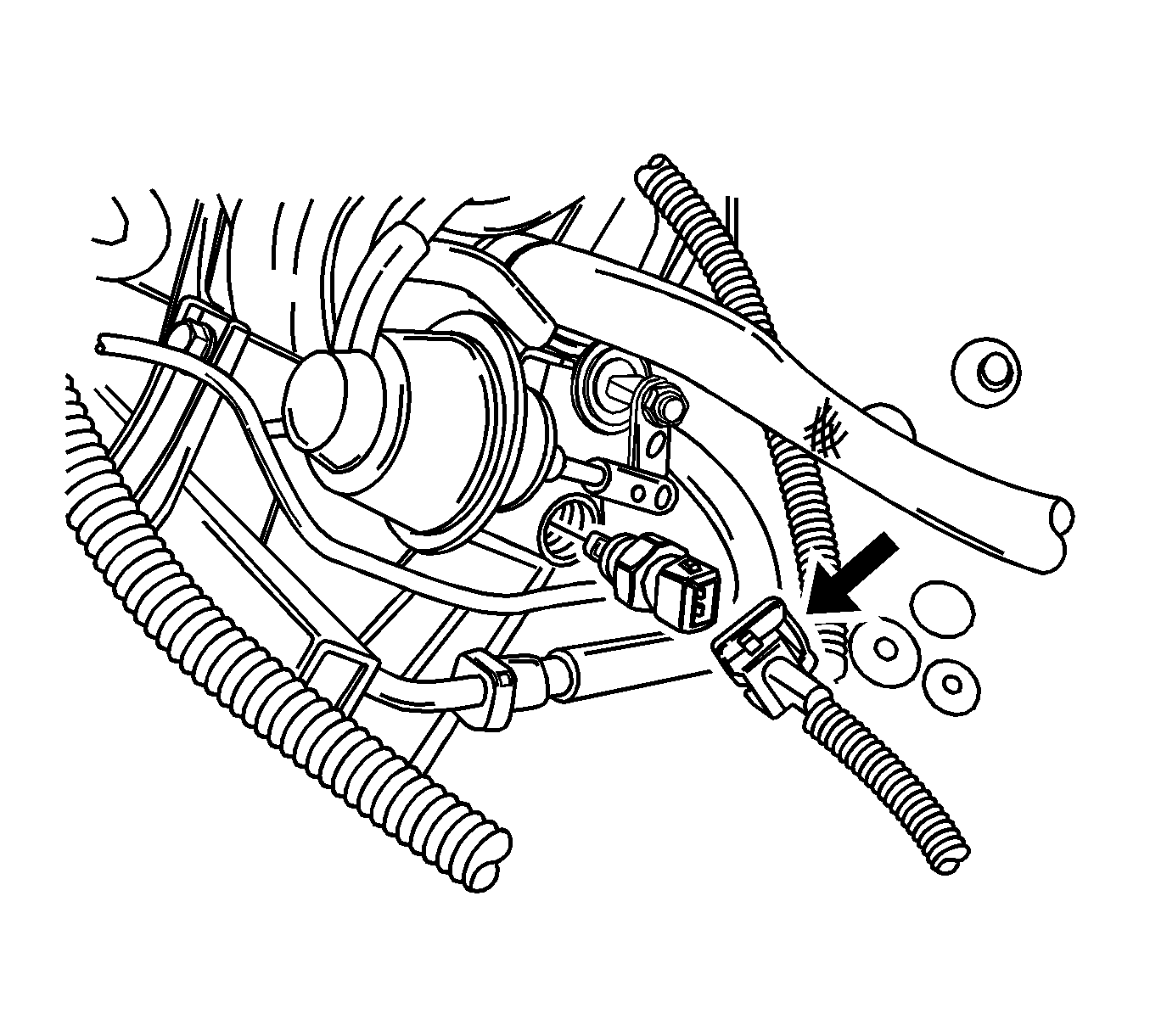

    Fig 1: View Of Intake Air Temperature Sensor
    GM1289423Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the IAT sensor.

    Tighten:  Tighten the IAT sensor to 22 N.m (16 lb ft)  .

  2. Connect the IAT sensor connector.
  3. Connect the negative battery cable.
