Installation Procedure

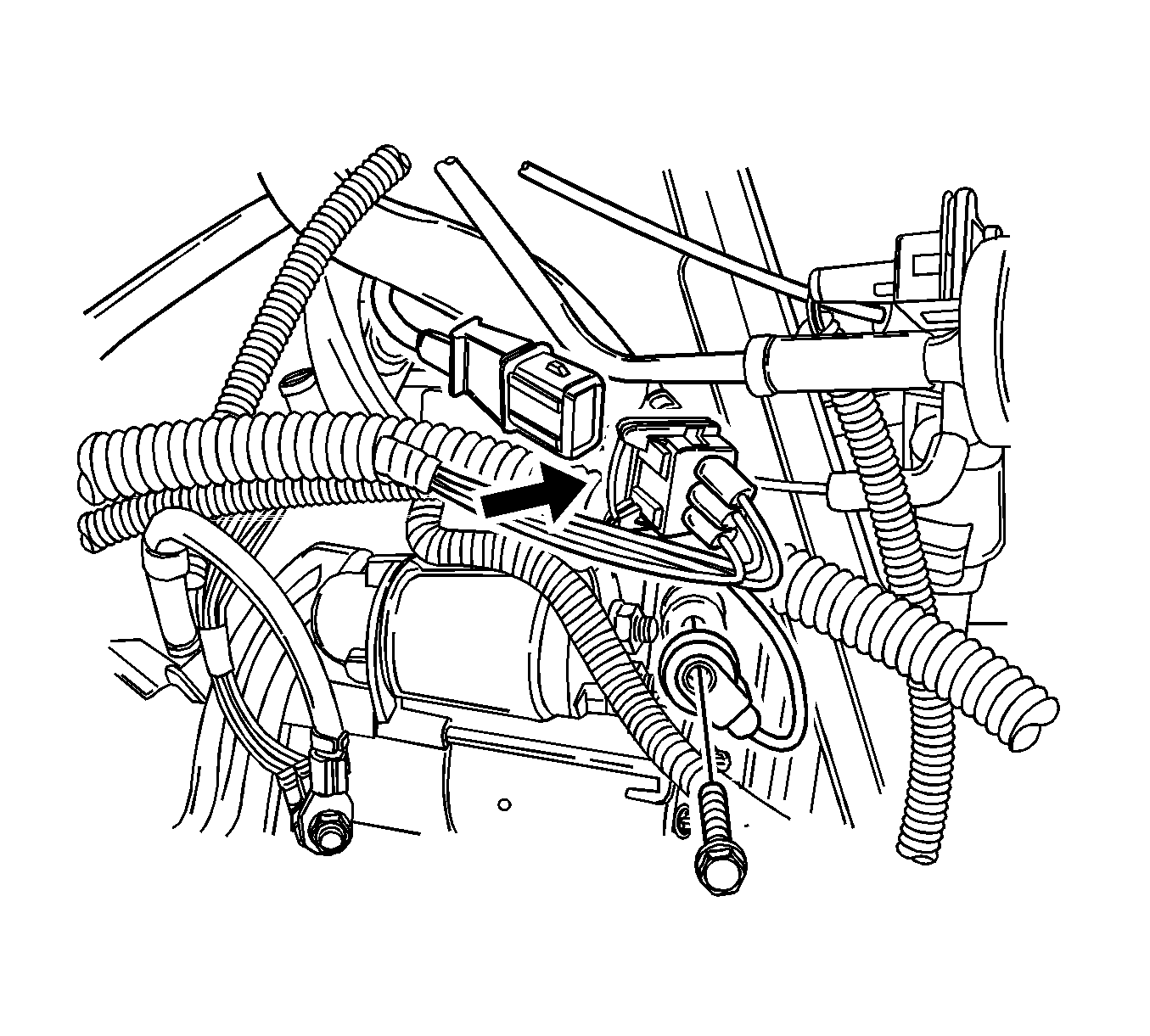

Fig 1: View Of Knock Sensor And Electrical Connector

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the KS with the bolt.
Tighten: Tighten the KS bolt to 20 N.m (15 lb ft) .
Connect the KS electrical connector.

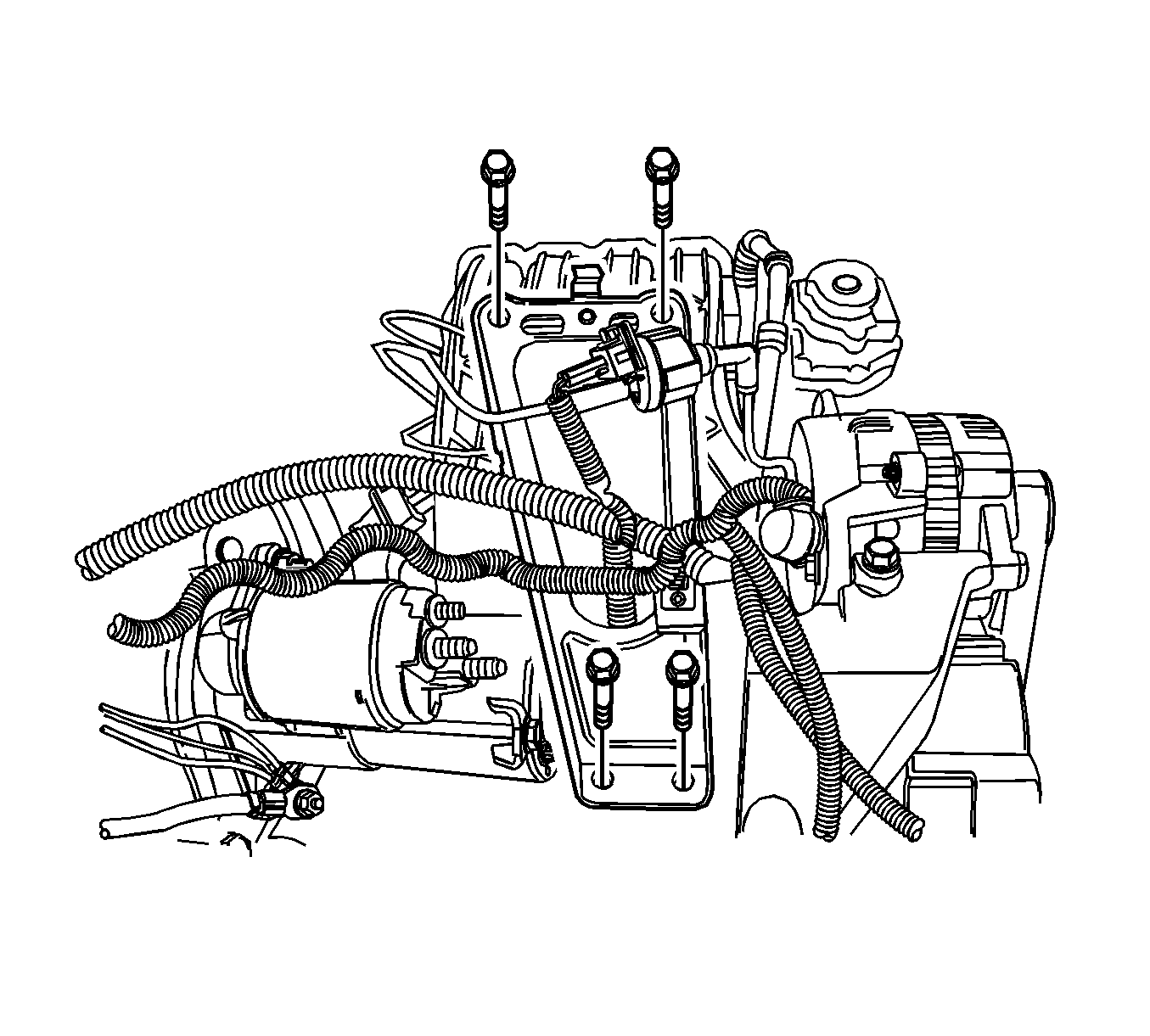

Fig 2: View Of Knock Sensor, Intake Manifold Support Bracket, And Bolts

Courtesy of GENERAL MOTORS CORP.

Install the intake manifold support bracket with the bolts.
Tighten:
- Tighten the intake manifold support bracket upper bolts to 25 N.m (18 lb ft) .
- Tighten the intake manifold support bracket lower bolts to 45 N.m (33 lb ft) .
Connect the negative battery cable.
