Installation Procedure

NOTE: Refer to Fastener Notice .

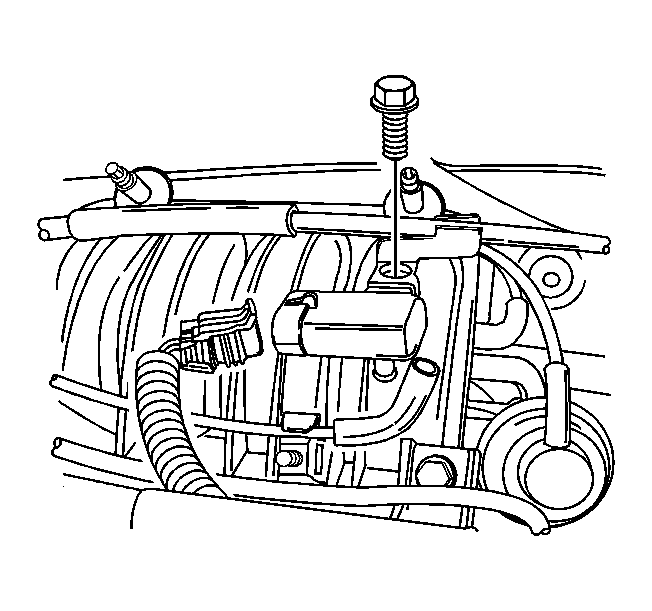

Fig 1: View Of MAP Sensor, Electrical Connector, Vacuum Hose And Retaining Bolt

Courtesy of GENERAL MOTORS CORP.

Install the MAP sensor with the bolt.
Tighten: Tighten the MAP sensor bolt to 8 N.m (71 lb in) .
Connect the MAP sensor vacuum hose.
Connect the MAP sensor electrical connector.
Connect the negative battery cable.
