Shift Lock Control Schematics

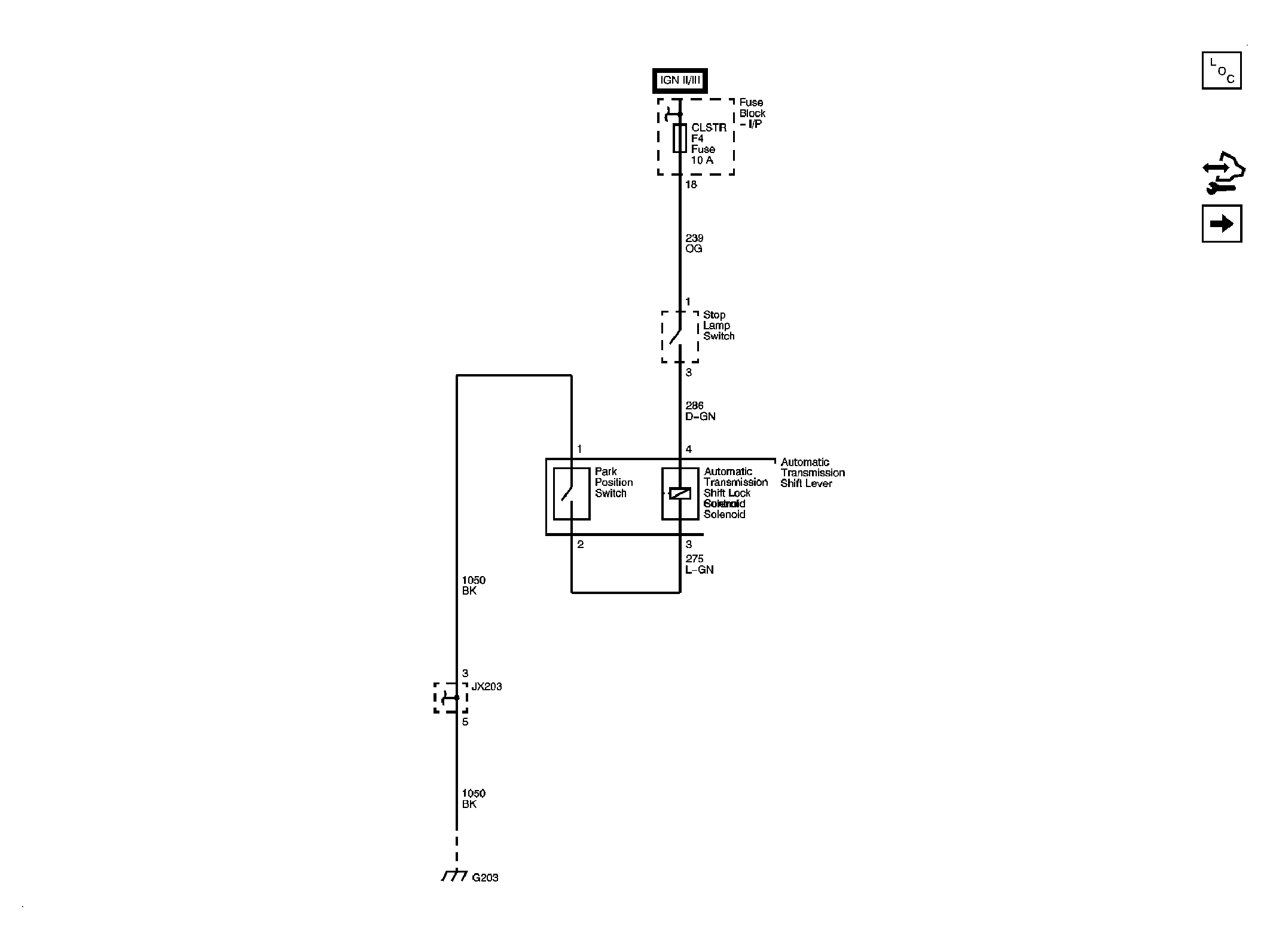

Fig 1: Automatic Transmission Shift Lock Control w/o Ignition Lock Cylinder Control Actuator Schematic
Courtesy of GENERAL MOTORS CORP.

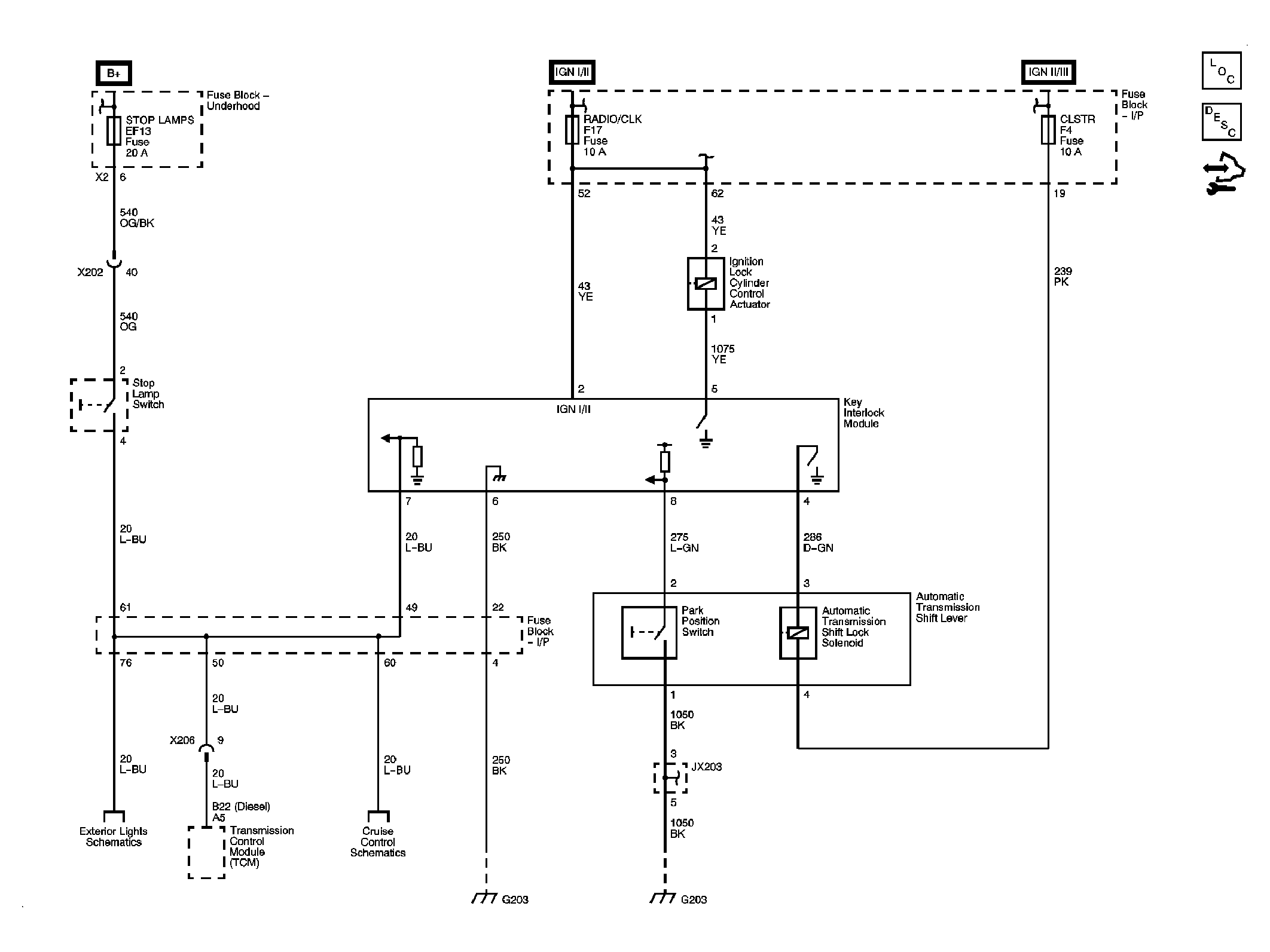

Fig 2: Automatic Transmission Shift Lock Control with Ignition Lock Cylinder Control Actuator Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
