Installation Procedure

    Fig 1: View Of Generator Bolts
    GM1821743Courtesy of GENERAL MOTORS CORP.
  1. Install the generator.
    2. NOTE: Refer to Fastener Notice .
  2. Install the generator lead-to-starter motor wire retaining nut.

    Tighten:

    • Tighten the generator bolt to 30 N.m (22.1 lb ft)  .
    • Tighten the generator B+ wiring harness retaining nut to 25 N.m (18.4 lb ft)  .

    3. Fig 2: View Of EGR Vacuum Tank
    GM1962618Courtesy of GENERAL MOTORS CORP.
  3. Install the EGR vacuum tank.

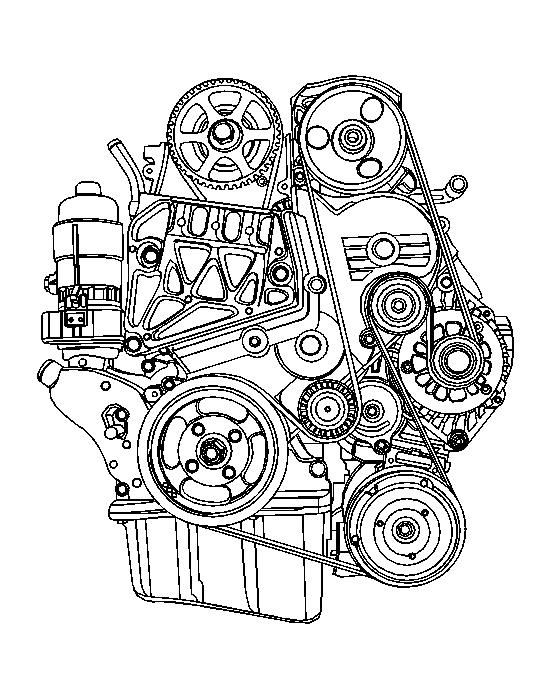

    4. Fig 3: Identifying Accessory Belt
    GM1821742Courtesy of GENERAL MOTORS CORP.
  4. Install the accessory drive belt. Refer to Drive Belt Replacement .

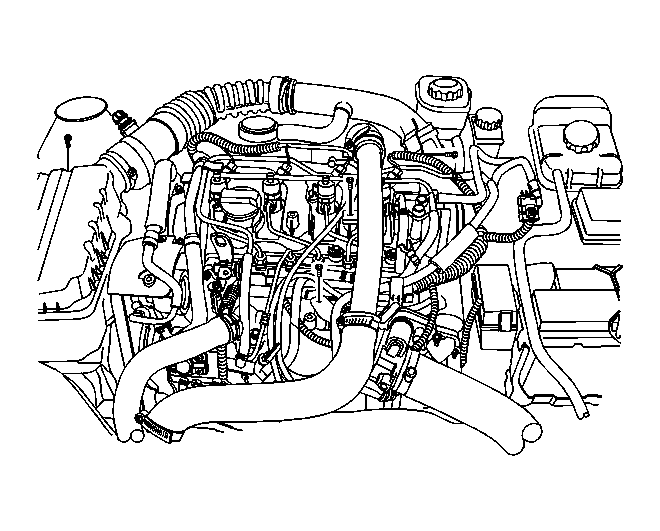

    5. Fig 4: Identifying Charge Air Cooler Inlet Hoses And Fasteners
    GM1962615Courtesy of GENERAL MOTORS CORP.
  5. Install the charge air cooler inlet hoses. Refer to Charge Air Cooler Inlet Pipe and Outlet Pipe Replacement .
  6. Install the engine cover. Refer to Engine Cover Replacement .
  7. Connect the negative battery cable.
