Installation Procedure

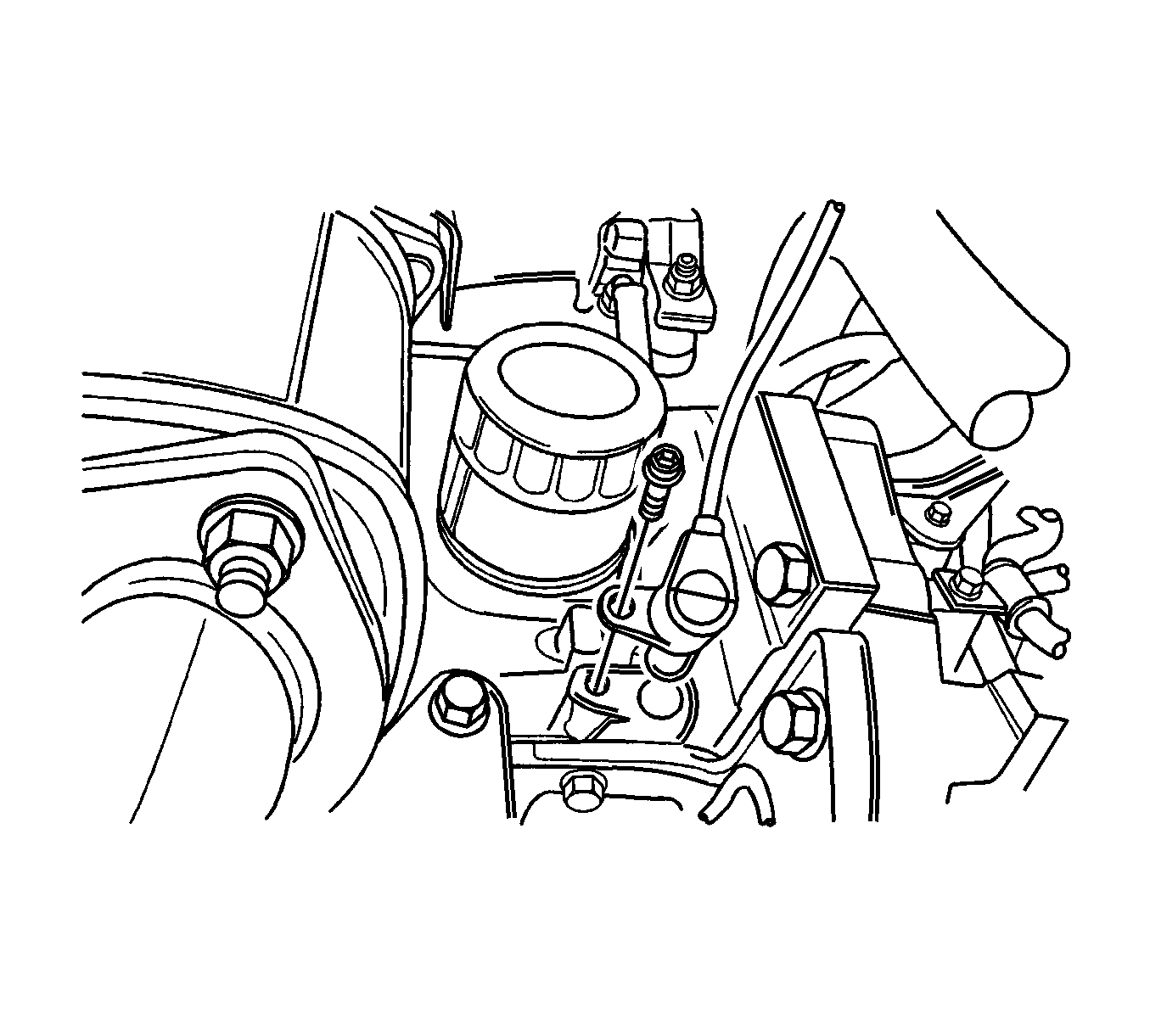

    Fig 1: Identifying CKP Sensor Bolt
    GM1289479Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Install the CKP sensor with the bolt.

    Tighten:  Tighten the CKP sensor bolt to 6.5 N.m (58 lb in)  .

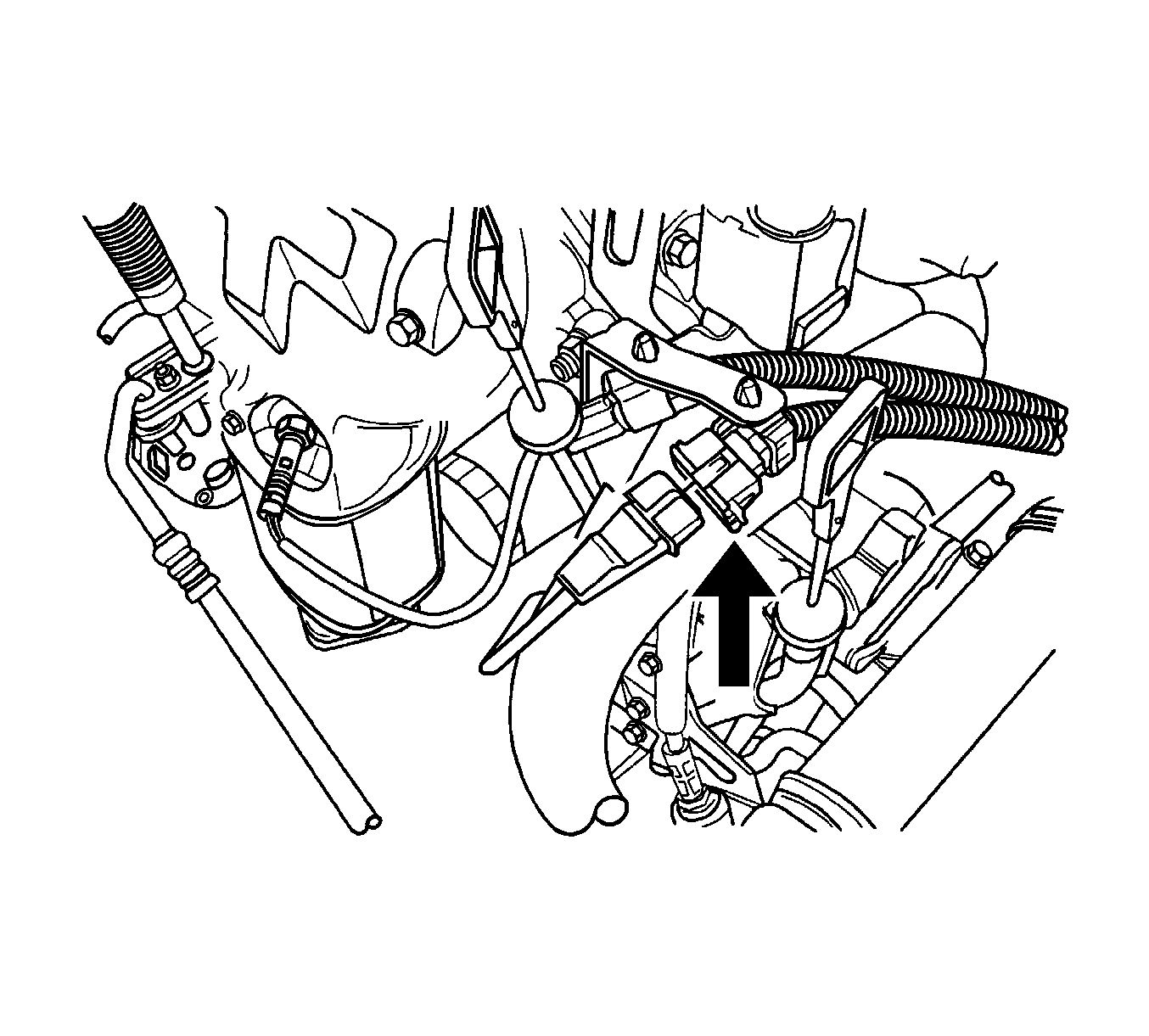

    2. Fig 2: View Of Crankshaft Position Sensor Electrical Connector
    GM1289478Courtesy of GENERAL MOTORS CORP.
  2. Connect the CKP sensor electrical connector.
  3. Connect the negative battery cable.
