Memory Positioning Switch: Locations

Door Component Views

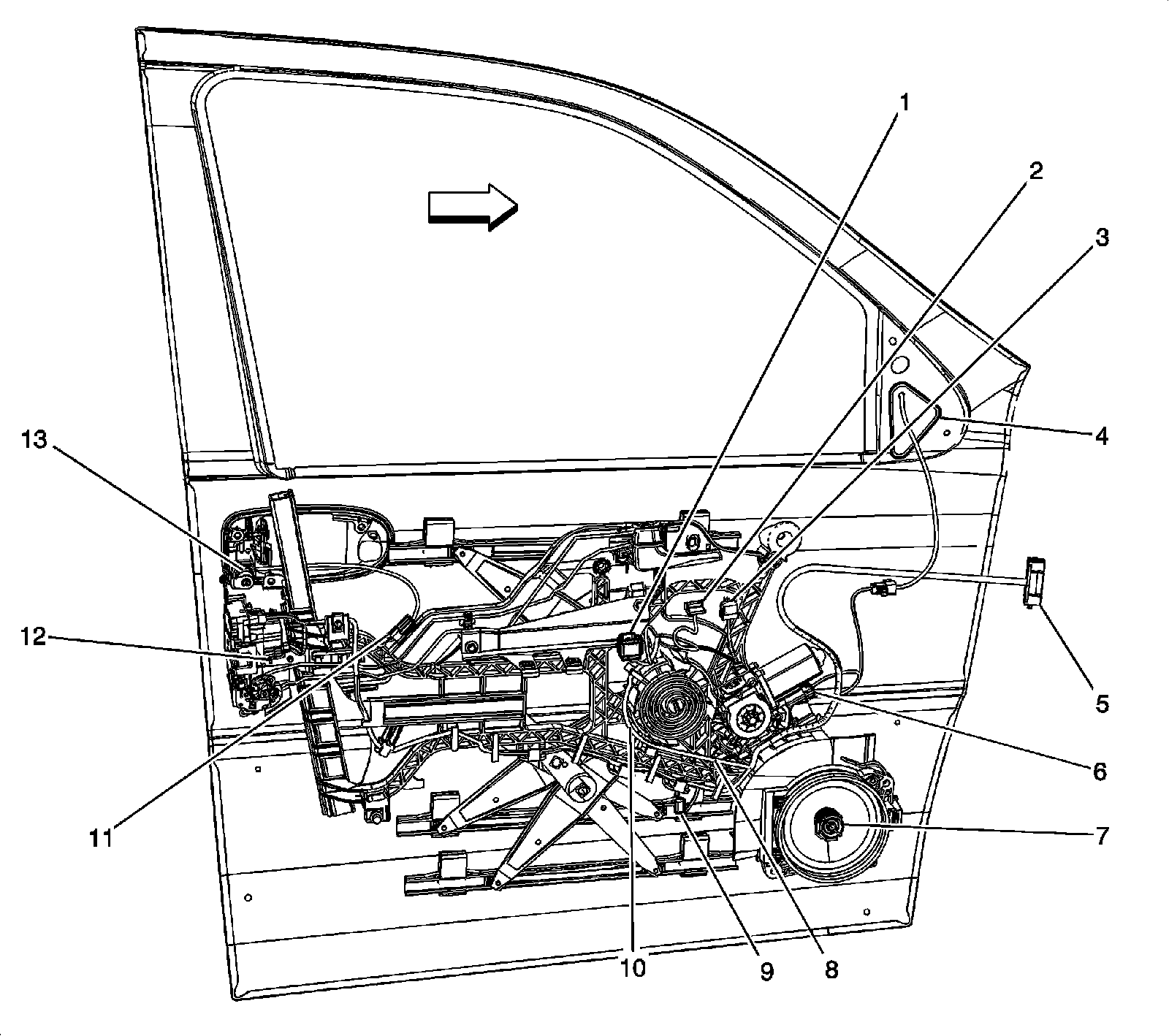

Driver Door Components




1 - Outside Rearview Mirror Switch - Left Connector
2 - Window Switch - Driver Connector
3 - Door Lock Switch - Driver Connector
4 - Outside Rearview Mirror - Driver
5 - X301
6 - Window Motor - Driver
7 - Speaker - Left Front
8 - J555
9 - Memory Seat Switch - Driver (AG0) Connector
10 - J551
11 - Driver Door Key Switch Connector
12 - Door Latch Assembly - Driver
13 - Driver Door Key Switch (AU6)
