Engine Control Module



Component Connector End Views

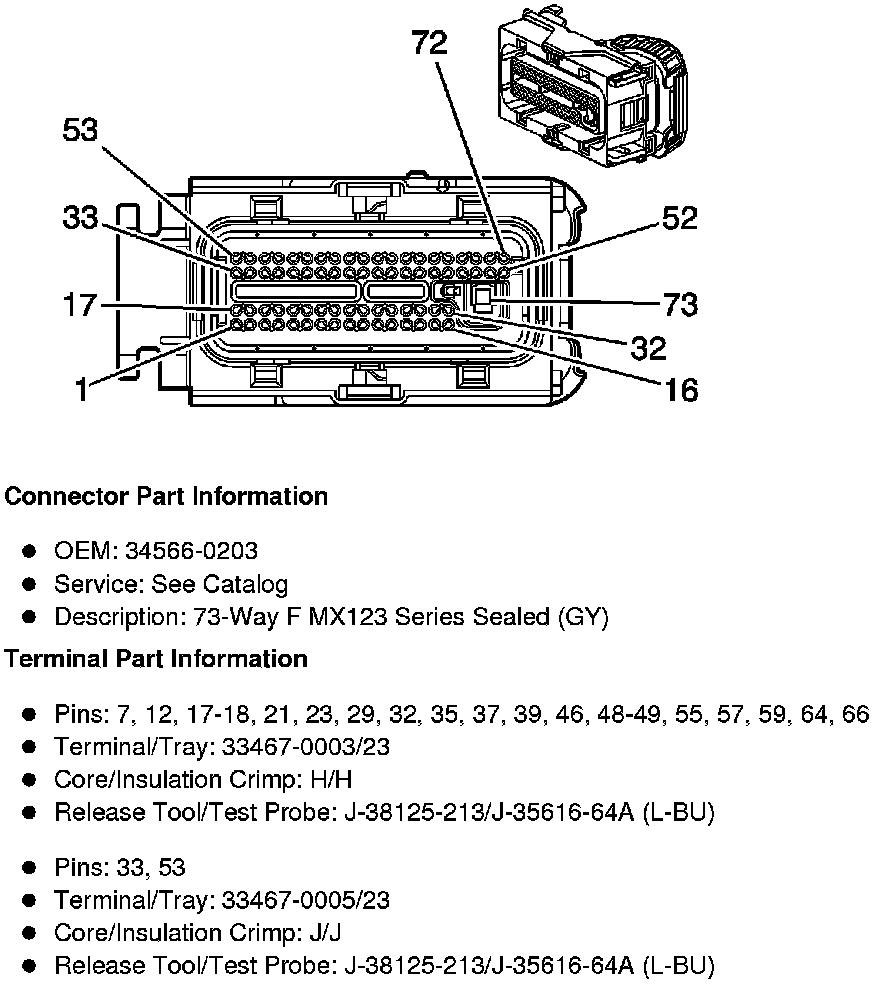

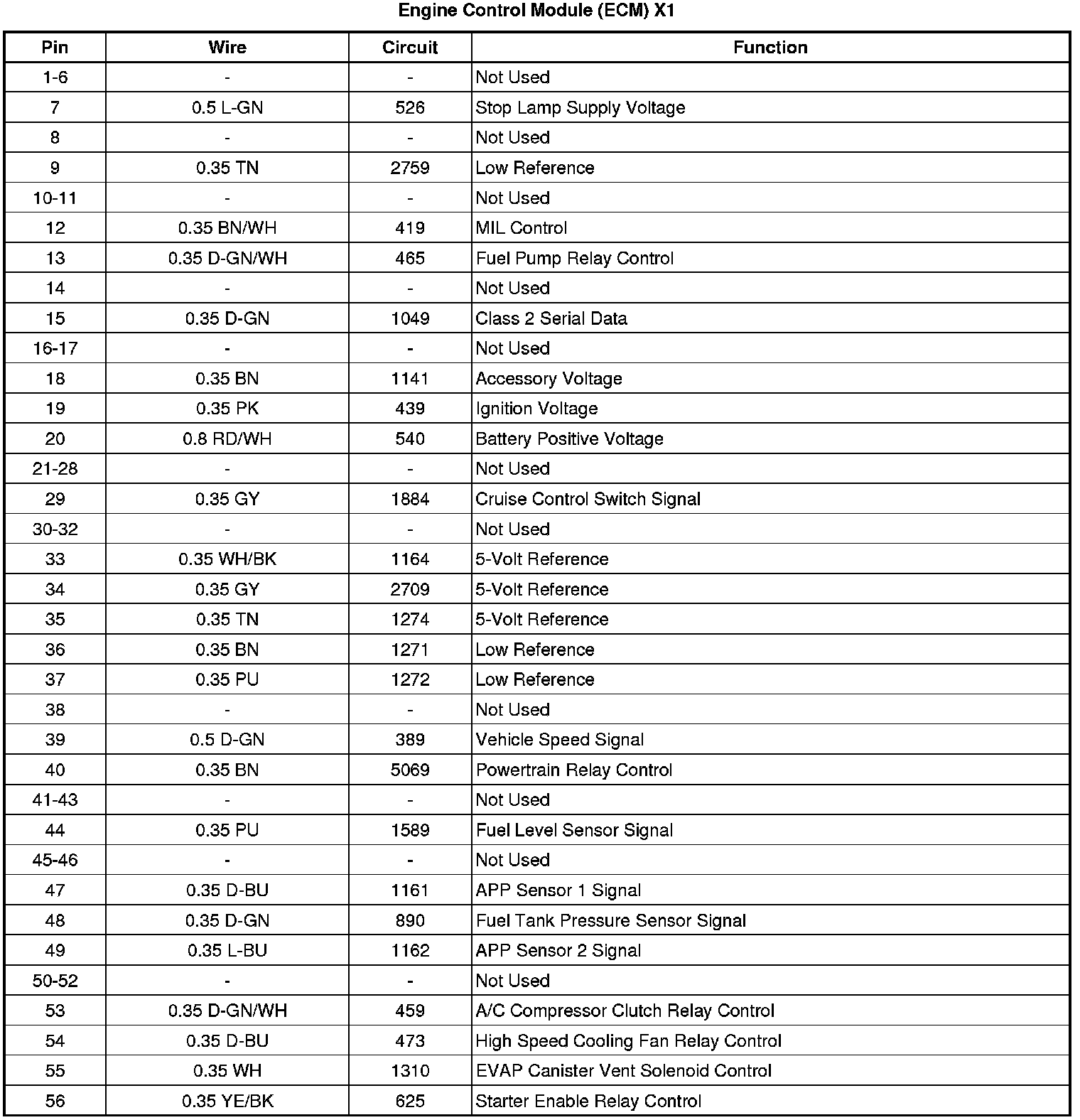

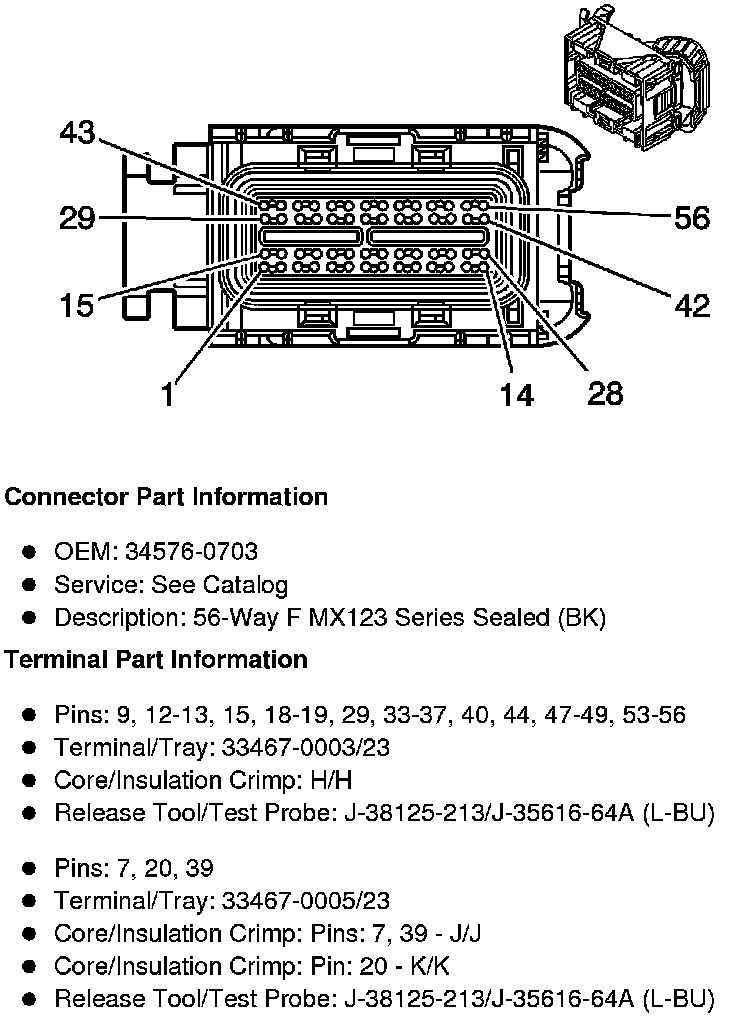

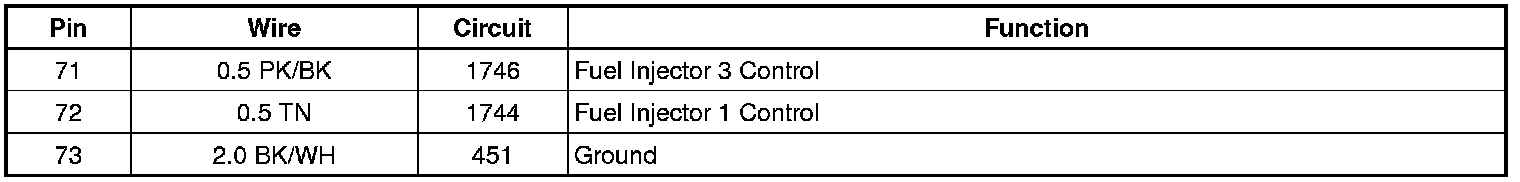

Engine Control Module (ECM) X1

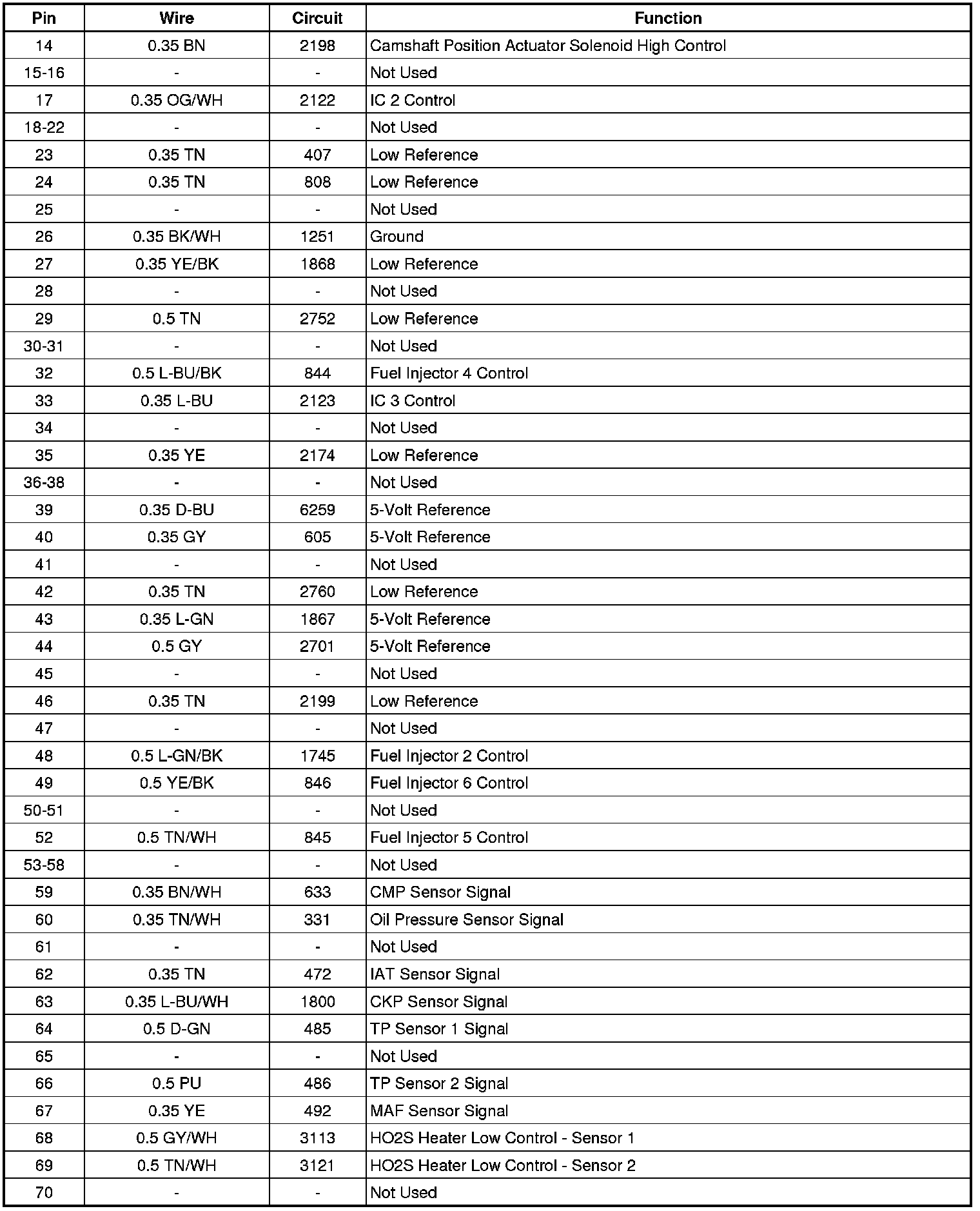

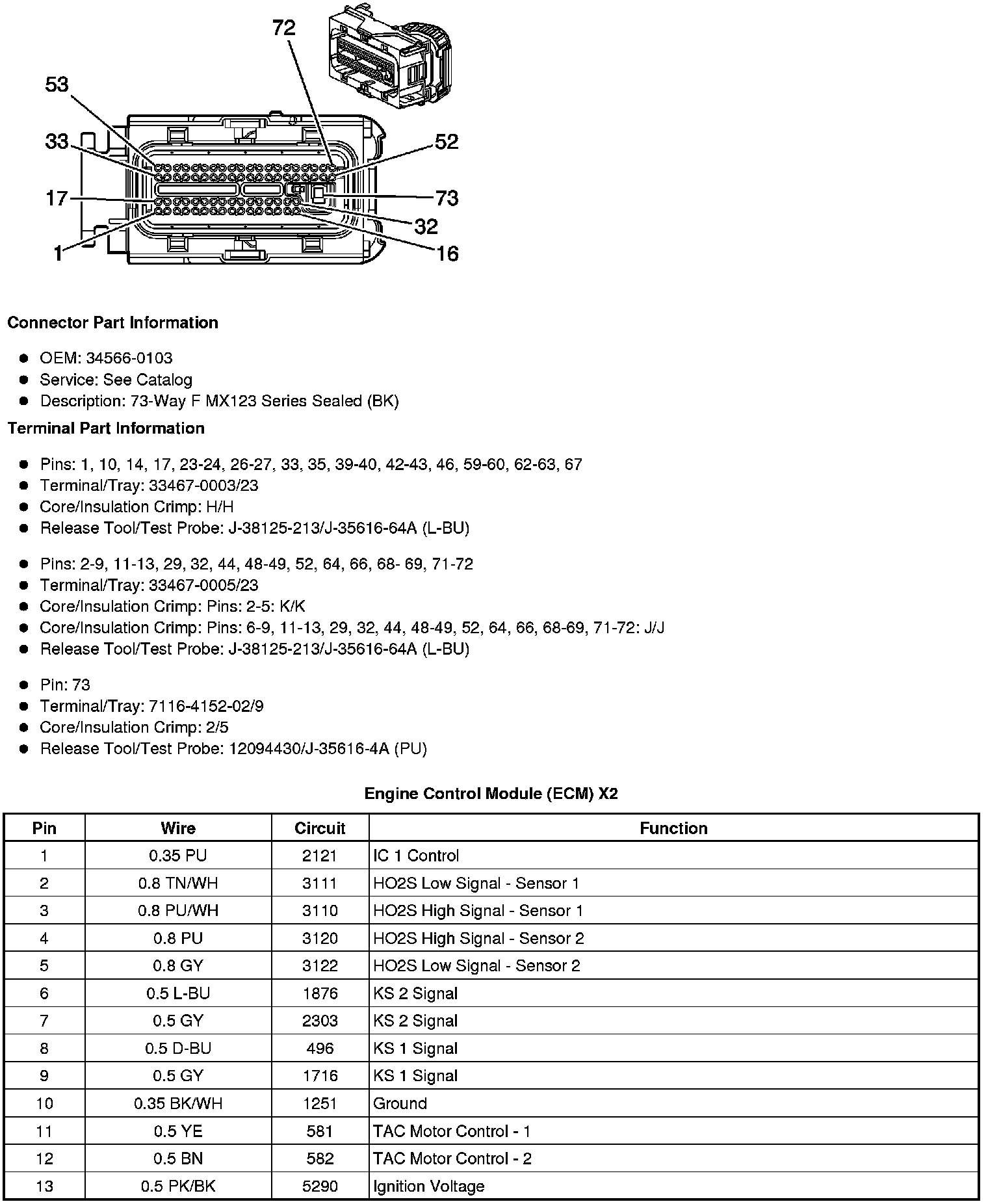

Engine Control Module (ECM) X2

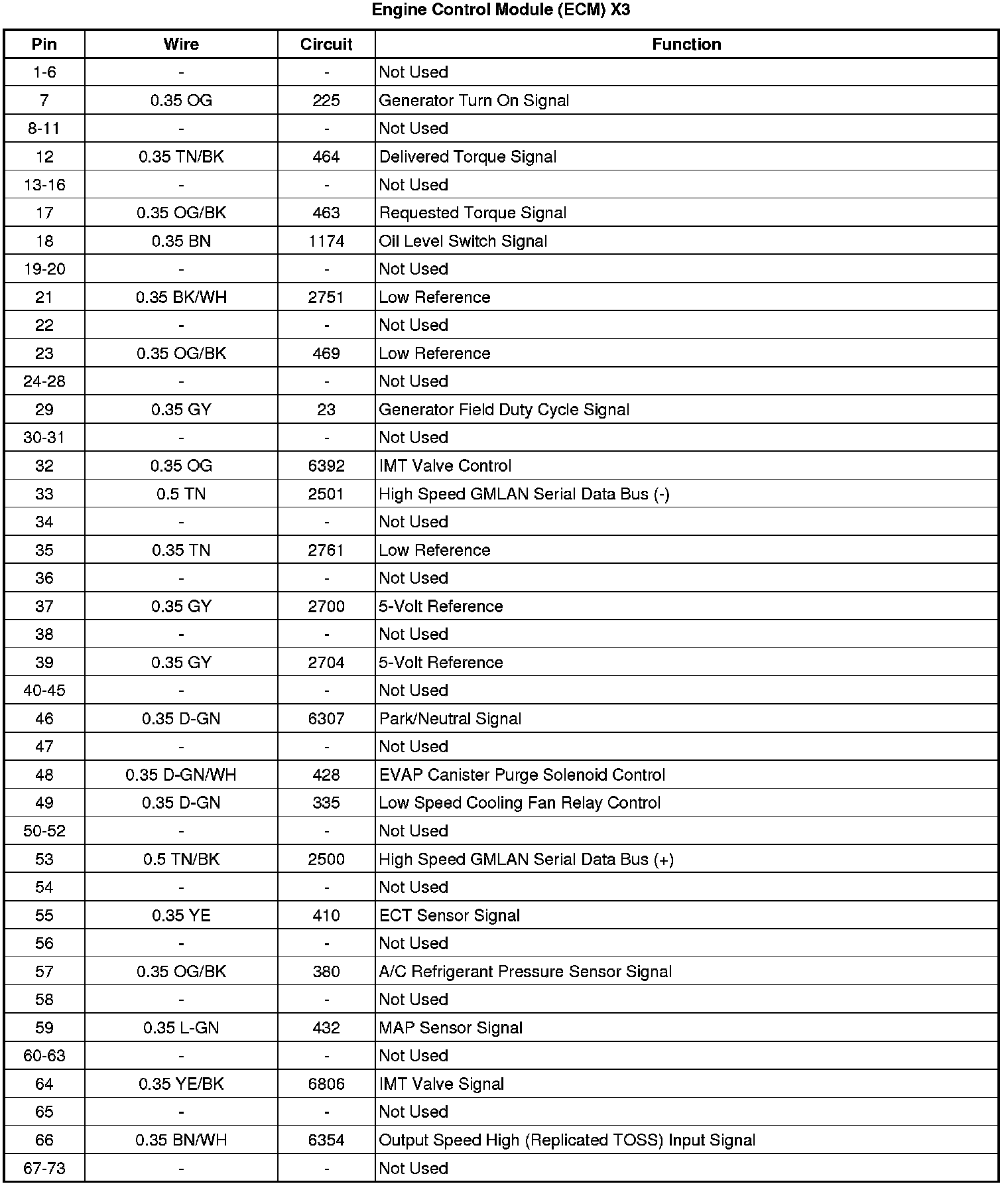

Engine Control Module (ECM) X3
