Right Sliding Door Module (RSDM)



Component Connector End Views

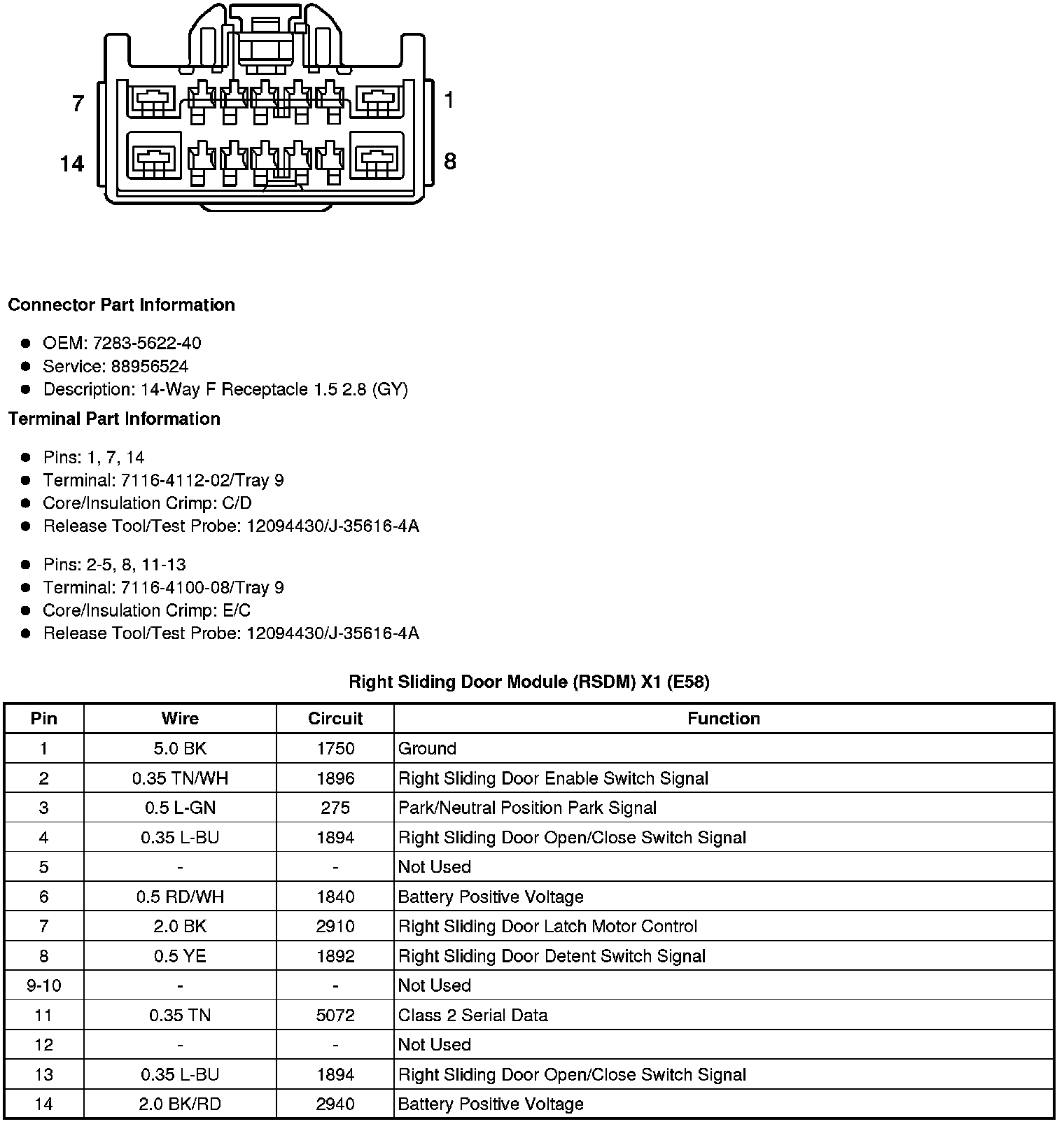

Right Sliding Door Module (RSDM) X1 (E58)

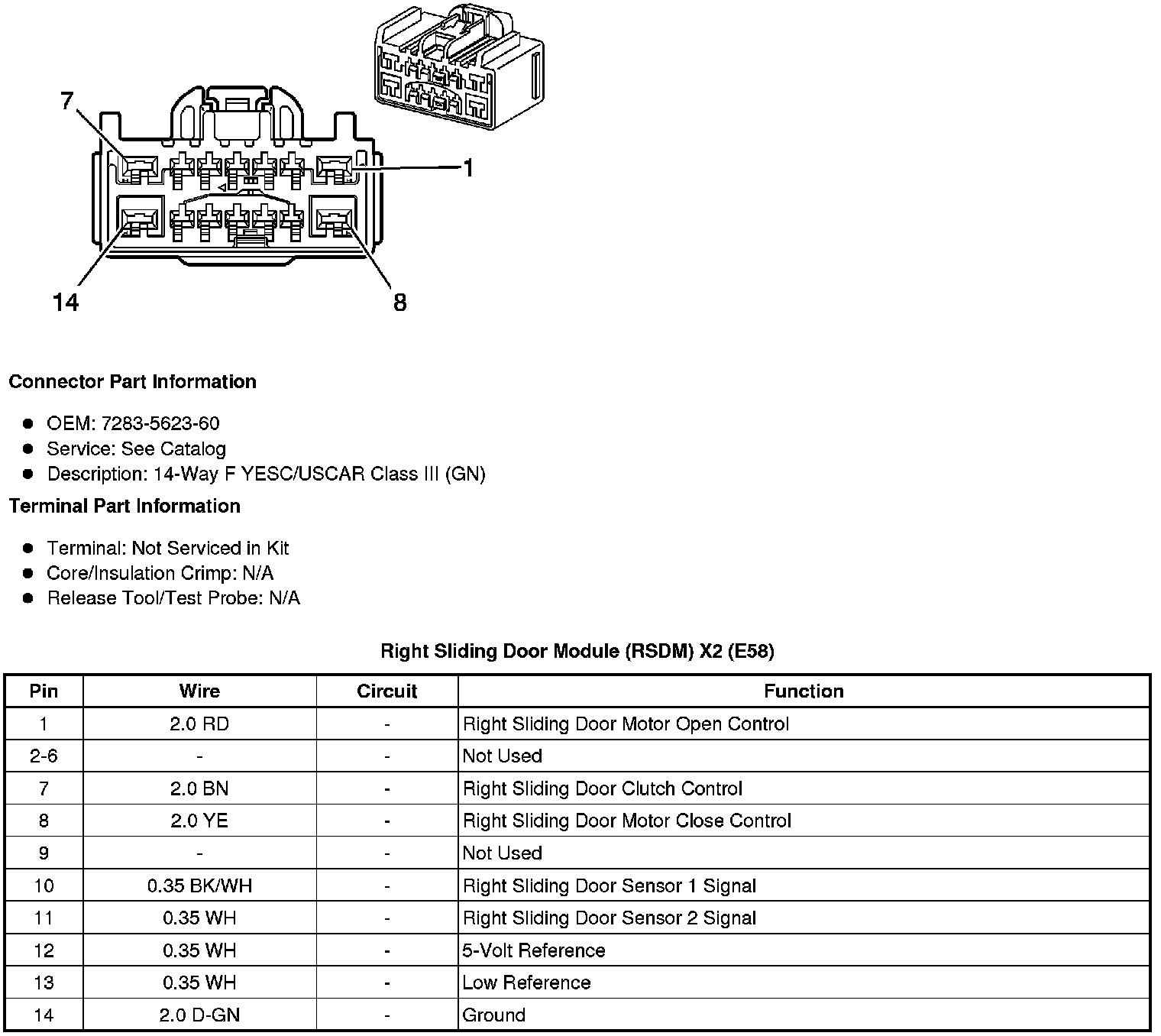

Right Sliding Door Module (RSDM) X2 (E58)
