Power Distribution Module



Component Connector End Views

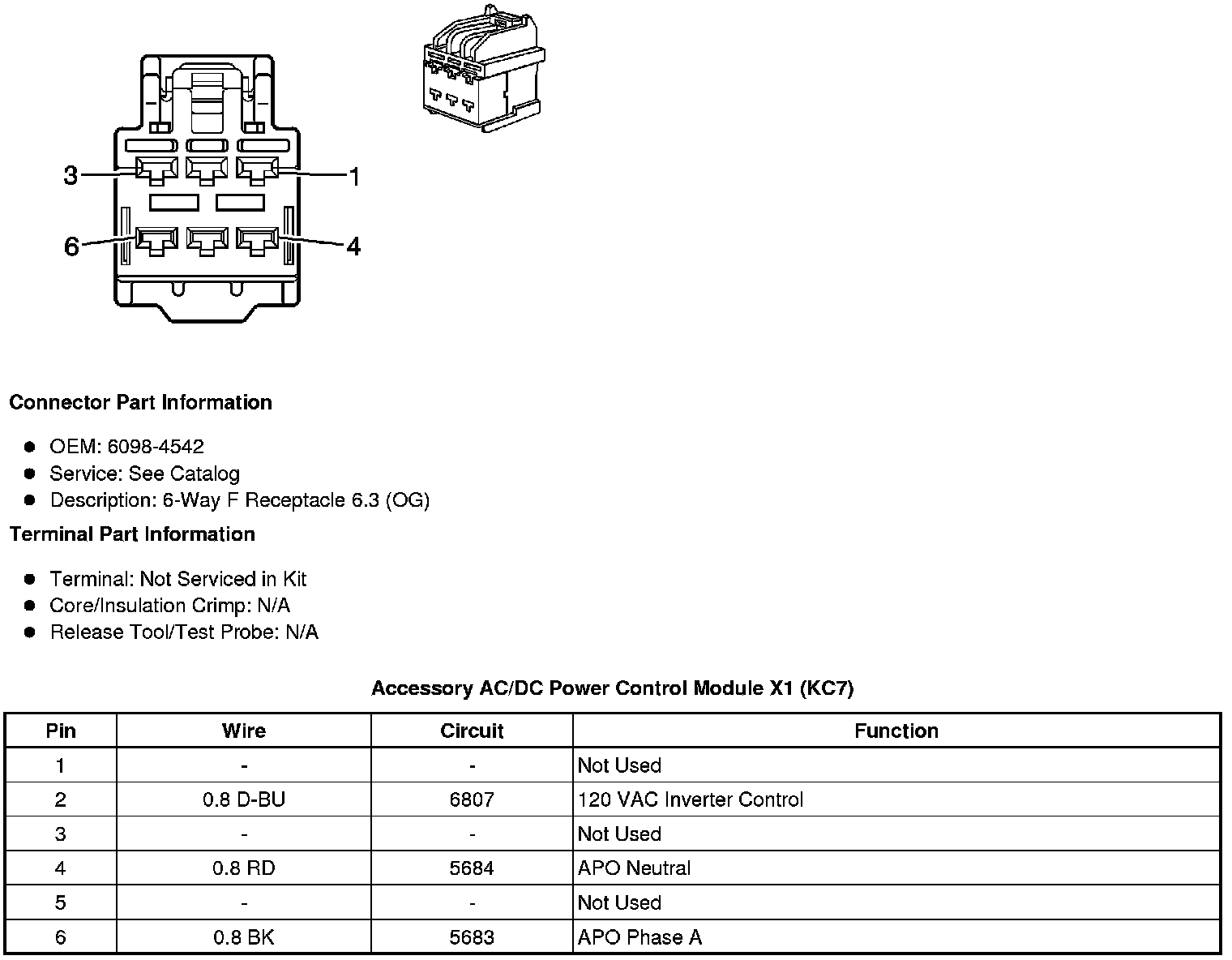

Accessory AC/DC Power Control Module X1 (KC7)

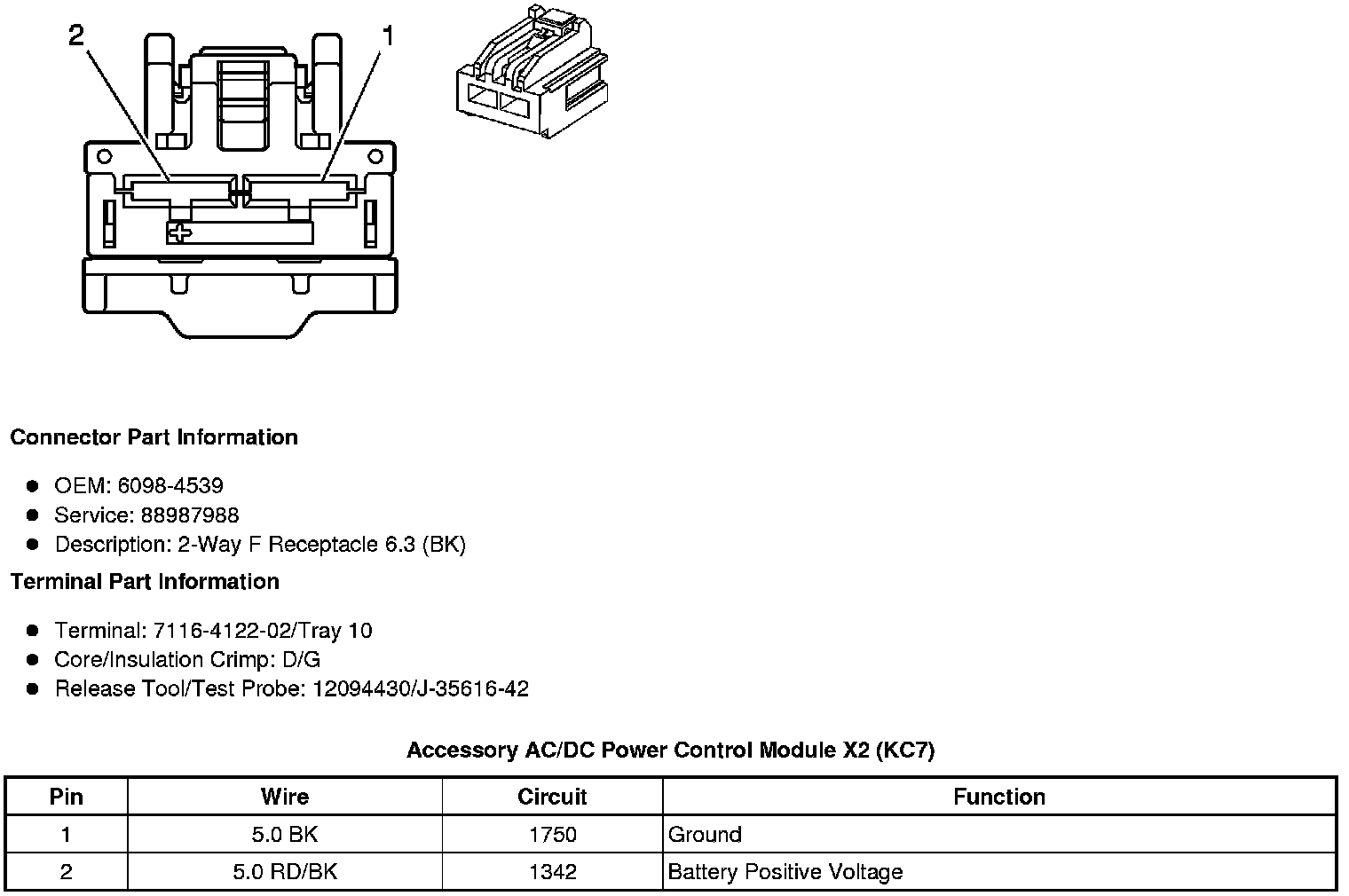

Accessory AC/DC Power Control Module X2 (KC7)
