Steering Column



Inline Harness Connector End Views

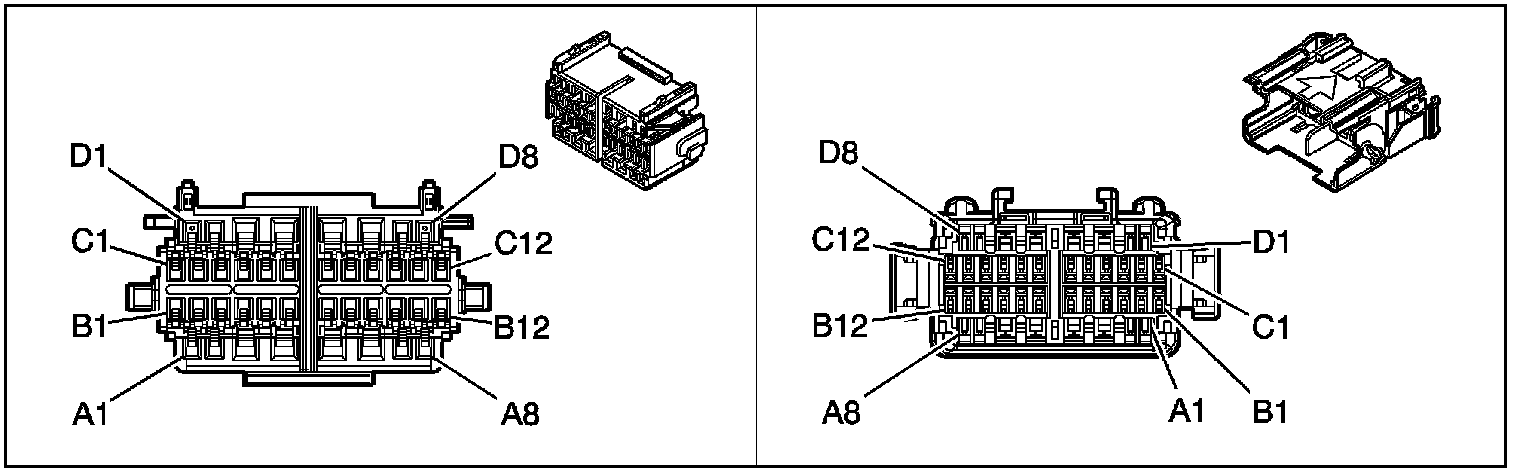

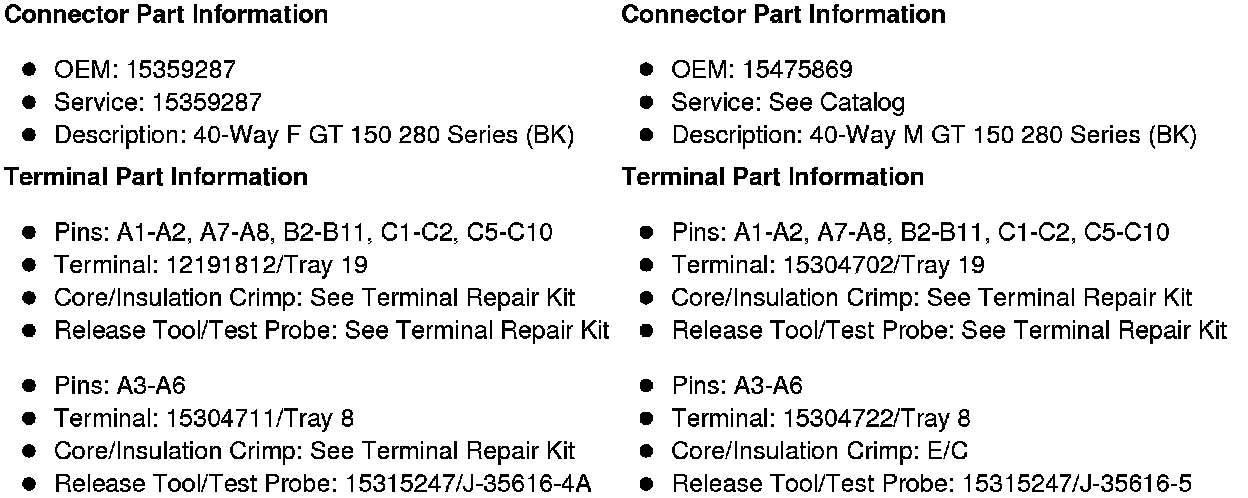

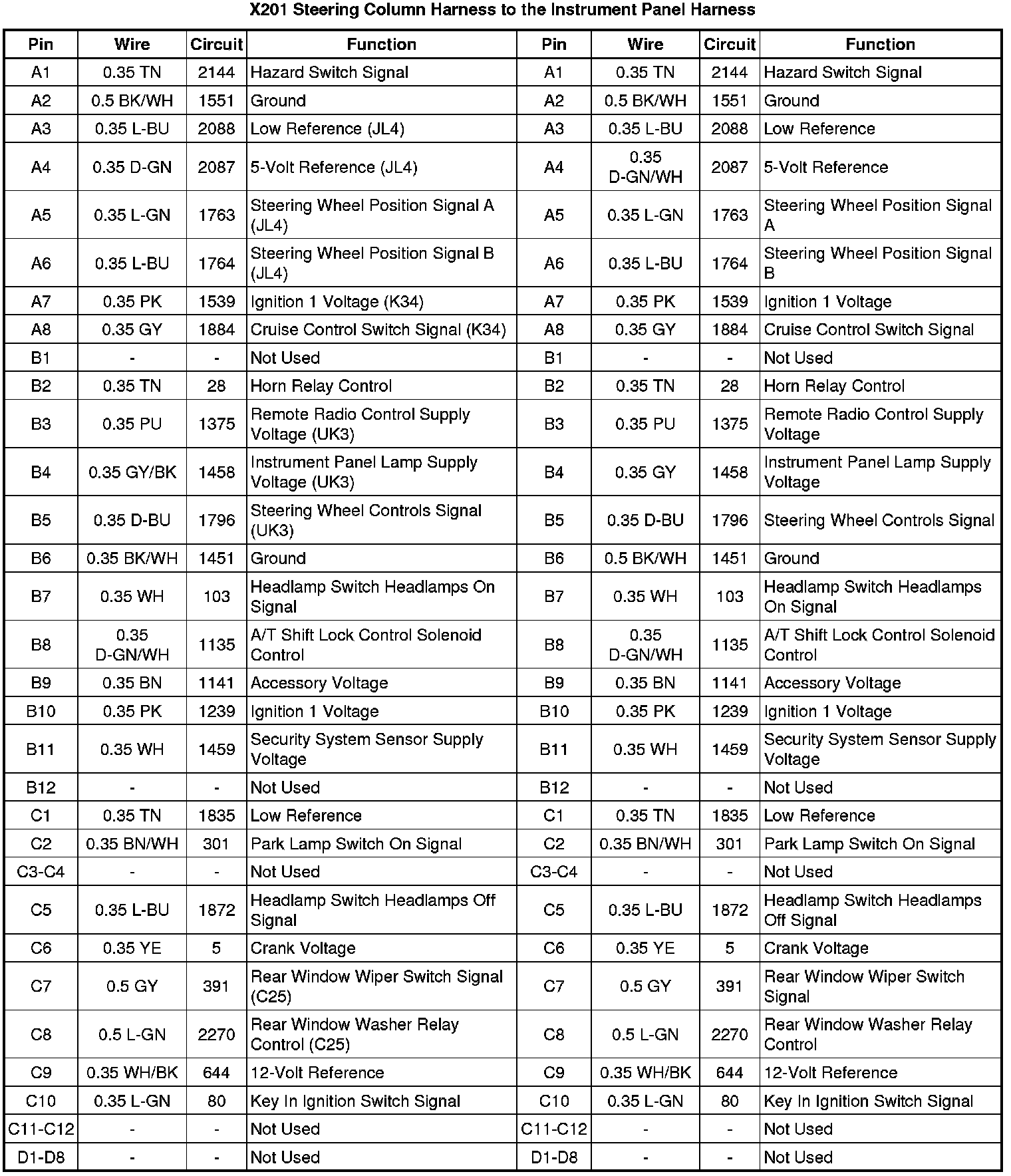

X201 Steering Column Harness to the Instrument Panel Harness

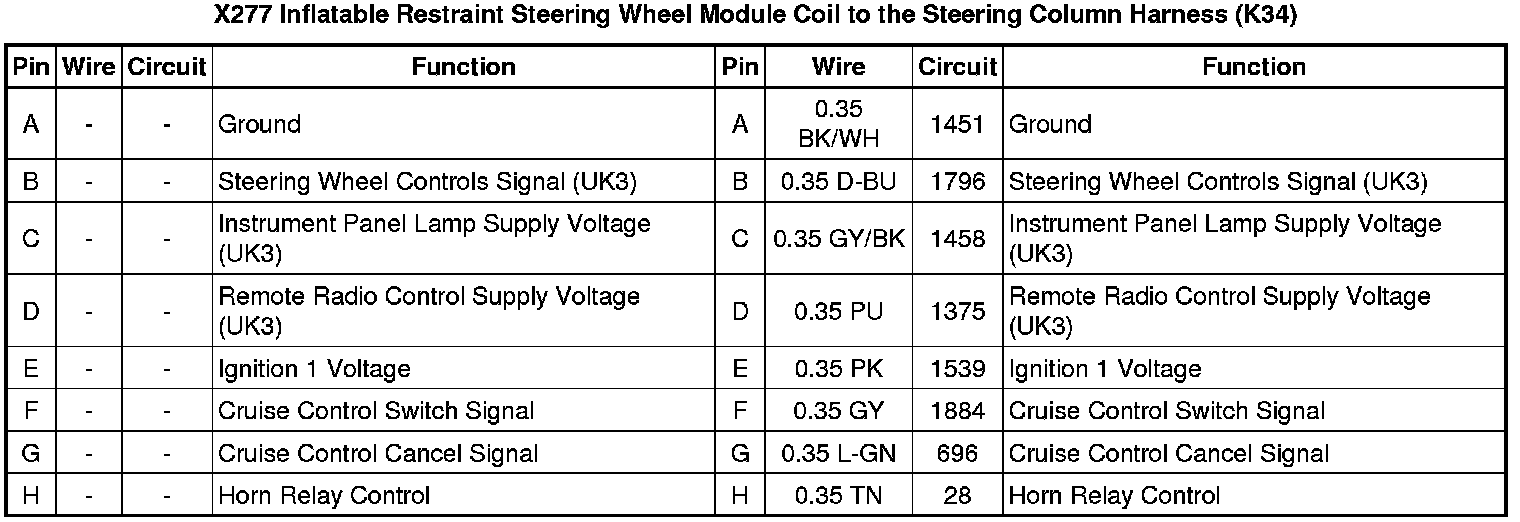

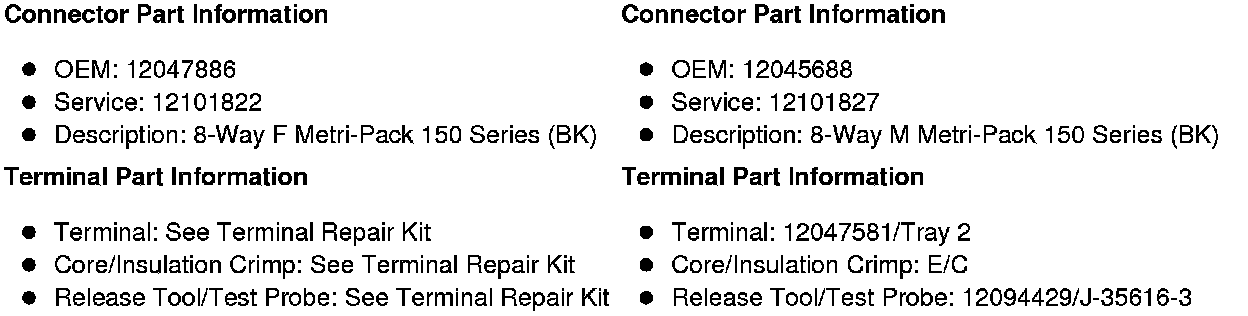

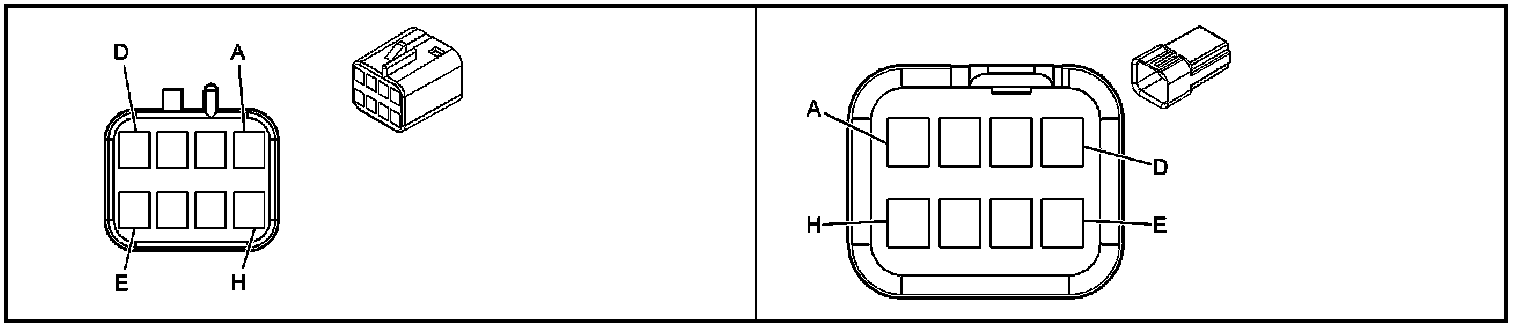

X277 Inflatable Restraint Steering Wheel Module Coil to the Steering Column Harness (K34)

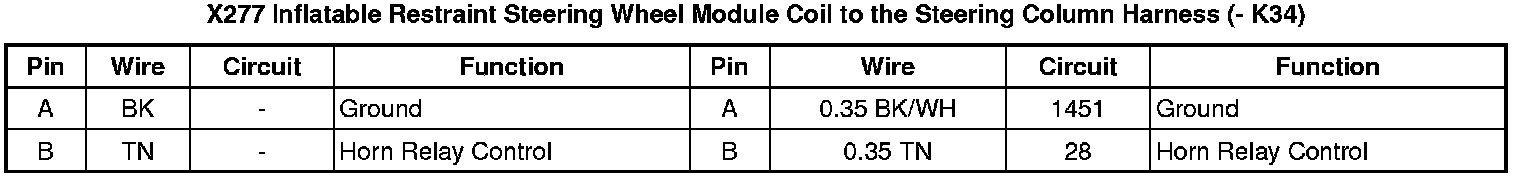

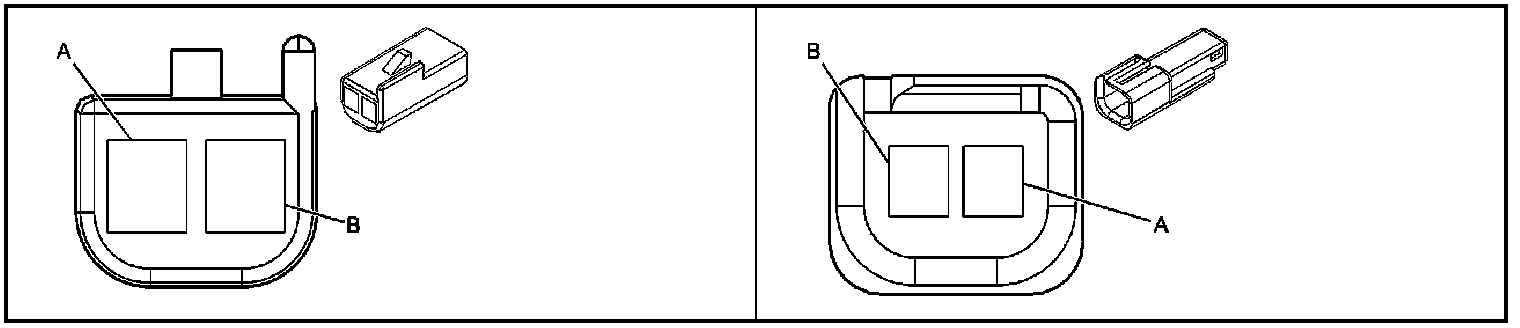

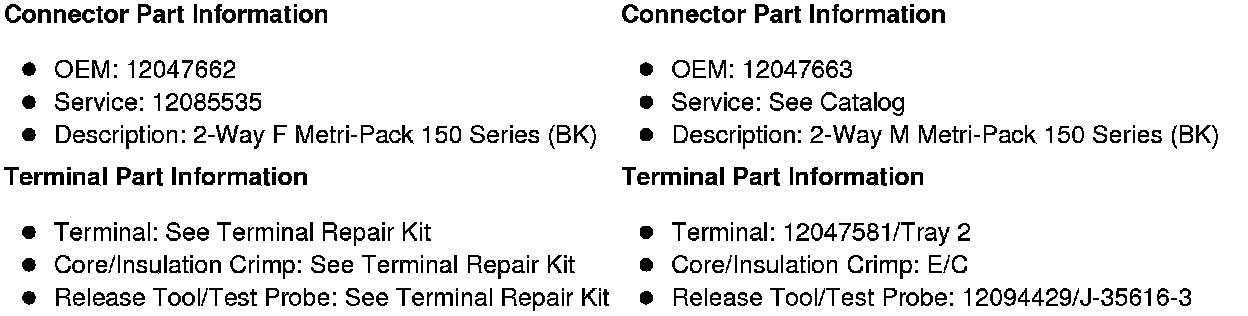

X277 Inflatable Restraint Steering Wheel Module Coil to the Steering Column Harness (- K34)
