Steering Mounted Controls Transmitter



Component Connector End Views

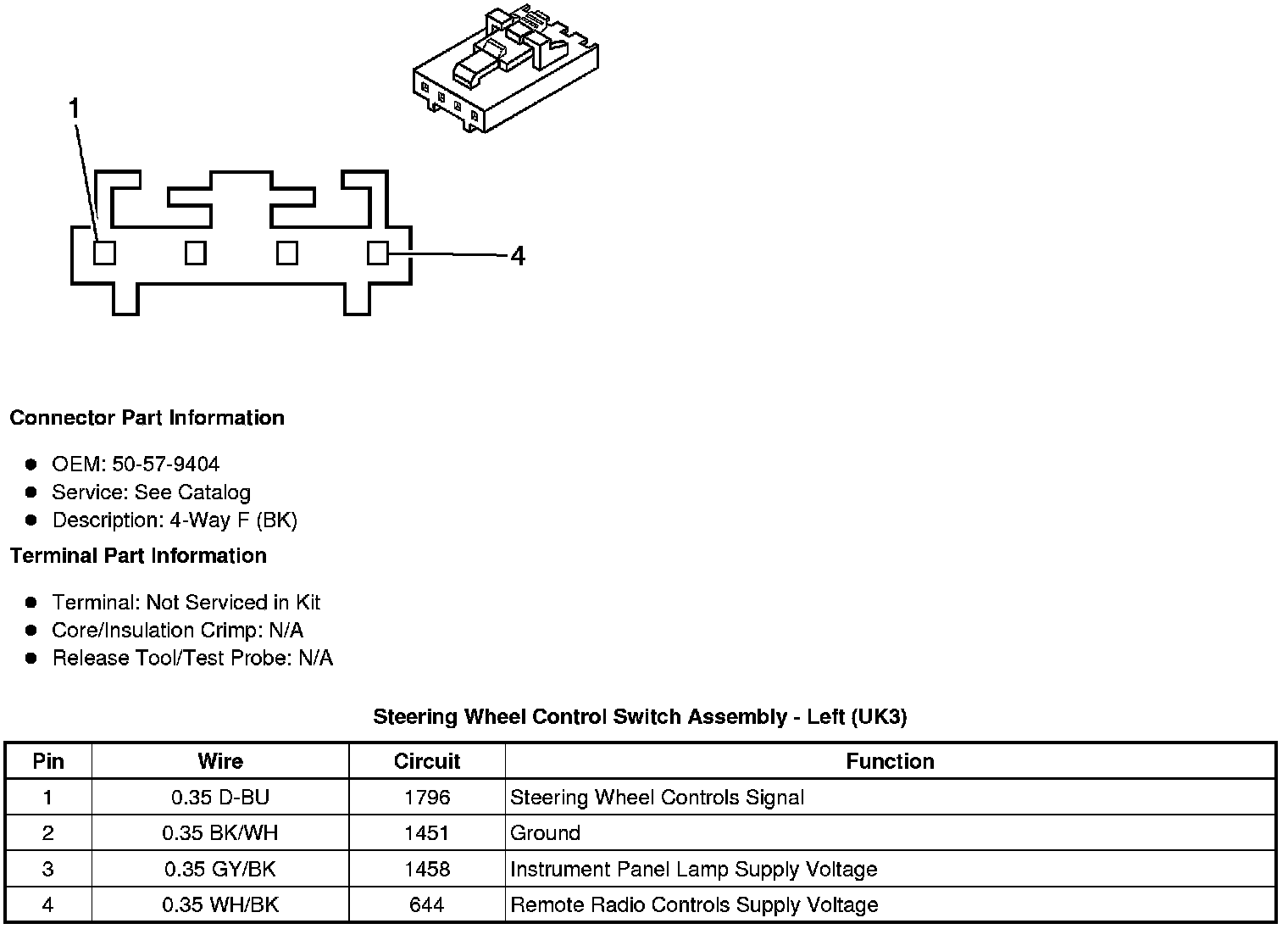

Steering Wheel Control Switch Assembly - Left (UK3)

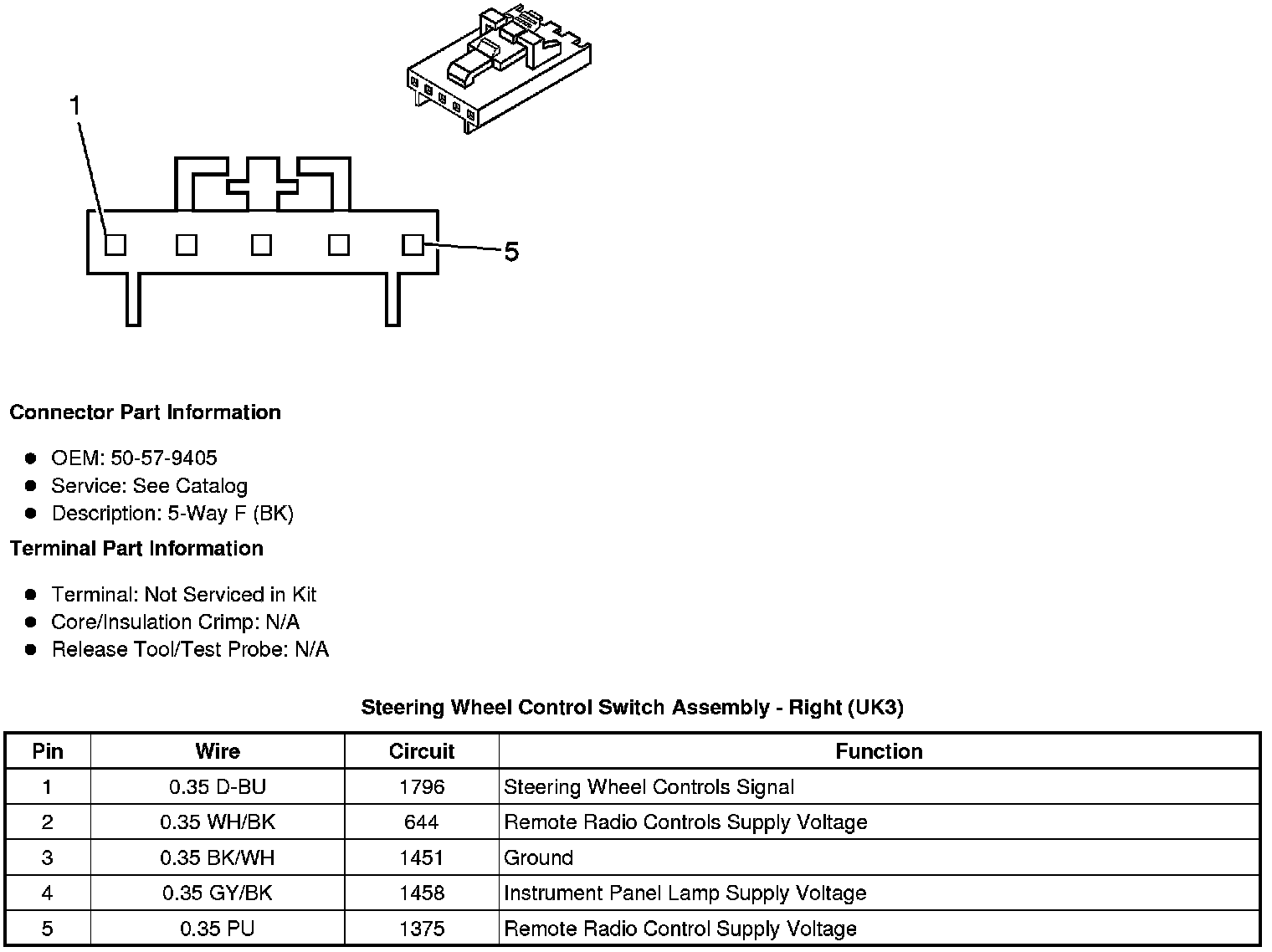

Steering Wheel Control Switch Assembly - Right (UK3)
