Steering Wheel



Inline Harness Connector End Views

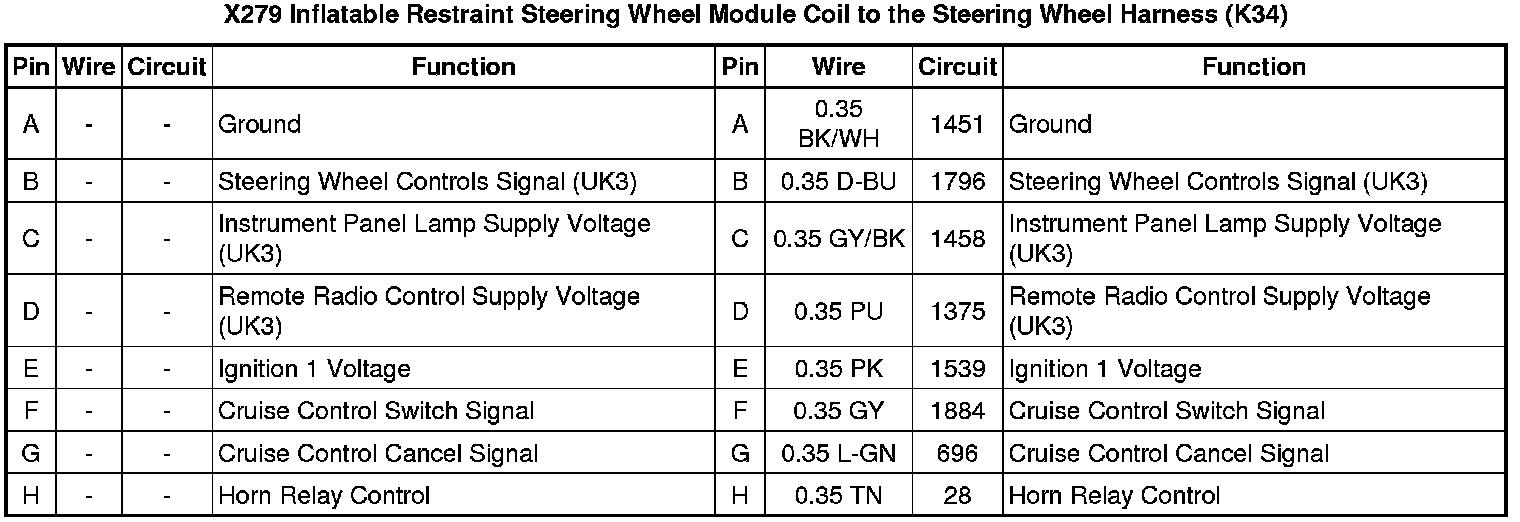

X279 Inflatable Restraint Steering Wheel Module Coil to the Steering Wheel Harness (K34)













X279 Inflatable Restraint Steering Wheel Module Coil to the Steering Wheel Harness (- K34)
