Lift Limit Switch
Component Connector End Views

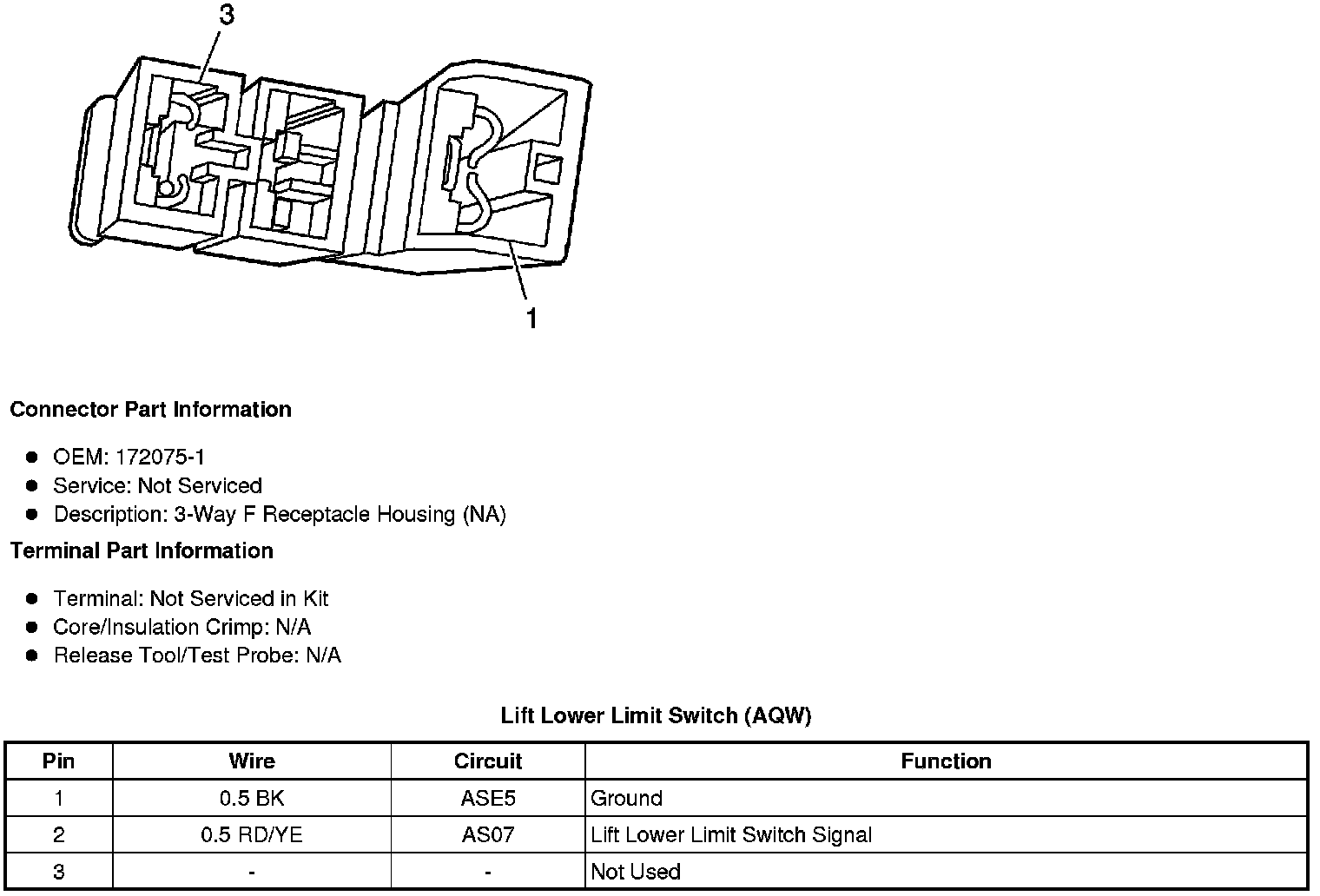

Lift Lower Limit Switch (AQW)

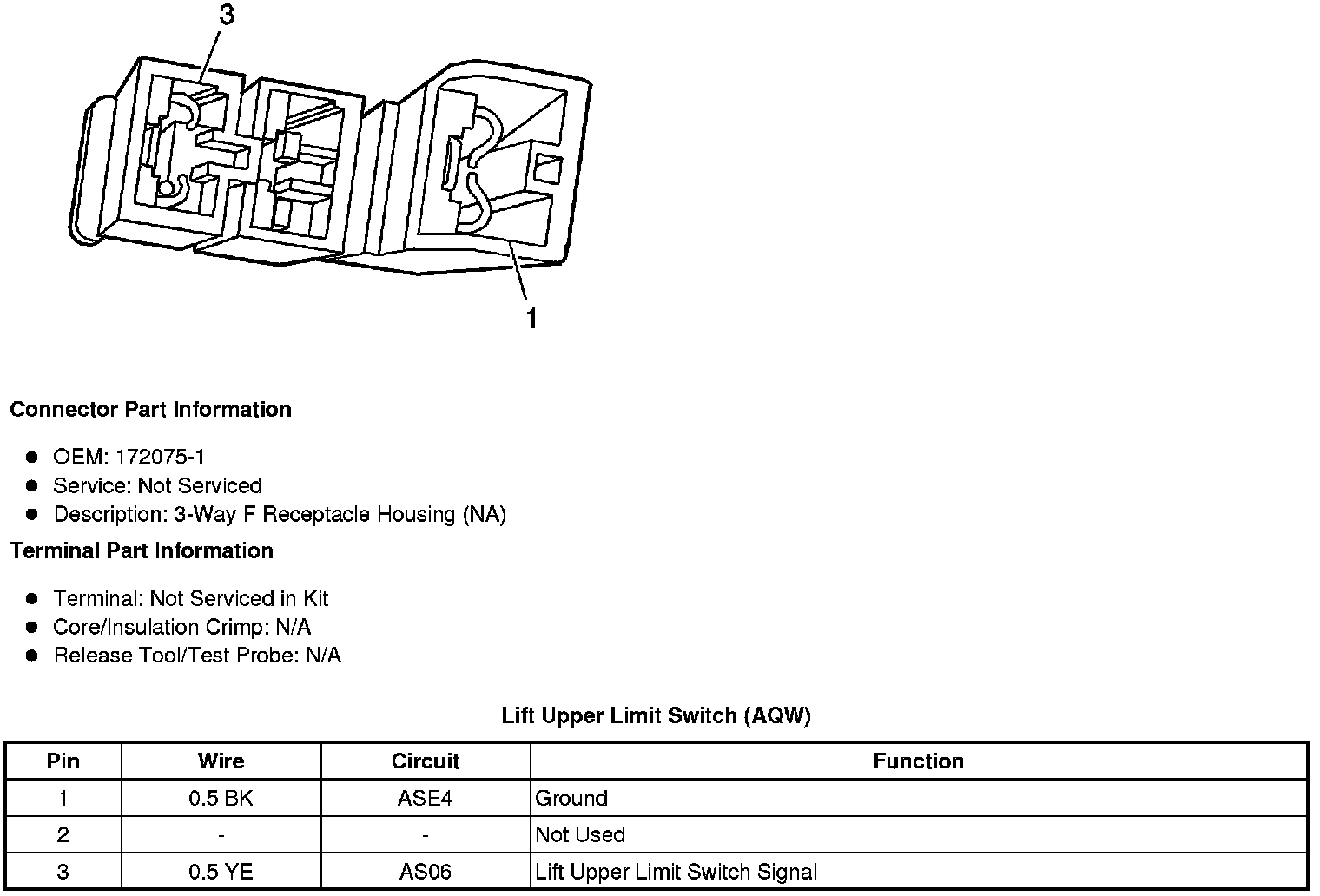

Lift Upper Limit Switch (AQW)
