Procedures

Rotating the Engine for Service Access

Tools Required

J 41131 Engine Tilt Strap




1. Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement (Air Cleaner Outlet Duct Replacement).
2. Set the park brake.
3. Shift the transaxle into Neutral.

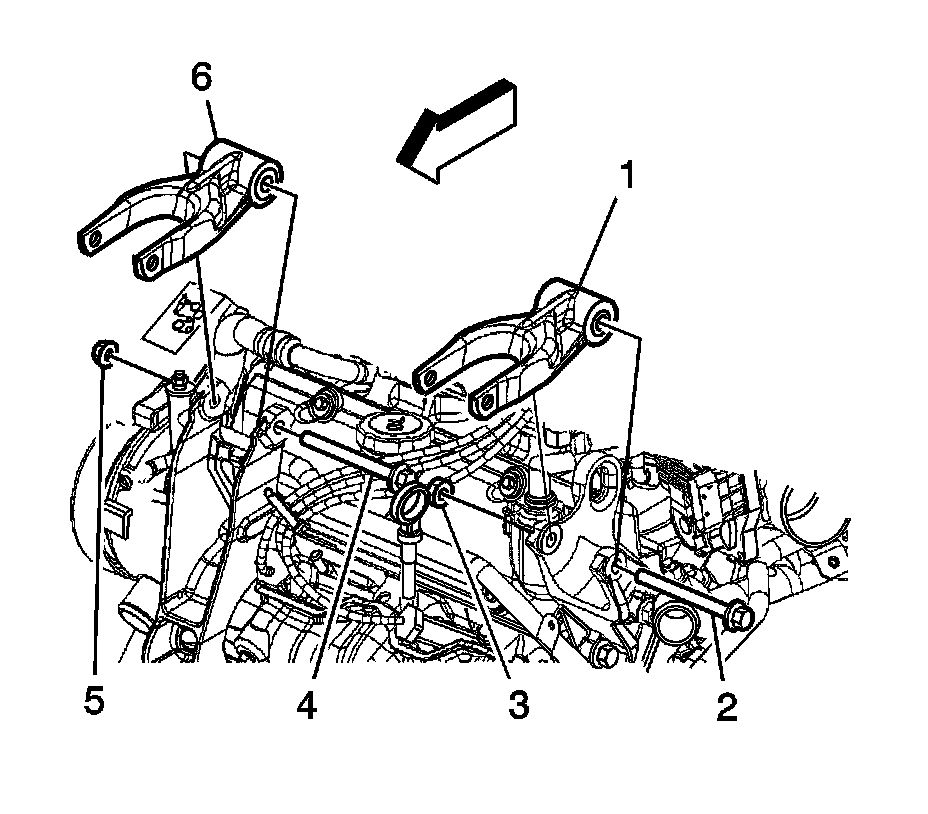

4. Loosen and remove the engine mount strut to engine mount strut bracket through bolts (2, 4) and nuts (3, 5).
5. Rotate the engine mount struts up out of the way.




6. Install the J 41131.
7. Pull on the engine in order to rotate the engine forward.
8. Tighten the J 41131.
