Accelerator Pedal Position Sensor: Service and Repair

Accelerator Pedal Position Sensor Replacement

Removal Procedure




1. Remove the insulator panel. Refer to Knee Bolster Replacement (Service and Repair).
2. Remove the connector position assurance (CPA) retainer.

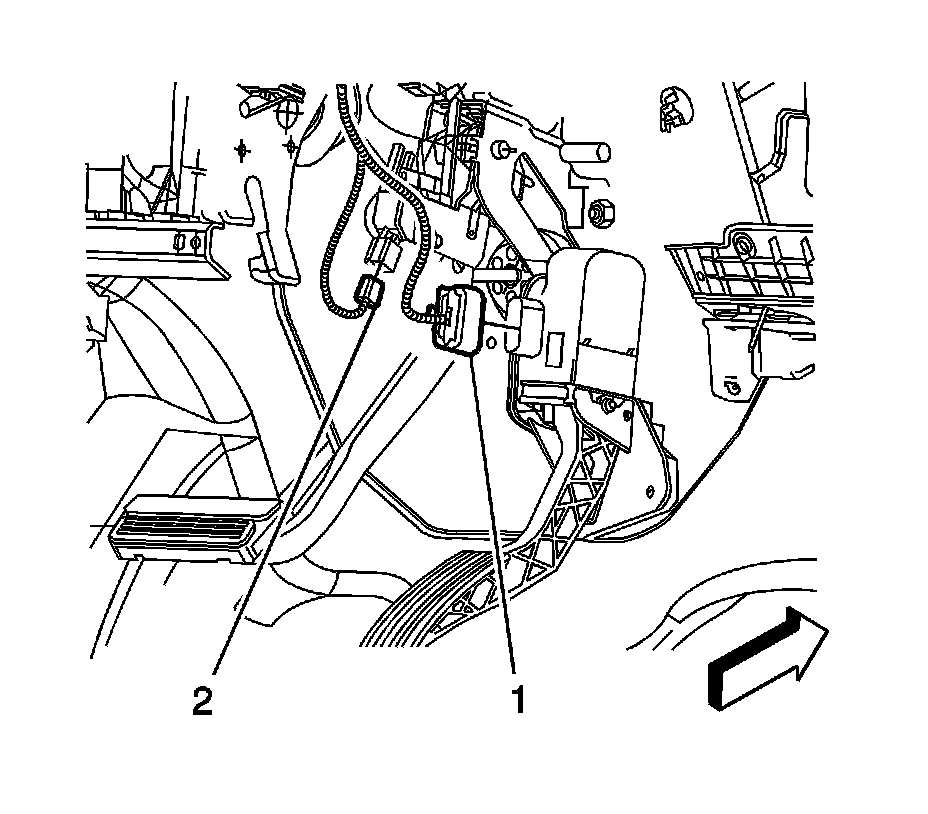

3. Disconnect the instrument panel (I/P) harness electrical connector (1) from the accelerator pedal.




4. Remove the accelerator pedal bolts.
5. Remove the accelerator pedal (2).

Installation Procedure

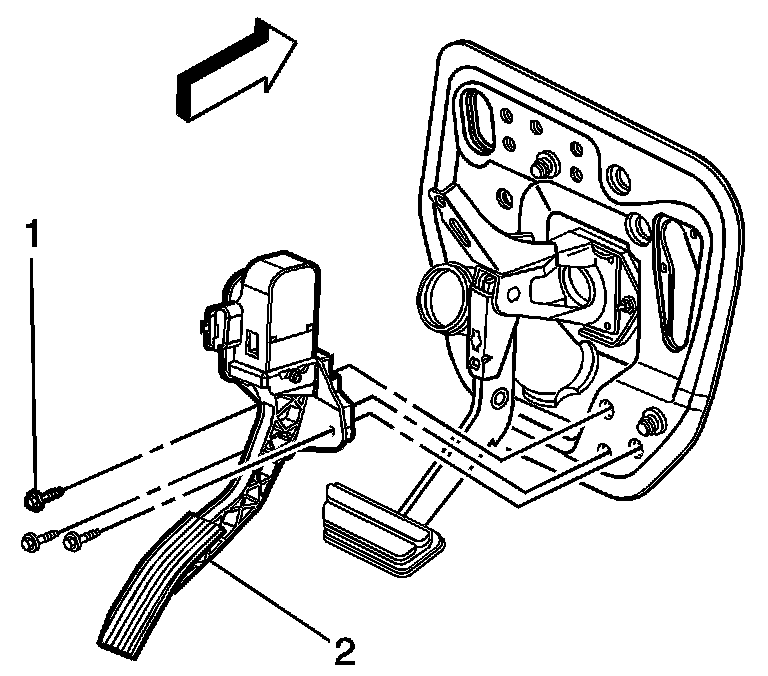

1. Install the accelerator pedal (2).

Notice: Refer to Fastener Notice (Fastener Notice).

2. Install the accelerator pedal bolts (1).

Tighten the bolts to 10 N.m (89 lb in).




3. Connect the I/P harness electrical connector (1) to the accelerator pedal.
4. Install the CPA retainer.
5. Install the insulator panel. Refer to Knee Bolster Replacement (Service and Repair).
6. Verify the operation of the accelerator pedal.
