Ignition Coil




Component Connector End Views

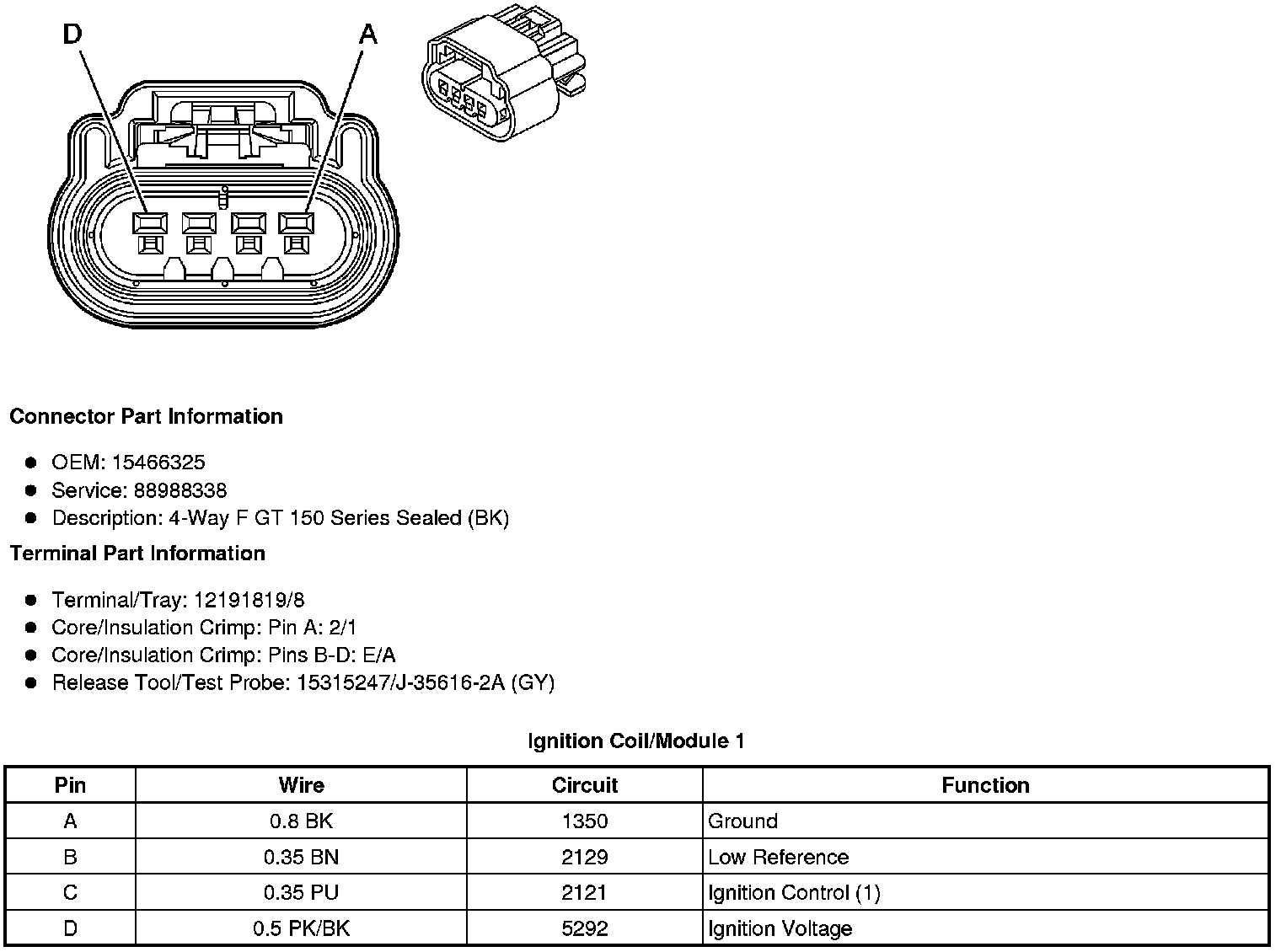

Ignition Coil/Module 1

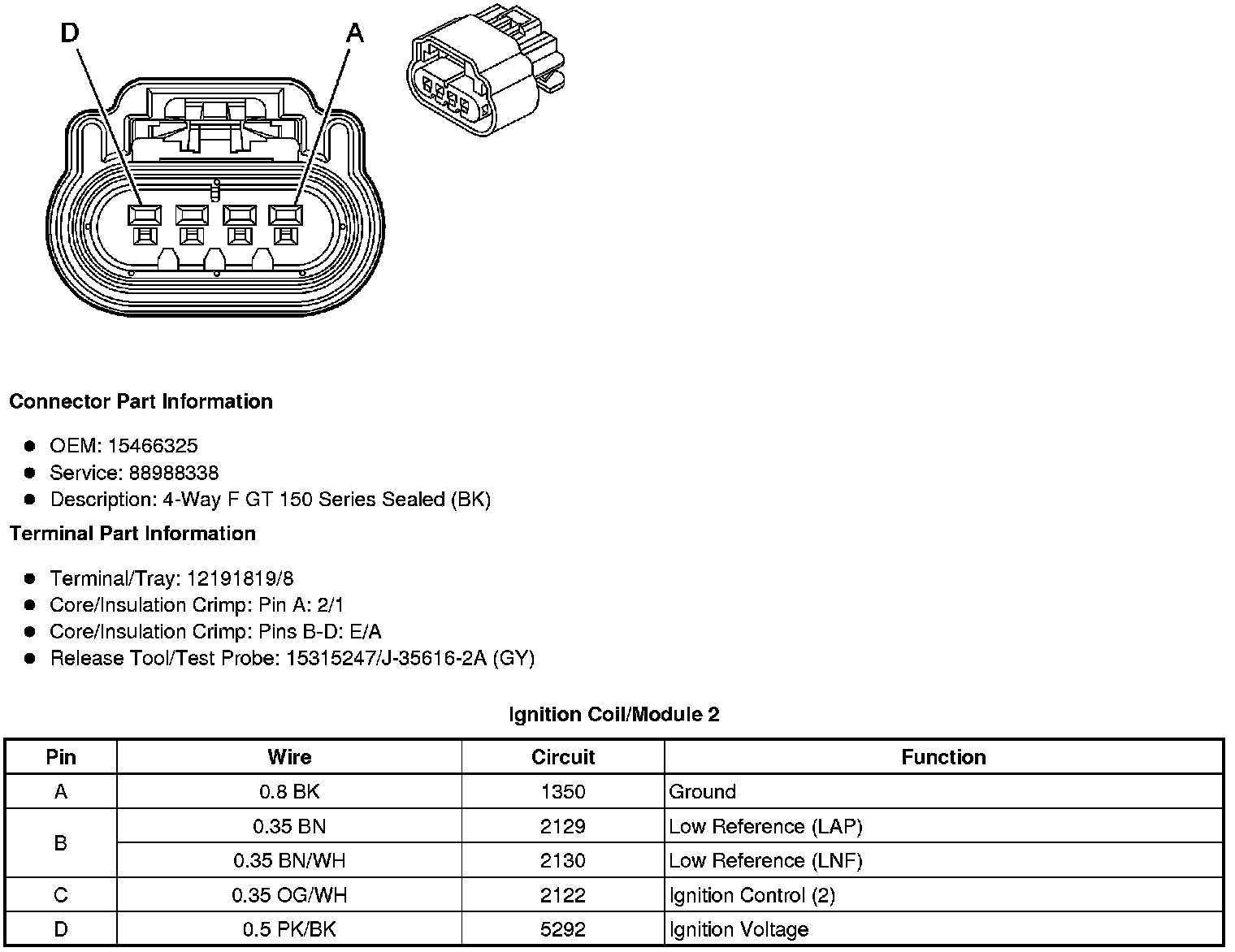

Ignition Coil/Module 2





Ignition Coil/Module 3

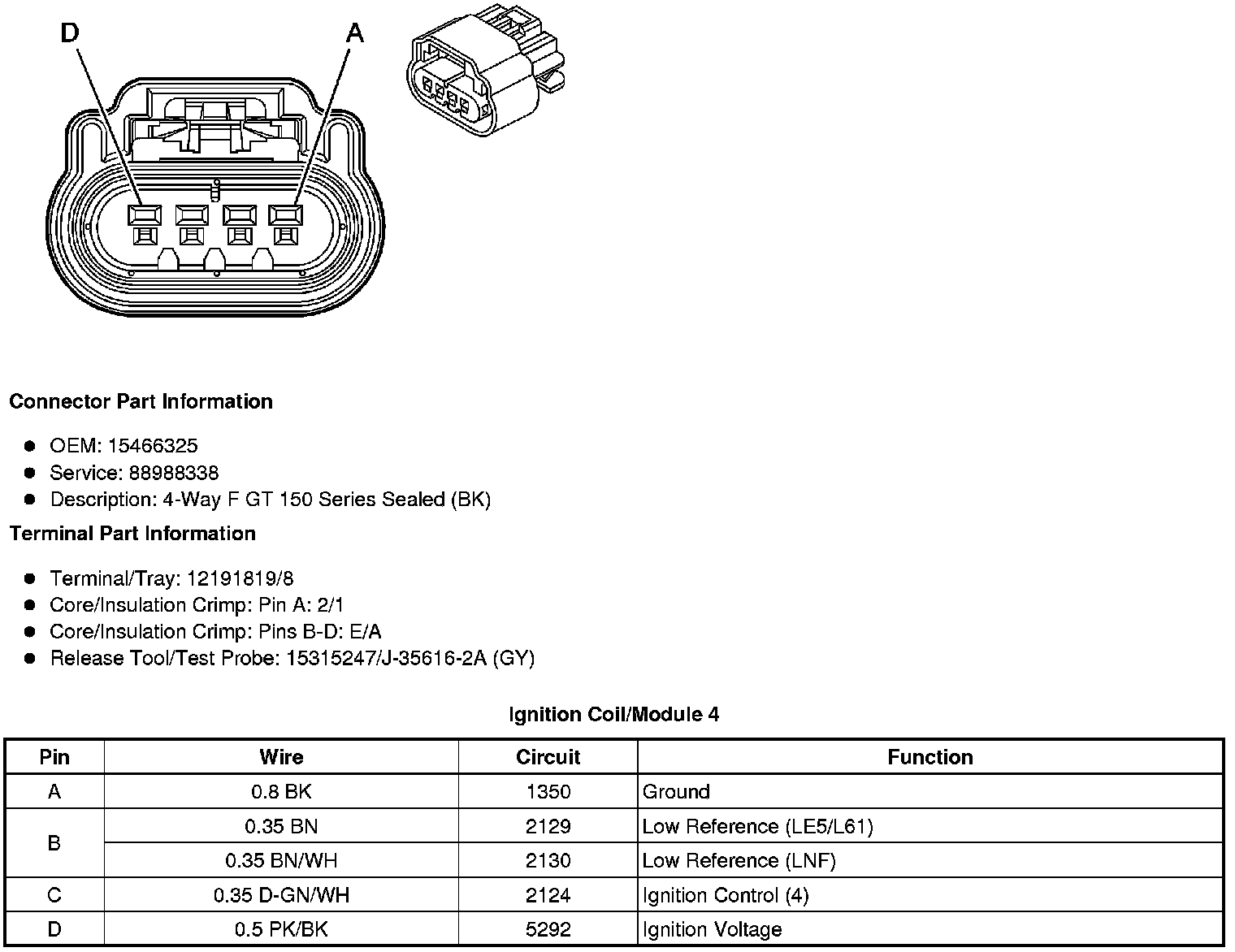

Ignition Coil/Module 4
