Engine Views

Harness Routing Views

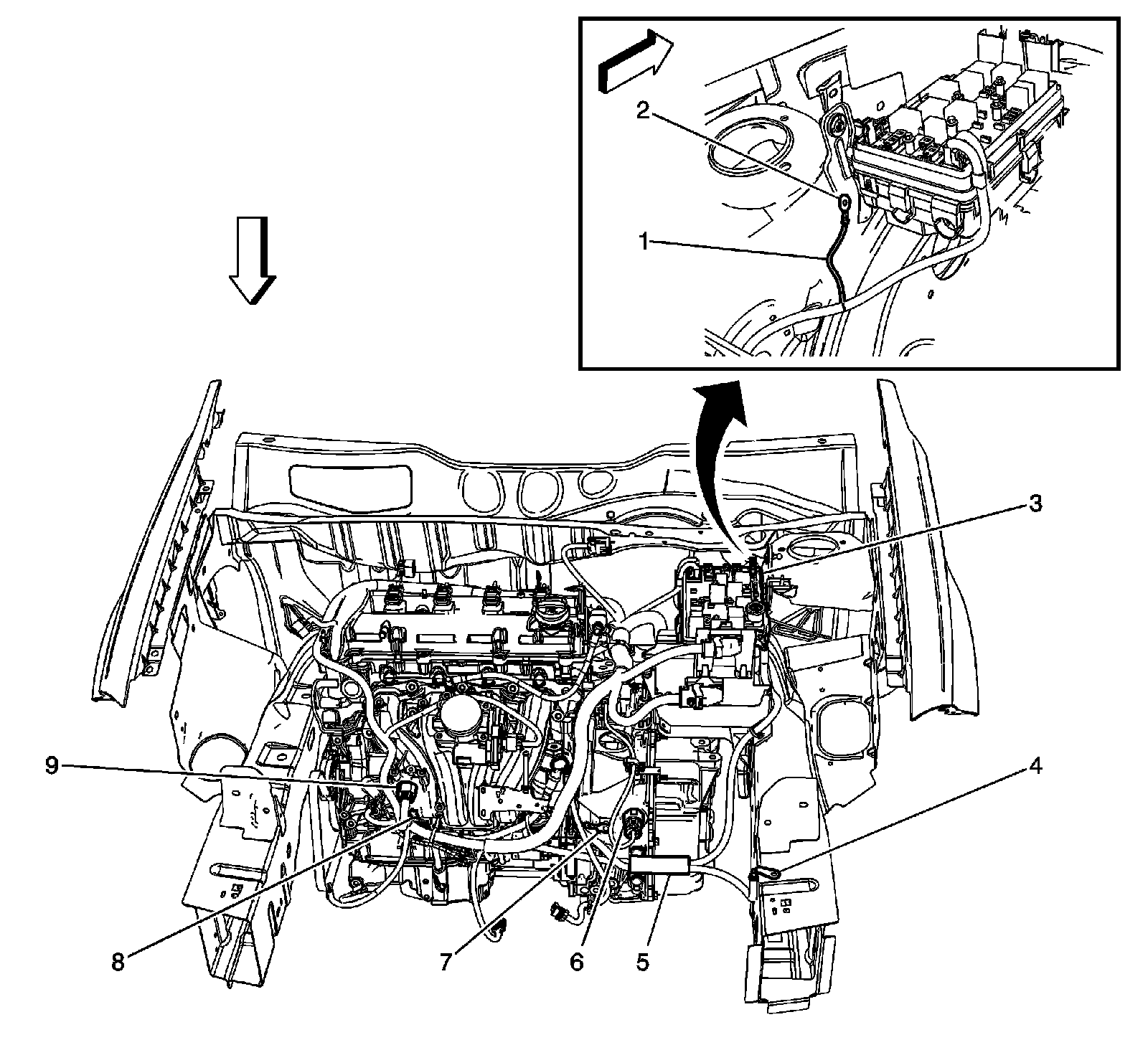

Engine Harness Routing - L61




1 - Electronic Power Steering (EPS) Harness
2 - G109
3 - Fuse Block - Underhood
4 - G103
5 - Battery Cable Harness
6 - X100
7 - G105
8 - G111
9 - X160

Engine Harness Routing (LAP)




1 - Electronic Power Steering (EPS) Harness
2 - G109
3 - Fuse Block - Underhood
4 - G103
5 - Battery Cable Harness
6 - X100 (MN5 without MXO)
7 - G105
8 - G111
9 - X160
