A - Z Index
Master Electrical Component List

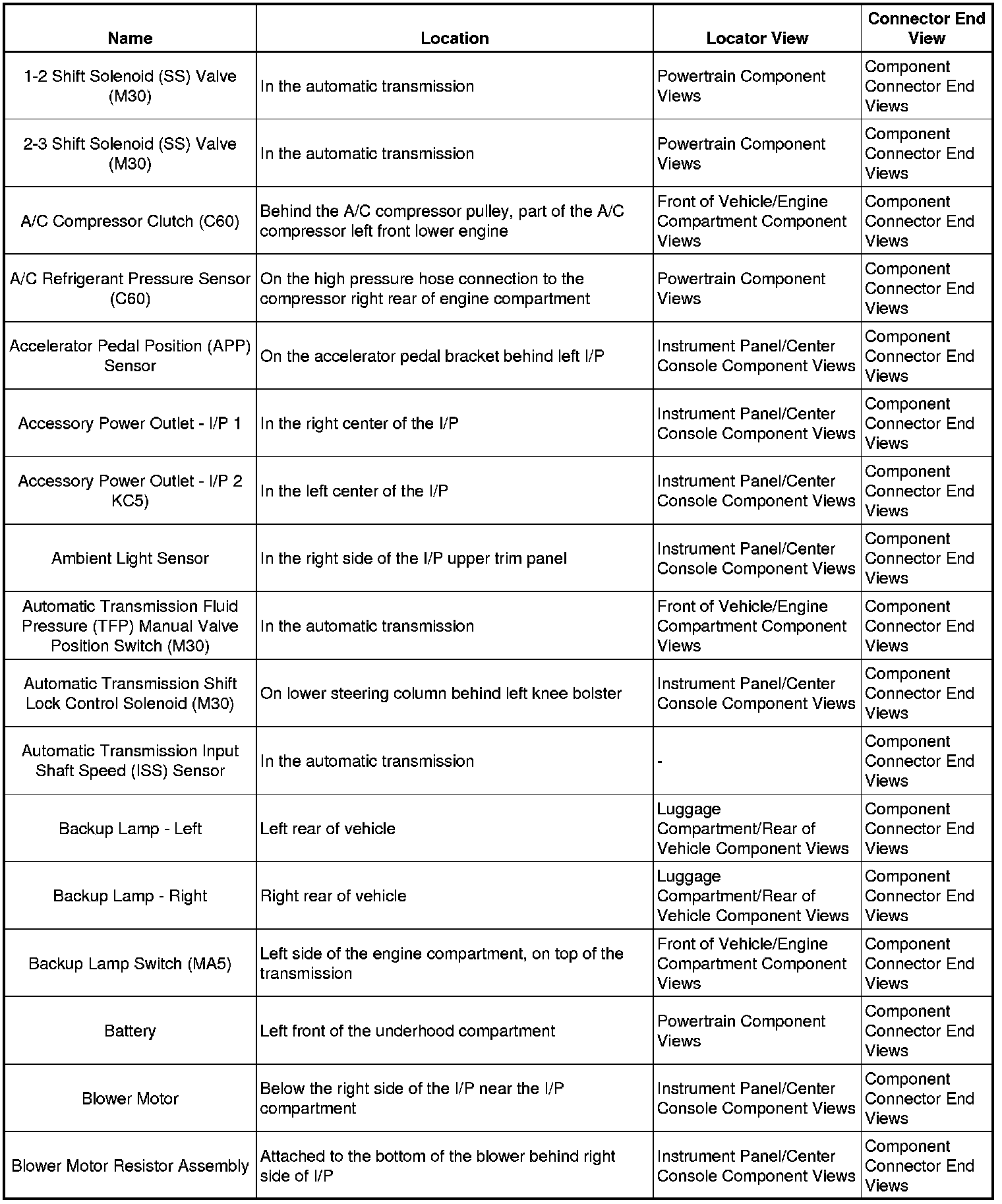

1-2 Sh - Bl:

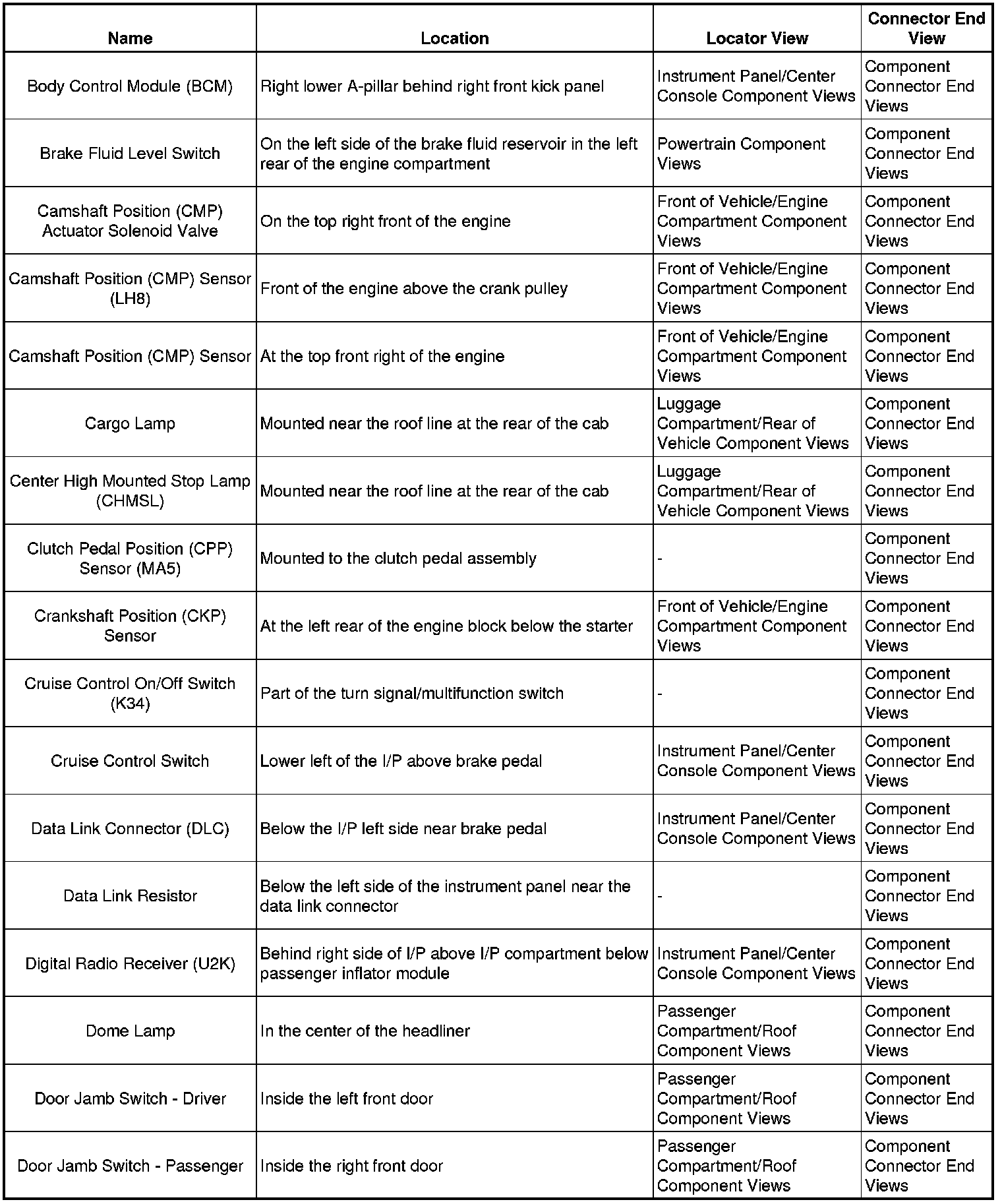

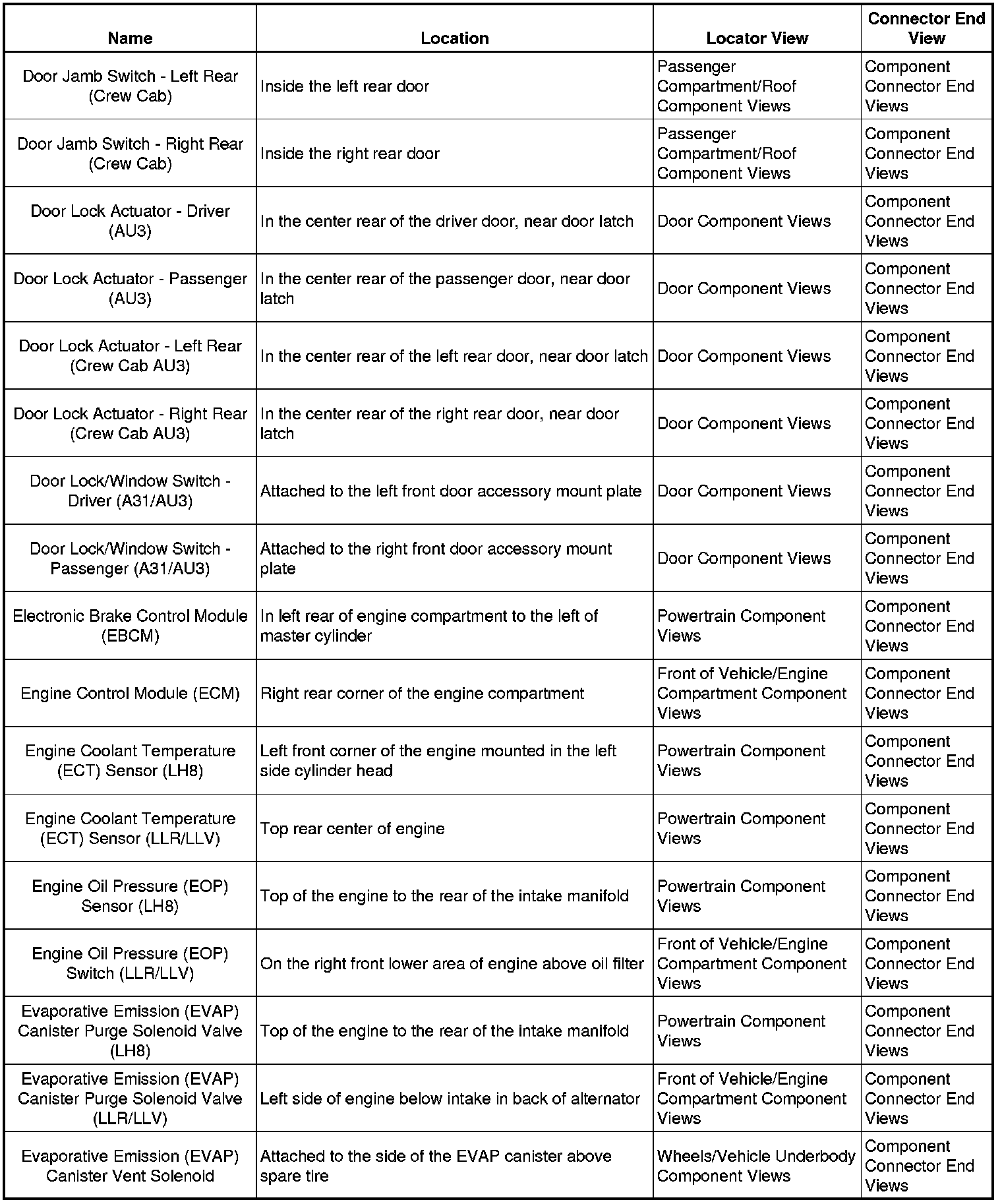

Bo - Do:
Do - Ev:

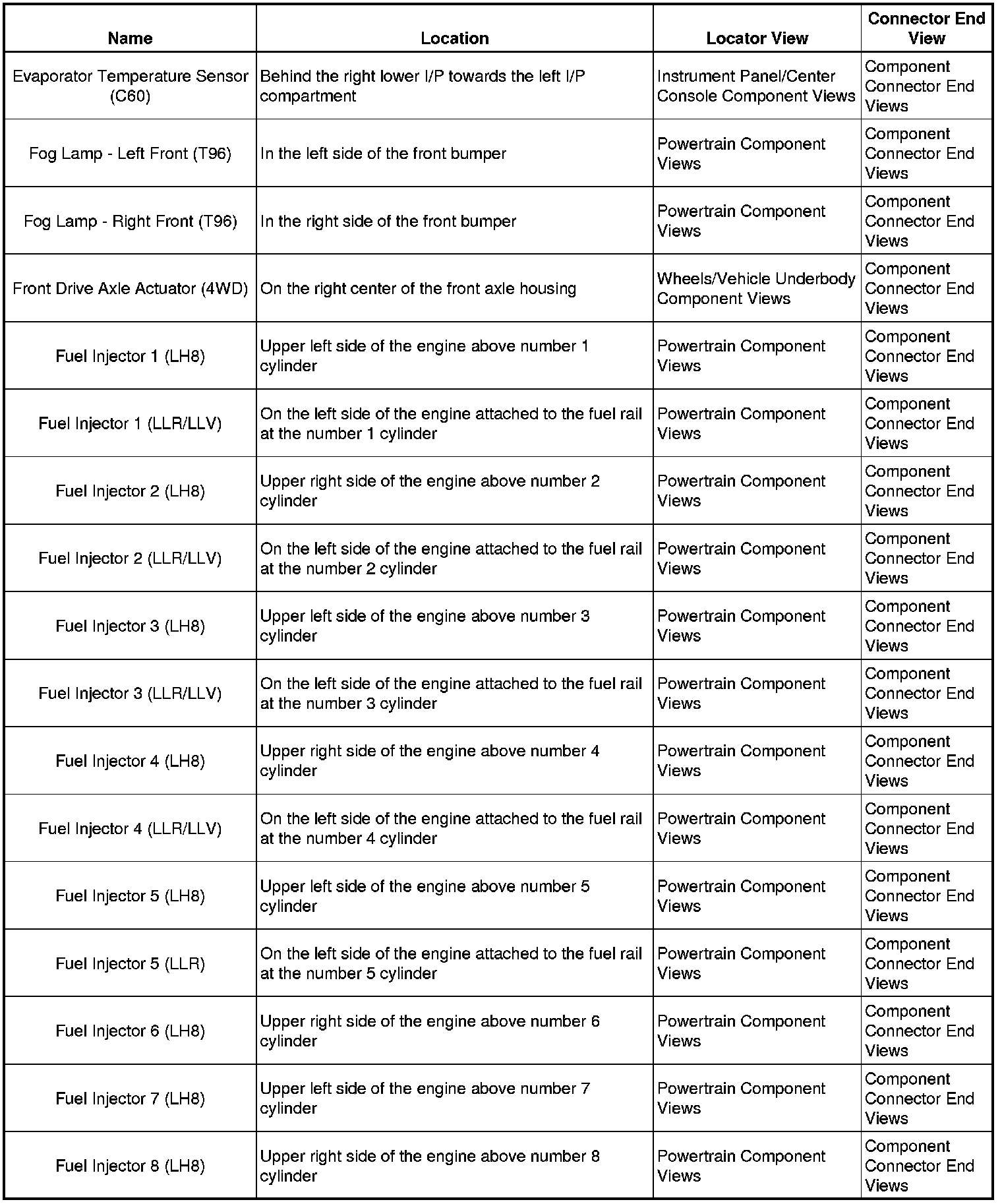

Ev - Fu:

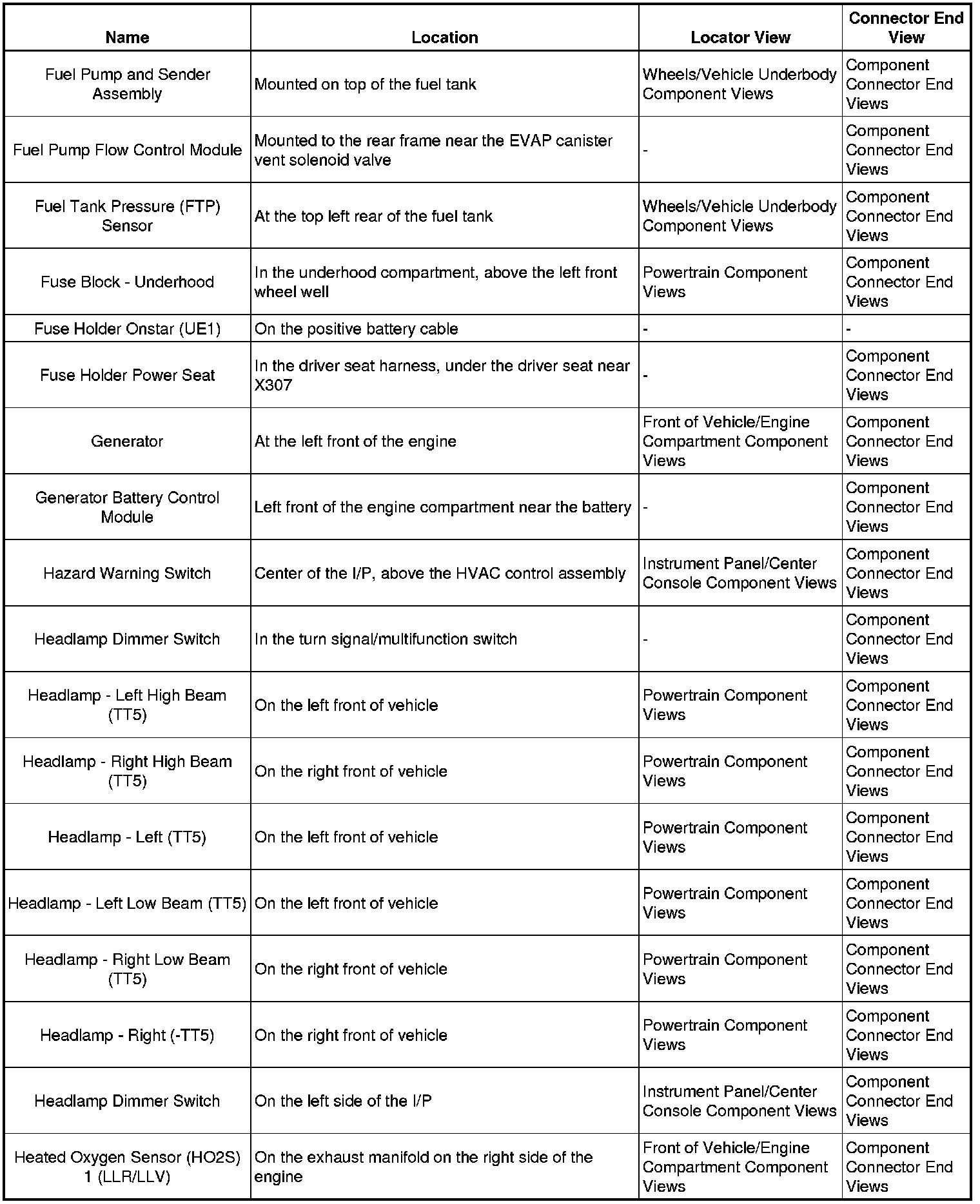

Fu - He:

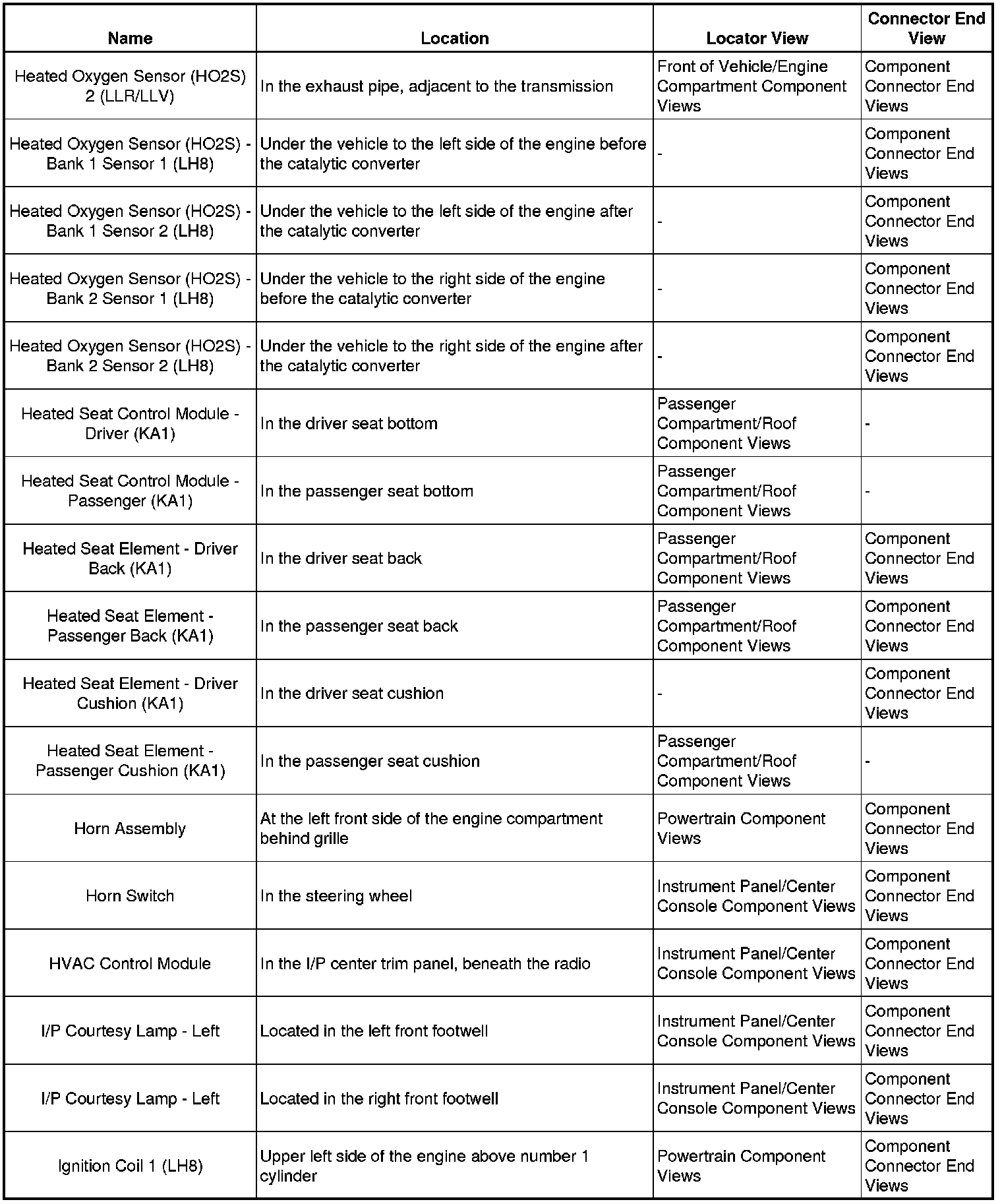

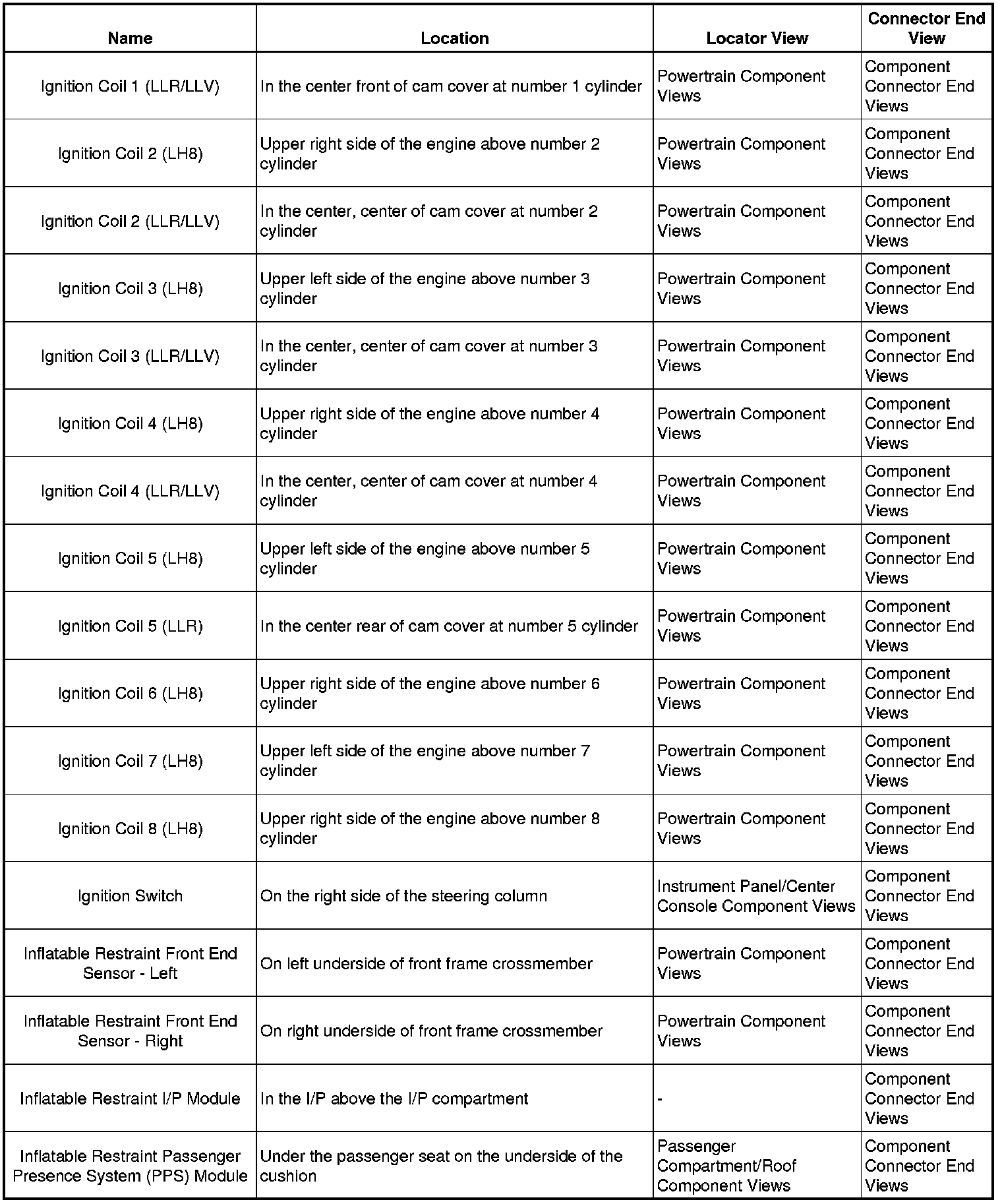

He - Ig:

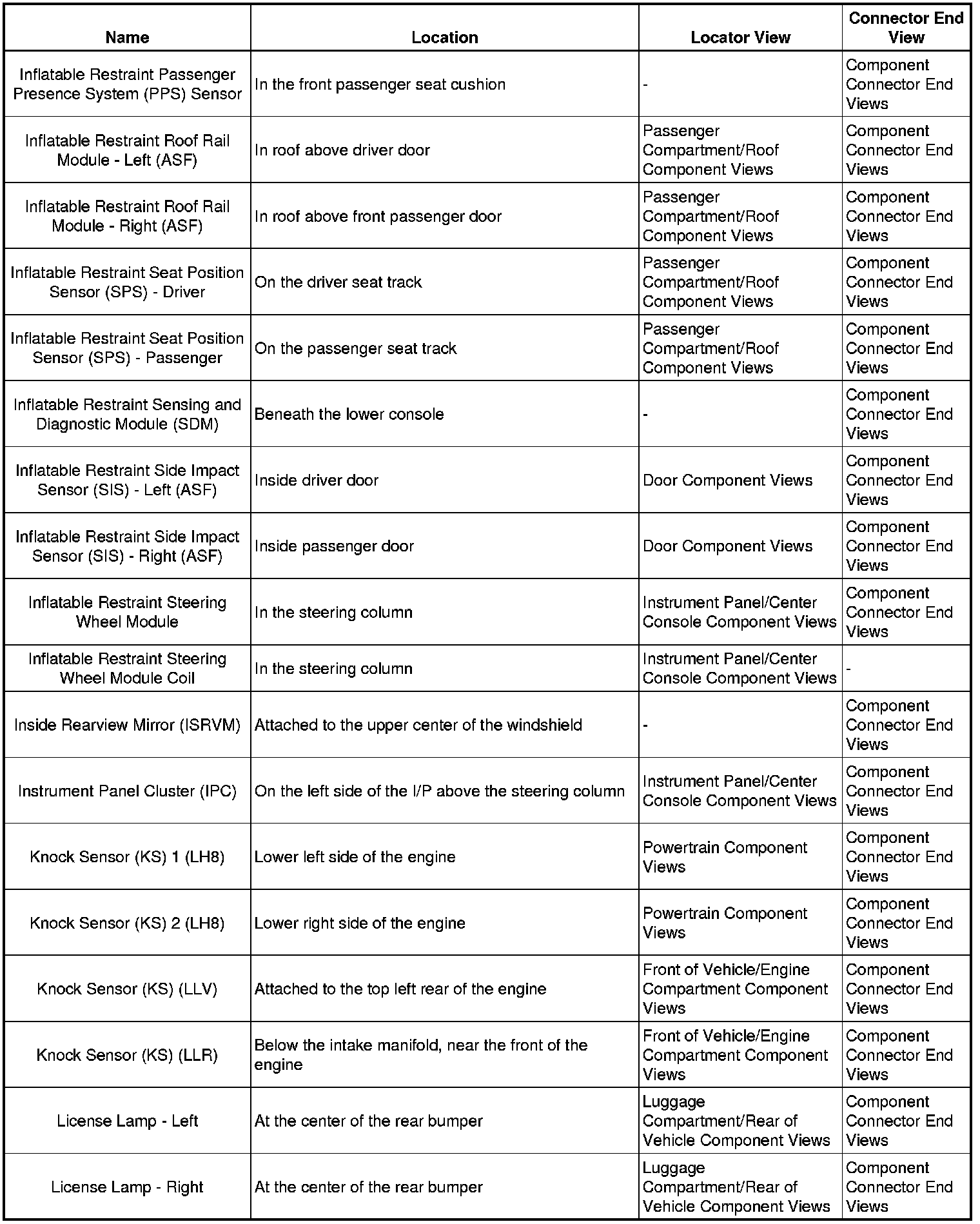

Ig - In:
In - Li:

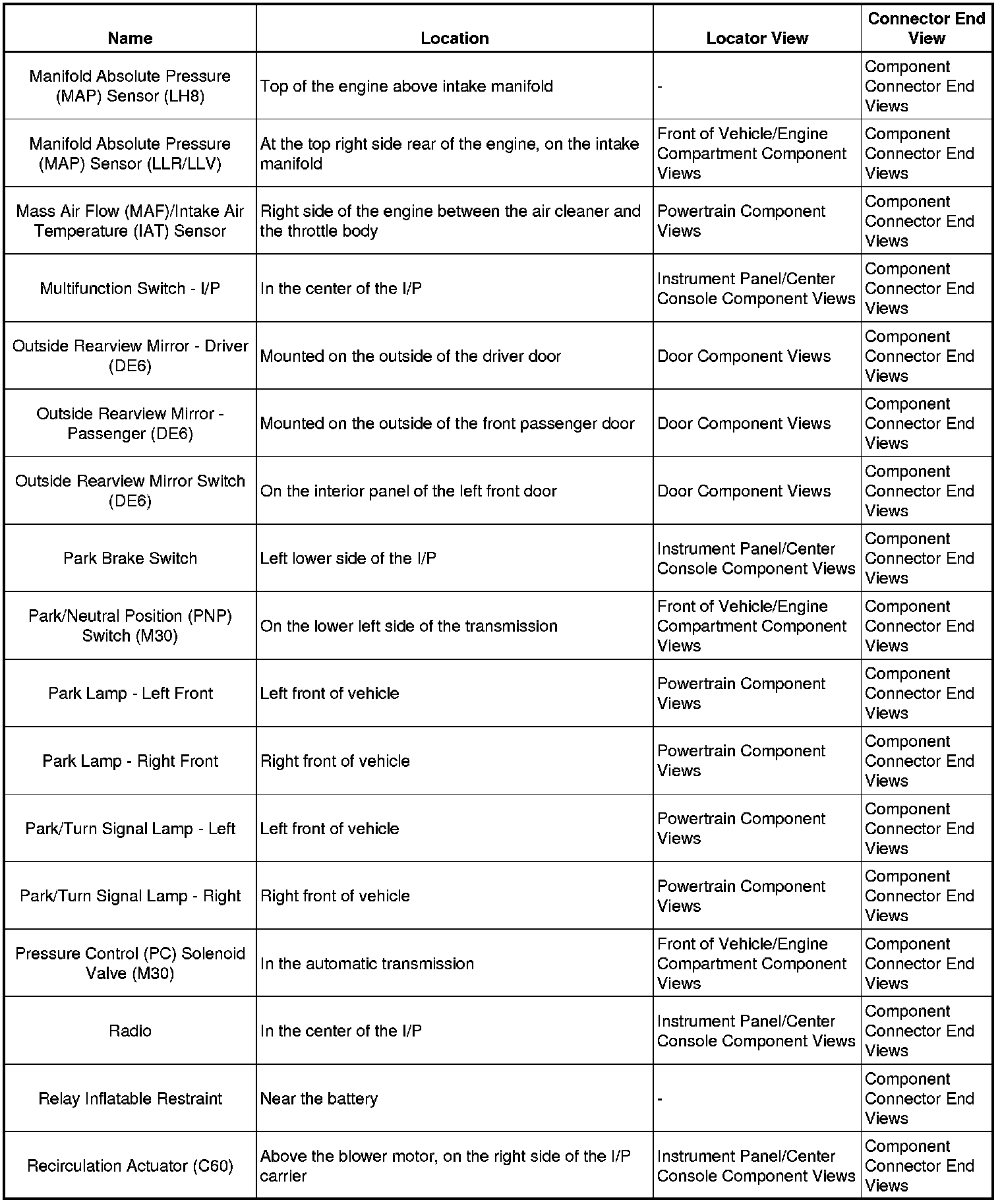

Ma - Re:

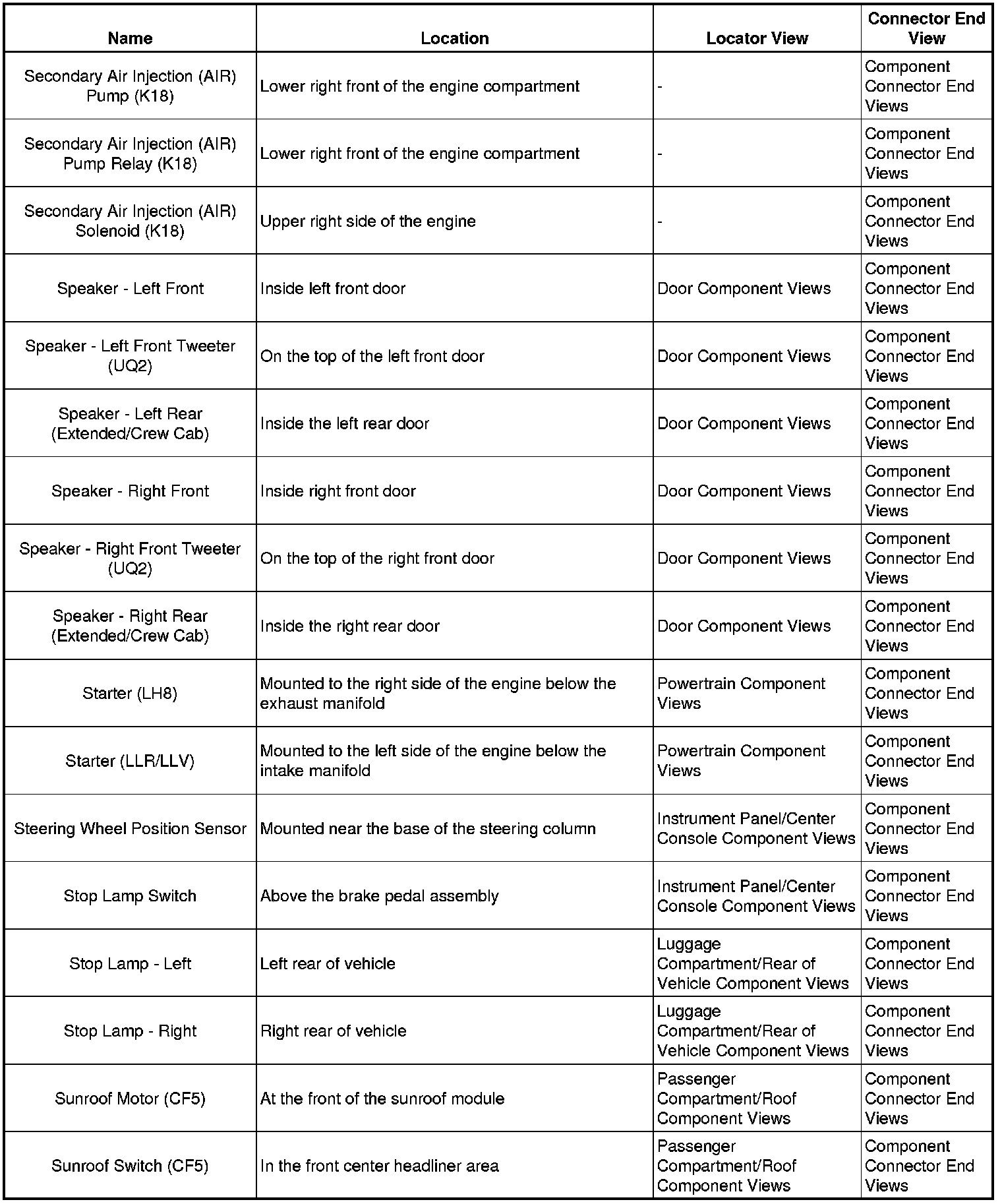

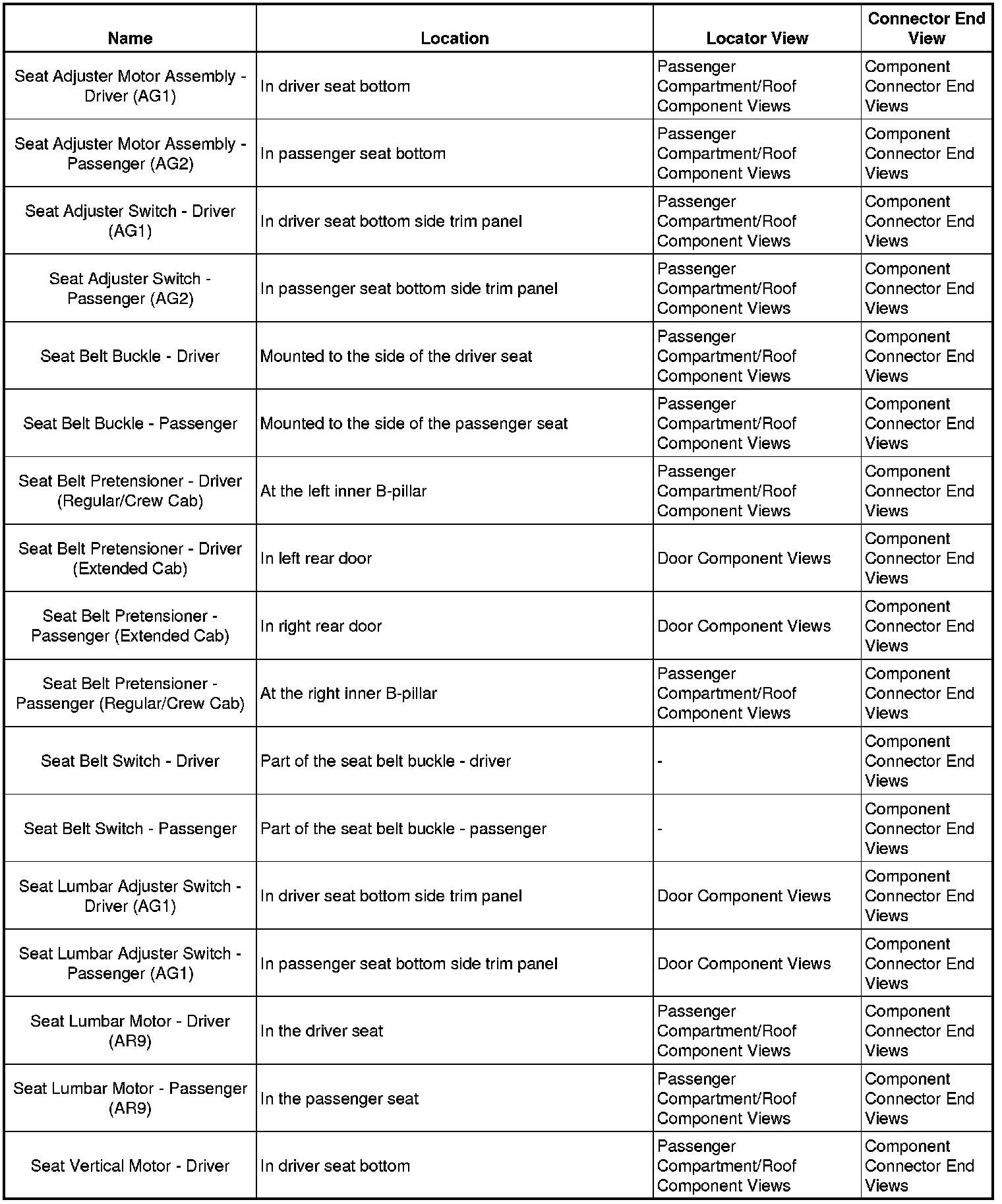

Se - Se:
Se - Su:

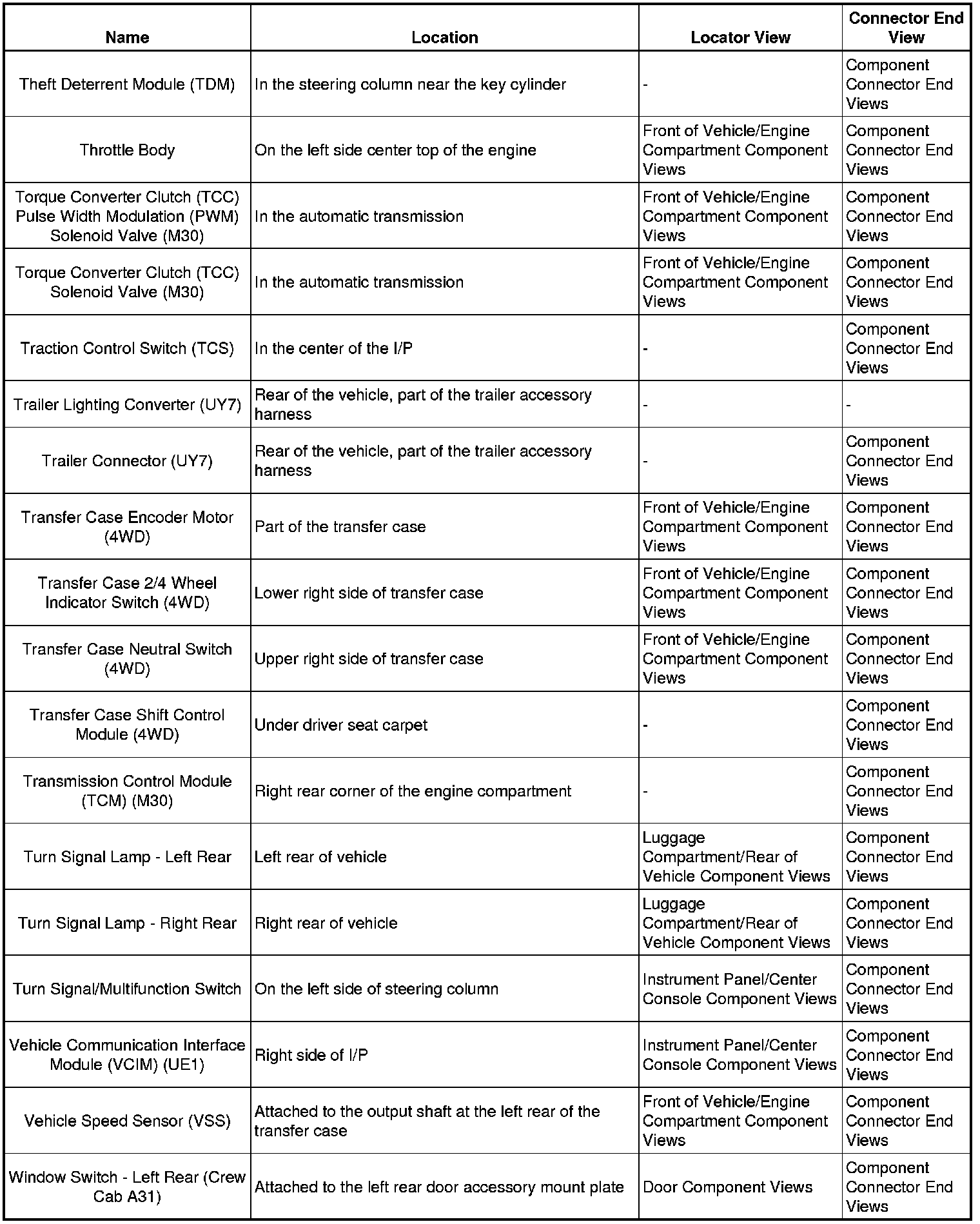

Th - Wi:

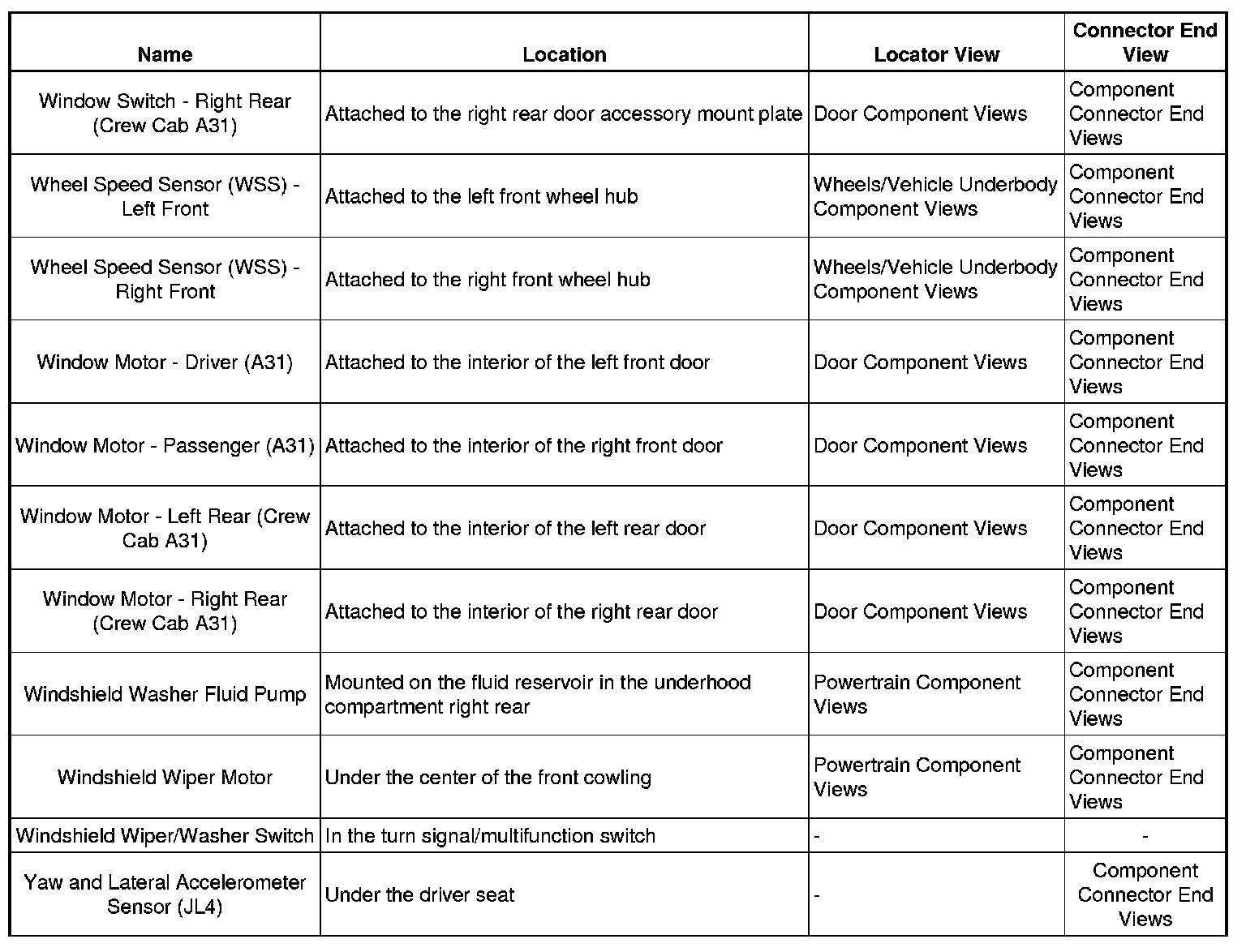

Wi - Ya:
