Fuel Injector
Component Connector End Views

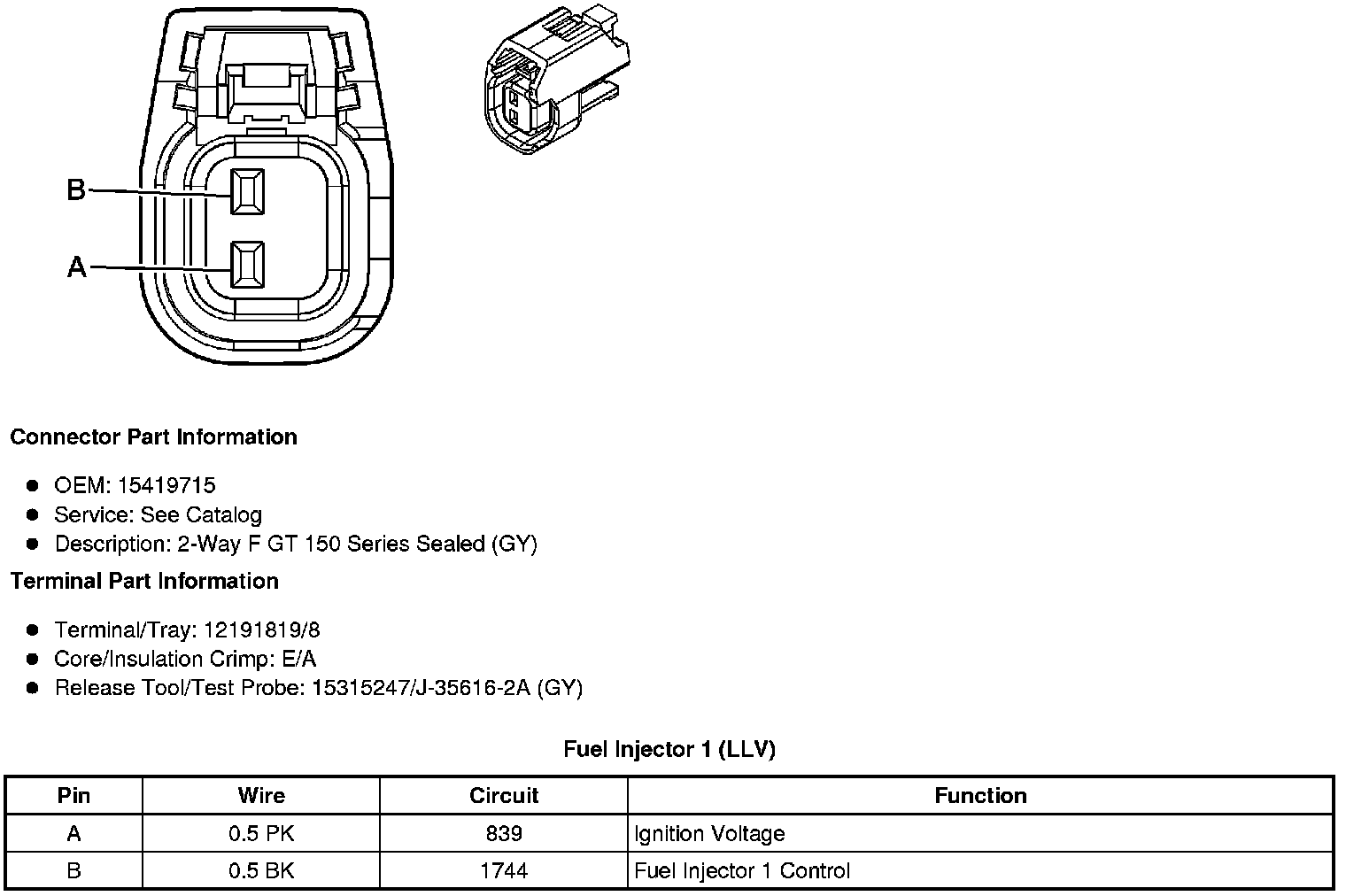

Fuel Injector
1 (LLV)

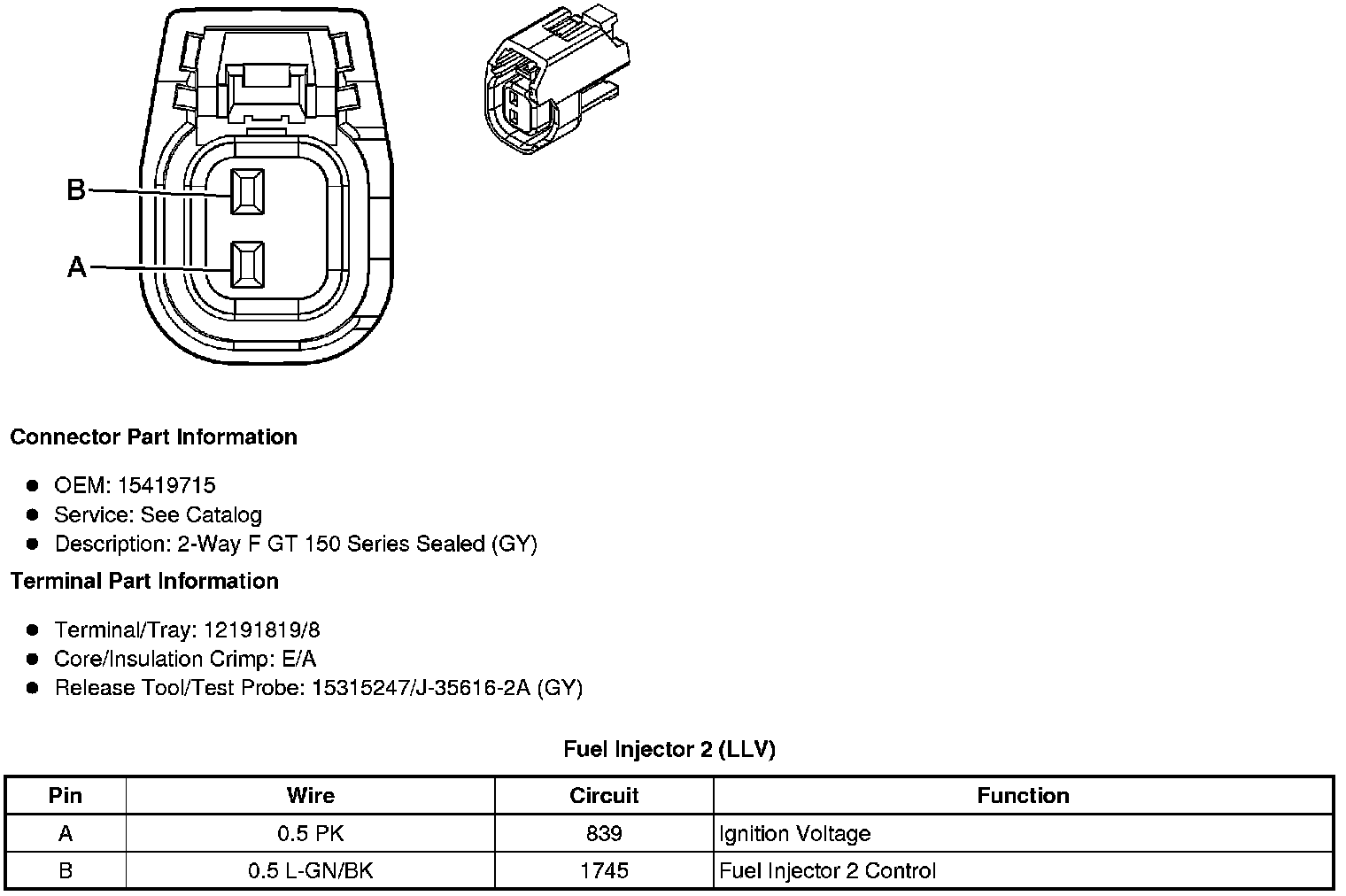

Fuel Injector
2 (LLV)

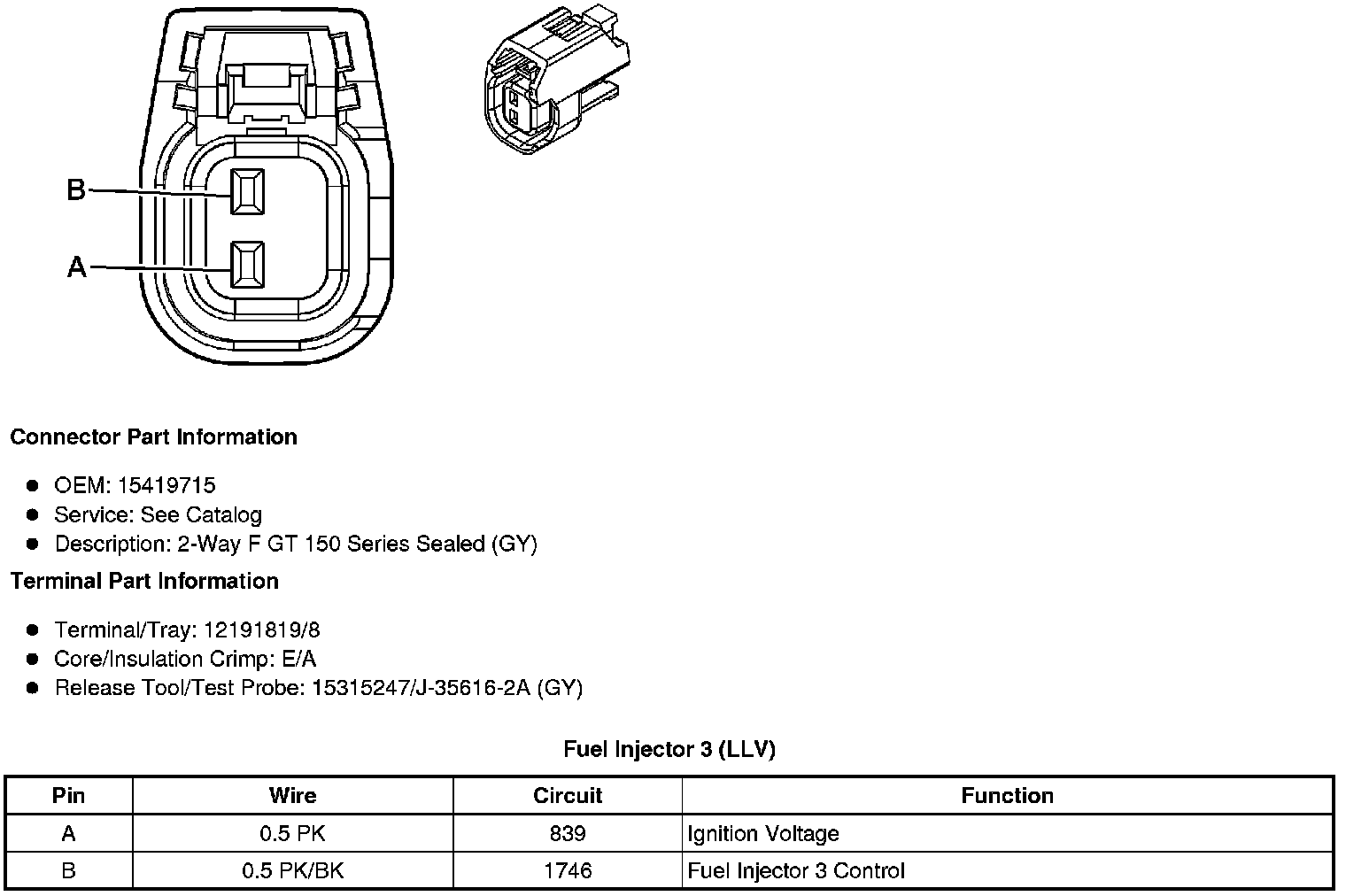

Fuel Injector
3 (LLV)
Fuel Injector
4 (LLV)
