Power Window Switch




Component Connector End Views

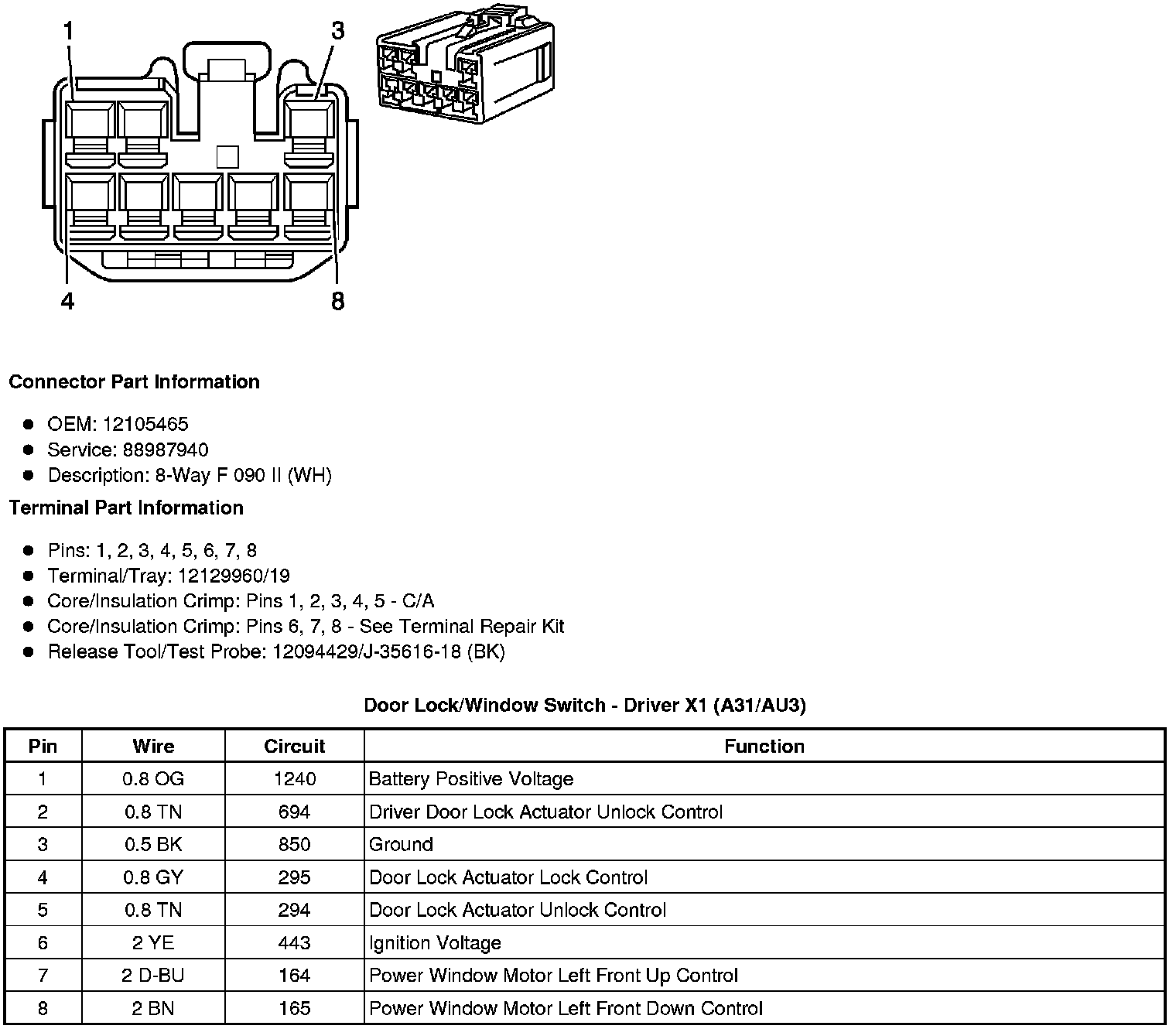

Door Lock/Window Switch - Driver X1 (A31/AU3)

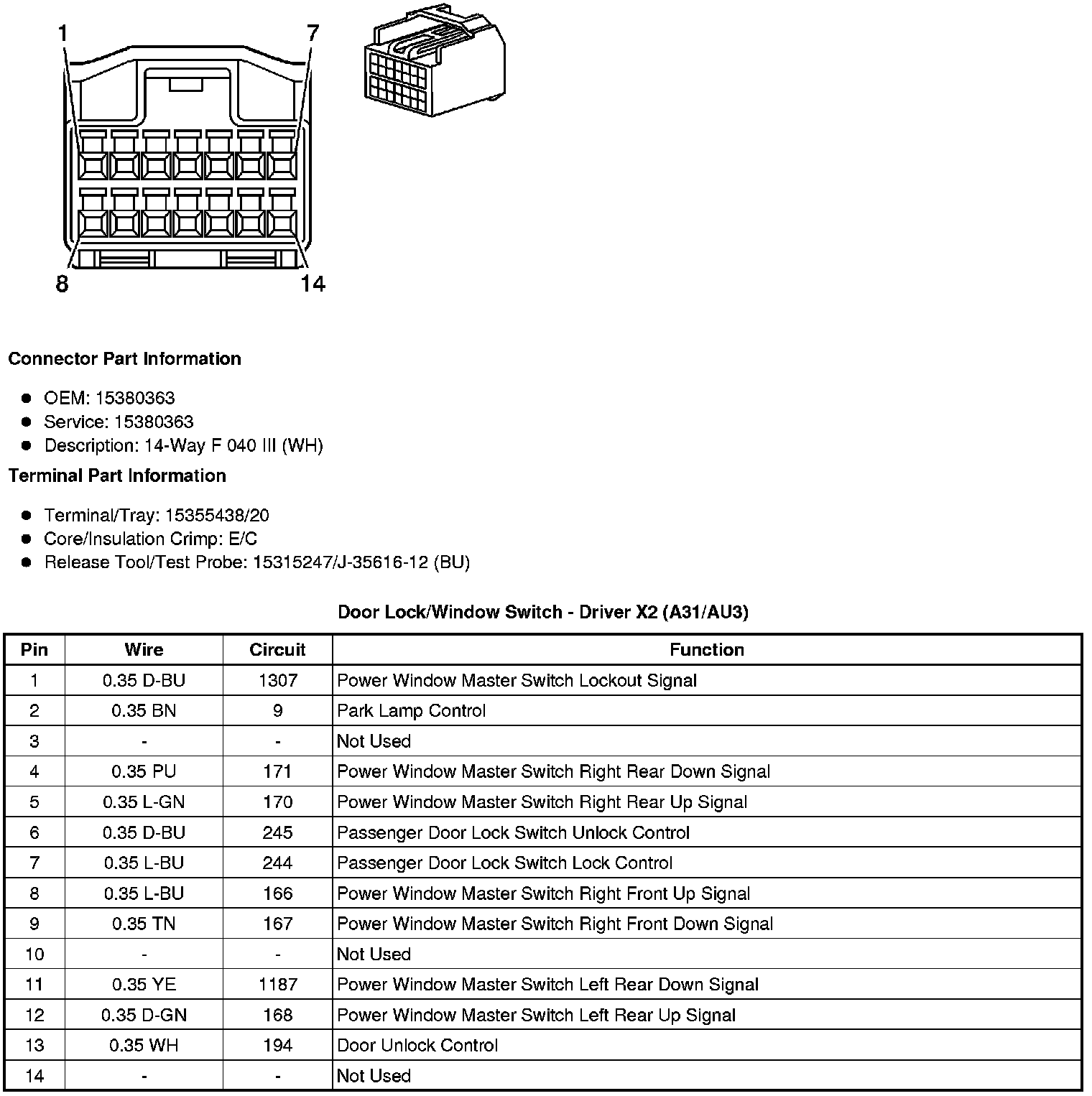

Door Lock/Window Switch - Driver X2 (A31/AU3)

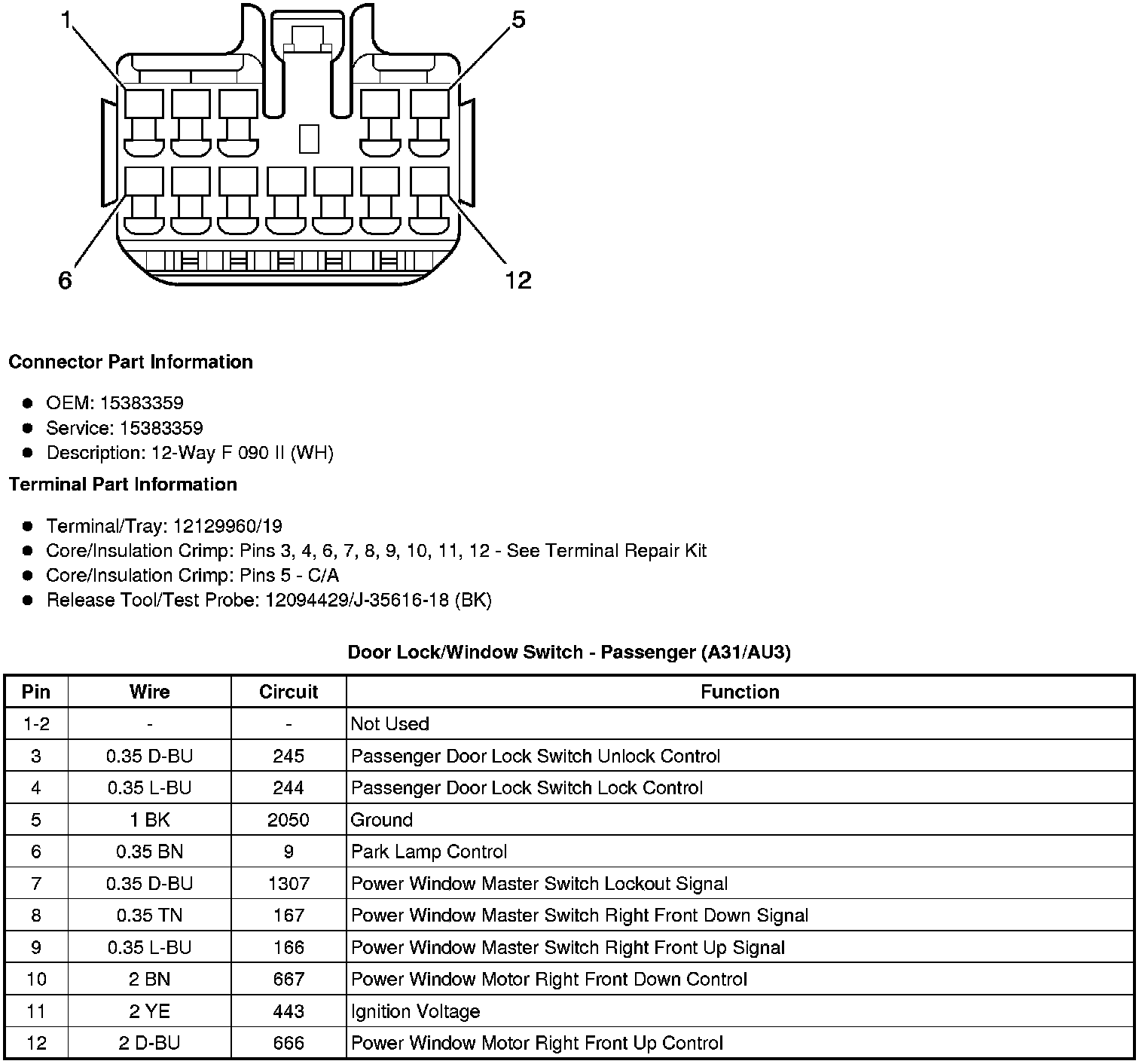

Door Lock/Window Switch - Passenger (A31/AU3)

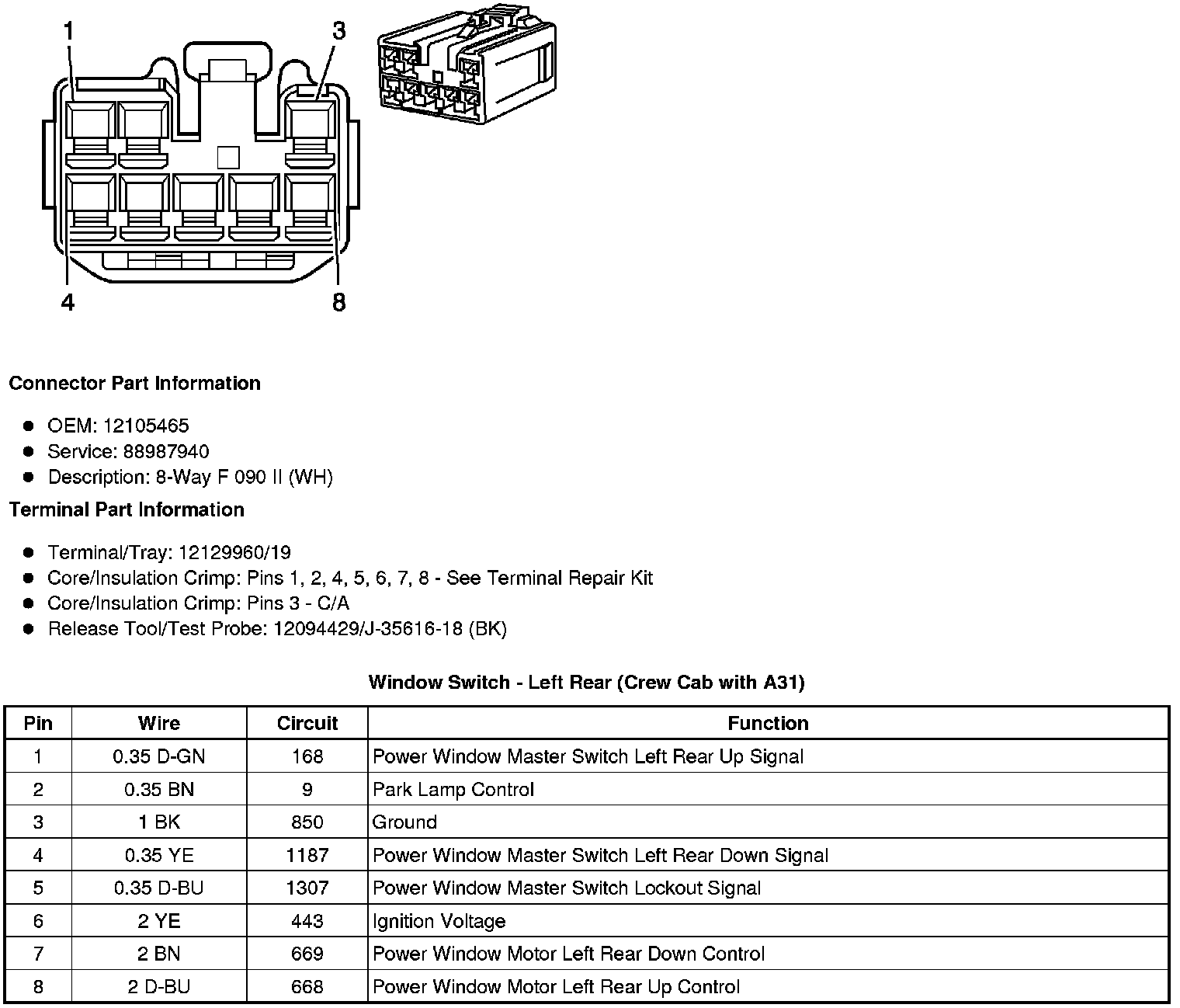

Window Switch - Left Rear (Crew Cab with A31)






Window Switch - Right Rear (Crew Cab with A31)
