Speaker




Component Connector End Views

Speaker - Left Front






Speaker - Left Front Tweeter (UQ2)






Speaker - Left Rear (Extended/Crew Cab)






Speaker - Right Front

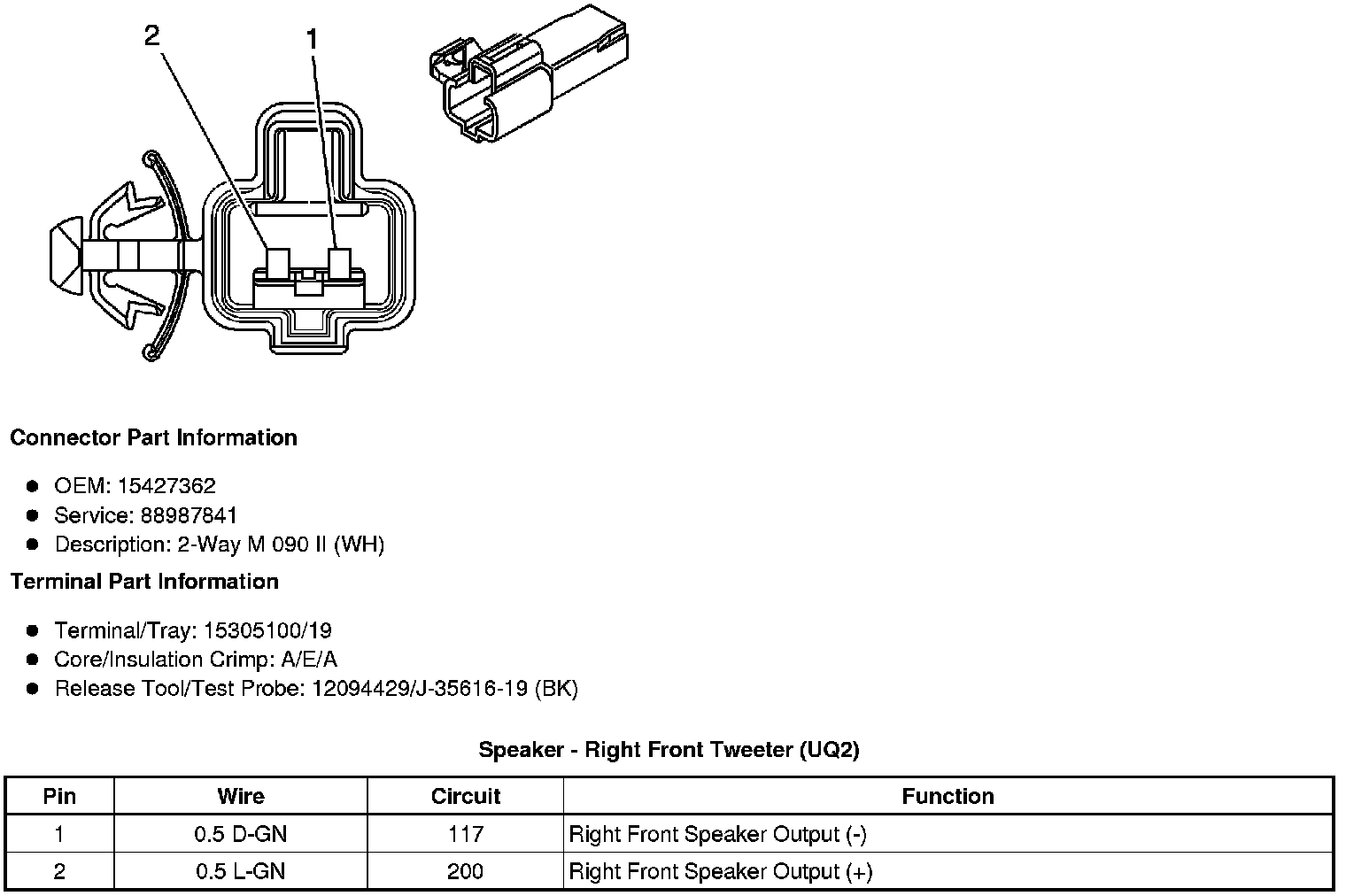

Speaker - Right Front Tweeter (UQ2)






Speaker - Right Rear (Extended/Crew Cab)
