Body Control System Schematics

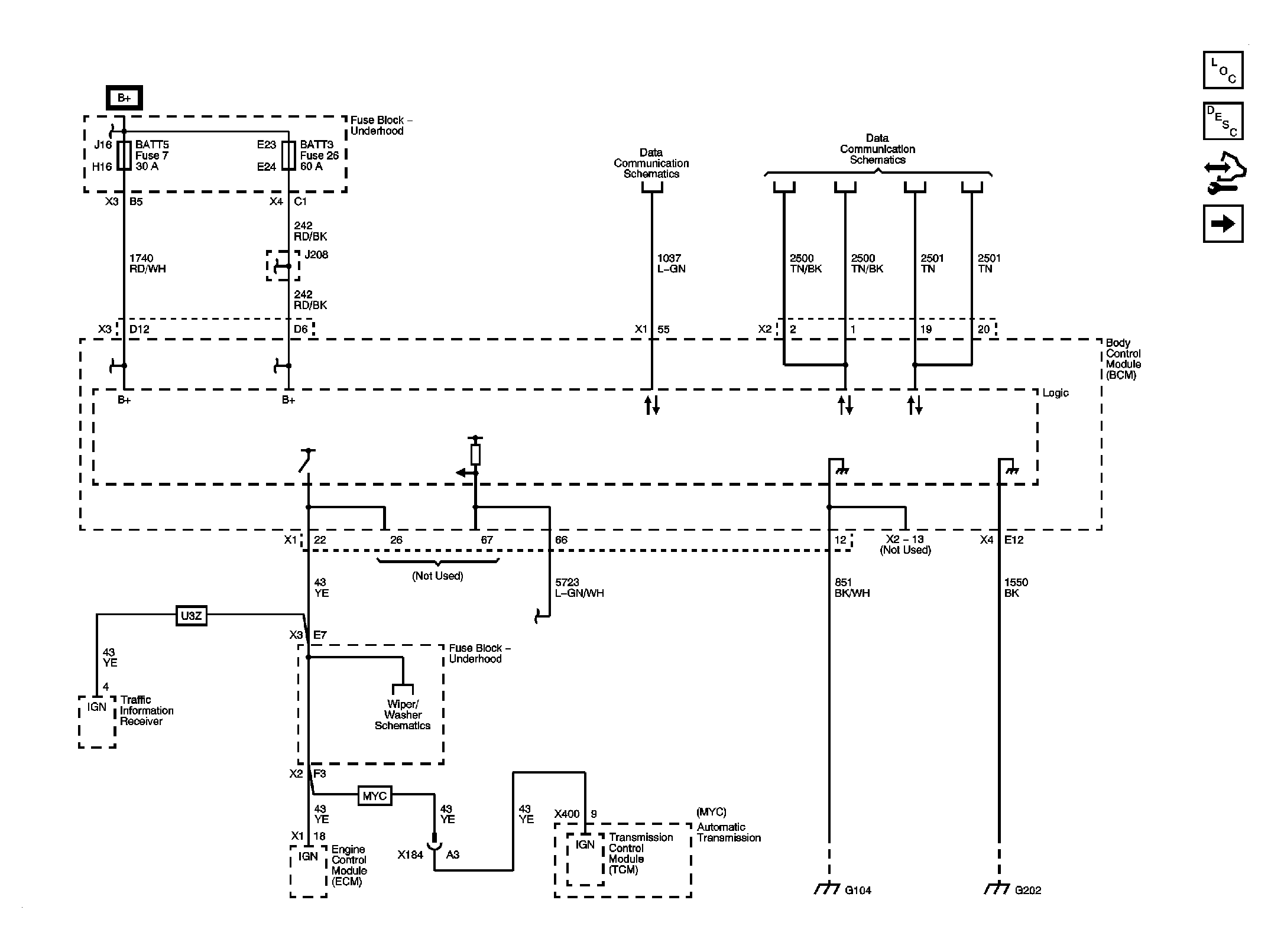

Fig 1: Power, Ground & Serial Data Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

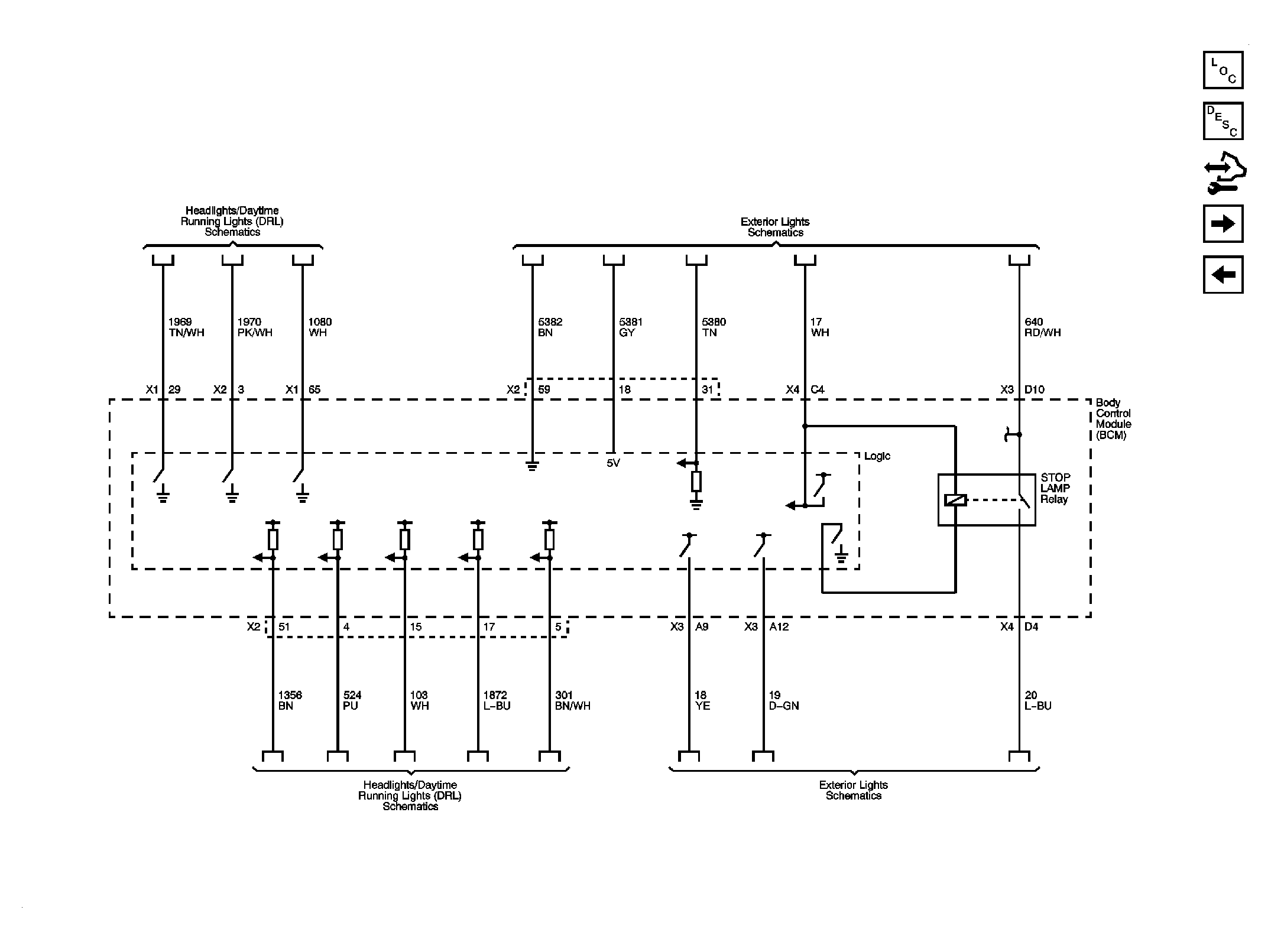

Fig 2: Lighting References Circuit Schematic (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

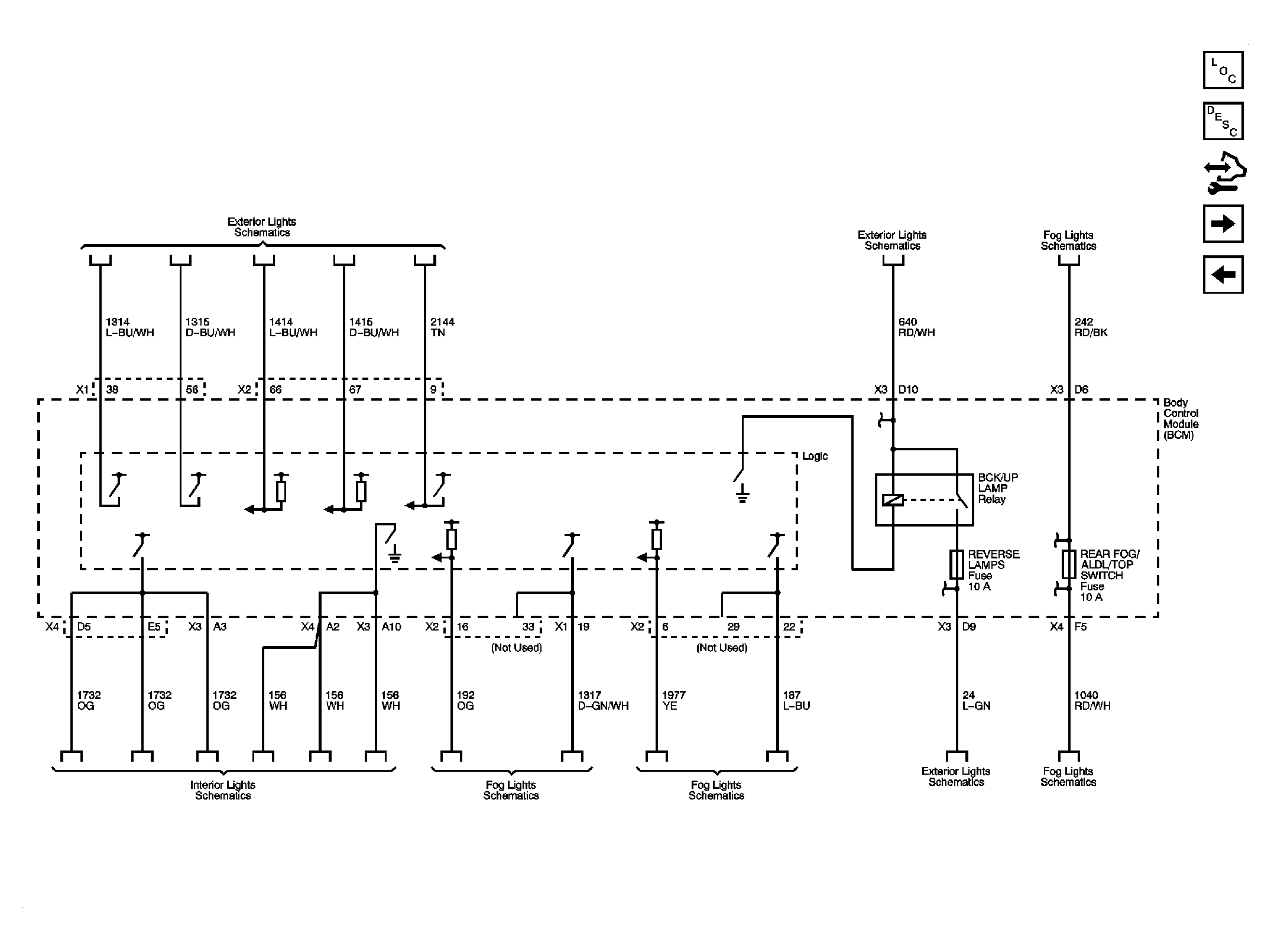

Fig 3: Lighting References Circuit Schematic (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

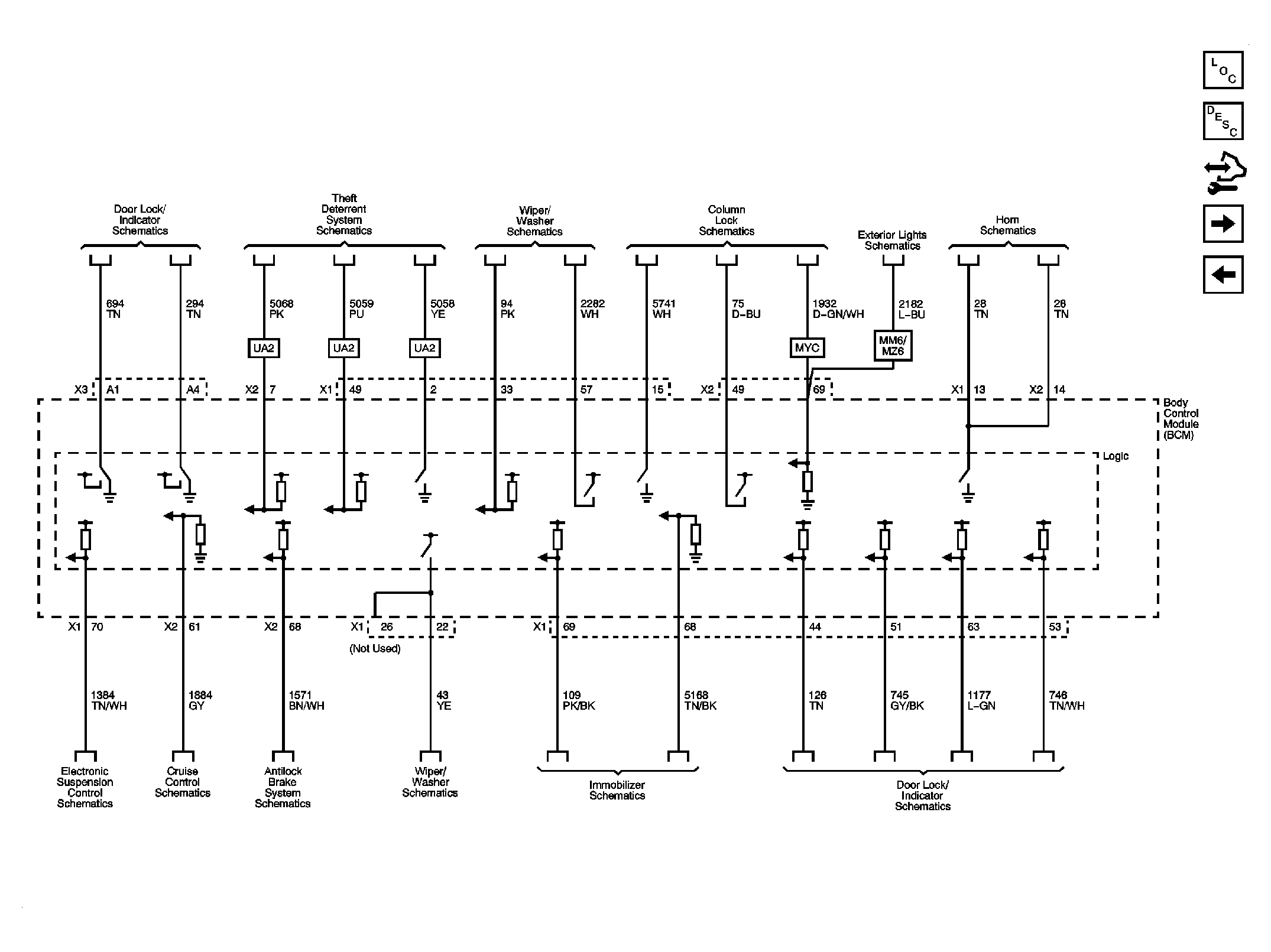

Fig 4: Subsystem References Circuit Schematic (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

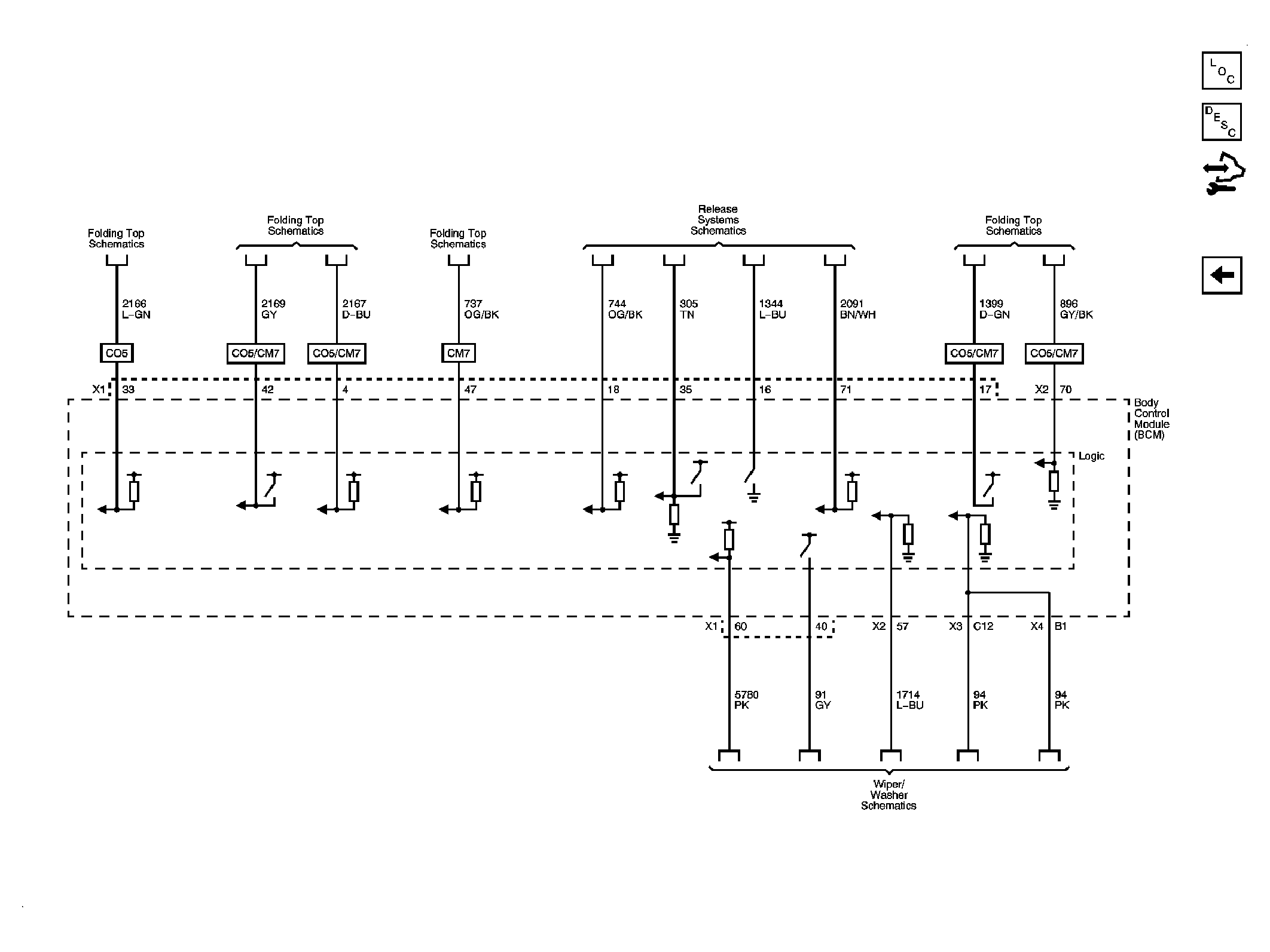

Fig 5: Subsystem References Circuit Schematic (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
