Convertible Top Switch




Component Connector End Views

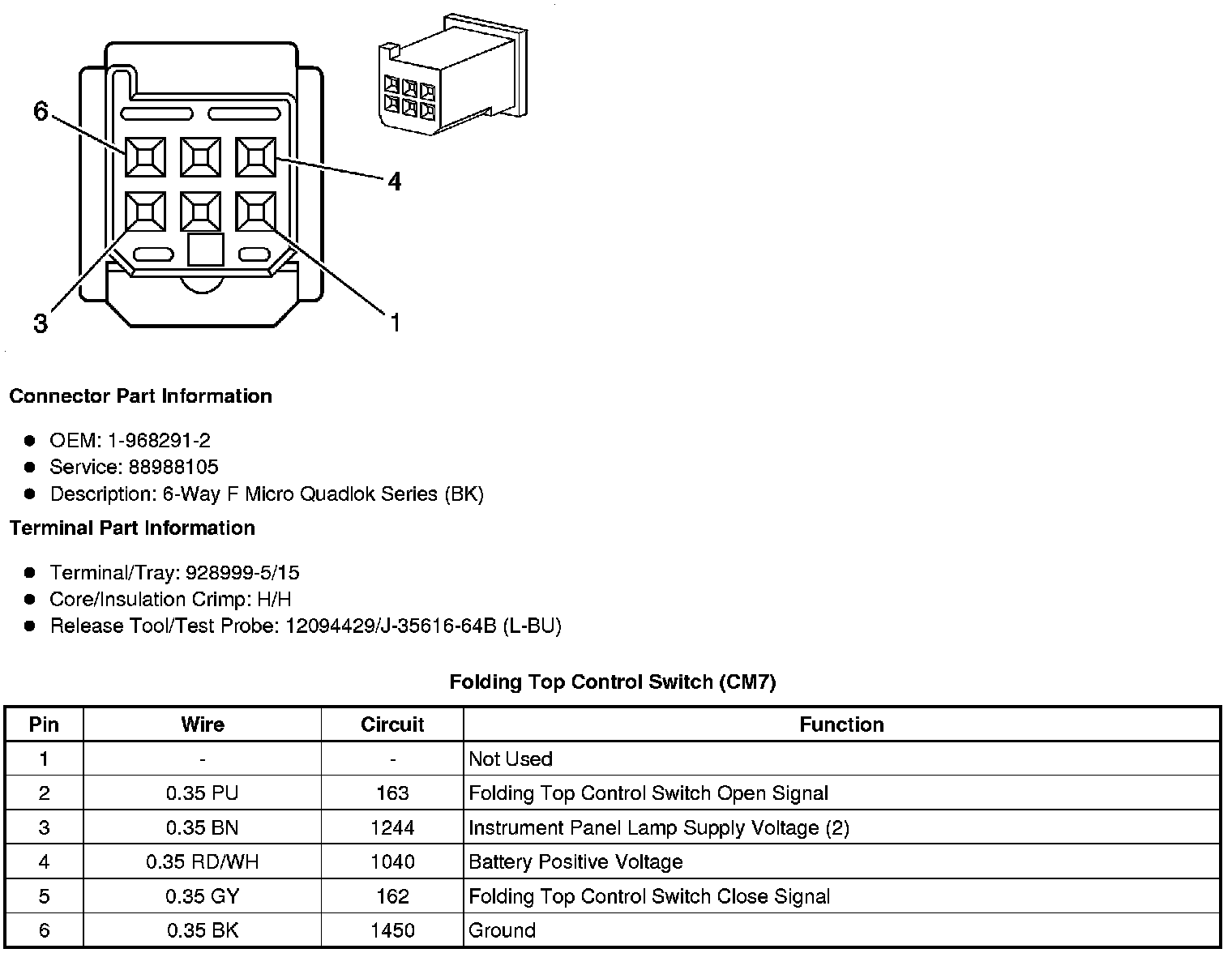

Folding Top Control Switch (CM7)






Folding Top Luggage Barrier Switch (CM7)






Folding Top Release Switch (C05)






Folding Top Stowage Compartment Lid Release Switch (CM7)
