Door Module




Component Connector End Views

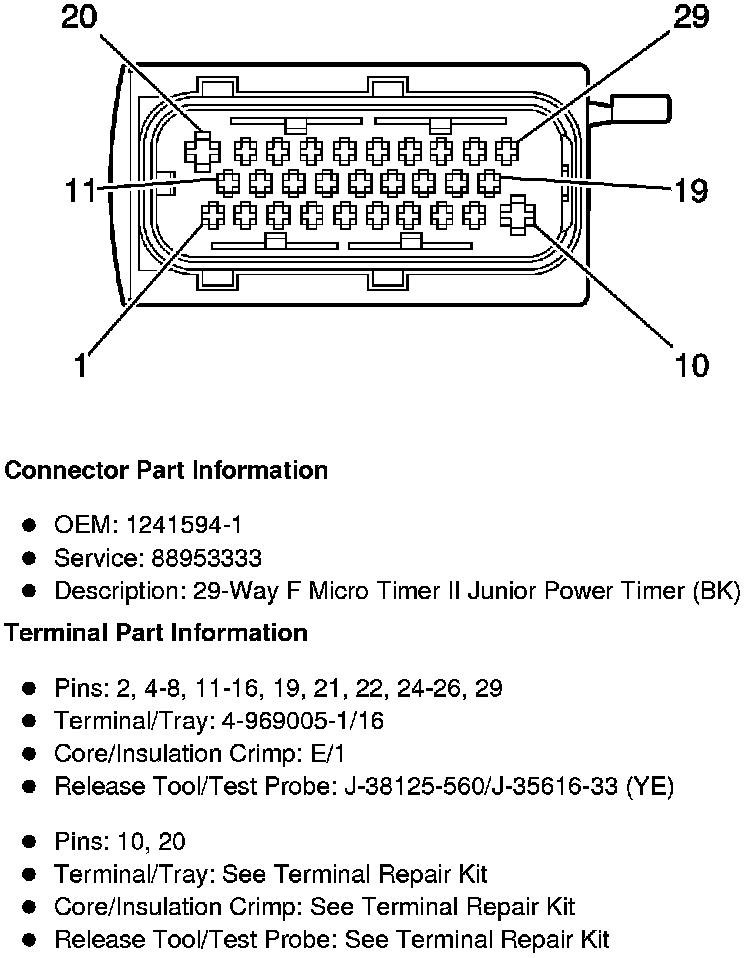

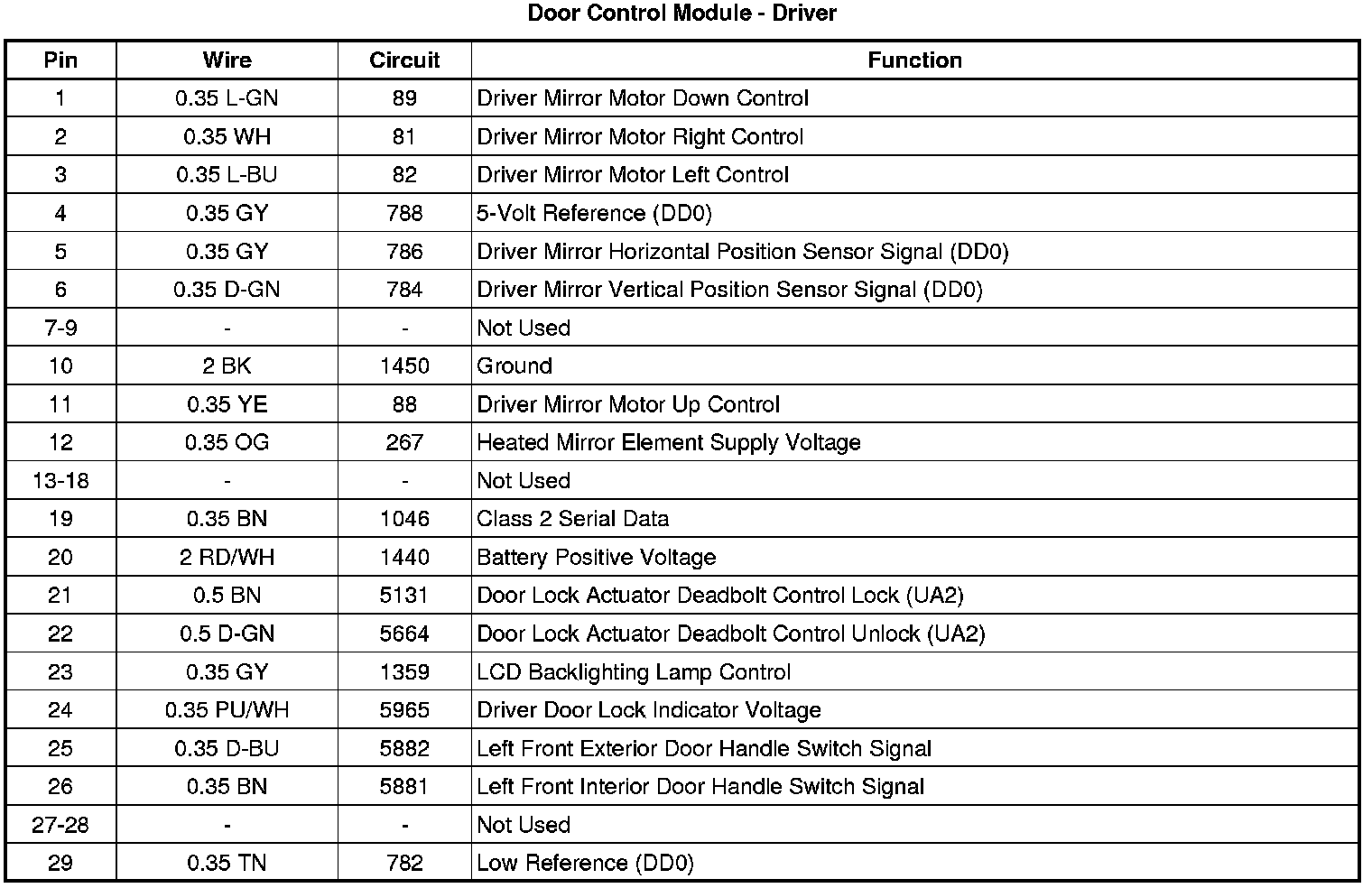

Door Control Module - Driver

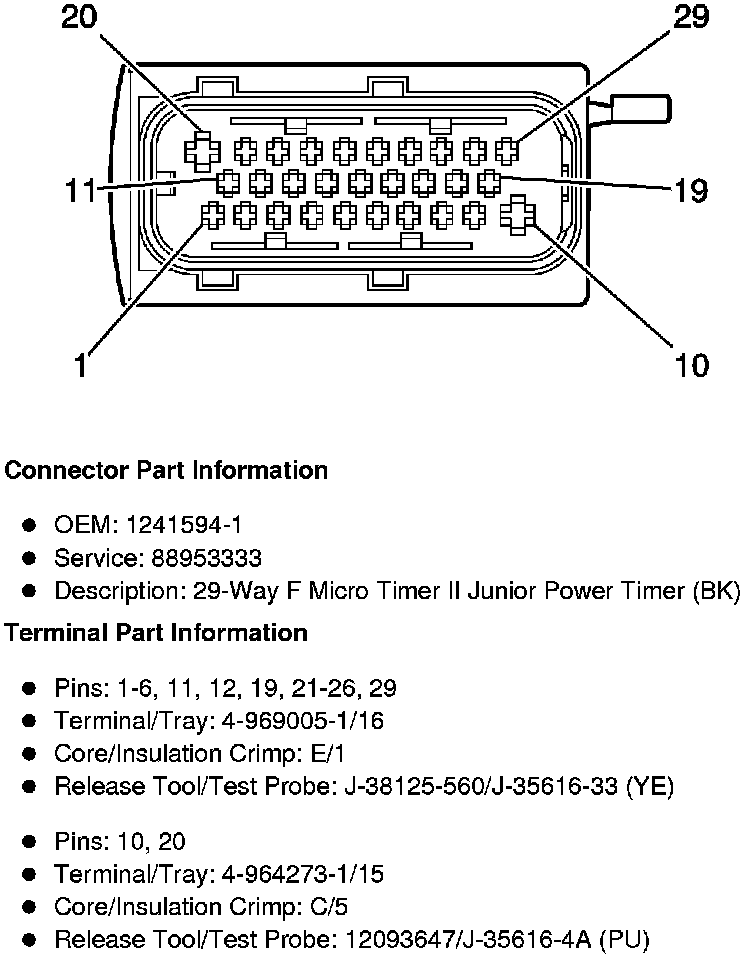

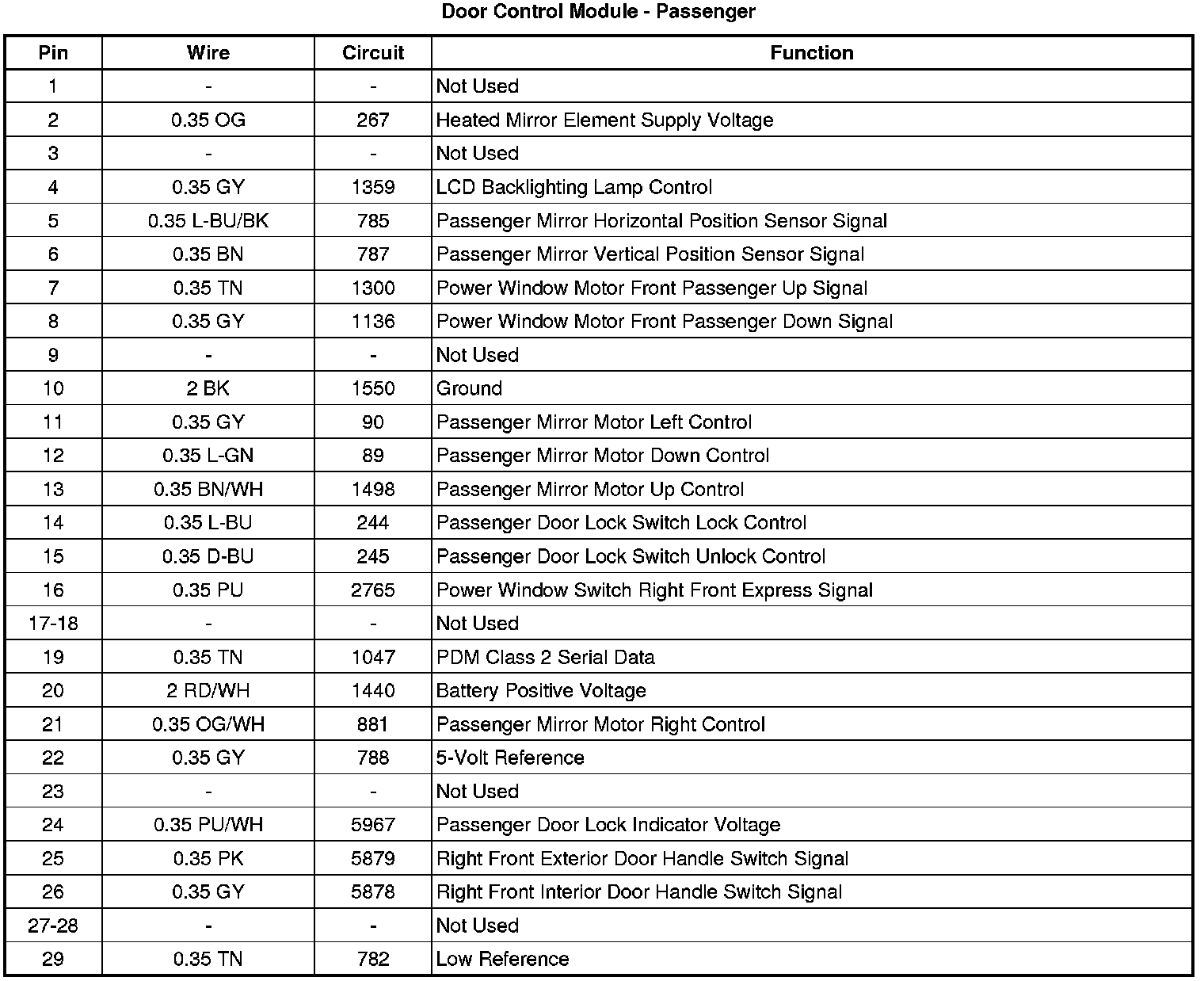

Door Control Module - Passenger
