Fuel Injector




Component Connector End Views

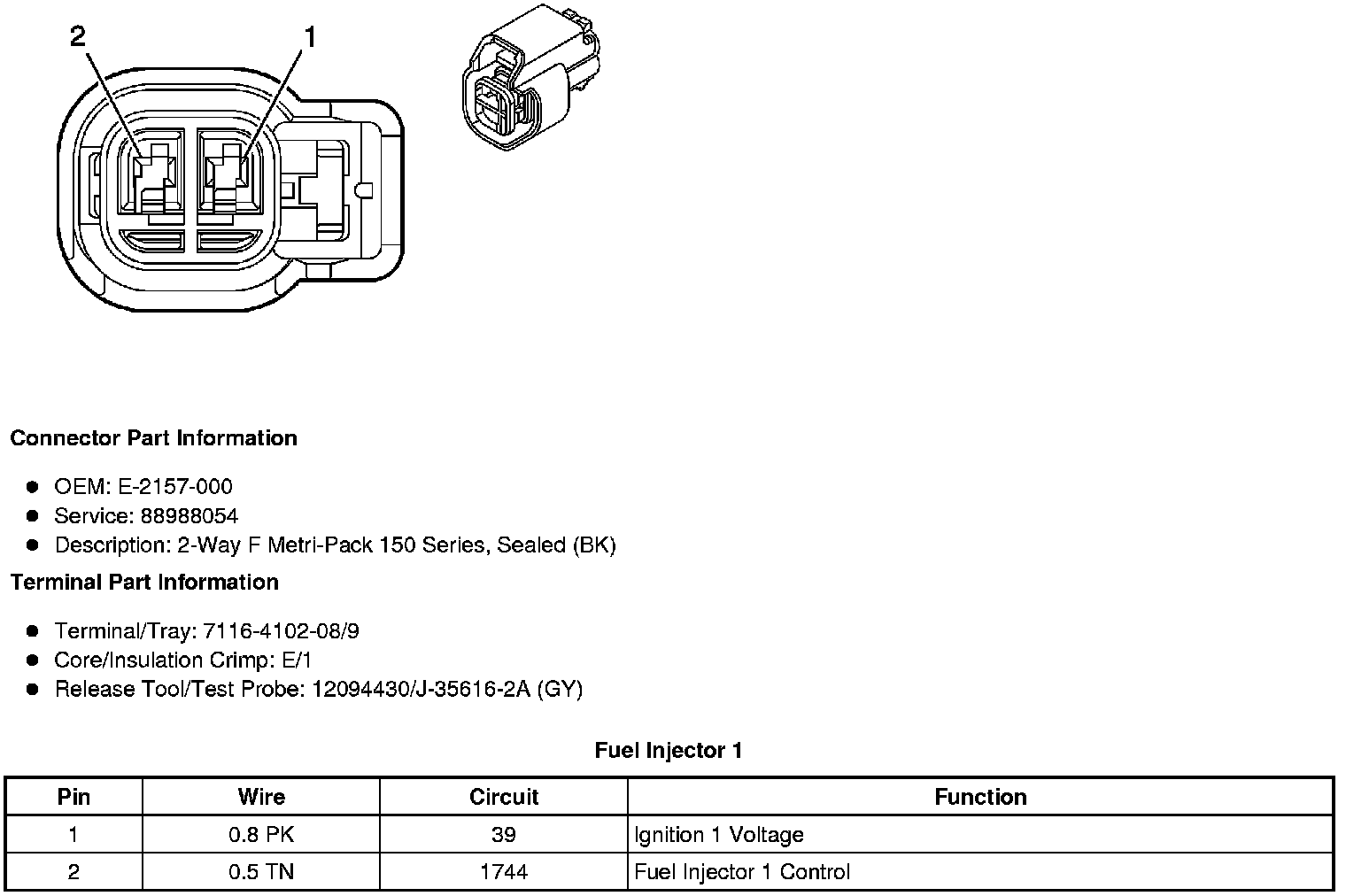

Fuel Injector 1






Fuel Injector 2






Fuel Injector 3






Fuel Injector 4






Fuel Injector 5






Fuel Injector 6






Fuel Injector 7

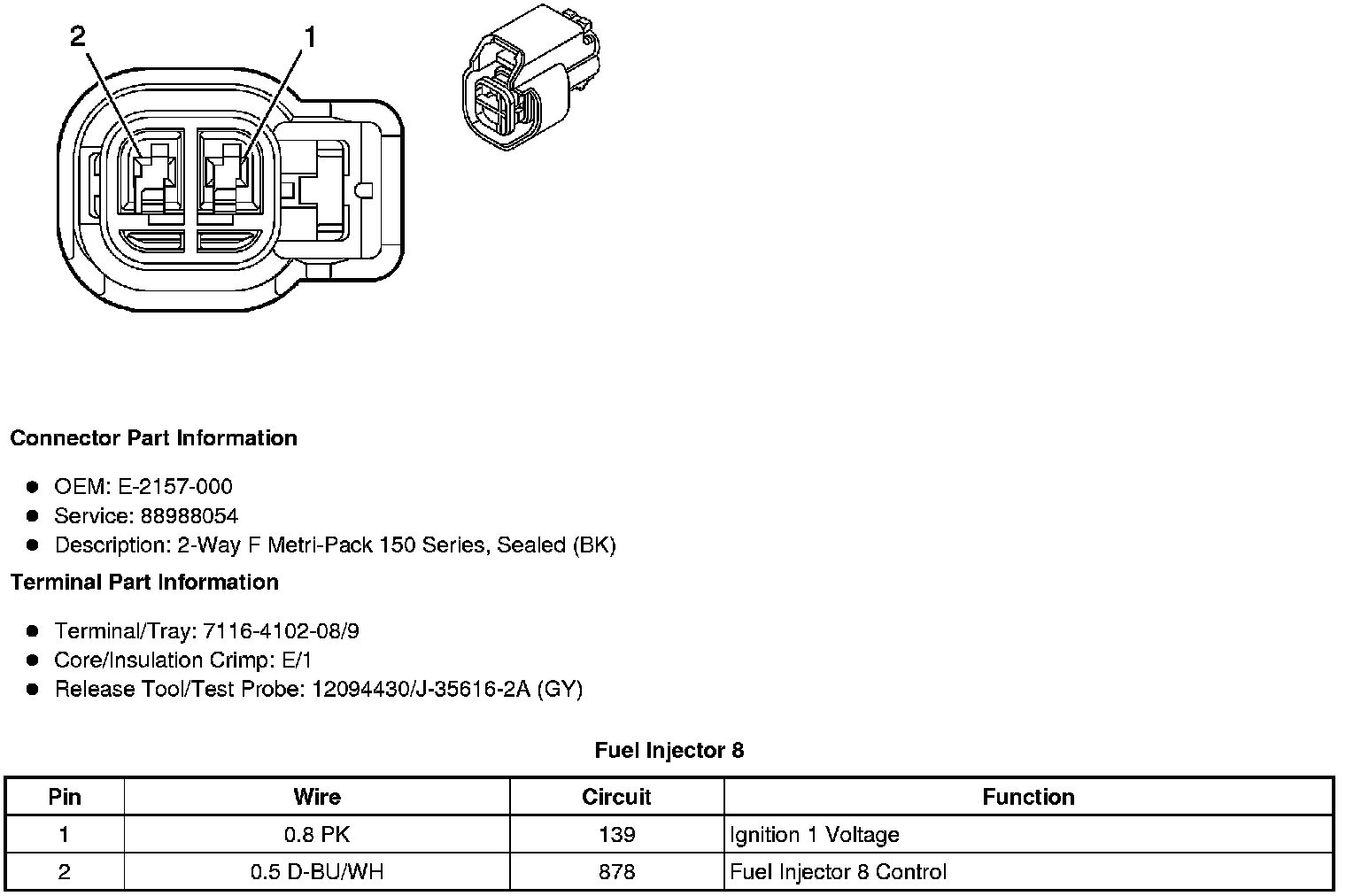

Fuel Injector 8
