Oxygen Sensor




Component Connector End Views

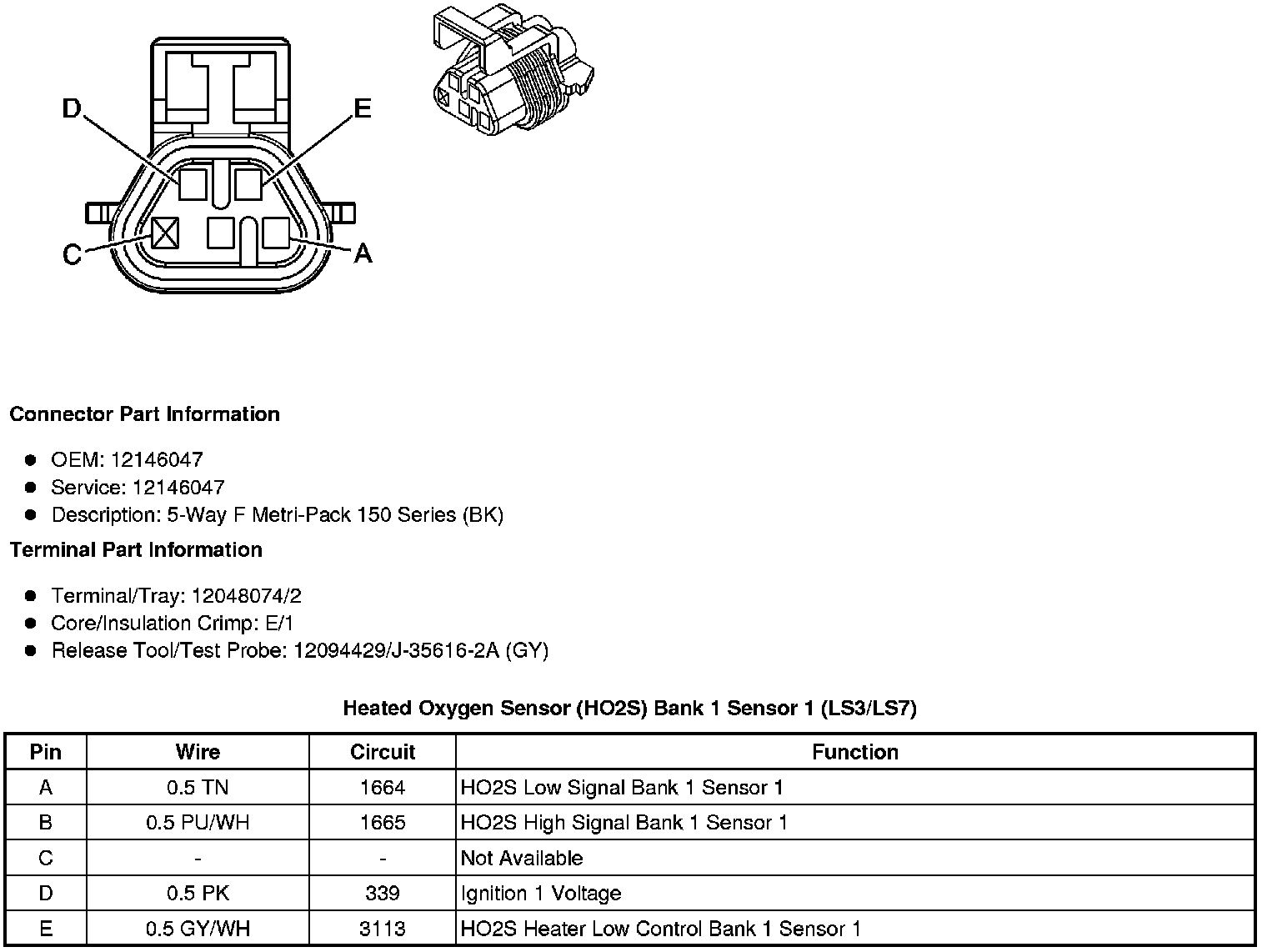

Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1 (LS3/LS7)






Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1 (LS3/LS7)

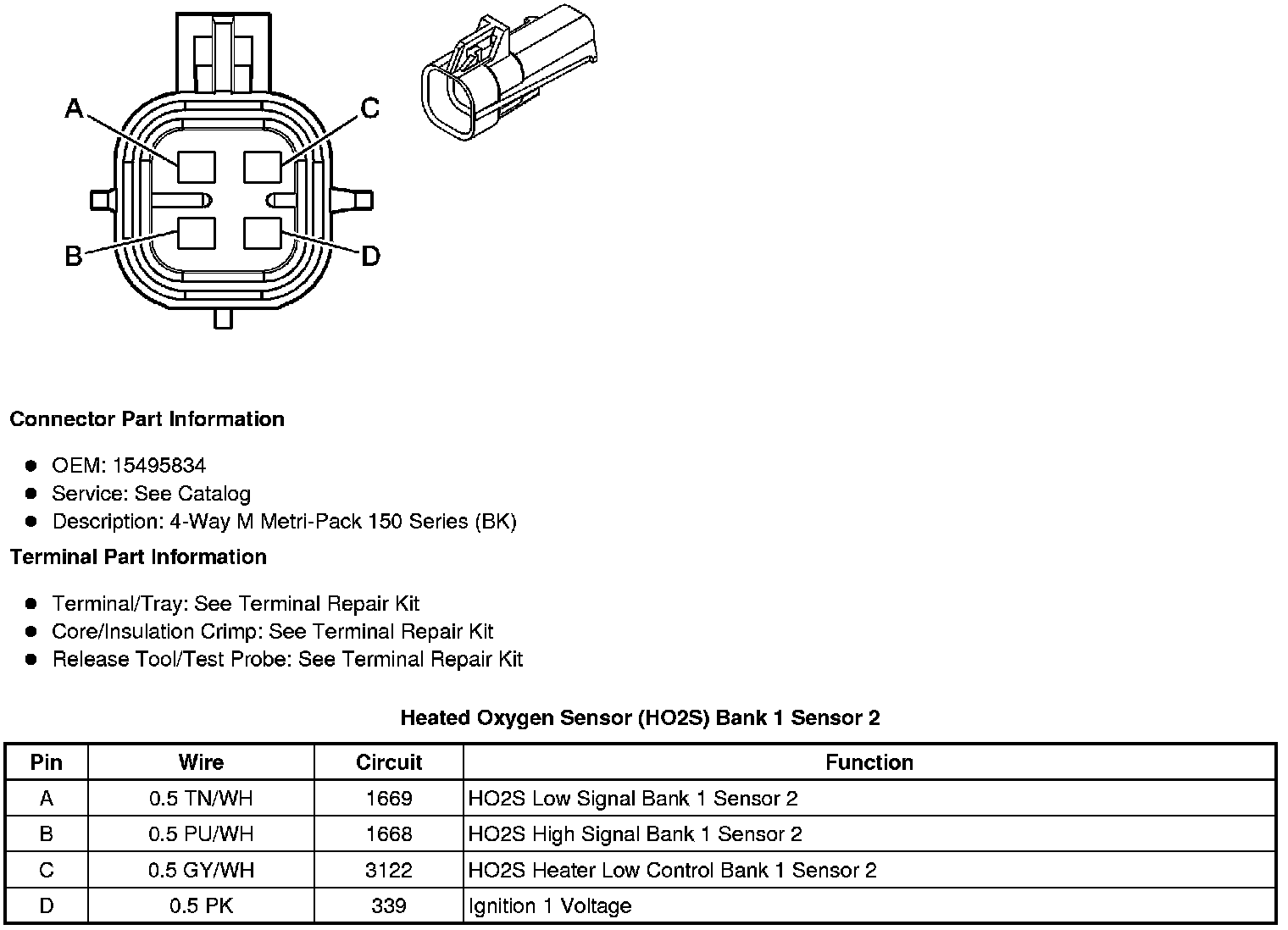

Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2

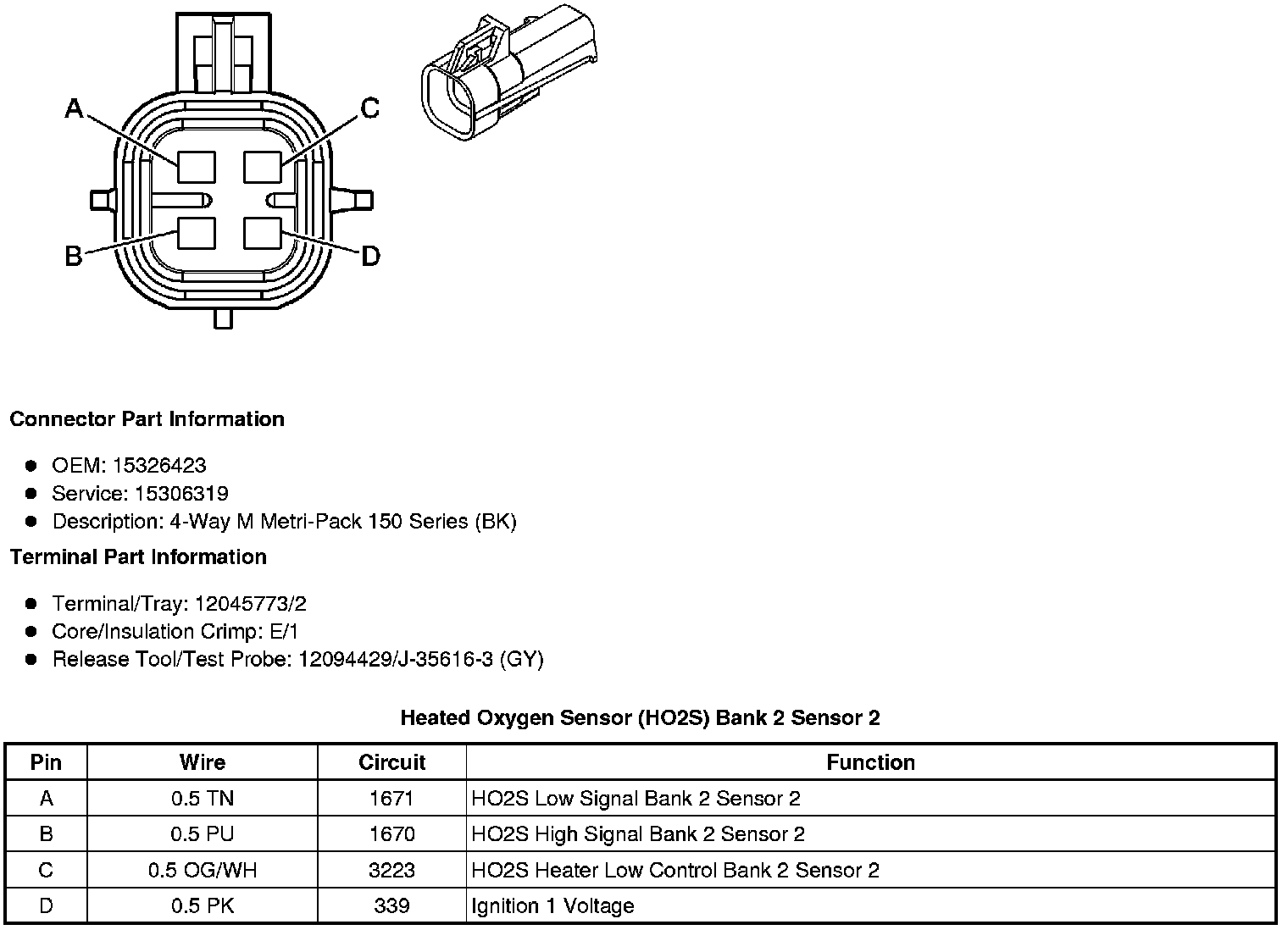

Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2
