Transmission Temperature Sensor/Switch, M/T

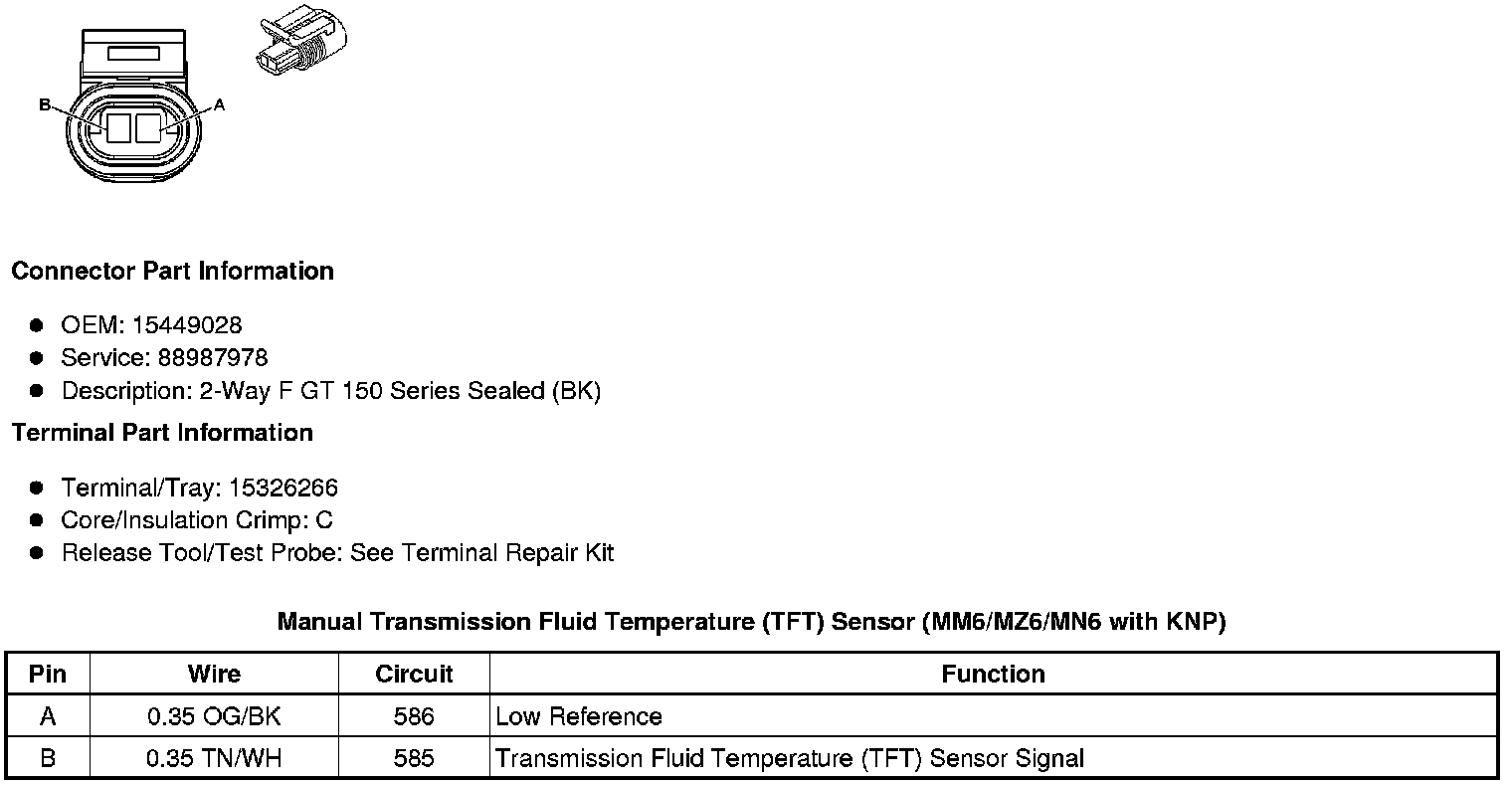

Component Connector End Views

Manual Transmission Fluid Temperature (TFT) Sensor (MM6/MZ6/MN6 with KNP)
